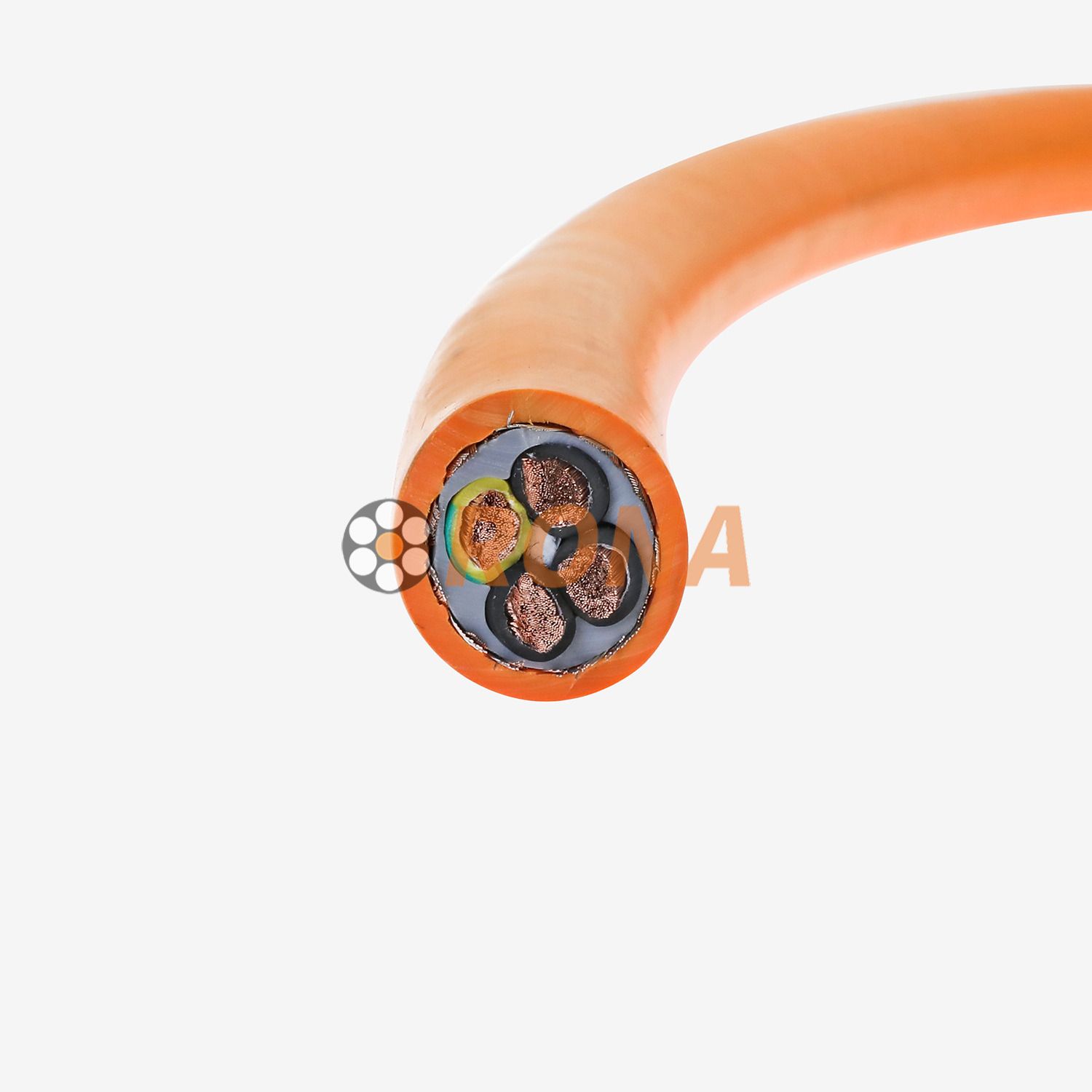

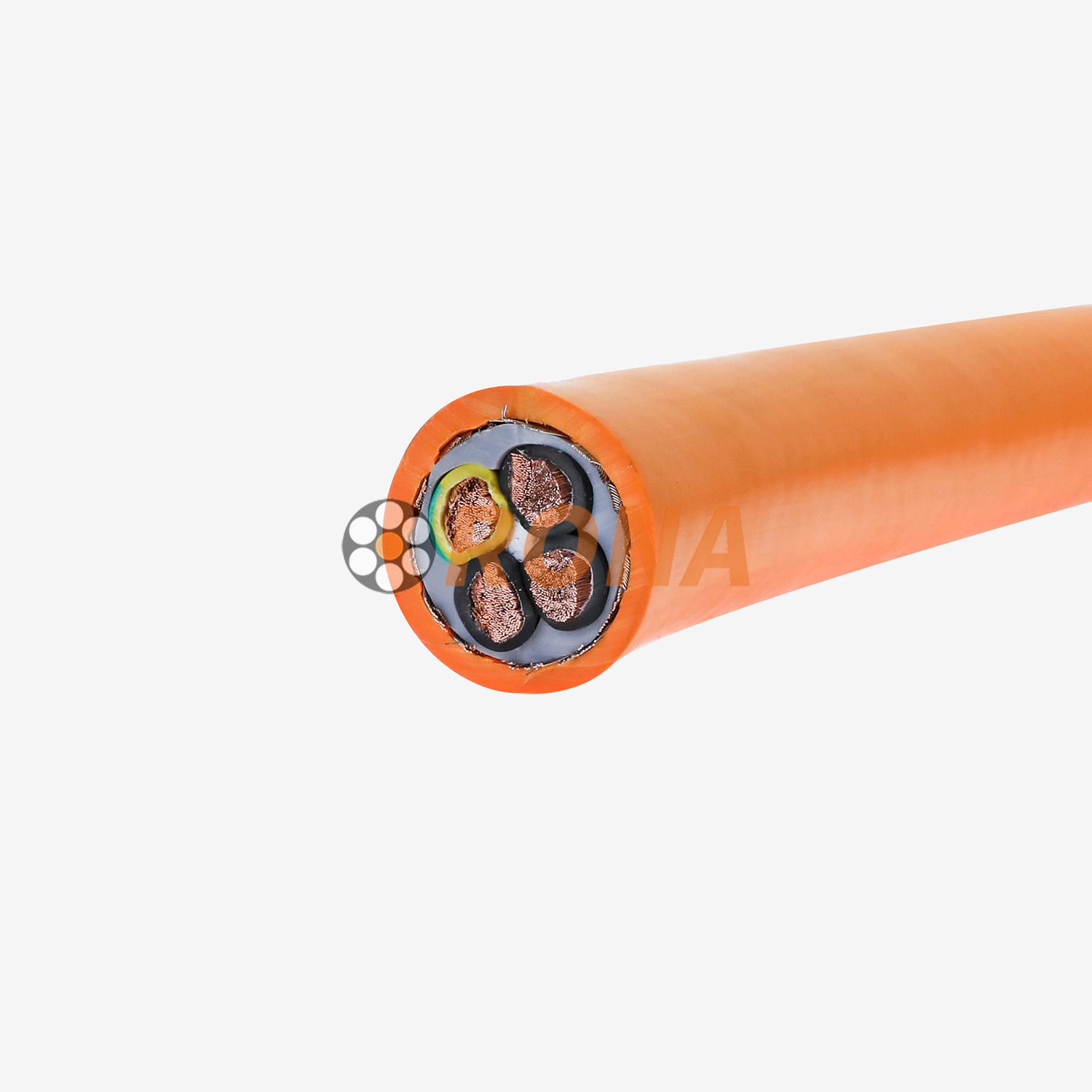

HFMVP 4G16
RONA
854449
500m
▍Chain cable overview
the Chain Power Shield Cable is a robust, intelligent cable system that empowers the seamless and reliable operation of dynamic industrial machinery. By combining mechanical resilience with electrical precision, it forms a critical backbone for the uninterrupted productivity of advanced automation.
▍Drag Chain cable features
This cable is engineered for excellence in dynamic automation, integrating several critical performance features:
Dynamic Endurance: Specifically constructed for seamless operation within cable carriers, it withstands millions of bending, twisting, and flexing cycles without performance degradation.
Integrated Power & Signal Transmission: Combines robust power conductors with dedicated control lines in a single, streamlined design, simplifying installation and ensuring synchronized operation.
Advanced EMI/RFI Shielding: A multi-layer shield, typically comprising both foil and braid, effectively neutralizes electromagnetic and radio frequency interference, guaranteeing signal integrity for sensitive control data.
Superior Flexibility: Utilizes finely-stranded conductors and specially formulated insulation materials that allow for tight bending radii and smooth, continuous movement in high-cycle applications.
Rugged Environmental Resistance: The outer jacket is engineered to resist common industrial hazards including oils, coolants, abrasion, moisture, and a wide range of temperatures, ensuring long-term reliability.
▍Structural Material
Name | PVC Drag Chain Cables |
Conductor | Top brand copper materials |
Insulation | High-elasticity PVC compound |
Sheath | Abrasion-resistant PVC |
Outer jacket color | Black/Grey/Orange |
▍Specification
Item | Value |
Voltage | 0.6/1KV |
Temperature Range | Fixed installation: -20℃~70℃ Moving installation: -15℃~70℃ |
Minimum bend radius | Fixed installation: 5x cable outside diameter Moving installation: 7.5x cable outside diameter |
Maximum mobile speed | Unsupported speed: 3m/s Gliding speed: 2m/s Acceleration: 20m/s² |
Weather resistance | UV resistant,suitable Indoor use |
▍Application
This cable is engineered for dynamic environments, delivering reliable power and protected signal transmission across critical automation sectors.
Industrial Robotics: Serves as the essential link for powering and controlling articulated arms, end-effectors, and mobile platforms in assembly, welding, and handling applications.
Machine Tools & CNC Equipment: Ensures precise operation by providing stable power and noise-free signal communication to spindles, tool changers, axis drives, and moving components.
Automated Material Handling Systems: Enables continuous operation in conveyor lines, automated storage/retrieval systems (AS/RS), sorting mechanisms, and autonomous mobile robots (AMRs).
Packaging & Processing Machinery: Maintains consistent performance in high-speed filling, labeling, palletizing, and sealing equipment with moving parts.
Industrial Lifting & Transfer: Delivers dependable power and control signals to overhead cranes, hoists, and gantry systems within manufacturing and logistics facilities.
Wherever high-flexibility cables are essential for moving equipment within cable carriers (drag chains), our HF cables provide the resilience needed for smooth, uninterrupted operation.
