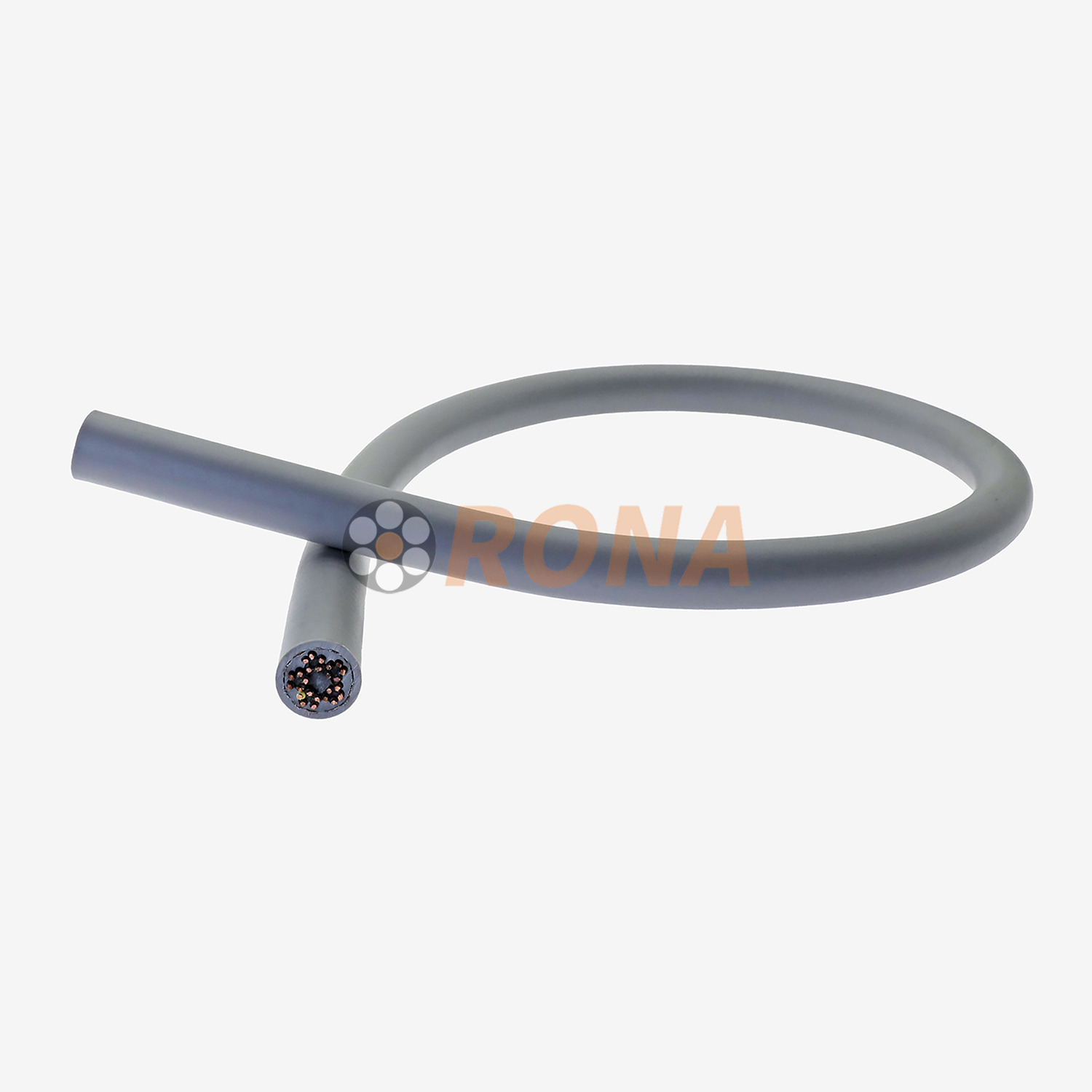

HFVP 25G0.75
RONA
85444929
Our PVC Drag Chain Cable is a highly flexible cable engineered for reliable performance in automated, moving applications. Its robust PVC construction ensures durability and continuous operation within cable carriers (drag chains) and other moving parts of machinery.

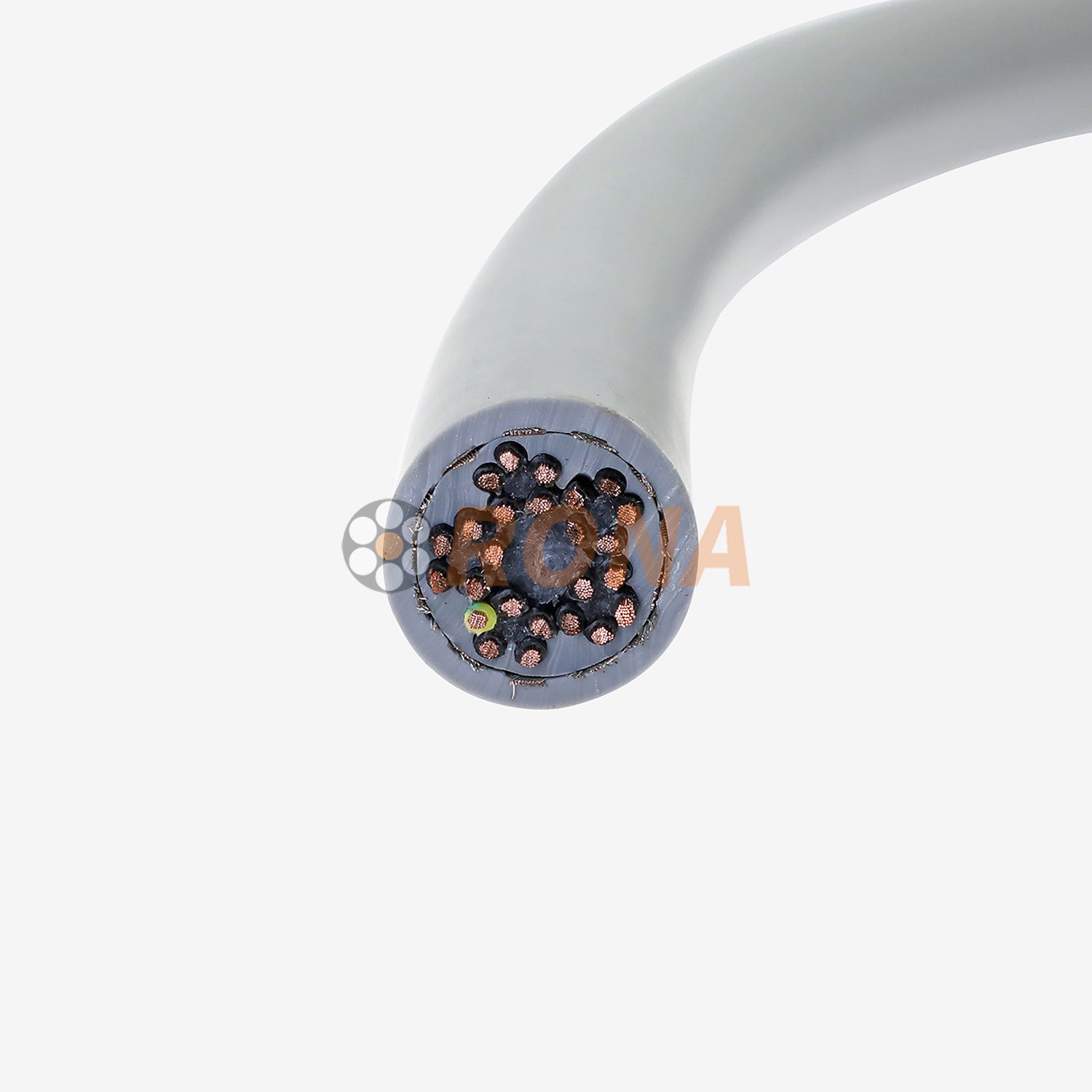

▍Structural Material
Conductor: Fine-stranded bare copper wires or tinned copper (DIN EN 60228, Class 5/6).
Insulation: Each core is insulated with Polyvinylchloride (PVC).
Binding: A fine cotton binding is applied over the assembled cores.
Sheath: A tough, grey or black outer sheath made of PVC.
▍Specification
Item | Value |
Voltage | 300/500V |
Temperature Range | Fixed installation: -20℃~70℃ Moving installation: -15℃~70℃ |
Minimum bend radius | Fixed installation: 5x cable outside diameter Moving installation: 7.5x cable outside diameter |
Maximum mobile speed | Unsupported speed: 3m/s Gliding speed: 2m/s Acceleration: 20m/s² |
Weather resistance | UV resistant,suitable Indoor use |
Certificate | CE & EAC |
▍Applications
Moving machine parts and industrial robots
Automated production and assembly lines
Machine tools, woodworking, and packaging machinery
Cable drag chains and automation systems
Wherever high-flexibility cables are essential for moving equipment within cable carriers (drag chains), our HF cables provide the resilience needed for smooth, uninterrupted operation.
