HFV 16G1
RONA
85444929

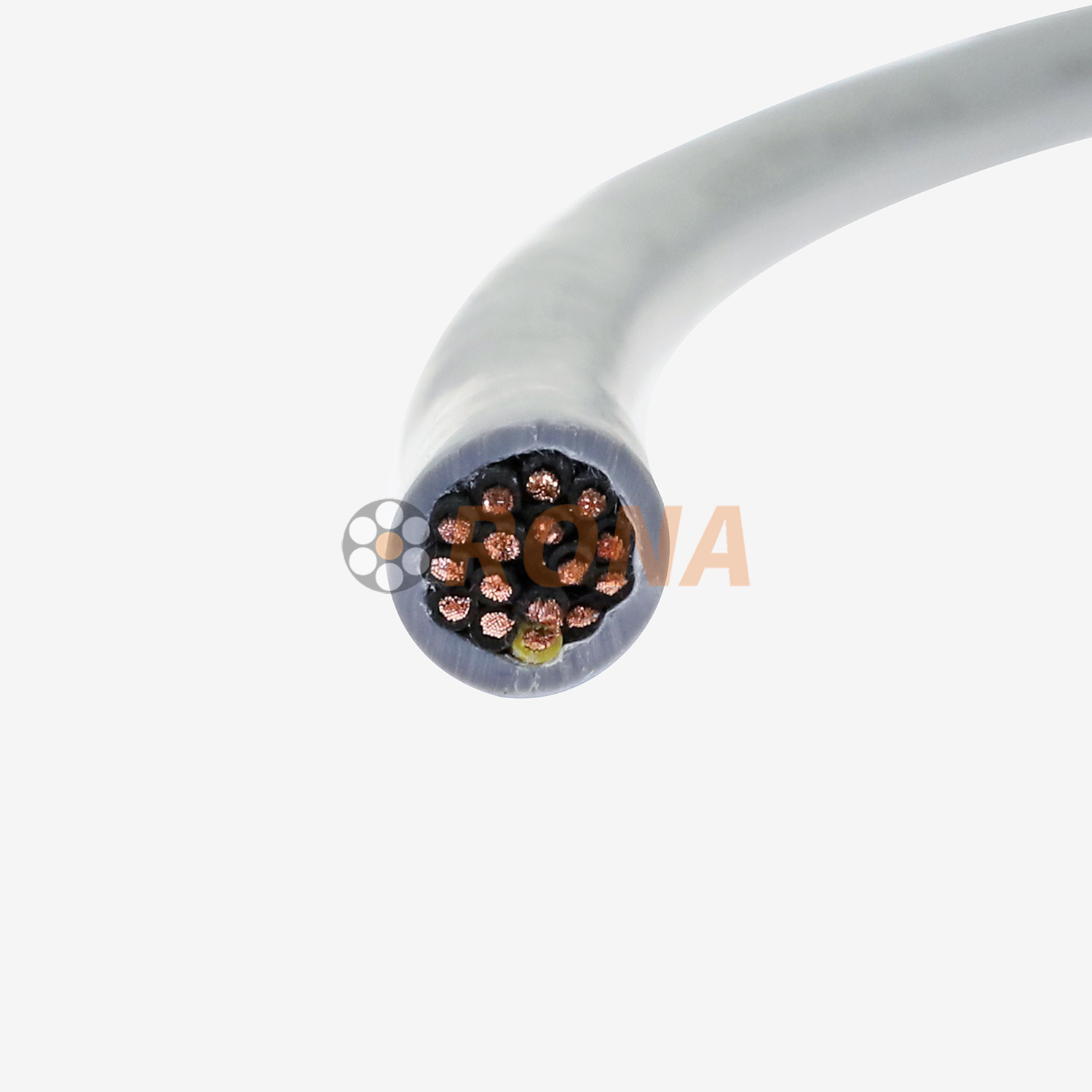

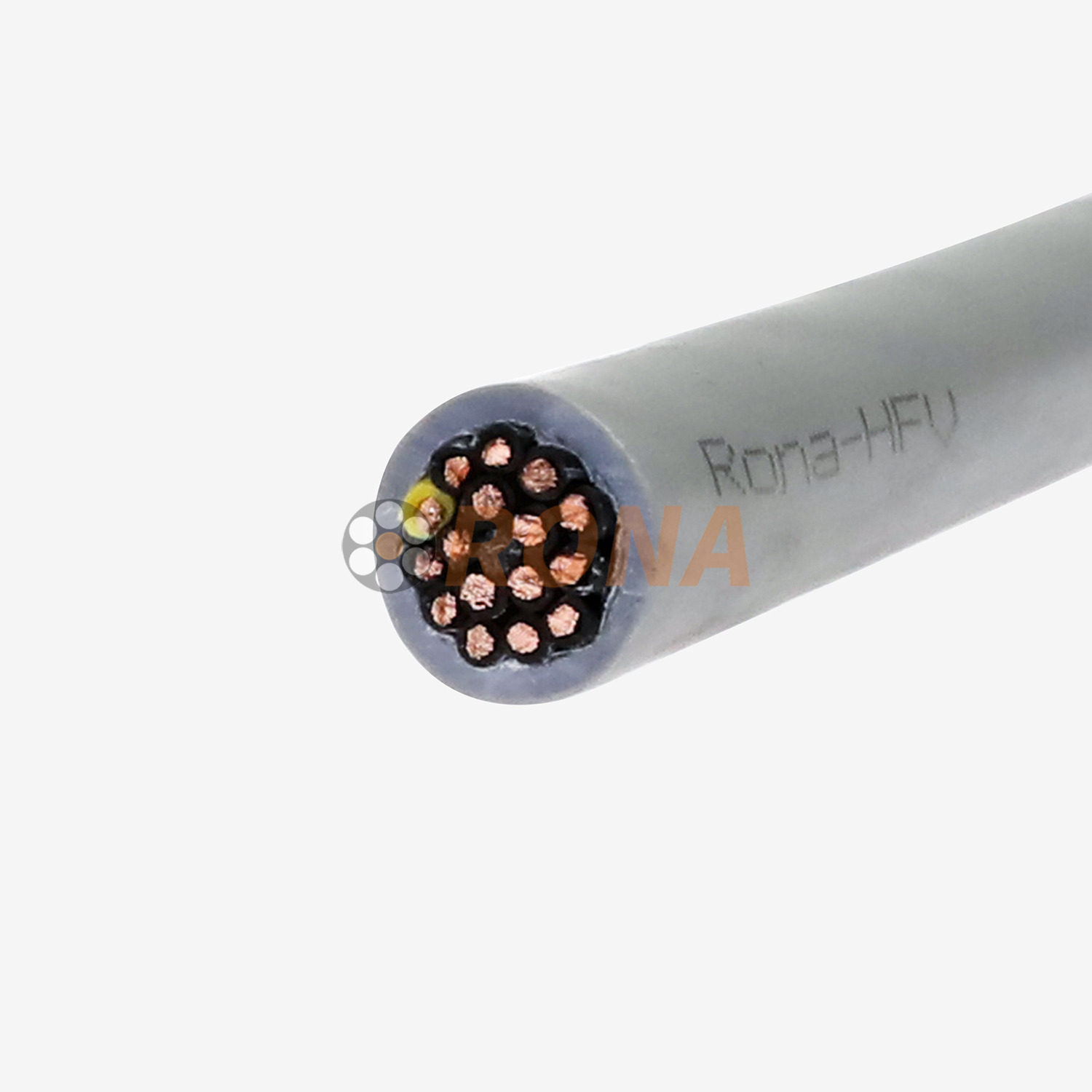

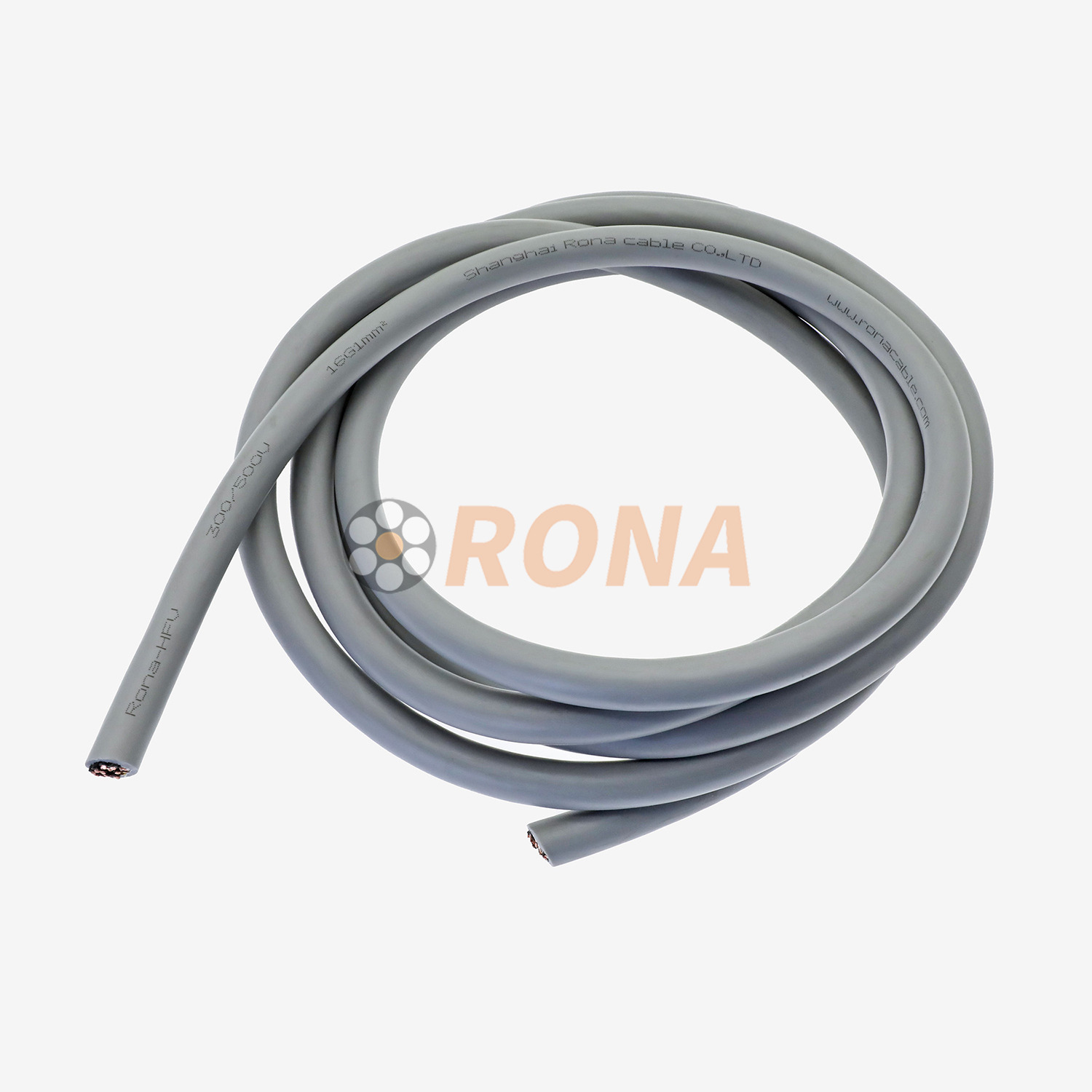

• PVC Drag Chain Cables:
Construction:
Conductor: Fine-stranded oxygen-free copper (Class 6 per IEC 60228)
Insulation: High-elasticity PVC compound
Sheath: Abrasion-resistant PVC with low smoke zero halogen (LSZH) option
Technical Parameters:
▍Structural Material
Name | PVC Drag Chain Cables |
Conductor | Top brand copper materials |
Insulation | High-elasticity PVC compound |
Sheath | Abrasion-resistant PVC |
Outer jacket color | Black/Grey/Orange |
▍Specification
Item | Value |
Voltage | 300/500V |
Temperature Range | Fixed installation: -20℃~70℃ Moving installation: -15℃~70℃ |
Minimum bend radius | Fixed installation: 5x cable outside diameter Moving installation: 7.5x cable outside diameter |
Maximum mobile speed | Unsupported speed: 3m/s Gliding speed: 2m/s Acceleration: 20m/s² |
Weather resistance | UV resistant,suitable Indoor use |
Certificate | CE/CCC/ISO9001/ISO14001 /OHSAS18001 |
▍Widely used in:
Machine Tools (CNC, Roll Grinders, Large Gantry Machines)
Automated Cutting & Processing Systems (Laser Cutters, Routers, Stone Cutters, Woodworking, Engravers, Glass Machinery)
Industrial Automation (Robotic 7th Axis, Non-Standard Automation Cells, Production Lines - Automotive, Appliance)
Specialized Equipment (Inkjet/Printers, 3D Parking Garages, Car Washes, Electroplating Lines)
Wherever high-flexibility cables are essential for moving equipment within cable carriers (drag chains), our HF cables provide the resilience needed for smooth, uninterrupted operation.
