HFVSPS 4G2.5+2×2×0.5
RONA
854449
500m

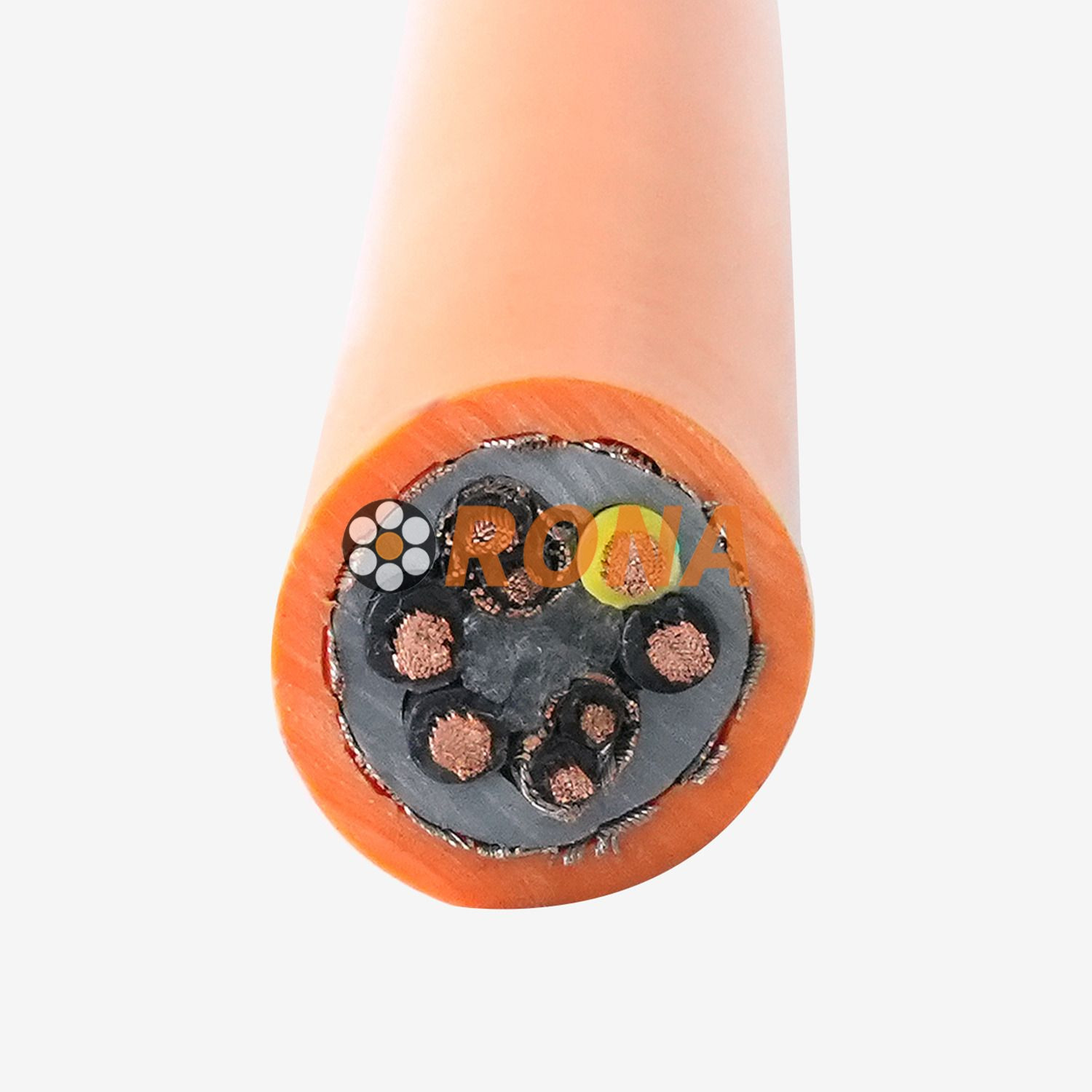

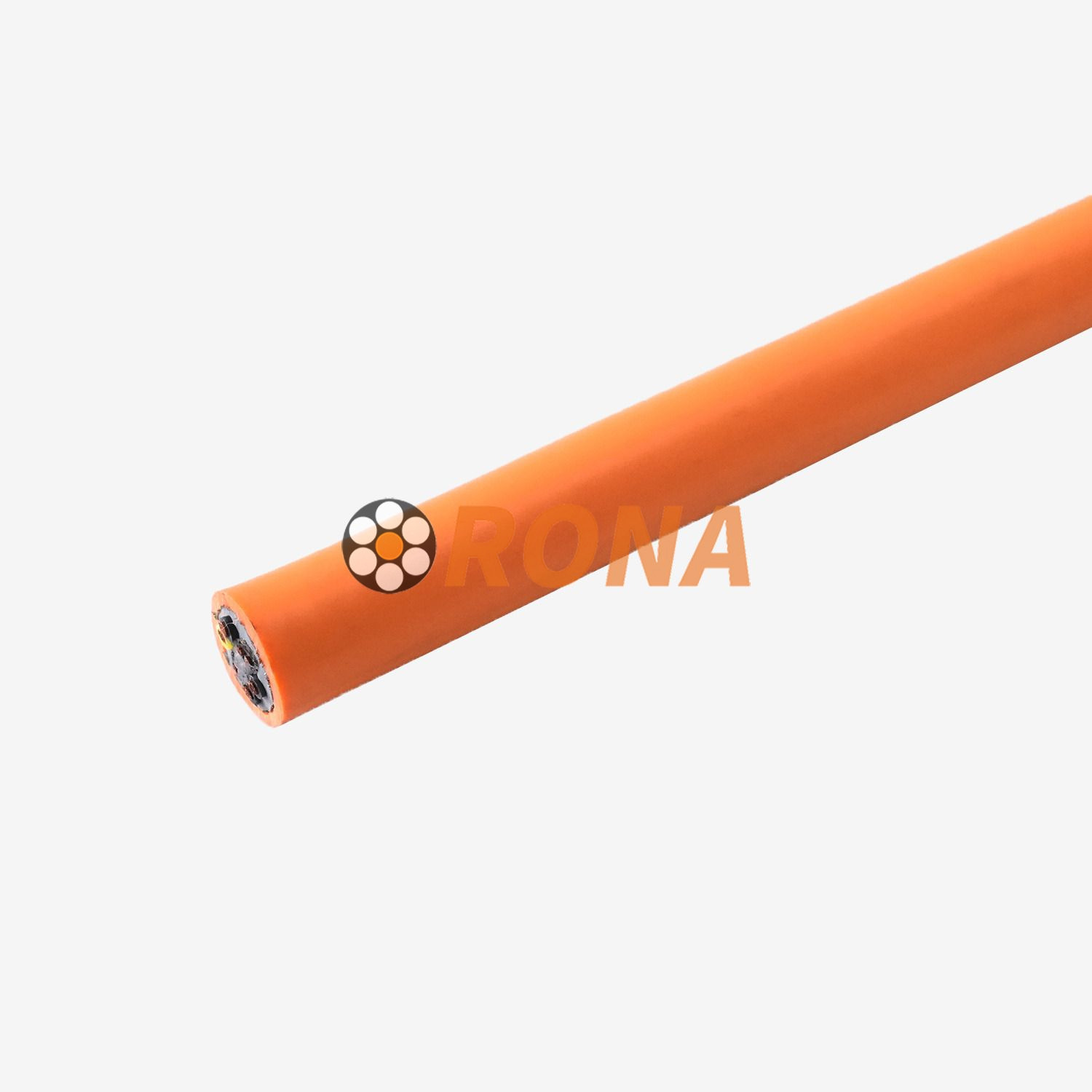

The RONA HFVSPS Shielded PVC Servo Motor Cable is a precision-engineered motion control solution designed exclusively for dynamic industrial automation systems. As a leading 300/500V servo cable and 0.6/1kV servo motor cable option, it addresses the critical challenges of high-frequency movement, electromagnetic interference, and long-term durability in demanding production environments. Built with multi-stranded fine copper conductors and robust PVC insulation, this flexible servo cable for drag chains delivers consistent power and signal transmission, ensuring precise motor control and minimizing unplanned downtime for equipment manufacturers and system integrators. Its optimized construction makes it ideal for continuous motion applications where cable fatigue and signal degradation are common pain points.
Ultra-Flexible Construction for Extended Service Life: Featuring multi-stranded fine copper conductors, this torsion resistant servo cable withstands millions of bending cycles without performance loss. It supports a maximum gliding speed of 2m/s and acceleration of 20m/s², making it perfectly suited for high-speed drag chain operations.
Superior EMI/RFI Shielding: Integrated braided or spiral shielding effectively blocks electromagnetic and radio frequency interference, preserving signal integrity for accurate servo motor control. This EMI shielded servo cable eliminates signal distortion and ensures consistent motion precision in complex industrial setups.
Industrial-Grade Durability: The abrasion-resistant PVC outer jacket provides excellent oil resistant servo motor cable performance, protecting against lubricants, chemicals, and mechanical wear common in factory floors. It also offers basic UV resistance for indoor use.
Torsion-Resistant Design: Optimized stranding and layering prevent cable twisting under rotational and linear motion stress, reducing cable damage and extending replacement intervals.
Wide Operating Temperature Range: Delivers stable performance from -20°C to +70°C for fixed installations and -15°C to +70°C for moving installations, adapting to diverse industrial temperature conditions.
Item | Parameter |
Model | HFVSPS 4G2.5+2×2×0.5 |
Rated Voltage | 300/500V, 0.6/1kV |
Conductor Material | Top-grade copper |
Insulation Material | High-elasticity PVC compound |
Sheath Material | Abrasion-resistant PVC |
Outer Jacket Color | Black, Grey, Orange |
Fixed Installation Temperature | -20°C to +70°C |
Moving Installation Temperature | -15°C to +70°C |
Minimum Bend Radius (Fixed) | 5× cable outside diameter |
Minimum Bend Radius (Moving) | 7.5× cable outside diameter |
Maximum Unsupported Speed | 3m/s |
Maximum Gliding Speed | 2m/s |
Maximum Acceleration | 20m/s² |
Certifications | CE, CCC, ISO9001, ISO14001, OHSAS18001 |
This Shielded PVC Servo Motor Cable is the preferred choice for a wide range of industrial motion control applications:
Industrial robots and collaborative robots (cobots)
Servo motors and drive systems
High-speed CNC machining equipment
Automated packaging machinery
Automated guided vehicles (AGVs) and material handling systems
Any application requiring high-flexibility cables for drag chain installations
When installed correctly within the specified bend radius and speed limits, the HFVSPS cable can withstand over 5 million bending cycles, significantly reducing maintenance and replacement costs.
The cable offers basic UV resistance and is primarily designed for indoor industrial environments. For prolonged outdoor exposure, we recommend our PUR-sheathed servo cable variants.
Yes, we provide custom conductor sizes, core configurations, and jacket colors to meet specific project requirements. Contact our engineering team for tailored solutions.
Absolutely. It holds CE, CCC, ISO9001, ISO14001, and OHSAS18001 certifications, ensuring compliance with global industrial safety and quality standards.
