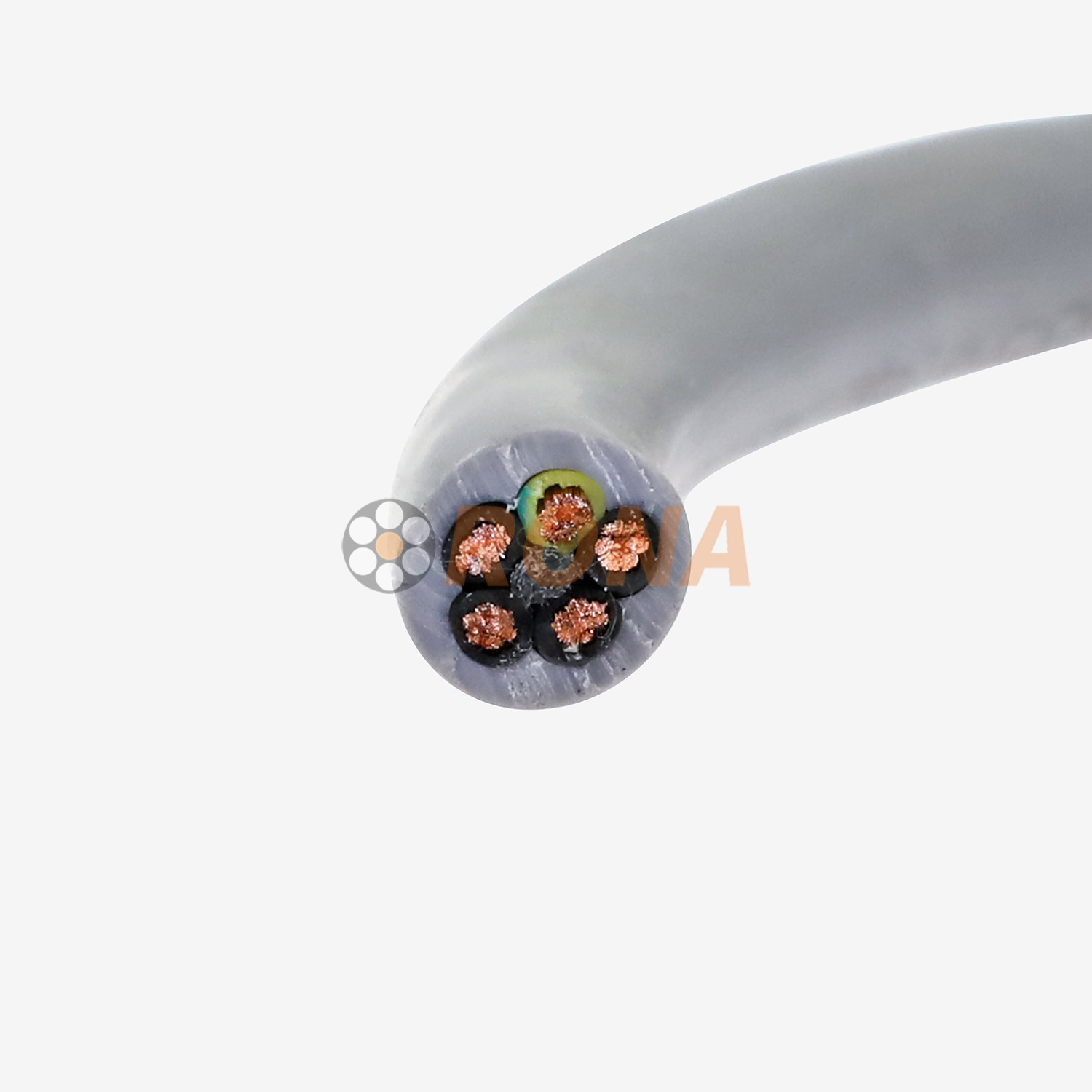

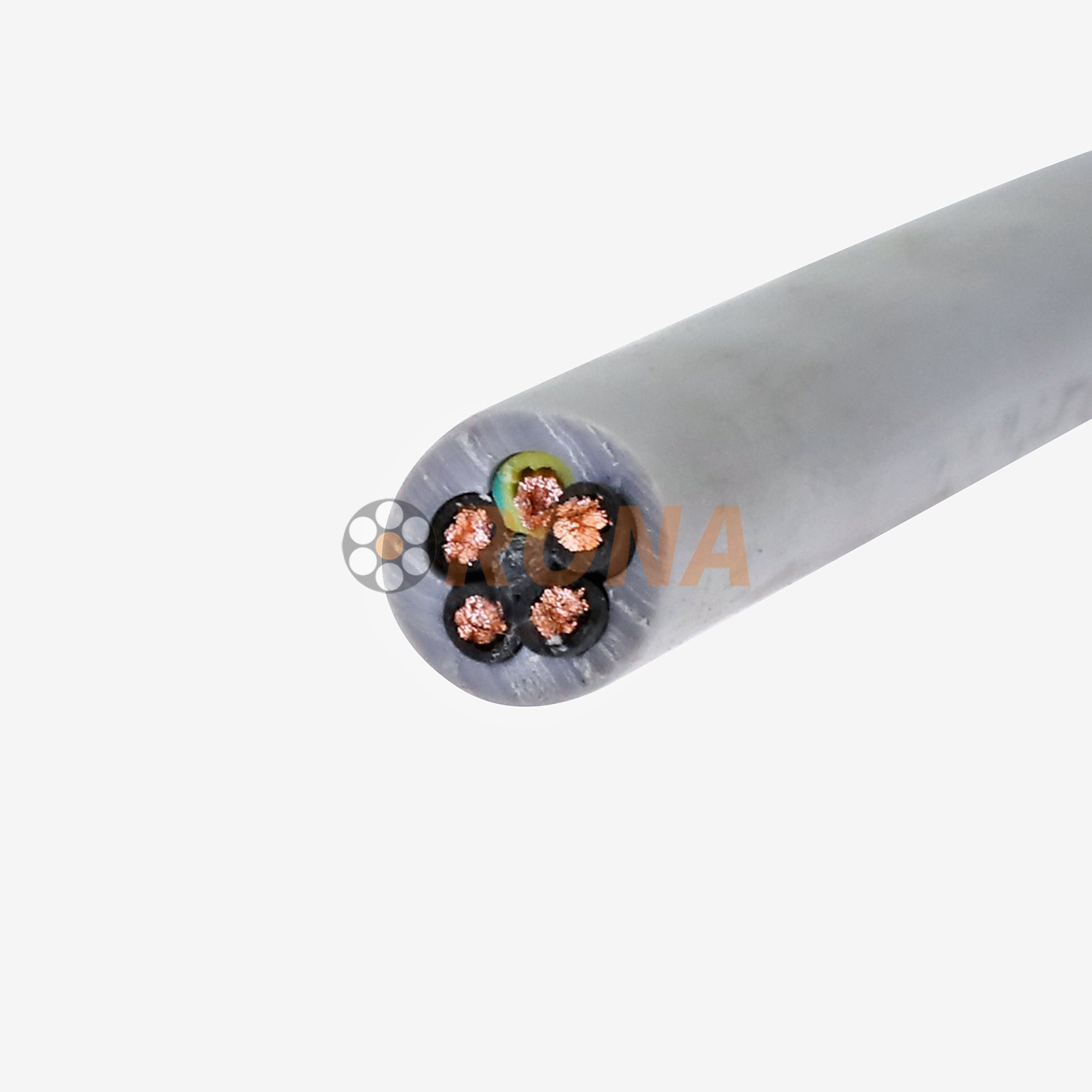

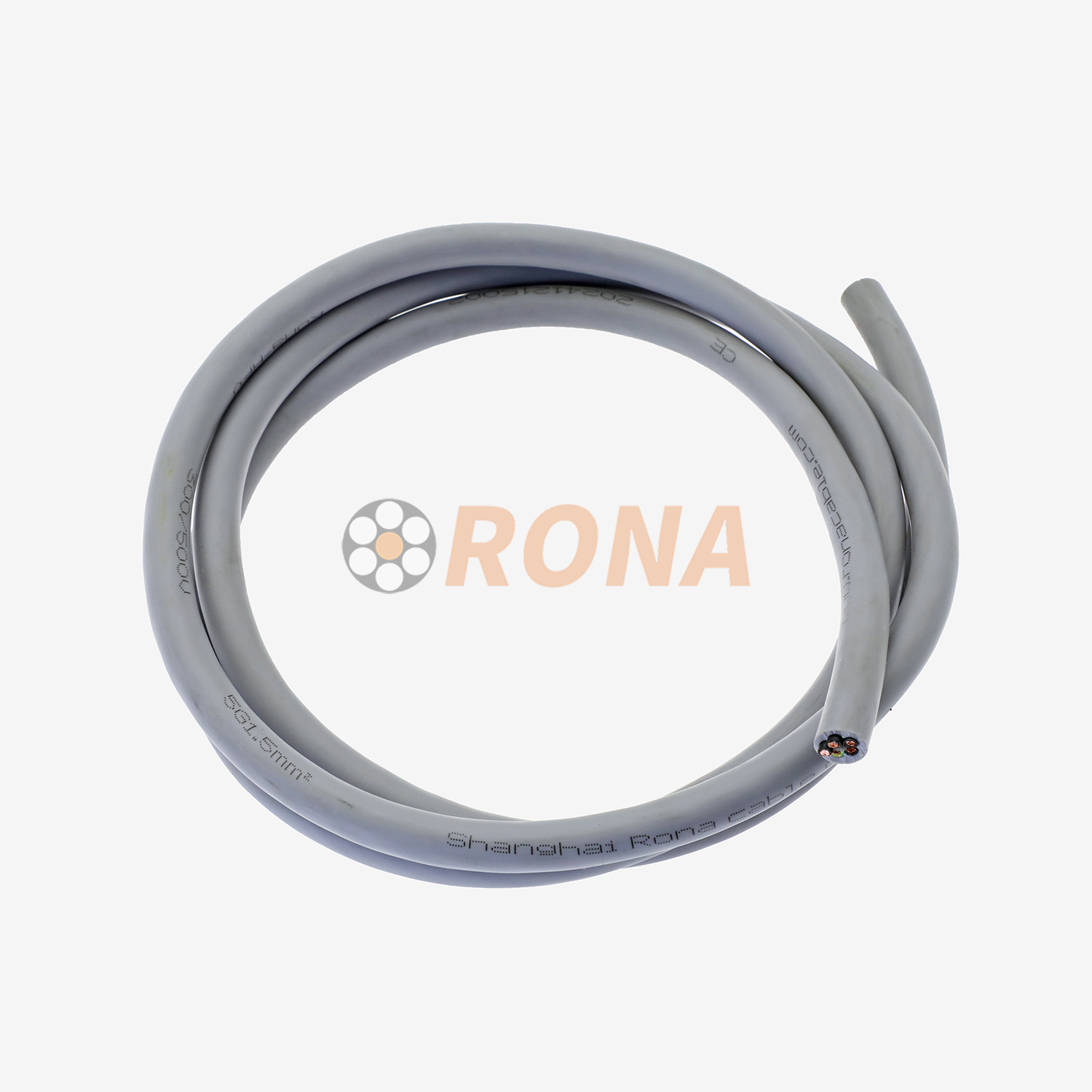

HFV 5G1.5
RONA
85444929
Introduction
Engineered for continuous motion in cable carriers, PVC Drag Chain Cables provide reliable power and signal transmission in automated systems. Their flexible PVC outer jacket ensures superior resistance to abrasion, oils, and mechanical stress, making them ideal for high-movement environments like CNC machines, robotics, and industrial automation.
Key Characteristics:
✅ High Flexibility – Fine-stranded conductors and optimized jacket design allow millions of bending cycles.
✅ Abrasion & Oil Resistant – Withstands harsh industrial environments (meets DIN, UL, or RoHS standards).
✅ Temperature Range – Typically -15°C to +70°C (wider ranges available with special materials).
✅ EMI/RFI Protection – Shielded versions ensure stable signal transmission in electrically noisy areas.
✅ Torsion-Resistant – Reinforced construction prevents twisting and cable failure.
✅ Low Maintenance – Durable design reduces downtime and replacement costs.
▍Structural Material
| Name | HFV 5G1.5 PVC Drag Chain Cables |
Conductor | Top brand copper materials Made of finely stranded, high-purity class 6 copper |
Insulation | Each conductor is individually insulated with high-grade PVC for flexibility and electrical safety. |
| Inner Filler | Non-hygroscopic materials (e.g., PP yarn) prevent internal movement and reduce mechanical stress. |
Outer Sheath | Tough yet flexible PVC jacket resistant to abrasion, oil, chemicals, and mechanical wear. |
Outer jacket color | Black/Grey/Orange |
▍Specification
Item | Value |
Voltage | 300/500V |
Temperature Range | Fixed installation: -20℃~70℃ Moving installation: -15℃~70℃ |
Minimum bend radius | Fixed installation: 5x cable outside diameter Moving installation: 7.5x cable outside diameter |
Maximum mobile speed | Unsupported speed: 3m/s Gliding speed: 2m/s Acceleration: 20m/s² |
Weather resistance | UV resistant,suitable Indoor use |
Certificate | CE/CCC/ISO9001/ISO14001 /OHSAS18001 |
▍Widely used in:
Machine Tools
CNC, Roll Grinders, Large Gantry Machines
Automated Cutting & Processing Systems
Laser Cutters, Routers, Stone Cutters, Woodworking, Engravers, Glass Machinery
Industrial Automation
Robotic 7th Axis, Non-Standard Automation Cells, Production Lines - Automotive, Appliance
Specialized Equipment
Inkjet/Printers, 3D Parking Garages, Car Washes, Electroplating Lines
Wherever high-flexibility cables are essential for moving equipment within cable carriers (drag chains), our HF cables provide the resilience needed for smooth, uninterrupted operation.
