HFV 10G0.5
RONA
85444929
500m
▍Product Overview

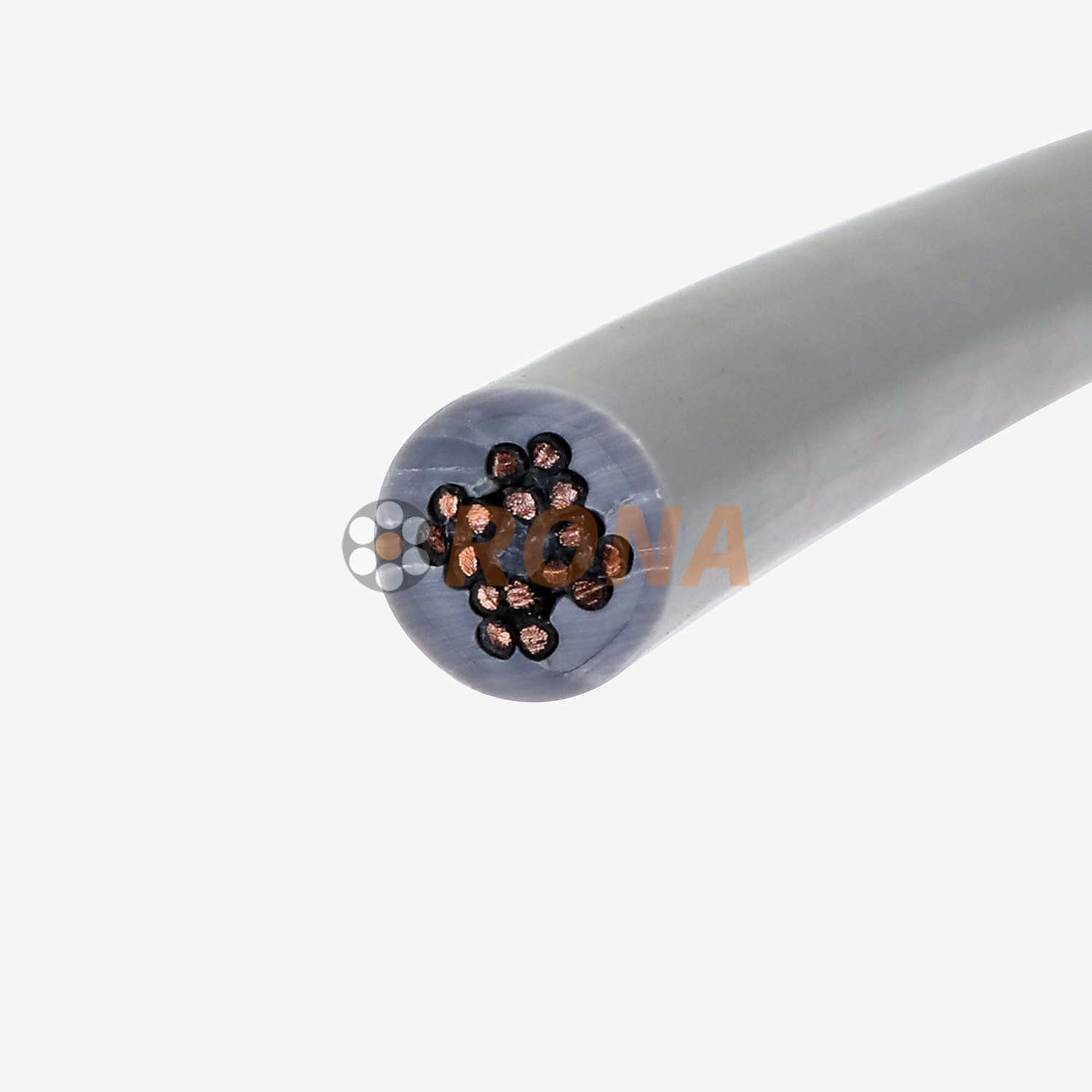

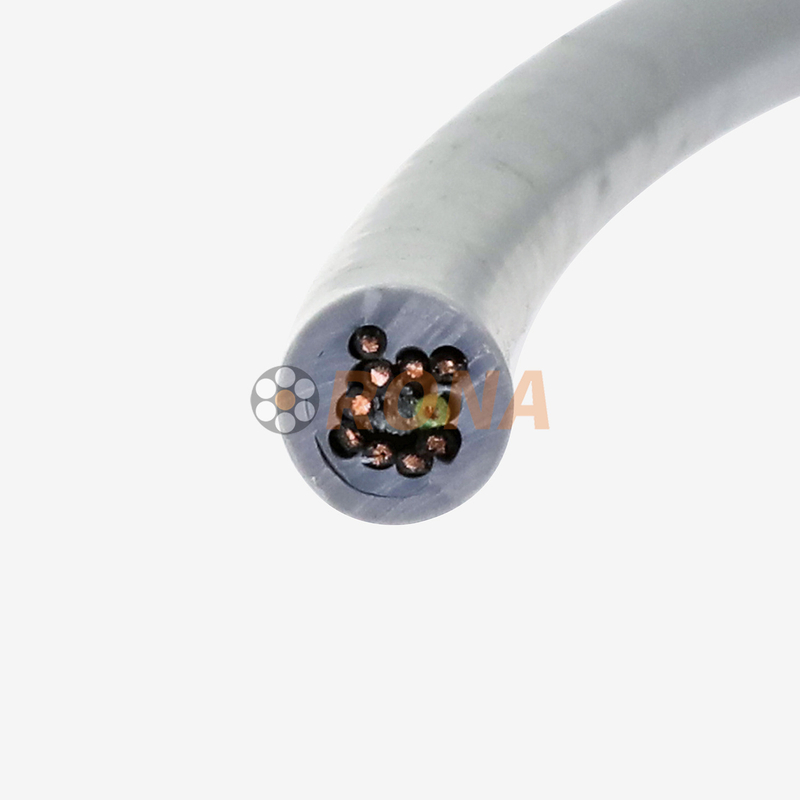

The RONA HFV 10G 0.5mm² Shielded PVC Drag Chain Cable is a high-flexibility solution engineered for dynamic power and signal transmission in industrial automation. Rated at 300/500V and featuring a 10-core, 0.5mm² conductor configuration, it integrates a shielding layer and a durable jacket for dual protection. This design overcomes the industry challenge of balancing flexibility with durability. Through the synergy of finely stranded conductors and modified PVC materials, it not only withstands over a million cycles of reciprocating bending in drag chain systems but also resists mechanical abrasion and electromagnetic interference (EMI) in harsh industrial environments. It delivers reliable performance for machine tools, automated production lines, and similar equipment.
▍Structural Material
Conductor: Fine-stranded, high-purity oxygen-free copper (IEC 60228 Class 6). This ultra-flexible stranding design is the foundation of the cable's exceptional bending endurance, minimizing mechanical stress during continuous movement in drag chain applications.
Insulation: High-elasticity, specially formulated PVC compound. This insulation provides reliable electrical separation while its inherent flexibility ensures it moves in harmony with the conductors, maintaining integrity and preventing micro-cracking under dynamic stress.
Sheath: Premium abrasion-resistant PVC, with a Low Smoke Zero Halogen (LSZH) alternative available. The standard sheath offers superior toughness and longevity against physical wear. The LSZH option enhances safety in confined or public spaces by significantly reducing toxic smoke and corrosive halogen emissions in the event of a fire, complying with stricter safety regulations.
▍Advantages
Superior Dynamic Durability: Conductors utilize IEC 60228 Class 6 extra-fine oxygen-free copper strands paired with a high-elasticity insulation layer. Capable of handling unsupported speeds up to 3m/s and accelerations of 20m/s² in moving applications within a temperature range of -15°C to 70°C. Its bending lifespan far exceeds that of standard cables.
Excellent Environmental Resistance: The wear-resistant PVC jacket offers superior Shore hardness and tear resistance—over 5 times greater than standard PVC cables. It also features UV resistance and can withstand industrial oils and common chemical agents, making it suitable for complex indoor conditions.
Stable Signal Transmission: A built-in high-density shielding layer with industry-leading coverage effectively blocks electromagnetic interference (EMI) generated by high-frequency machine operation, ensuring signal integrity for precision equipment.
Comprehensive Compliance & Certification: Holds multiple authoritative certifications including CE, CCC, and ISO9001. Materials comply with environmental standards, meeting industrial safety regulations across different regions.
▍Specification
| Item | Specification |
|---|---|
| Model | HFV 10G0.5 |
| Rated Voltage | 300/500V |
| Conductor Material | Class 6 Extra-Fine Oxygen-Free Copper |
| Insulation Material | High-Elasticity PVC Compound |
| Sheath Material | Wear-Resistant PVC (Low Smoke Zero Halogen option available) |
| Conductor Cross-Section | 0.5mm² |
| Number of Cores | 10 |
| Sliding Speed | 2m/s |
| Test Voltage | 2.0kV AC / 5min |
| Sheath Color | Black, Grey, Orange (Customizable) |
| Certifications | CE, EAC, ISO9001 |
▍Application
Machine Tool Equipment: Power transmission in drag chains for CNC machines and automated cutting/processing systems, resistant to metal chip abrasion and coolant exposure.
Production Line Systems: Automated assembly lines and conveyor equipment in automotive and electronics manufacturing, supporting 360° robotic arm rotation and high-frequency reciprocating motion.
Warehousing & Logistics: Stacker cranes in automated storage/retrieval systems (AS/RS) and 3D parking lift systems, designed for continuous dynamic operation in long-travel drag chains.
Special Machinery: Frequently moving equipment like packaging machines and stone processing machinery, where it can replace standard cables to reduce downtime and replacement frequency.
Wherever high-flexibility cables are essential for moving equipment within cable carriers (drag chains), our HF cables provide the resilience needed for smooth, uninterrupted operation.
▍Transport & Storage Guidelines
Transportation: Packaged on reels in an upright position. Laying flat or dropping from height is strictly prohibited. In low temperatures (≤5°C), protective measures against jacket freezing are required. Avoid severe impacts that could cause insulation cracking.
Storage: Store in a dry, well-ventilated warehouse away from corrosive substances like acids, alkalis, and mineral oils. Ensure no harmful gases are present that could damage insulation. Reels should be rotated every 3 months to prevent moisture damage to the bottom layer. Recommended maximum storage period is 2 years.
Loading/Unloading: Reels must be lifted individually; simultaneous lifting of multiple reels is forbidden. Use securing fixtures during transit to prevent reel movement and damage.
