HFV 10*1.5
RONA
85444929

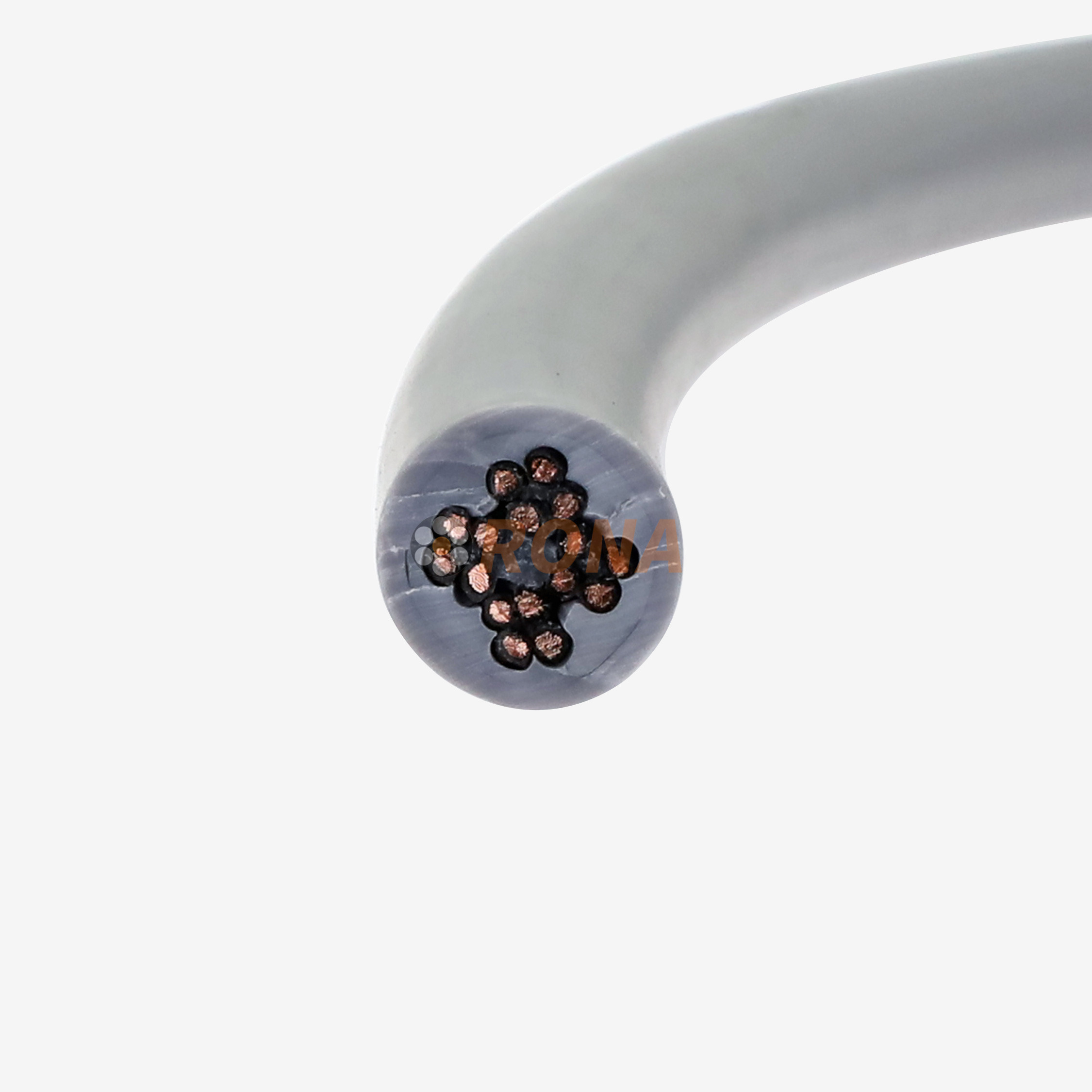

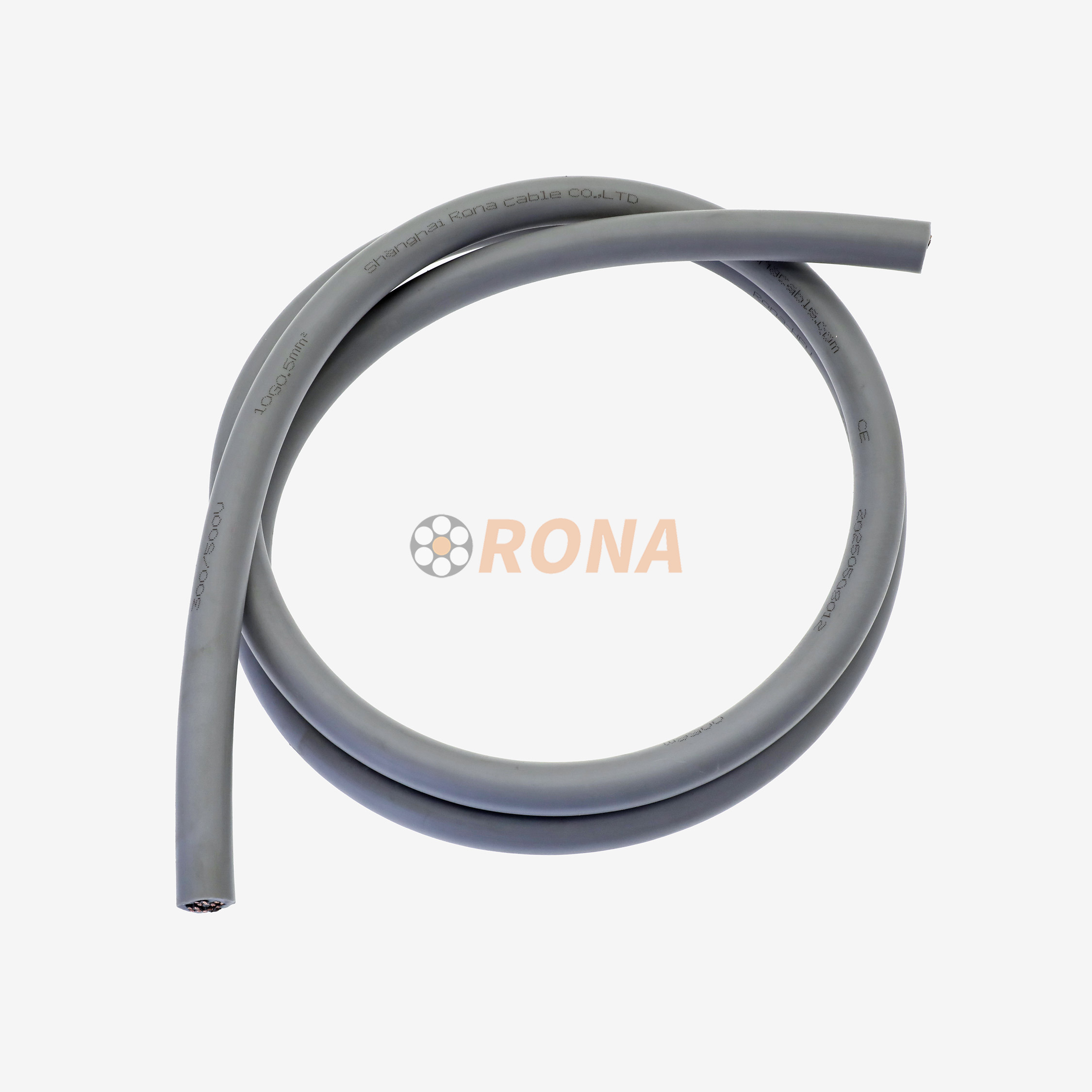

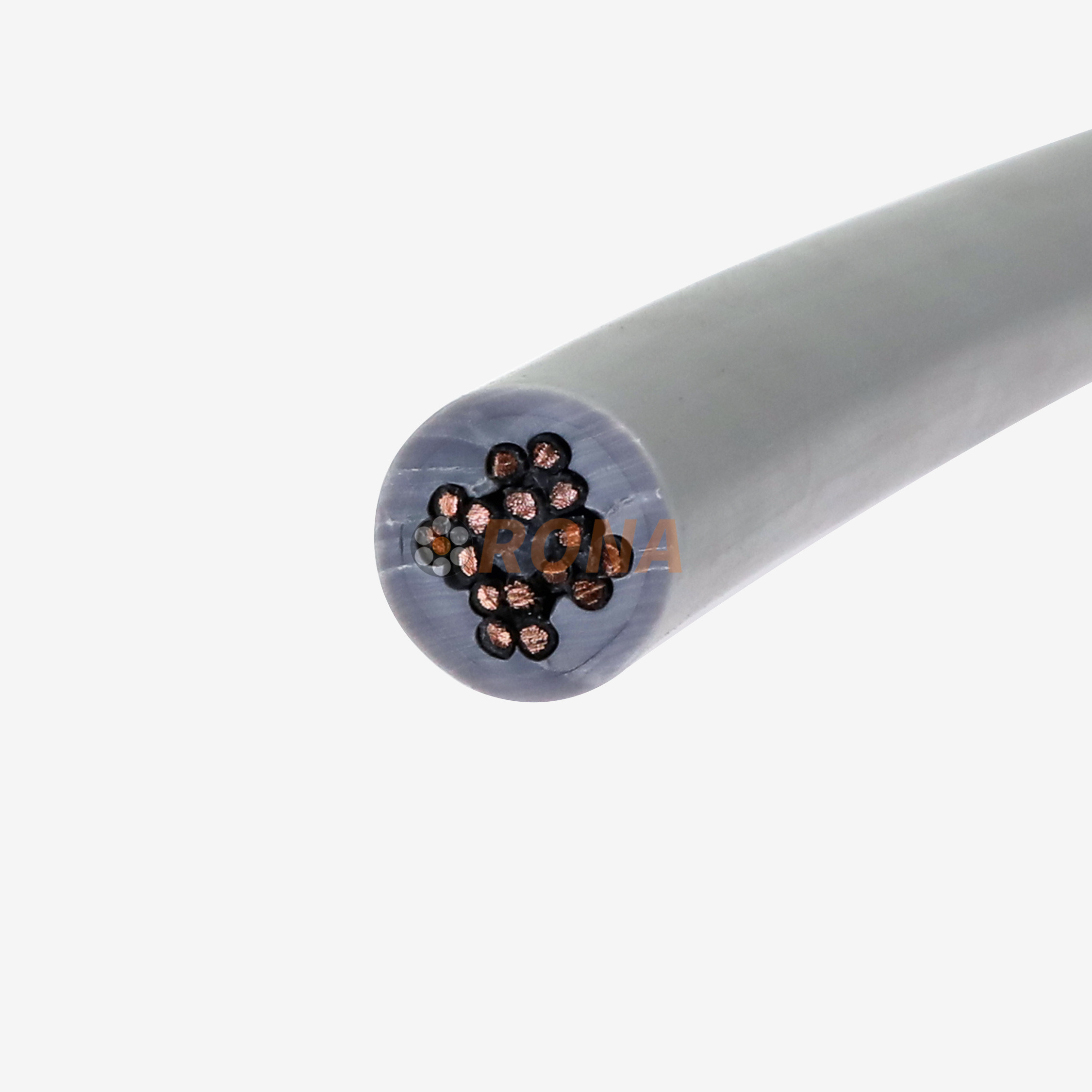

• PVC Drag Chain Cables - Engineered for Continuous Motion Applications
PVC Drag Chain Cables are specially designed for use in cable carriers (drag chains) where continuous flexing and movement are required. These high-performance cables feature a tough yet flexible PVC outer jacket, providing excellent resistance to abrasion, oils, and mechanical stress.
These high-performance cables are specifically designed for:
• Industrial robots
• CNC machining centers
• Automated assembly lines
• Material handling systems
▍Key Features
Performance Advantages
✔ Superior Flex Life - Engineered for >5 million bending cycles in cable carriers
✔ Industrial-Grade Durability - Resists oils, coolants, and abrasion (IP67 rating available)
✔ Wide Thermal Tolerance - Stable performance from -15°C to +70°C
✔ Vibration Resistant - Maintains integrity in high-speed motion applications
✔ Custom Configuration - Various conductor counts and shielding options
▍Structural Material
Name | PVC Drag Chain Cables |
Conductor | Top brand copper materials |
Insulation | High-elasticity PVC compound |
Sheath | Abrasion-resistant PVC |
Outer jacket color | Black/Grey/Orange |
▍Specification
Item | Value |
Voltage | 300/500V |
Temperature Range | Fixed installation: -20℃~70℃ Moving installation: -15℃~70℃ |
Minimum bend radius | Fixed installation: 5x cable outside diameter Moving installation: 7.5x cable outside diameter |
Maximum mobile speed | Unsupported speed: 3m/s Gliding speed: 2m/s Acceleration: 20m/s² |
Weather resistance | UV resistant,suitable Indoor use |
Certificate | CE/CCC/ISO9001/ISO14001 /OHSAS18001 |
Wherever high-flexibility cables are essential for moving equipment within cable carriers (drag chains), our HF cables provide the resilience needed for smooth, uninterrupted operation.
