HFVP 12G1
RONA
85444929
500m

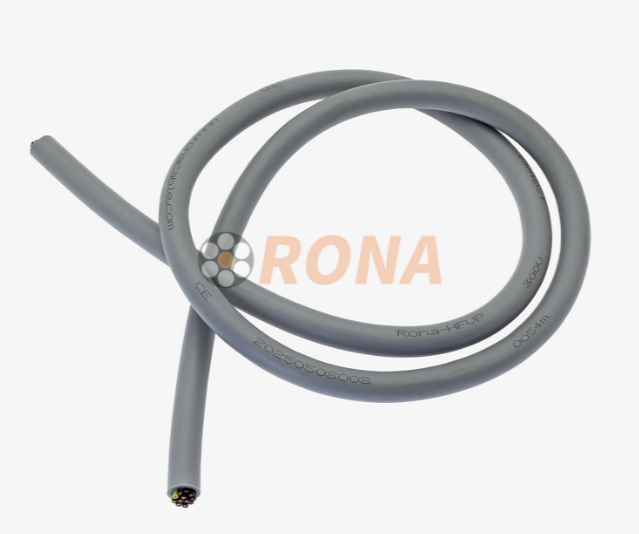

Our 300/500V HFV shielded PVC drag chain control cable is a purpose-built transmission solution engineered exclusively for high-flex dynamic applications in industrial automation. Designed to address the critical pain points of standard control cables—premature failure from repetitive bending, signal corruption from electromagnetic interference (EMI), and frequent downtime in automated production lines—this 12-core 1mm² shielded control cable delivers unmatched reliability in continuous motion environments. Featuring a precision-engineered flexible construction with integrated shielding, it ensures stable power and signal transmission for machinery that requires constant axis movement. Manufactured to the highest international standards, this PVC drag chain cable is the trusted choice for equipment manufacturers and system integrators seeking long-term performance and reduced maintenance costs in demanding industrial settings.
Unlike conventional control cables that fail after just a few thousand bending cycles, our high-flex drag chain control cable is constructed with premium fine-stranded oxygen-free copper conductors compliant with IEC 60228 Class 5/6. This design enables it to withstand over 10 million bending and torsion cycles inside cable carriers, drastically extending service life and minimizing unplanned downtime. The tough, abrasion-resistant PVC outer jacket provides exceptional protection against wear and tear common in factory floor environments, reducing replacement frequency and lowering total ownership costs.
The integrated aluminum foil shielding of this EMI shielded drag chain cable creates a robust barrier against electromagnetic and radio frequency interference prevalent in industrial facilities. This ensures clean, error-free signal transmission to sensitive automation equipment, preventing data corruption, machine malfunctions, and costly production errors. Whether used in CNC machining centers or robotic assembly lines, it guarantees precise control over critical processes, enhancing overall production efficiency and product quality.
Engineered for seamless movement within cable carriers, this industrial automation control cable features high-elasticity PVC insulation and a flexible jacket design. It supports a maximum unsupported speed of 3m/s and acceleration of 20m/s², making it ideal for high-speed, long-travel automation systems. The optimized bend radius (7.5x cable diameter for moving installations) allows for compact cable routing without compromising performance or durability.
Manufactured in ISO 9001, ISO 14001, and OHSAS 18001 certified facilities, this 300/500V control cable meets CE and CCC safety standards. Its low smoke zero halogen (LSZH) properties enhance safety in confined spaces such as control panels and enclosed machinery, reducing fire hazards and protecting personnel in the event of an emergency.
Parameter | Specification |
Voltage Rating | 300/500V |
Conductor | Fine-stranded oxygen-free copper, IEC 60228 Class 5/6 |
Insulation | High-elasticity PVC compound |
Sheath | Abrasion-resistant PVC (LSZH) |
Temperature Range | Fixed: -20℃~70℃; Moving: -15℃~70℃ |
Minimum Bend Radius | Fixed: 5× OD; Moving: 7.5× OD |
Maximum Mobile Speed | Unsupported: 3m/s; Gliding: 2m/s |
Acceleration | 20m/s² |
Weather Resistance | UV resistant, suitable for indoor use |
Certifications | CE, CCC, ISO 9001, ISO 14001, OHSAS 18001 |
This CNC machine control cable is widely used across diverse industrial sectors where continuous flexible operation is essential. It powers and controls high-precision CNC machining centers, large gantry mills, and roll grinding machines in advanced manufacturing facilities. In automated material processing systems, it delivers reliable performance in laser cutters, CNC routers, and engraving machines, resisting dust and debris while maintaining signal integrity. It is also the preferred choice for robotic system cables in automotive and appliance manufacturing, supporting 7th axis tracks and custom automation cells. Additionally, it finds application in industrial inkjet printers, automated parking systems, car wash tunnels, and electroplating lines where repetitive movement and harsh conditions demand superior cable endurance.
Drag chain control cables are specifically engineered to withstand millions of repetitive bending and torsion cycles, whereas standard control cables are designed for static or low-flex applications. They feature finer-stranded conductors, more flexible insulation, and reinforced jackets to prevent conductor breakage and jacket cracking in dynamic environments.
Under normal operating conditions within specified parameters, this cable can last over 10 million bending cycles. Actual service life may vary depending on factors such as bend radius, speed, acceleration, and environmental conditions.
Yes, we offer custom cable lengths to meet your specific project requirements. Standard sheath colors include black, grey, and orange, and custom colors are available upon request for bulk orders.
