Are you confused about choosing the right flexible rubber-sheathed cable? Understanding the differences between H05RN-F and H07RN-F can greatly impact your project. In this article, we’ll explore their specifications, applications, and key distinctions. You’ll learn how to select the best cable for your needs.
H05RN-F and H07RN-F cables are flexible rubber-sheathed electrical cables designed for various applications. These cables provide reliable performance in challenging environments, making them popular choices in both residential and industrial settings.
Construction and Materials
Both cables consist of finely stranded copper conductors, ensuring high flexibility. The insulation is made from ethylene propylene rubber (EPR), which offers excellent electrical properties and thermal stability. The outer sheath varies: H05RN-F uses a tough polychloroprene (PCP) jacket, while H07RN-F features a neoprene sheath, enhancing its resistance to oil and weathering.
Cable Model | Conductor Type | Insulation Material | Sheath Material |
H05RN-F | Class 5 finely stranded | Ethylene Propylene Rubber (EPR) | Polychloroprene (PCP) |
H07RN-F | Class 5 finely stranded | Rubber | Neoprene |
Typical Applications
H05RN-F is ideal for light-duty applications, such as household appliances and temporary lighting setups. In contrast, H07RN-F is suited for heavy-duty use, including industrial machinery and outdoor equipment, where exposure to harsh conditions is common.
Voltage Ratings
The voltage ratings are crucial for determining the cable's application. H05RN-F operates at a rated voltage of 300/500V, making it suitable for lower power requirements. H07RN-F, however, boasts a higher voltage rating of 450/750V, allowing it to handle more demanding tasks.
Conductor Specifications

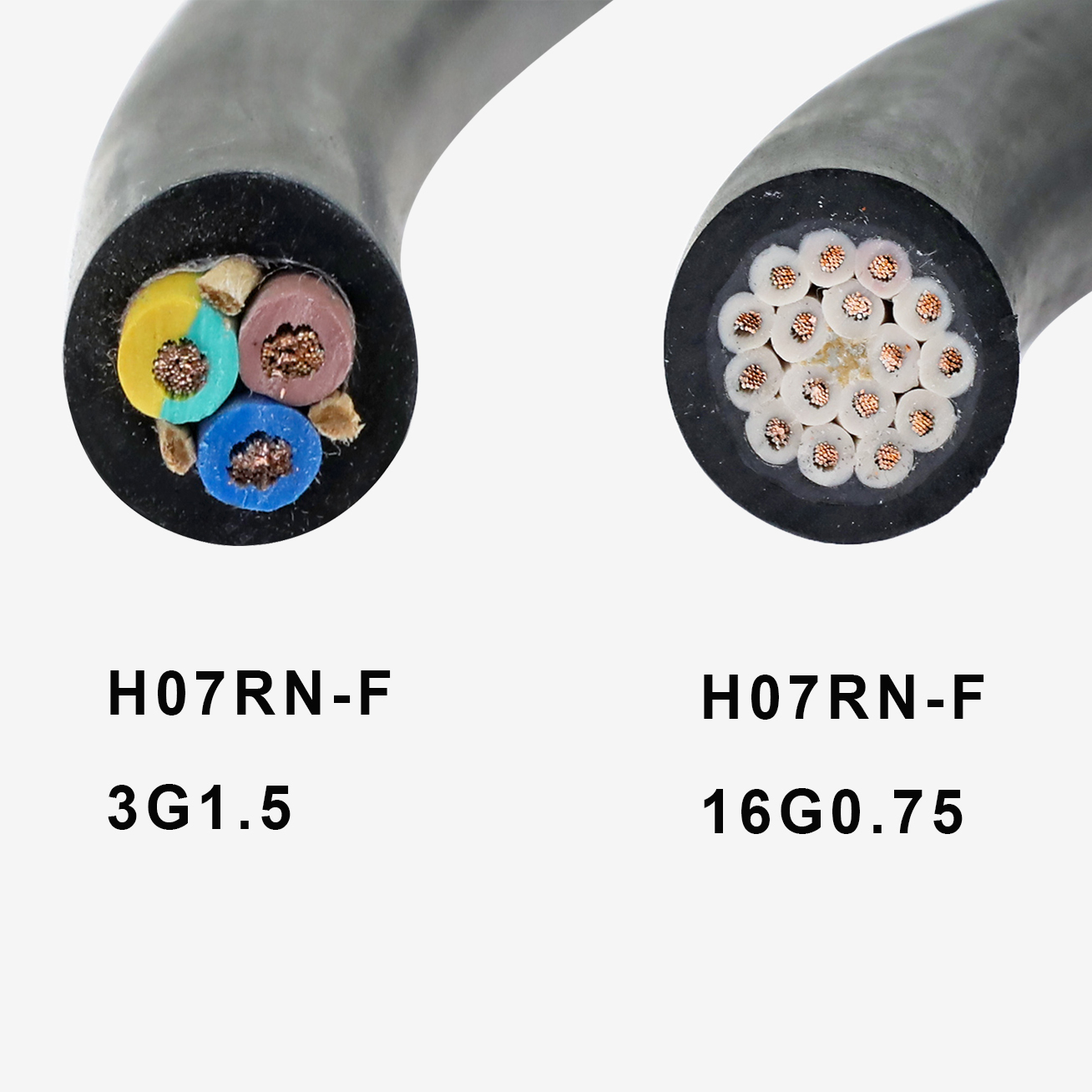

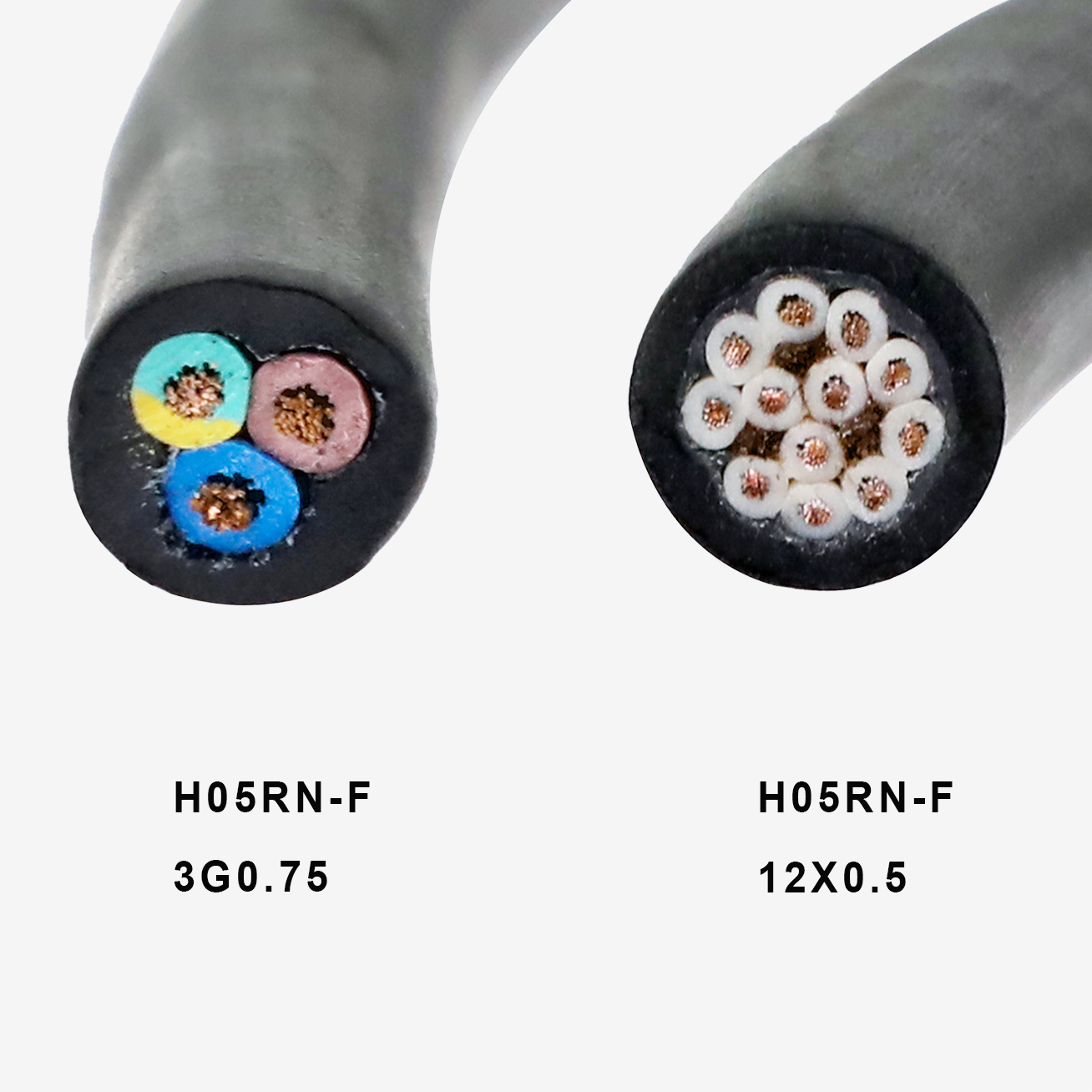

When comparing core count and size, H05RN-F has 12 cores, each measuring 0.5mm². In contrast, H07RN-F features 16 cores, with each core measuring 0.75mm². This difference in conductor size contributes to the overall current-carrying capacity, making H07RN-F more suitable for heavy-duty applications.
Specification | H05RN-F | H07RN-F |
Rated Voltage | 300/500V | 450/750V |
Core Count | 12 cores | 16 cores |
Core Size | 0.5mm² | 0.75mm² |
Temperature Tolerance
Temperature tolerance is another essential factor. H05RN-F can withstand temperatures from -40°C to 90°C for fixed installations and -30°C to 90°C for moving installations. H07RN-F offers superior temperature resistance, functioning effectively from -60°C to 90°C for fixed installations and -40°C to 90°C for moving installations. This makes H07RN-F especially beneficial in colder environments.
Temperature Range | H05RN-F | H07RN-F |
Fixed Installation | -40°C to 90°C | -60°C to 90°C |
Moving Installation | -30°C to 90°C | -40°C to 90°C |
These specifications highlight the differences between H05RN-F and H07RN-F cables, guiding you in selecting the right cable for your specific needs. Whether for light-duty or heavy-duty applications, understanding these key features is essential for ensuring safety and performance.
When it comes to mechanical properties, H05RN-F and H07RN-F cables serve different purposes. Flexibility is a key feature of both cables, but their durability varies significantly. H05RN-F is designed for light-duty applications, making it highly flexible and suitable for portable use. In contrast, H07RN-F is built for heavy-duty scenarios, offering enhanced durability to withstand frequent movement and mechanical stress.
Resistance to Mechanical Stress
H05RN-F can handle light mechanical stress, making it ideal for household appliances and temporary installations. However, when you need a cable for industrial use, H07RN-F shines. It is engineered to resist high mechanical stress, making it perfect for environments where equipment is frequently moved or subjected to harsh conditions.
Property | H05RN-F | H07RN-F |
Flexibility | High | Moderate |
Mechanical Stress | Light-duty | Heavy-duty |
Environmental resistance is another crucial aspect to consider. H05RN-F cables offer decent resistance to oil and chemicals, but they are not as robust as H07RN-F cables. The latter is specifically designed to endure exposure to oils, UV radiation, and harsh weather conditions. This makes H07RN-F suitable for outdoor applications, such as construction sites or agricultural settings.
Suitability for Indoor vs. Outdoor Use
While H05RN-F is primarily intended for indoor use, it can handle damp environments. On the other hand, H07RN-F excels in both indoor and outdoor settings, making it versatile. Whether you need a cable for a workshop or an outdoor event, H07RN-F is up to the task.
Specific Environments
RONA emphasizes the importance of using the right cable in harsh operating conditions. H07RN-F performs exceptionally well in environments where moisture, extreme temperatures, and chemical exposure are common.
Compliance with industry standards is vital for ensuring safety and performance. Both H05RN-F and H07RN-F cables adhere to relevant standards, including those set by VDE and IEC. These certifications guarantee that the cables meet international safety and quality benchmarks.
Overview of Relevant Standards
● VDE: Ensures that the cables comply with German safety standards.
● IEC: International standards that cover electrical safety and performance.
Both cables have received UDEM certificates, confirming their compliance with national and international standards. This certification is crucial for users, as it ensures the cables are safe to use in various applications. Compliance not only enhances safety but also boosts the cables' reliability in the field.
Cable Model | VDE Compliance | IEC Compliance | UDEM Certificate |
H05RN-F | Yes | Yes | Yes |
H07RN-F | Yes | Yes | Yes |
By understanding the detailed differences in mechanical properties, environmental resistance, and compliance, you can make an informed choice between H05RN-F and H07RN-F cables for your specific needs.
H05RN-F cables are specifically designed for light-duty applications, making them a versatile choice for various household and temporary setups. These cables excel in situations where flexibility and ease of use are paramount.
Ideal Scenarios
1. Household Appliances: H05RN-F is commonly used to power everyday appliances, such as refrigerators, microwaves, and washing machines. Its lightweight nature allows for easy installation in tight spaces, making it perfect for home use.
2. Portable Tools: When using tools like drills, saws, or garden equipment, the flexibility of H05RN-F ensures that users can maneuver easily without worrying about the cable tangling or becoming damaged.
3. Temporary Lighting: For outdoor events, such as parties or festivals, H05RN-F can effectively power temporary lighting setups. Its moisture resistance makes it suitable for damp conditions, ensuring safety and reliability.
Benefits of Using H05RN-F
● The benefits of H05RN-F extend beyond its flexibility. Here are some key advantages:Lightweight and Portable: Its design allows for easy transport and setup, making it ideal for temporary installations. This is especially useful for contractors who need to move equipment frequently.
● Moisture Resistance: H05RN-F can handle damp environments, such as kitchens or outdoor patios. This capability reduces the risk of electrical hazards, providing peace of mind during use.
● Cost-Effective: Generally, H05RN-F is more affordable compared to heavy-duty options, making it an economical choice for light-duty applications.
Application Type | Examples | Benefits |
Household Appliances | Refrigerators, microwaves | Flexible and easy to use |
Portable Tools | Drills, saws | Lightweight for mobility |
Temporary Lighting | Outdoor events | Moisture-resistant |
In contrast, H07RN-F cables are engineered for industrial and construction applications, where durability and resilience are critical. They are the go-to choice for environments that demand high performance under stress.
Ideal Scenarios
1. Industrial Machinery: H07RN-F is often used to connect large machines such as CNC machines and conveyor belts, which require reliable power sources. The cable's robust construction ensures it can handle the high power loads typical in industrial settings.
2. Outdoor Equipment: Equipment like generators and pumps benefit significantly from H07RN-F due to its weatherproof features. This cable can withstand rain, snow, and extreme temperatures, making it perfect for outdoor jobs.
3. Agricultural Tools: In agriculture, H07RN-F is used for tractors and irrigation systems. These tools often operate in challenging conditions, and H07RN-F's durability ensures consistent performance without failure.
Advantages of H07RN-F
● The advantages of H07RN-F are numerous, particularly in demanding environments:High Durability: H07RN-F is designed to endure frequent mechanical stress, making it ideal for heavy-duty applications. Its robust sheath protects against abrasions and impacts.
● Environmental Resistance: This cable excels in harsh conditions, offering resistance to UV rays, oils, and chemicals. This makes it suitable for outdoor use in construction sites or industrial plants.
● Flexibility for Mobility: Despite its strength, H07RN-F retains flexibility, allowing it to bend and twist without breaking. This is crucial for mobile equipment that requires cables to navigate around obstacles.
Application Type | Examples | Advantages |
Industrial Machinery | CNC machines, conveyor belts | High durability |
Outdoor Equipment | Generators, pumps | UV and weather resistant |
Agricultural Tools | Tractors, irrigation systems | Flexible for mobility |
By understanding the diverse applications of H05RN-F and H07RN-F cables, you can select the most suitable option for your needs. Whether you are powering light-duty household appliances or heavy-duty industrial machinery, choosing the right cable ensures safety, reliability, and efficiency in all your electrical projects.
When selecting between H05RN-F and H07RN-F cables, several factors come into play. Making an informed choice can significantly impact the safety and efficiency of your electrical installations.
Assessing Power Requirements
First and foremost, it’s essential to assess your power requirements. H05RN-F cables are rated for lower voltage applications (300/500V), making them suitable for light-duty tasks like household appliances and portable tools. On the other hand, H07RN-F cables can handle higher voltages (450/750V), which is vital for heavy machinery and industrial applications. Knowing the power needs of your devices will guide you toward the right cable.
Evaluating Environmental Conditions
Next, consider the environmental conditions where the cable will be used. H05RN-F is ideal for indoor applications or temporary setups, while H07RN-F excels in outdoor and harsh environments. If you need a cable that can withstand UV exposure, moisture, and extreme temperatures, H07RN-F is the clear choice.
Understanding Mechanical Stress Levels
Lastly, think about the mechanical stress the cable will face. H05RN-F is flexible and lightweight, making it suitable for light-duty applications with minimal stress. In contrast, H07RN-F is designed to endure heavy mechanical stress, which is crucial for industrial settings where equipment is frequently moved or subjected to wear and tear.
Factor | H05RN-F | H07RN-F |
Voltage Rating | 300/500V | 450/750V |
Best Use Environment | Indoor, temporary setups | Outdoor, harsh conditions |
Mechanical Stress Level | Light-duty | Heavy-duty |
Cost is always a consideration when selecting cables, but it’s essential to look beyond the initial price tag. A comparison of costs between H05RN-F and H07RN-F cables reveals some interesting insights.
Comparison of Costs
Typically, H05RN-F cables are more affordable than H07RN-F due to their lighter construction and lower voltage rating. However, investing in H07RN-F may save money in the long run, especially for projects requiring high durability and environmental resistance.
Long-Term Benefits of Investing in the Right Cable
Choosing the right cable can lead to significant long-term benefits. For example, using H07RN-F in industrial settings can reduce maintenance costs, as these cables are less likely to fail under stress. Additionally, their resilience against environmental factors means fewer replacements over time. This durability translates into savings on both labor and materials.
RONA's Competitive Pricing and Rapid Supply Capabilities
RONA offers competitive pricing on both H05RN-F and H07RN-F cables, ensuring you get quality products without breaking the bank. Furthermore, their rapid supply capabilities mean you won’t have to wait long to get the cables you need for your project. This efficiency can be a game-changer, especially in time-sensitive situations.
Cable Model | Cost Range | Long-Term Savings Potential | RONA Supply Speed |
H05RN-F | Lower | Moderate | Fast |
H07RN-F | Higher | High | Fast |
By considering these factors and understanding the cost-effectiveness of each option, you can confidently choose the right cable for your needs. Whether you opt for H05RN-F or H07RN-F, ensuring that you select the appropriate cable will enhance safety and performance in your electrical installations.
In summary, H05RN-F and H07RN-F cables serve different purposes. H05RN-F is ideal for light-duty applications, while H07RN-F is designed for heavy-duty use.
When selecting a cable, consider power needs, environmental conditions, and mechanical stress levels.
For tailored advice, consult professionals. RONA provides expert support and reliable after-sales service to help you make the best choice for your projects.
A: H05RN-F is designed for light-duty applications, while H07RN-F is suitable for heavy-duty use and harsher environments.
A: H05RN-F is primarily for indoor use; it can handle damp environments but is not ideal for outdoor applications.
A: Consider power requirements, environmental conditions, and mechanical stress levels to choose the appropriate cable.
A: Yes, other alternatives may include different types of rubber or PVC cables designed for specific applications.
A: Ensure the cable meets relevant standards like VDE and IEC and check for compliance certifications to guarantee safety and quality.
