▍European Standard Cables

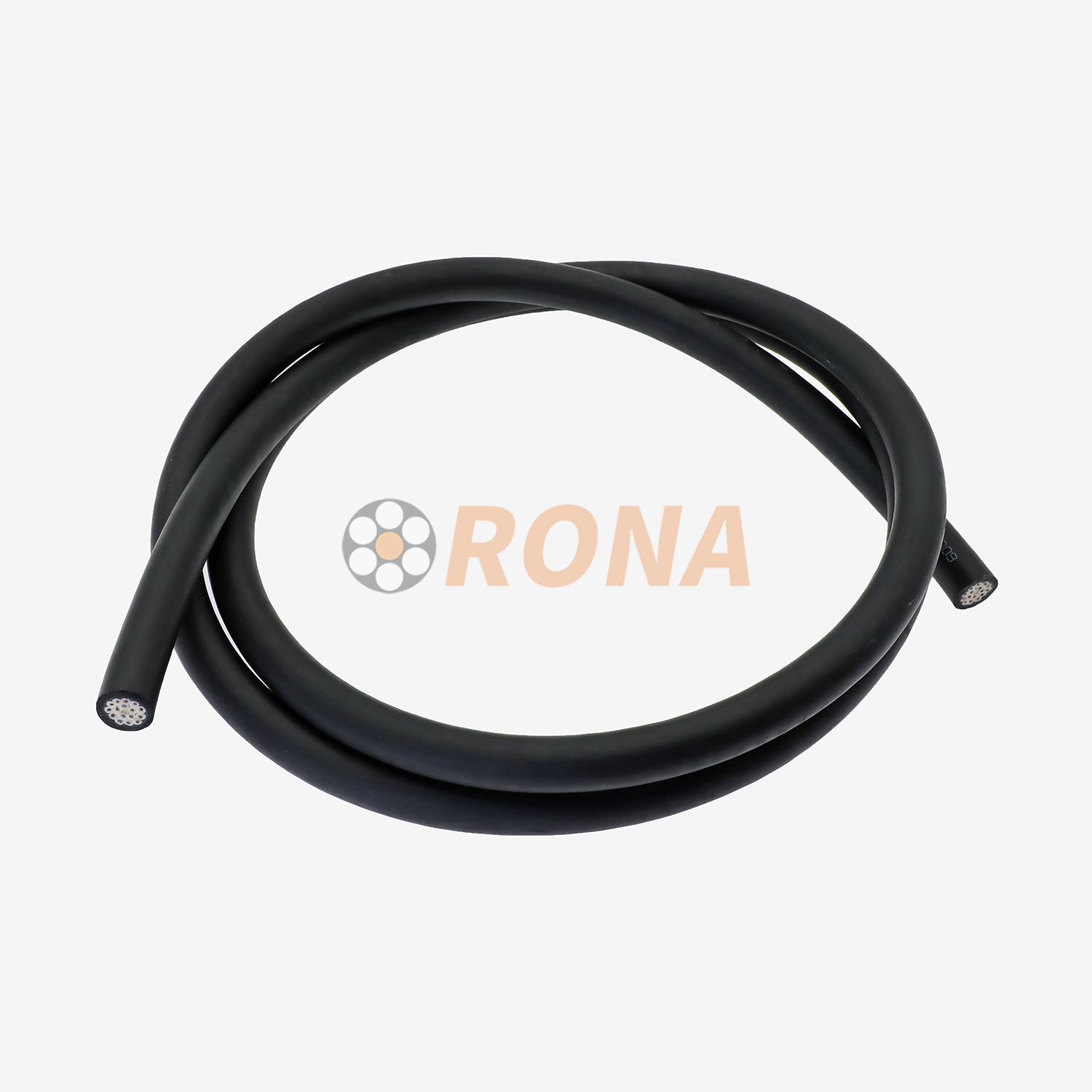

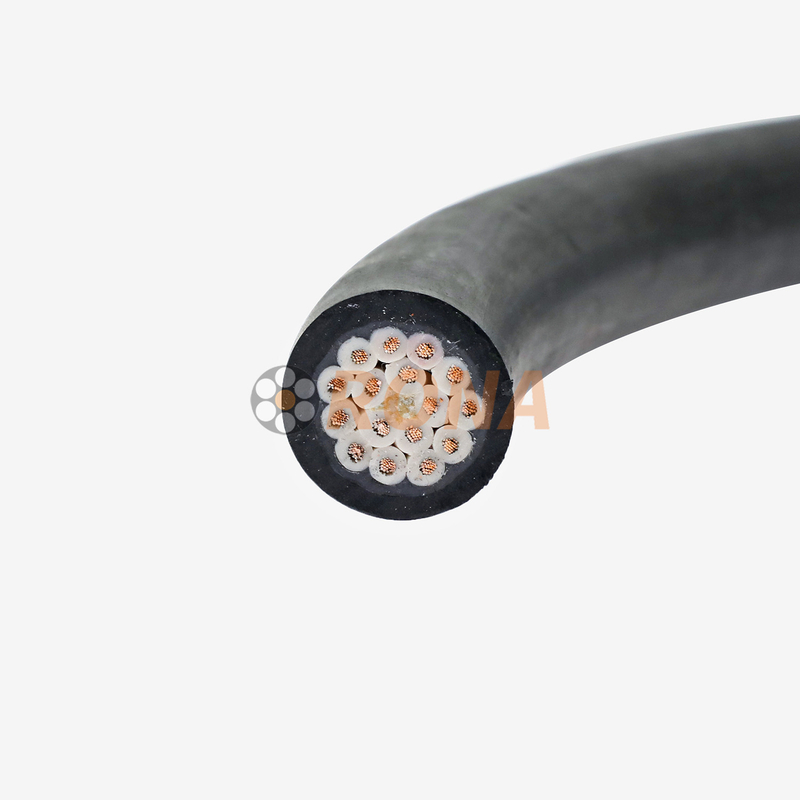

H07RN-F European Standard Rubber Cable
– Durable, Flexible, Built for Harsh Environments
Designed for industrial, construction, and outdoor applications, the H07RN-F is a high-performance rubber-sheathed cable compliant with European standards. It offers exceptional resistance to oil, weathering, and mechanical stress, making it ideal for demanding conditions such as frequent movement, moisture, oil exposure, and UV radiation.
H: Stands for Harmonized, indicating compliance with unified EU cable standards.
07: Rated voltage of 450/750V (U0/U).
R: Insulation material is Rubber.
N: Outer sheath made of Neoprene, offering oil and weather resistance.
F: Flexible design, suitable for mobile applications.
▍Technical parameters
Item | Value |
Voltage | 450/750V |
Test voltage | 2500V/5min(AC) |
Minimum bend radius | |
Fixed installation | 4xcable outside diameter |
Moving installation | 5xcable outside diameter |
Temperature range | |
Fixed installation | -60℃~90℃ |
Moving installation | -40℃~90℃ |
Retardant properties | Complied with IEC60332-1 |
Key Features:
✔ Rated Voltage 450/750V, suitable for high-power applications
✔ Wide Temperature Range (-40°C to +60°C), ensuring stable performance in extreme climates
✔ Oil, Acid, Alkali & UV Resistant, perfect for outdoor and industrial use
✔ Highly Flexible, ideal for moving equipment like cranes and construction machinery
Whether for temporary power distribution on construction sites, port machinery, agricultural equipment, or stage lighting, the H07RN-F delivers safe and reliable power transmission. Certified to EN 50525-2-21 European Standards, it guarantees long-lasting durability and performance.
▍Application
Industrial Equipment: Power connections for cranes, conveyors, welding equipment, and other mobile machinery.
Construction Sites: Temporary power distribution and electric tool supply.
Outdoor Use: Agricultural machinery, stage lighting, port equipment, and more.
Harsh Environments: Areas exposed to moisture, oil, low temperatures, or UV radiation.
