H05RN-F 12X0.5
RONA
85444929
500m
▍H05RN-F European Standard Cables
The H05RN-F is a harmonized, low-voltage rubber-sheathed cable designed for flexible trailing and light-duty power supply applications. Engineered for versatility, it is suitable for both indoor and temporary outdoor installations in dry, damp, or wet environments. This cable combines exceptional flexibility with durable protection, making it an ideal choice for a wide range of portable equipment and dynamic uses.
Why Choose H05RN-F?
This cable offers a reliable solution where flexibility and environmental resistance are paramount. Its rubber construction maintains pliability across a broad temperature range, while the protective sheath guards against moisture, oils, and minor physical impacts. For light to medium trailing duties in commercial, industrial, or domestic scenarios, the H05RN-F provides a safe and dependable electrical connection.

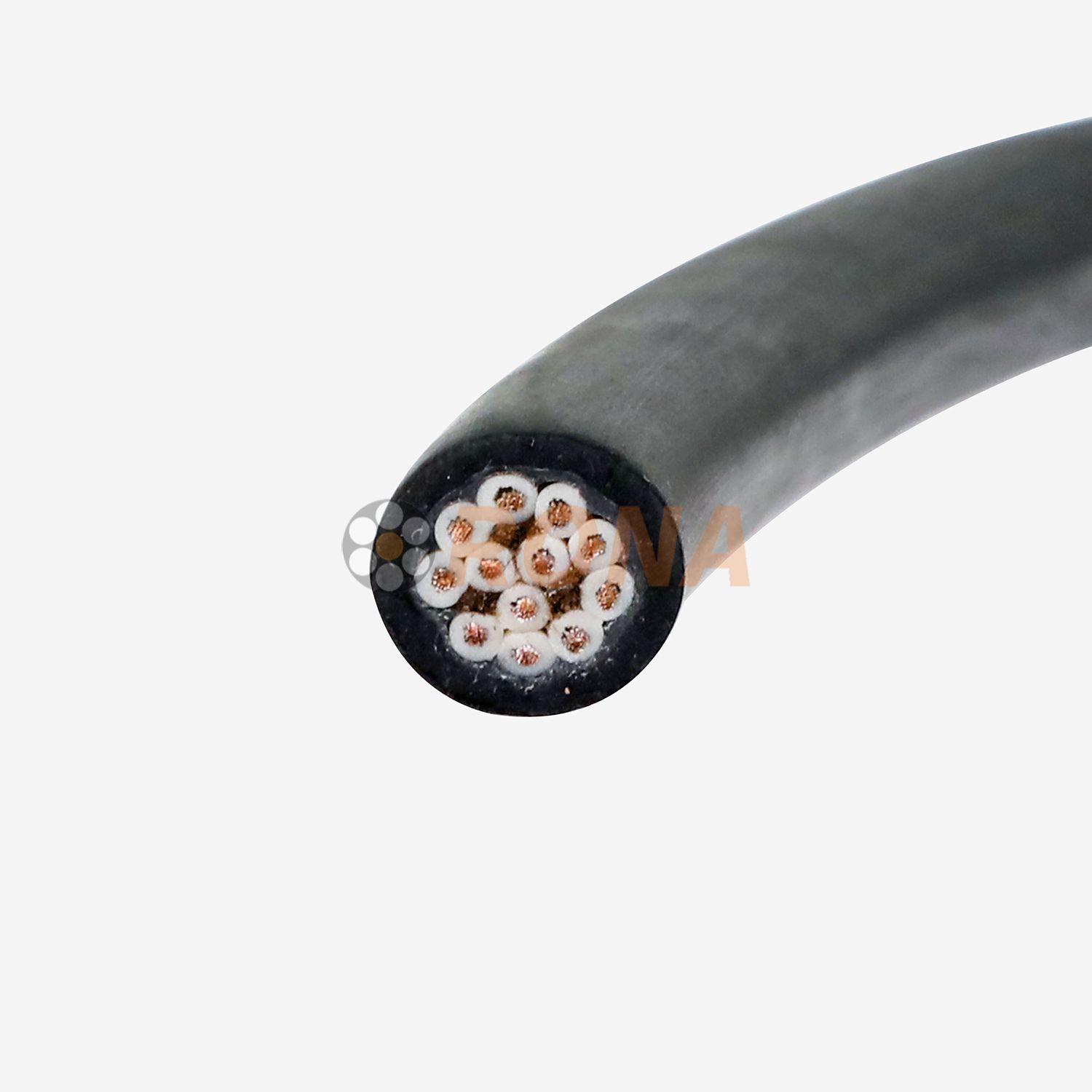

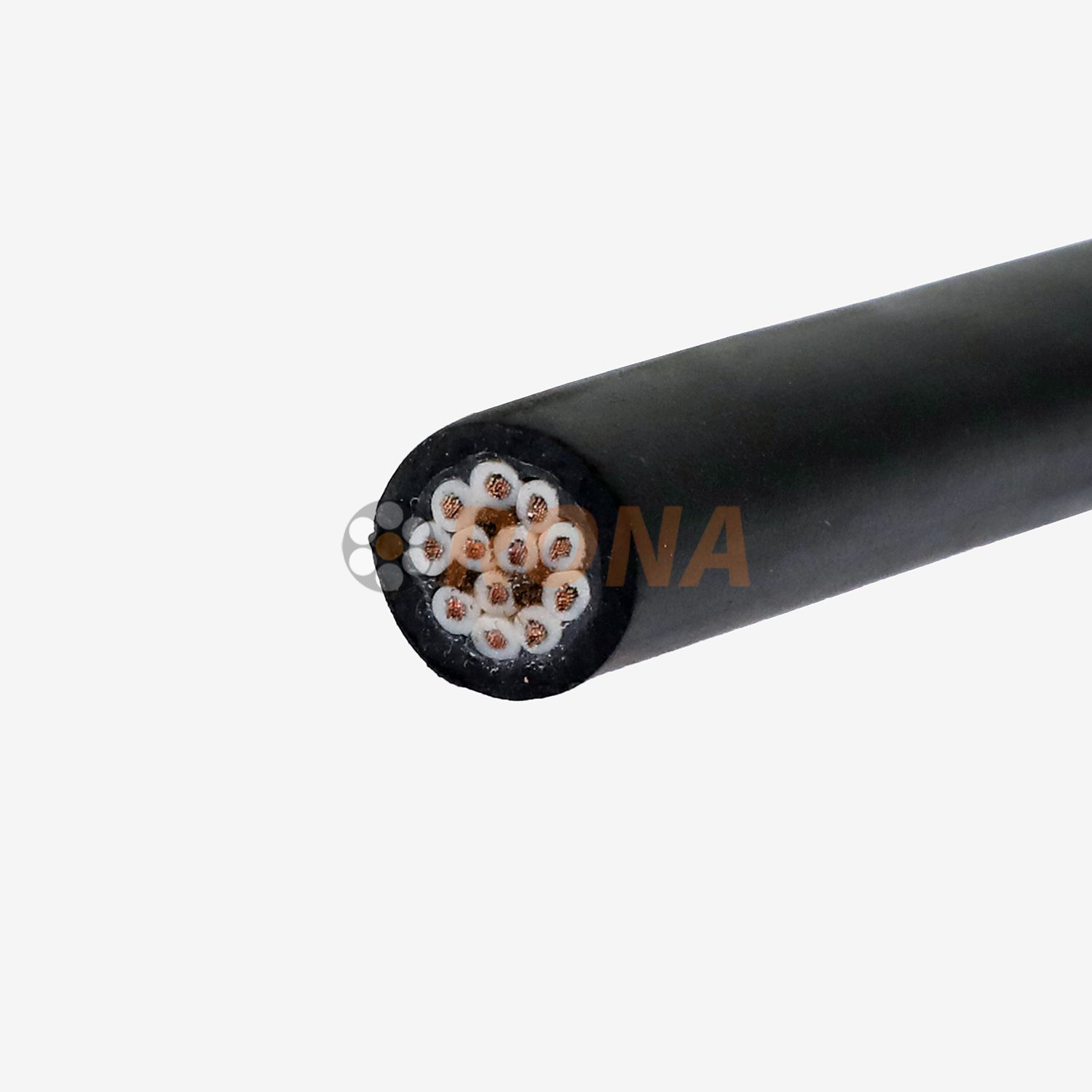

▍Structure
Conductor: Class 5 finely stranded bare copper, ensuring high flexibility.
Insulation: Ethylene Propylene Rubber (EPR) provides excellent electrical insulation and thermal stability.
Sheath: A tough Polychloroprene (PCP) outer jacket offers superior resistance to ozone, oil, abrasion, and weathering. It is also flame-retardant.
▍Technical parameters
Item | Value |
Voltage | 300/500V |
Test voltage | 2500V/5min(AC) |
Minimum bend radius | |
Fixed installation | 4xcable outside diameter |
Moving installation | 5xcable outside diameter |
Temperature range | |
Fixed installation | -40℃~90℃ |
Moving installation | -30℃~90℃ |
Retardant properties | Complied with IEC60332-1 |
▍Key Properties
Oil-resistant, flame-retardant, and capable of withstanding light mechanical stress. This combination makes the cable durable in challenging conditions.
Standards: Manufactured in accordance with VDE 0282 Part 4 and compliant with CPR (Construction Products Regulation)
▍Application
Portable handheld household appliances and devices.
Workshop tools such as soldering irons, small drills, and lights.
Decorative lighting chains for temporary or festive installations.
Prefabricated building components and modular construction elements.
Extension leads for temporary power supply in various settings.
