HFUSP 2X2X1.5
RONA
85444929
Product Overview
High-Performance HFUSP PUR Cable for Drag Chains – Shielded Twisted Pair with Ultra-Durable Jacket
Designed for demanding automated and robotic applications, our HFUSP PUR drag chain cable combines superior flexibility with robust shielding for reliable signal and power transmission in continuous-motion environments. The high-grade polyurethane (PUR) jacket provides exceptional resistance to oils, chemicals, abrasion, and mechanical stress, ensuring long service life even in harsh industrial conditions.
Key Features
✅ Optimized for Drag Chains – High-flex design withstands millions of cycles without failure.

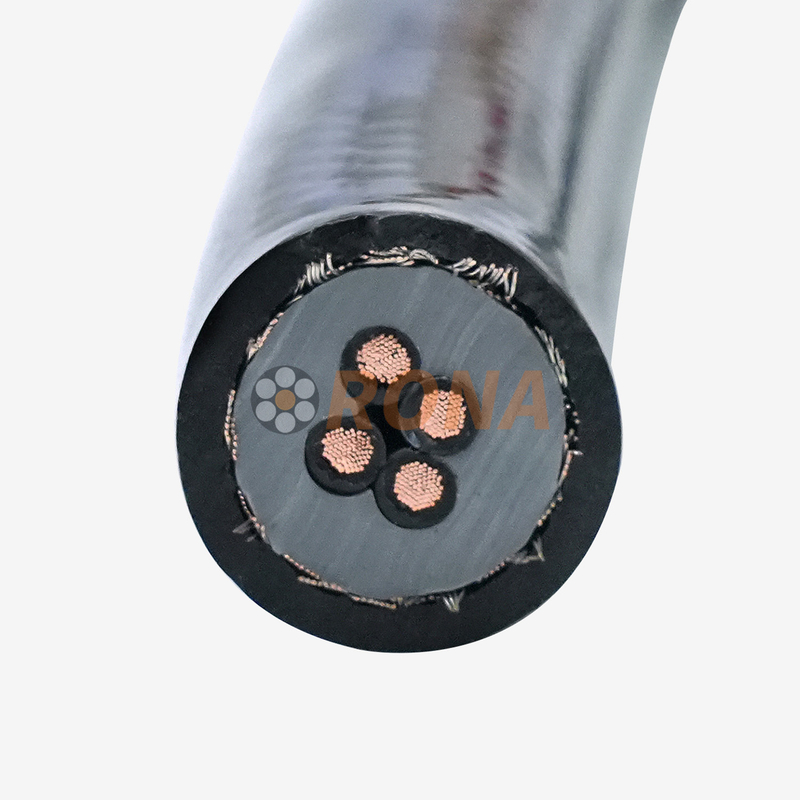

✅ Twisted Pair + Shielded Construction – Reduces EMI/RFI interference for stable data/power transfer.
✅ PUR Outer Sheath – Resistant to oils, solvents, and abrasion (meets DIN/UL standards).
✅ Temperature Range – Stable performance from -40°C to +90°C (-40°F to +194°F).
✅ Torsion-Resistant Conductors – Prevents wire breakage under repetitive bending.
Technical parameters
Item | Value |
Voltage | 300V |
Temperature Range | Fixed installation: -50℃~90℃ Moving installation: -40℃~90℃ |
Minimum bend radius | Fixed installation: 4x cable outside diameter Moving installation: 7.5x cable outside diameter |
Maximum mobile speed | Unsupported speed: 8m/s Gliding speed: 8m/s Acceleration: 75m/s² |
Weather resistance | UV resistant,suitable Indoor use |
Certificate | CE/CCC/ISO9001/ISO14001 /OHSAS18001 |
CNC Machines
Precision motion control systems
High-speed spindle and axis movements
Robotic Arms
Articulated and collaborative robots
Repetitive bending and torsional stress environments
Automated Assembly Lines
Conveyor systems and pick-and-place units
Continuous flexing in 3D motion systems
Material Handling Systems
Automated guided vehicles (AGVs)
Stacker cranes and warehouse robotics
Q: What is the expected flex life?
A: Under proper installation and within specified bend radii, these cables typically achieve >5 million flex cycles, depending on specific conditions (speed, load, chain type).
Q: Is it suitable for outdoor use?
A: The PUR jacket offers good UV resistance and moisture protection (IP67 rating common), making it suitable for protected outdoor applications or washdown areas.
Q: Can it handle high voltages?
A: Various voltage ratings are available (e.g., 300V, 500V, 1000V); select the version matching your specific power requirements.
Q: How important is minimum bend radius?
A: Critically important! Adhering to the specified minimum bend radius (e.g., 7.5x cable diameter) is essential to maximize flex life and prevent conductor damage. Always follow manufacturer guidelines.
