HFMUP 4G6
RONA
85444929

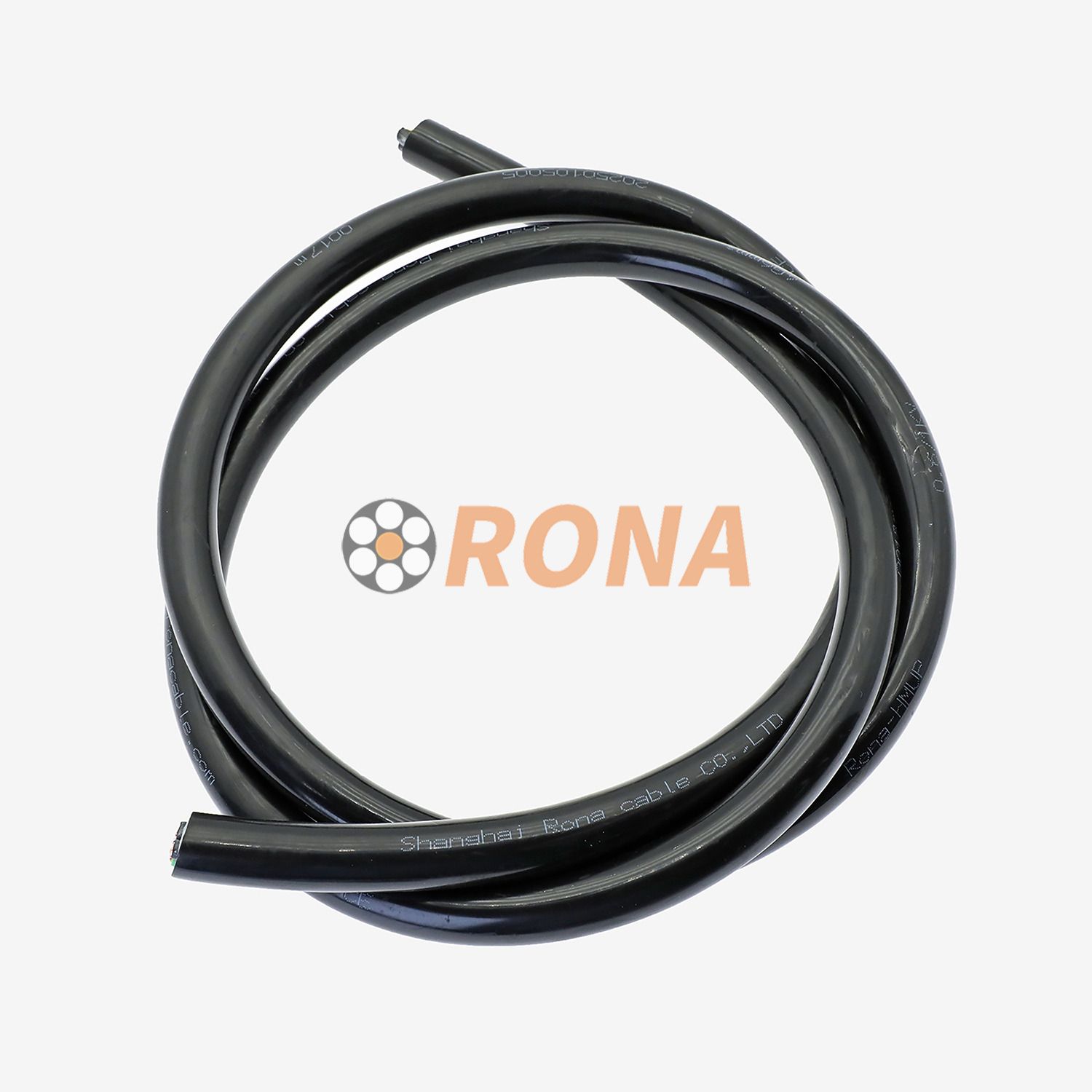

This HFMUP 4G6mm² Shielded PUR Chain Cable is engineered to deliver robust power and reliable signal transmission for high-demand tools operating within cable carriers. Featuring a 4-conductor + ground (4G) structure with a substantial 6mm² cross-section for power conductors, it incorporates overall braided shielding for superior electromagnetic compatibility (EMC). Encased in a tough PUR jacket, it excels in the challenging environments of automated tooling systems requiring constant movement and resistance to industrial contaminants.
| Model | |
Voltage: | 0.6/1KV |
Temperature Range | Fixed installation: -50℃~90℃ Moving installation: -40℃~90℃ |
Minimum bend radius | Fixed installation: 4xcable outside diameter Moving installation: 7.5x cable outside diameter |
Maximum mobile speed | Unsupported speed: 8m/s Gliding speed: 5m/s Acceleration: 75m/s² |
Weather resistance | UV resistant,Daylight-aging properties excellent,suitable outdoor application |

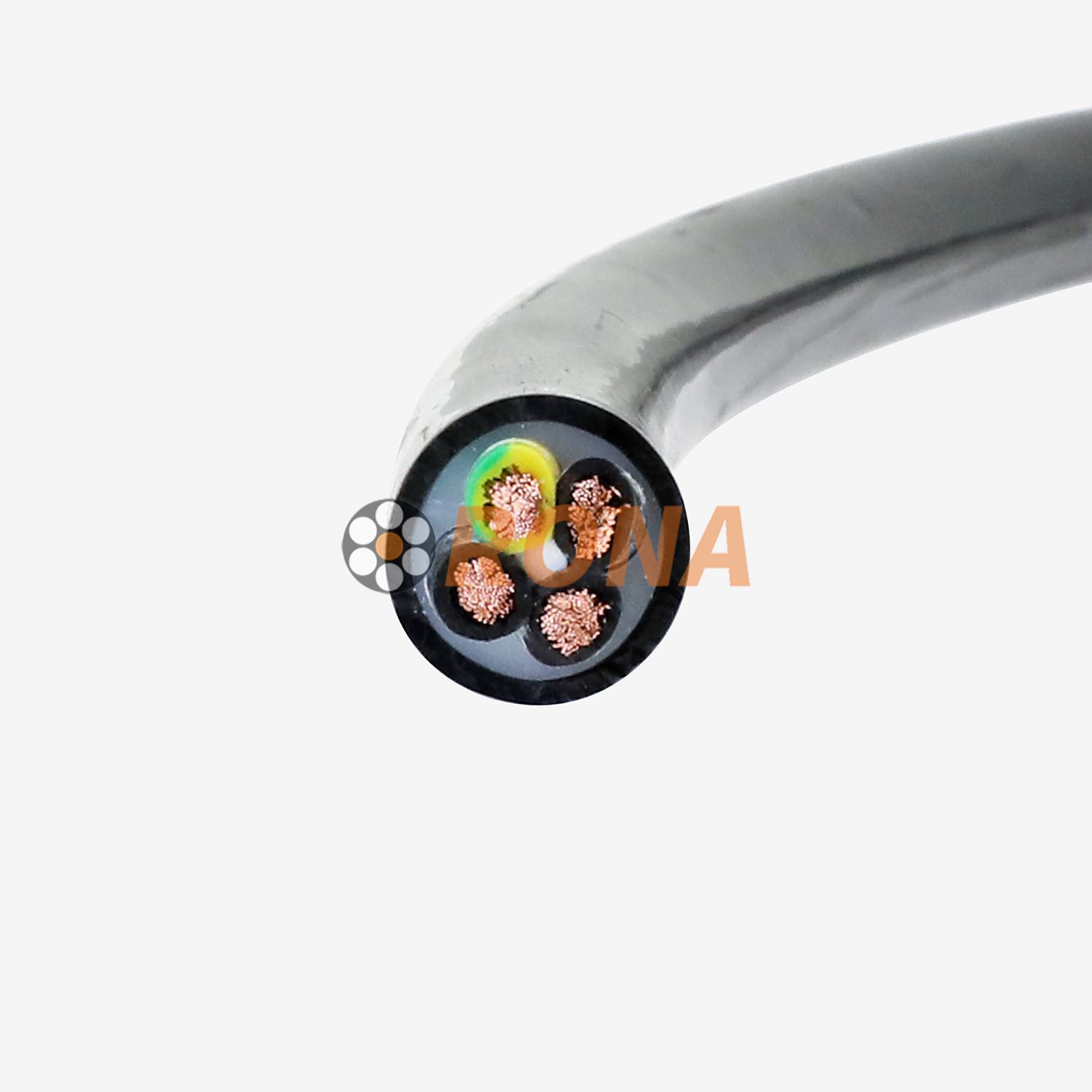

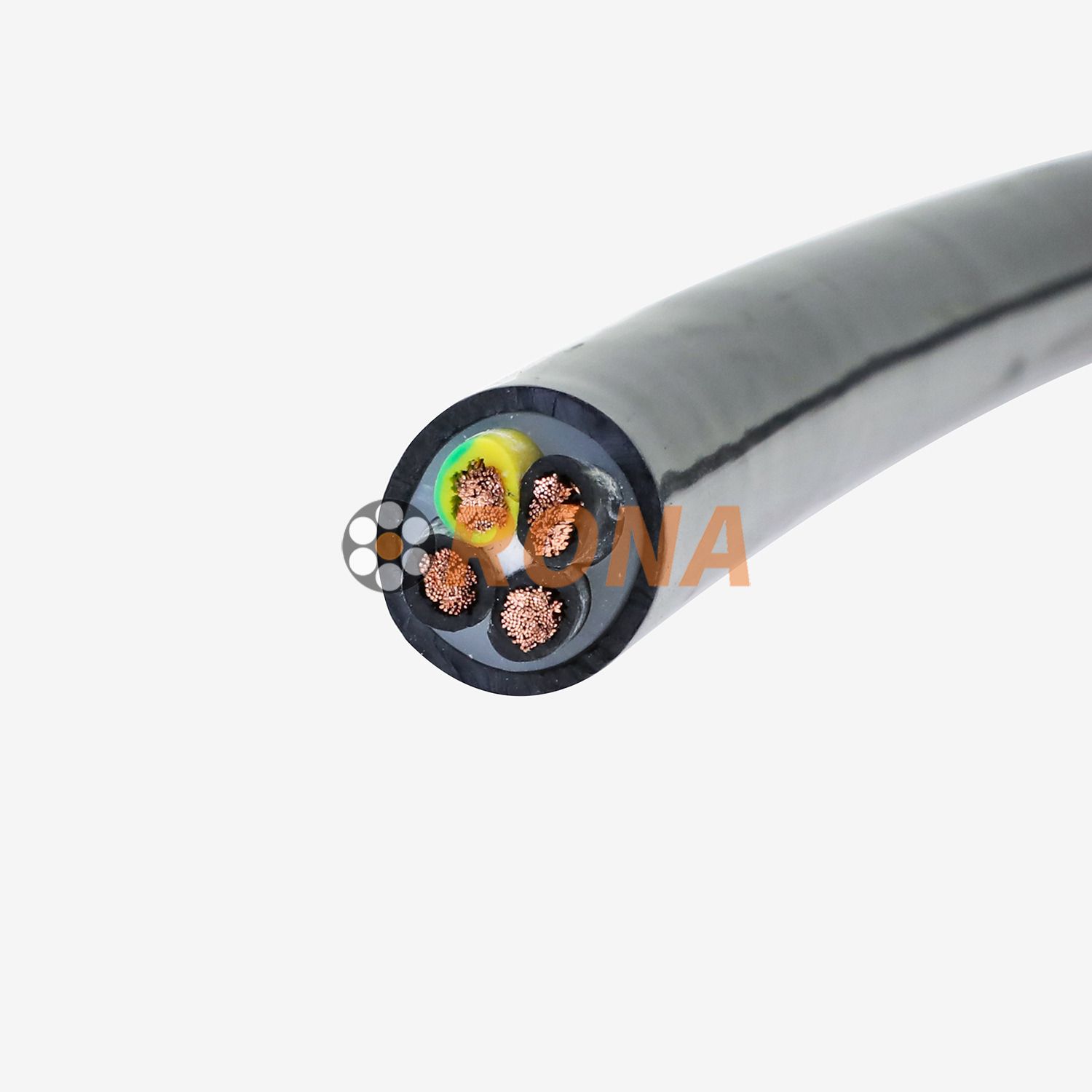

High Current Capacity: 4-core design (3 phases + ground) with 6mm² conductors capable of handling significant power loads for industrial tools.
EMI/RFI Shielding: High-coverage braided copper shielding effectively minimizes electromagnetic interference (EMI) and radio frequency interference (RFI), protecting sensitive signals.
Drag Chain Optimized: PUR jacket and flexible construction ensure reliable performance in continuous flexing applications within cable carriers.
Rugged Protection: Resists abrasion, oil, grease, coolants, and many chemicals commonly found in machining and tooling environments.
Temperature Range: Wide operating temperature tolerance (e.g., -30°C to +80°C).
Color Coding: Standard color coding (Black/Brown, Black, Black/Grey, Green/Yellow) for easy identification and safe installation.
Power supply for robotic tool changers
Servo-driven power tools on automated arms (e.g., grinding, drilling, riveting)
High-power motors within moving machine sections
CNC tool carousels and turrets
Welding equipment on moving platforms
Automated assembly stations with powered tools
Heavy-duty material handling equipment actuators
Q: What does "4G6mm²" mean?
A: "4G" indicates 4 conductors plus a separate ground wire. "6mm²" refers to the nominal cross-sectional area of each main power conductor.
Q: Why is shielding important for tool cables?
A: Power tools (especially motors and drives) generate electrical noise that can interfere with control signals (sensors, communication). Shielding contains this noise, preventing malfunctions.
Q: Can this cable handle the starting current of large motors?
A: The 6mm² conductors are suitable for significant loads, but always verify the cable's ampacity rating against the specific motor's full load current (FLC) and starting inrush current requirements.
Q: Is the shielding connected at both ends?
A: Proper EMC practice usually requires connecting the braided shield to ground atoneend (typically the control cabinet end) using suitable cable glands or connectors to avoid ground loops. Consult EMC guidelines.
