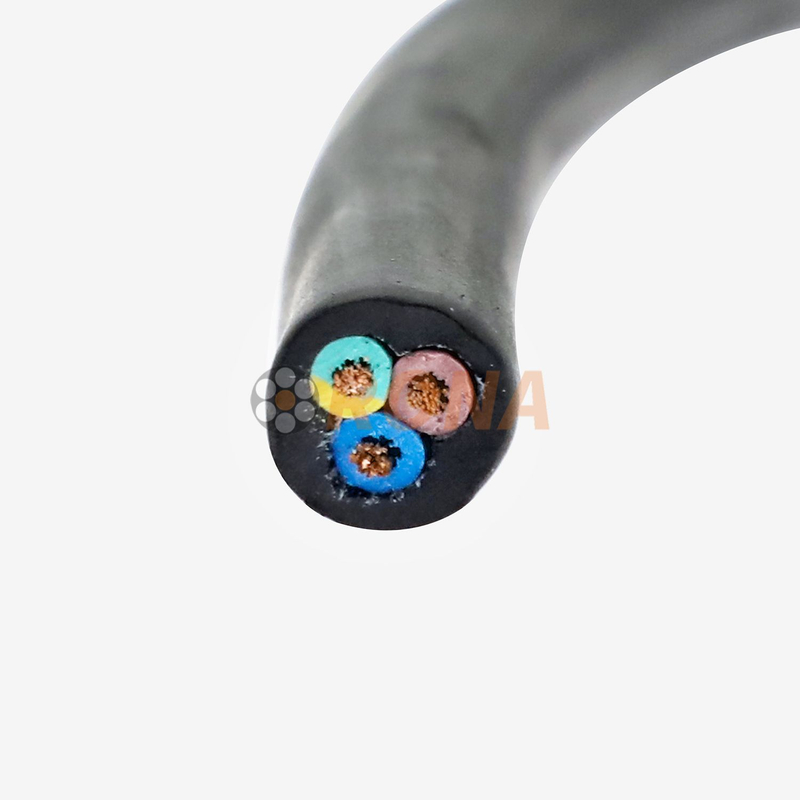

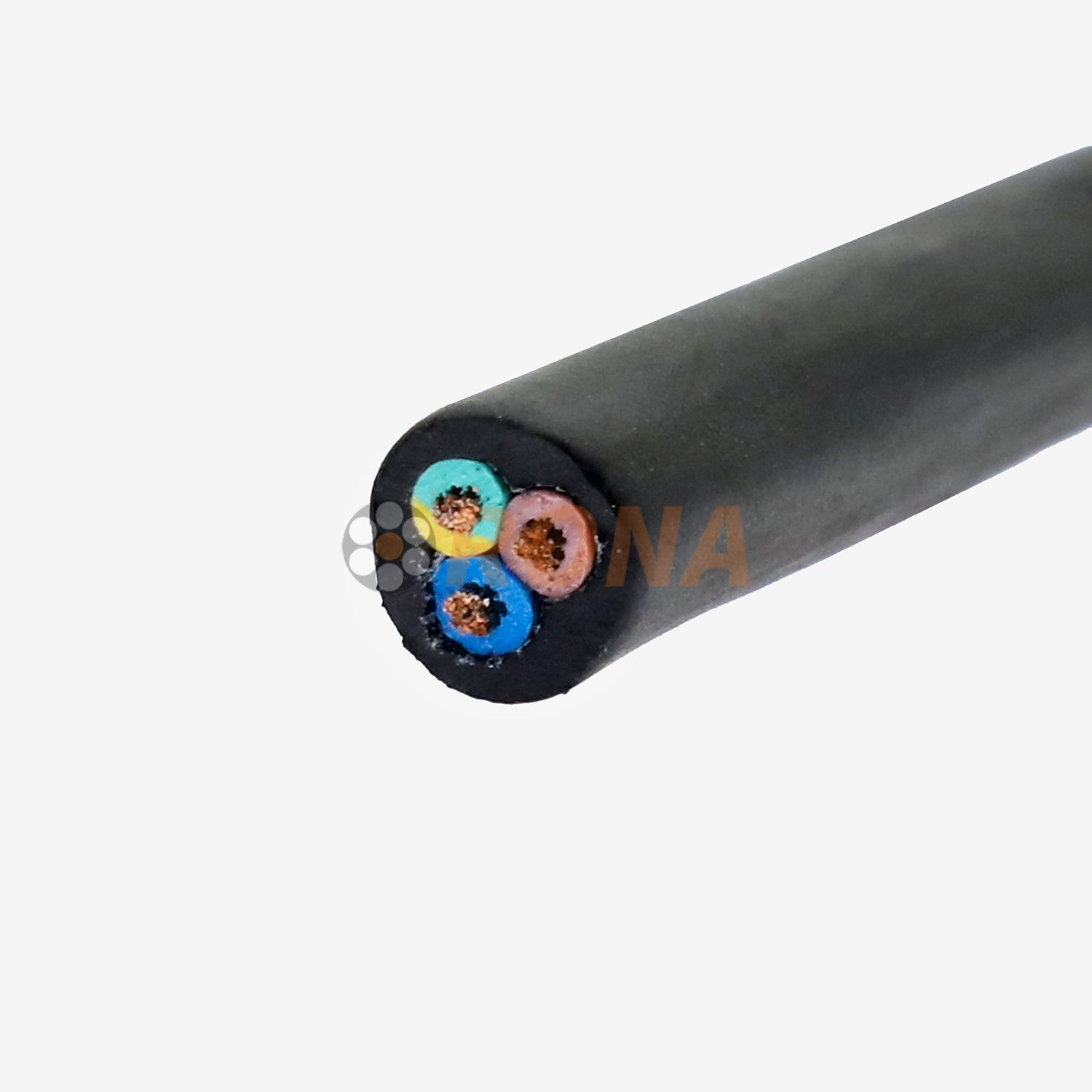

H05RR-F 3G0.75
RONA
85444929
The European Standard H05RR-F Rubber Sheathed Cable is a versatile and durable solution designed for general-purpose electrical installations requiring flexibility and robustness. Conforming to DIN EN 50525-2-82 and VDE 0285 standards, this cable is ideal for indoor and outdoor applications where resistance to oils, abrasion, and moderate mechanical stress is essential. Its rubber insulation and sheath provide reliable performance in challenging environments, making it a preferred choice for industrial, commercial, and residential use.
▍Technical parameters
Item | Value |
Voltage | 300/500V |
Test voltage | 2500V/5min(AC) |
Minimum bend radius | |
Fixed installation | 4xcable outside diameter |
Moving installation | 5xcable outside diameter |
Temperature range | |
Fixed installation | -40℃~90℃ |
Moving installation | -30℃~90℃ |
Retardant properties | Complied with IEC60332-1 |
Conductors: Flexible tinned copper (Class 5 stranding) for high conductivity and durability.
Insulation: EPR (ethylene propylene rubber) for excellent dielectric properties and resistance to heat and chemicals.
Sheath: Chloroprene (CR) rubber sheath with UV and ozone resistance, ensuring long-term performance in outdoor environments.
Operates between -40°C and +60°C, suitable for extreme climates.
Short-circuit temperature tolerance up to +200°C.
Minimum bending radius: 4x cable diameter for fixed installations, 6x for free-moving applications.
High tensile strength (15 N/mm²) for heavy-duty use.
CE-certified and RoHS-compliant, meeting EU safety and environmental standards.
Tested to IEC 60332-1-2 for flame resistance.
Available in 2–5 cores with cross-sections from 0.75 mm² to 6 mm², accommodating various power and control needs.
Industrial Machinery: Powering portable tools, conveyor belts, and packaging equipment in factories.
Commercial Buildings: Lighting, HVAC systems, and temporary electrical setups in offices and retail spaces.
Residential Use: Appliances, kitchen equipment, and outdoor power supplies in homes and gardens.
Marine Environments: Low-voltage systems on boats and offshore platforms, thanks to its saltwater resistance.
Q: Is the H05RR-F cable suitable for outdoor use?
A: Yes, its UV-resistant sheath ensures reliable performance in outdoor environments, though prolonged direct sunlight may require additional protection.
Q: What is the maximum voltage rating?
A: The cable is rated for 300/500V, suitable for low-voltage applications.
Q: Can it be used in wet conditions?
A: Yes, the rubber sheath provides excellent water resistance, making it suitable for damp or humid environments.
Q: Does it require grounding?
A: Yes, proper grounding is recommended for safety, especially in industrial settings.
Q: What certifications does it hold?
A: It complies with CE, RoHS, and VDE standards, ensuring quality and safety.
