Festoon-MPUP 4G4
RONA
85444929

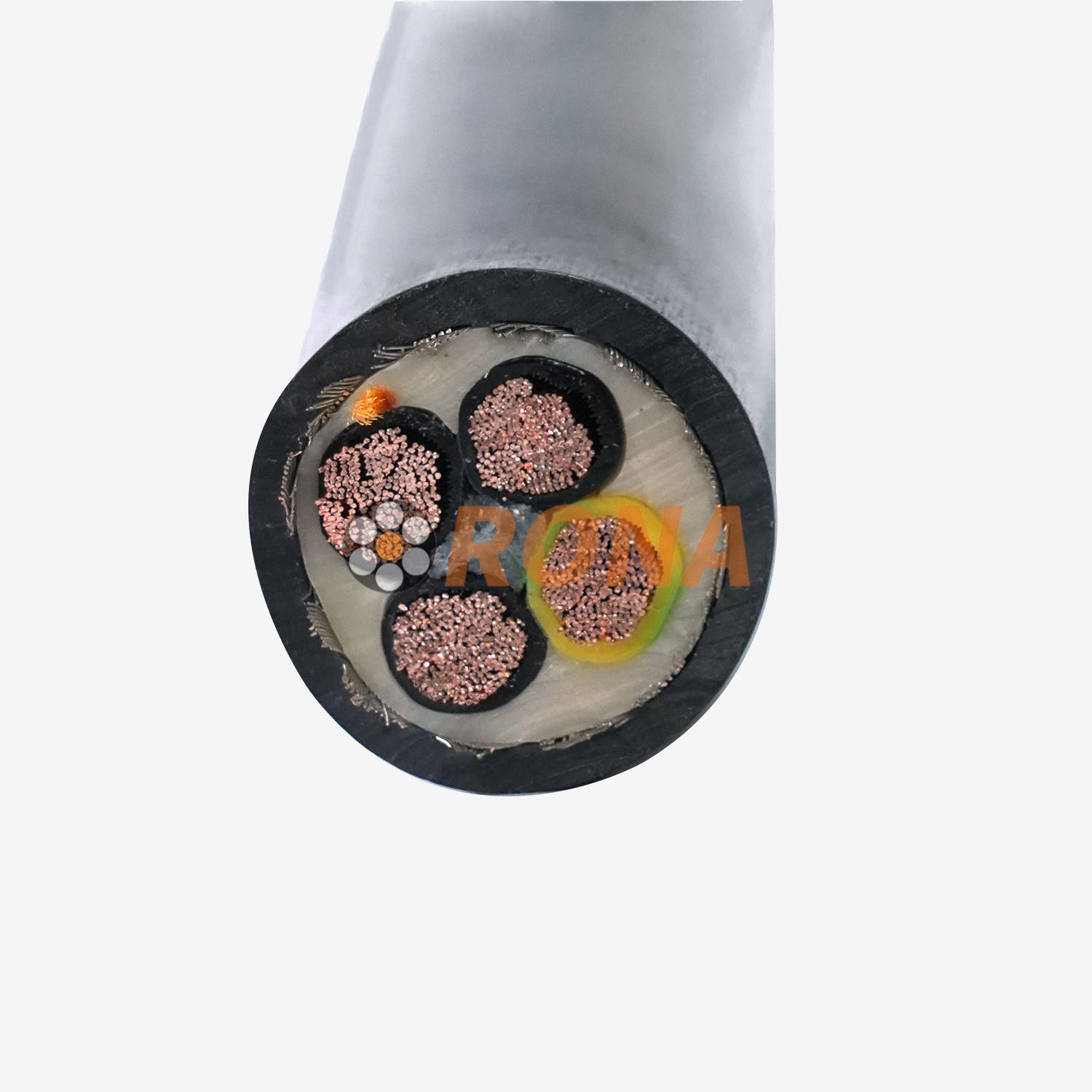

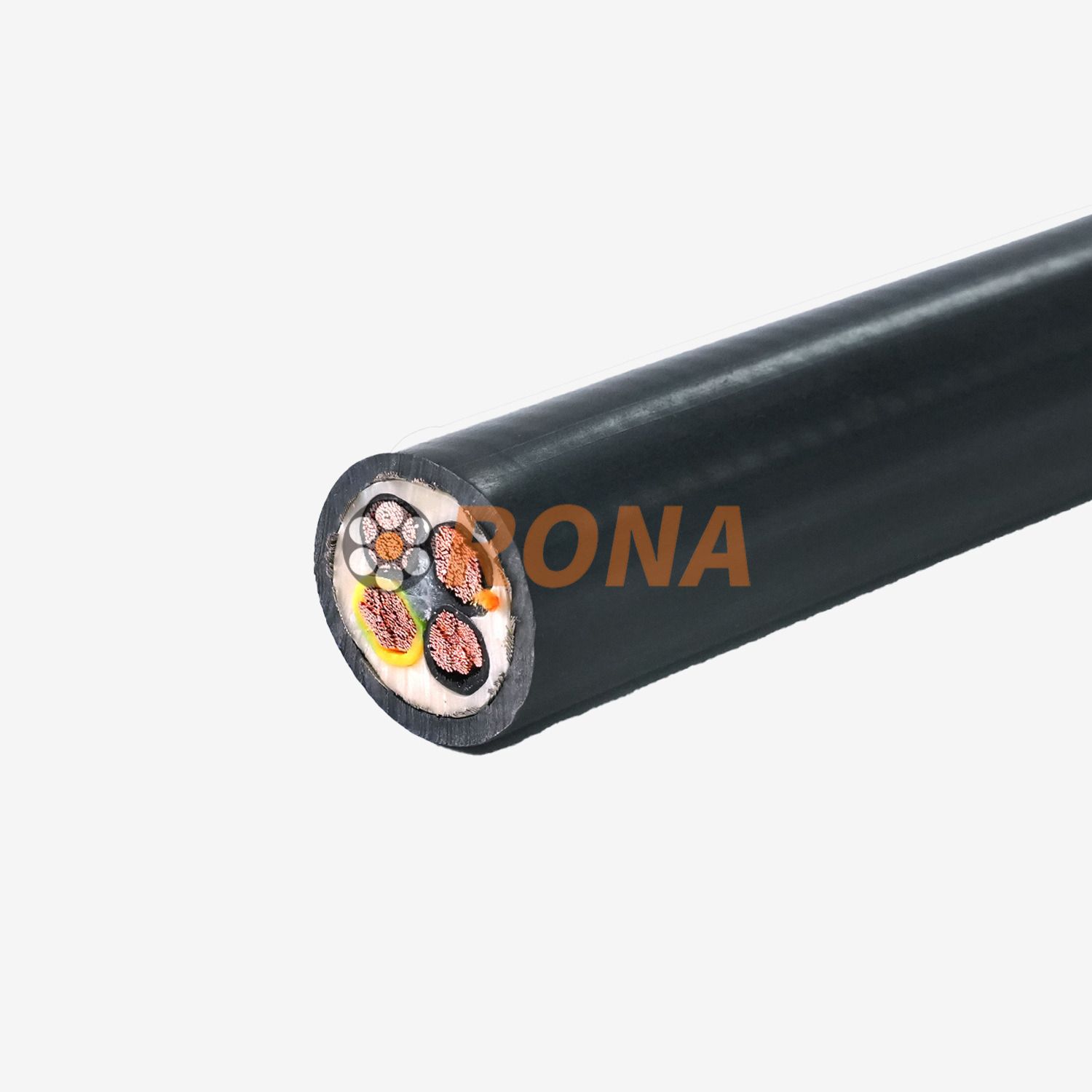

Designed for the unique demands of festoon (trolley) systems found in cranes, hoists, and gantries, this 4G4 Chemical Resistant PUR Festoon Control Cable combines power and control capabilities. Its 4-core + ground (4G) structure with 4mm² power conductors handles motor loads, while the tough PUR jacket provides exceptional resistance to oils, greases, ozone, weathering, and a wide range of aggressive chemicals encountered in industrial and outdoor settings.
▍Technical parameters
Parameter | Value |
Voltage | 0.6/1kV |
Temperature Range | Fixed installation: -50℃~90℃ Moving installation: -40℃~90℃ |
Minimum bend radius | Fixed installation: 4xcable outside diameter Moving installation: 10x cable outside diameter |
Resistance Chemistry Substance | Resistance Acids,alkalis,solvents etc. Chemically resistant |
Weather resistance | UV resistant,Daylight-aging properties excellent,suitable outdoor application |
Festoon-Specific Construction: Optimized for the rolling flex and suspension stresses inherent in festoon/trolley systems.
Chemical Resistance: Specially formulated PUR jacket offers outstanding resistance to oils, fuels, solvents, acids, alkalis, and ozone degradation.
Robust Power & Control: 4 x 4mm² conductors (3 phases + ground) suitable for powering motors, plus additional cores for control/signaling (specify total core count).
Weather & UV Stability: Excellent performance in harsh outdoor environments, resisting sunlight (UV), moisture, and temperature extremes (e.g., -40°C to +80°C).
Abrasion & Tear Resistant: Durable jacket withstands constant movement and contact with guide systems.
Flexible & Cold-Resistant: Maintains flexibility even at low temperatures.
Overhead cranes and gantry cranes
Hoists and winches
Port cranes (ship-to-shore, gantry)
Stacker reclaimers
Automated storage and retrieval systems (AS/RS)
Mining equipment
Waste handling facilities
Chemical plants and refineries
Any application requiring power/control for suspended, moving equipment exposed to chemicals/weather.
Q: What does "4G4" mean?
A: "4G" indicates 4 main conductors plus a separate ground wire. "4" refers to the nominal cross-sectional area (4mm²) of each of the main power conductors. Additional smaller control conductors are usually included; confirm the total core count (e.g., 6x4mm² + 6x1.5mm² + G).
Q: How does festoon movement differ from drag chain movement?
A: Festoon systems involve cables hanging in loops that roll and unfold, experiencing different bending stresses compared to the confined, guided back-and-forth motion of cables within a drag chain. Festoon cables need high transverse stability and resistance to compression.
Q: Is this cable flame retardant?
A: Many chemical-resistant PUR festoon cables also meet flame retardant standards (e.g., IEC 60332-1, UL 1685 FT4), essential for industrial safety. Verify the specific certifications.
Q: How critical is support spacing in festoon systems?
A: Extremely critical! Proper support spacing (as specified by the cable manufacturer and festoon system designer) is vital to prevent cable damage from excessive sagging or tight bends, ensuring long service life.
