Choosing the right cable can make or break your project. TRVV vs TRVVP cables serve different needs in industry.
Both offer flexibility, but their features suit different environments and applications. Picking the wrong one risks downtime.
In this post, you’ll learn the key differences, uses, and how to choose between TRVV and TRVVP cables.
Table of Contents
TRVV and TRVVP are flexible control cables widely used in industrial automation equipment, machinery, and electrical control systems.
When selecting flexible control cables for industrial automation, machinery, and control systems, TRVV and TRVVP are two of the most commonly used cable types. While they share many similarities in structure and application, a key difference—the presence of a shielding layer—can significantly affect performance in different environments.
PVC cable is sufficient, when a shielded cable is required, and when it may be better to upgrade to a PUR cable or a drag chain cable for demanding industrial applications.
TRVV cable is a type of highly flexible drag chain cable designed for continuous movement and bending. It features finely stranded, annealed oxygen-free copper conductors, which provide excellent conductivity and flexibility. Unlike standard household cables, TRVV is engineered to withstand repeated bending cycles—often exceeding three million bends—making it ideal for industrial automation and robotic applications.

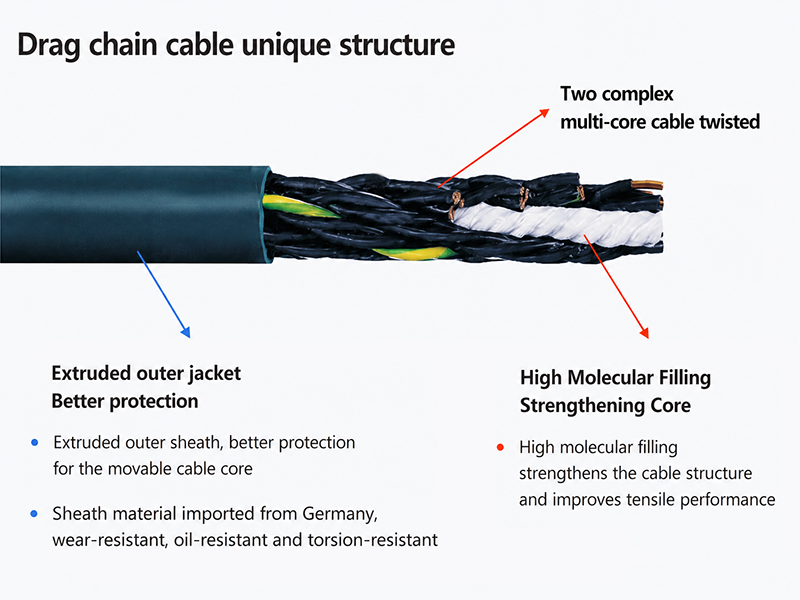

The construction of TRVV cables emphasizes durability and flexibility. The conductor consists of multiple strands of ultra-fine copper wire twisted together, conforming to IEC 60228 Class 6 standards. Insulation uses a special thermoplastic elastomer, often a modified PVC or nitrile-based compound, which offers superior elasticity and resistance to wear. The outer sheath is made from a soft, mixed PVC material designed for abrasion resistance and torsion resistance. This sheath protects the cable from mechanical stresses such as twisting, pulling, and rubbing in dynamic environments.
Inside, the cable may include fillers like cotton or jute fibers to maintain shape and reduce internal friction. The cores are color-coded or marked for easy identification, and the cable’s overall design supports bending radii as tight as 7.5 times the cable diameter for short travel distances, ensuring smooth operation in confined spaces.
TRVV cables are widely used in industrial settings requiring flexible power or control cable solutions. Common applications include:
Robotic arms and automation equipment
CNC machine tools and woodworking machinery
Storage and logistics systems with moving parts

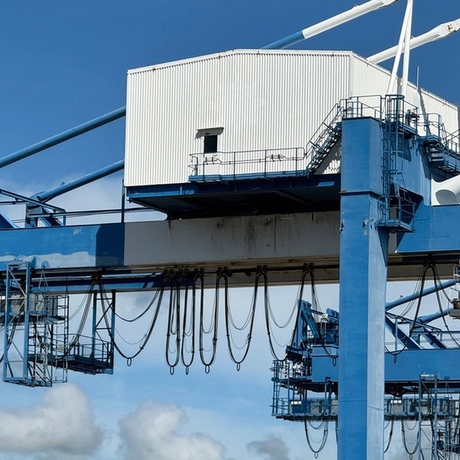

Cranes and hoisting machinery
Firefighting systems and emergency equipment
Metallurgical and manufacturing industries
The cable performs well in dry or humid indoor environments and can handle moderate mechanical stress. It resists oil, water, cold temperatures, and flame, making it suitable for harsh industrial conditions. Because of its flexibility and durability, TRVV cable is often chosen for mobile installations where cables must move frequently without failure.
Tip: When selecting TRVV cables, consider their superior flexibility and wear resistance for applications involving frequent bending and movement to maximize cable lifespan and reduce downtime.

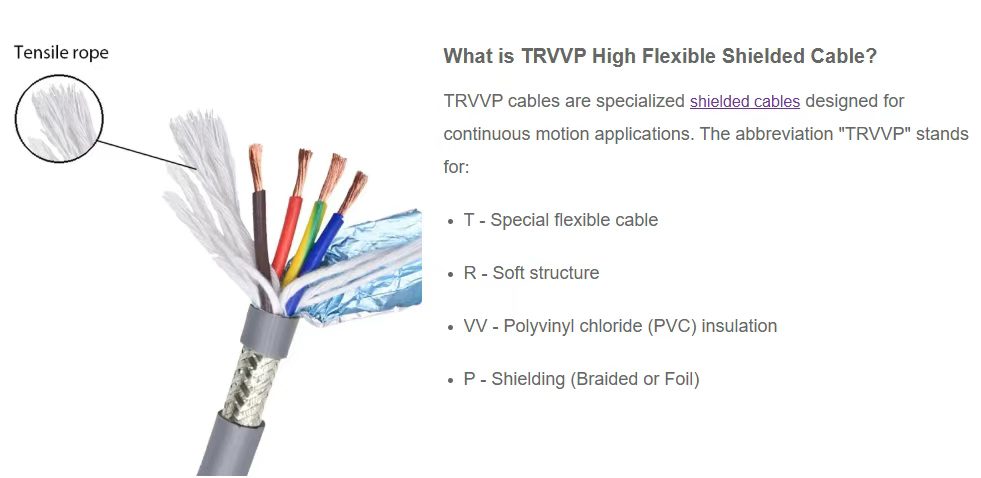

TRVVP cable is a type of drag chain cable similar to TRVV but includes an important feature: shielding. This cable is designed for continuous movement and bending in industrial applications where electromagnetic interference (EMI) is a concern. Like TRVV, it uses finely stranded, annealed oxygen-free copper conductors to ensure excellent flexibility and conductivity. However, TRVVP stands out by incorporating a shield that protects signals from EMI, which is crucial for sensitive control or data transmission.
The key difference in TRVVP cables is the shielding layer. This shield typically consists of a high-density braided mesh made of tinned copper wires. The braid covers the insulated conductors, creating a protective barrier against external electromagnetic fields. This shielding reduces noise, signal distortion, and interference from nearby electrical equipment or cables.
The shield also helps prevent the cable itself from emitting electromagnetic noise, which could affect other devices. The braid is flexible enough to allow the cable to bend and move repeatedly without damage. Some TRVVP cables may include an additional foil shield beneath the braid for enhanced protection in highly sensitive environments.
The insulation and outer sheath materials in TRVVP cables are similar to TRVV: a flexible PVC compound or modified elastomer that resists abrasion, oil, and mechanical stress. This combination ensures the cable can withstand harsh industrial environments while maintaining signal integrity.
TRVVP cables are ideal where both flexibility and EMI protection are required. Typical applications include:
Industrial automation systems involving precise control signals
Robotic arms and CNC machines exposed to electromagnetic noise
Encoder and sensor wiring in manufacturing lines
Communication and data cables in automated warehouses
Environments near powerful motors, transformers, or radio equipment
Medical equipment requiring stable signal transmission
Firefighting and emergency systems where interference could cause failures
By shielding sensitive signals, TRVVP cables ensure reliable operation and reduce downtime caused by electrical noise interference.
Tip: When electromagnetic interference risks exist, choose TRVVP cables to protect signal quality and maintain system reliability in industrial settings.
The most obvious difference between TRVV and TRVVP cables is shielding. TRVVP cables include a high-density braided shield made of tinned copper wire, which surrounds the insulated conductors. This shield blocks electromagnetic interference (EMI) from external sources and prevents the cable from emitting interference. TRVV cables lack this shielding layer, making them suitable only where EMI is not a concern.
Both cables offer excellent flexibility, essential for drag chain and robotic arm applications. TRVV cables are highly flexible due to their finely stranded copper conductors and soft PVC sheath. TRVVP cables maintain this flexibility despite the additional shielding, thanks to the braided shield’s design that allows bending without damage. However, TRVV may have a slight edge in pure flexibility since it lacks the shielding layer.
TRVVP cables outperform TRVV when it comes to EMI resistance. The braided copper shield in TRVVP acts as a barrier against electrical noise from motors, transformers, and other industrial equipment. This makes TRVVP the preferred choice in environments with high electromagnetic noise, ensuring signal integrity for sensitive control or communication lines. TRVV cables, lacking shielding, are vulnerable to interference, which can cause signal degradation or operational errors.
Both cables are designed for harsh industrial environments and offer strong wear resistance. Their outer sheaths are made from modified PVC or elastomer compounds that resist abrasion, oil, and chemicals. TRVVP’s shield adds a layer of mechanical protection, potentially increasing durability in rough conditions. However, both cables can withstand millions of bending cycles, suitable for continuous dynamic use.
TRVV and TRVVP cables typically share similar voltage ratings, usually around 300/500V, making them suitable for control and power applications in industrial settings. Temperature ratings are also comparable, generally from -5°C to +70°C for normal operation, with short-term peaks higher. Both cables meet relevant safety standards like IEC and VDE, ensuring safe and reliable performance.
Tip: Choose TRVVP cables when electromagnetic interference could disrupt signals; opt for TRVV cables if maximum flexibility and cost-efficiency matter more in low-EMI environments.
Both TRVV and TRVVP cables use finely stranded, annealed oxygen-free copper conductors. This design ensures excellent flexibility and conductivity, essential for drag chain applications. The conductor strands typically comply with IEC 60228 Class 6 standards, meaning they have a high strand count for superior bending performance.
Cross-sectional areas range widely, from as small as 0.08 mm² up to 16 mm² or more, depending on the number of cores and power requirements. Both cables cover similar conductor size ranges, allowing selection based on current load and mechanical flexibility needs.
Insulation in both cables uses high-quality PVC or specialized thermoplastic elastomer compounds. These materials provide good mechanical strength, flexibility, and resistance to oils, abrasion, and temperature variations. The insulation thickness generally meets VDE 0207 standards, ensuring consistent electrical isolation and durability.
TRVV cables often use a modified PVC or nitrile-based elastomer that enhances elasticity and wear resistance. TRVVP cables use similar insulation but add a shielding layer beneath it, which does not compromise the insulation’s protective function.
The outer sheath of both cables is made from soft, flexible PVC compounds designed to resist abrasion, oil, and mechanical stress. The sheath material is engineered to withstand torsion, bending, and continuous movement within drag chains.
TRVVP cables include an additional braided shield layer beneath the sheath, made from tinned copper wires. This shield adds mechanical protection and EMI resistance but slightly increases cable diameter and weight. Both sheaths comply with IEC 332-1 fire-retardant standards, ensuring safety in industrial environments.
Bending radius is critical for drag chain cables. TRVV cables typically support a minimum bending radius of 7.5 times the cable diameter for short travel lengths (less than 10 meters) and 10 times for longer strokes. TRVVP cables have similar bending radius requirements but may be slightly less flexible due to the shielding braid.
Both cables boast impressive bending lifespans, often exceeding 3 million bending cycles under recommended conditions. This durability ensures reliable operation in continuous dynamic applications such as robotic arms or automated machinery.
Voltage ratings for both TRVV and TRVVP cables usually stand at 300/500V, suitable for control and power transmission in industrial settings. They pass high-voltage tests of 1500V to 2000V for insulation integrity.
Both cables comply with international standards such as IEC, VDE, and CCC certifications. These standards guarantee safe electrical performance, fire resistance, and mechanical robustness required in industrial automation and manufacturing environments.
Tip: When selecting between TRVV and TRVVP cables, consider that TRVVP’s shielding adds EMI protection and mechanical strength but may slightly reduce flexibility and increase cable diameter.
Both TRVV and TRVVP cables excel in industrial automation and robotics. Their flexibility suits robotic arms, CNC machines, and automated assembly lines where cables must bend and move continuously. TRVV cables often serve in straightforward power or control tasks where EMI is minimal. TRVVP cables become essential when sensitive signals require protection from electromagnetic noise generated by motors or other devices nearby. For example, in a robotic welding station, TRVVP cables help maintain signal clarity for precise control.
TRVVP cables shine in environments with high electromagnetic interference. Facilities with heavy machinery, transformers, or radio equipment benefit from TRVVP’s braided copper shield, which blocks EMI. This shielding prevents signal distortion and equipment malfunctions. TRVV cables lack this shield, so they suit areas with low EMI risk. For instance, automated warehouses with many wireless devices and motors use TRVVP cables for sensor and communication lines to ensure reliable data transmission.
TRVV and TRVVP cables both support mobile installations involving frequent bending, such as drag chains or moving robotic parts. TRVV’s lack of shielding offers slightly better flexibility, making it ideal for long travel distances or tight bending radii in dynamic settings. TRVVP cables, while flexible, are somewhat stiffer due to shielding, yet still designed for continuous movement. For fixed installations, either cable works, but TRVVP is preferred if EMI protection is necessary. For example, a conveyor system with fixed wiring might use TRVVP to avoid interference from nearby machinery.
Certain machines and equipment specify cable types based on their operational demands. TRVV cables fit general-purpose power and control wiring in woodworking machines, cranes, or fire-fighting systems. TRVVP cables cater to equipment needing interference-free signal transmission, such as medical devices, precision measurement instruments, or industrial sensors. Selecting the correct cable ensures compliance with machine specifications and enhances operational reliability.
Tip: Match cable choice to the application's EMI exposure and movement needs—use TRVVP for interference-prone environments, TRVV for maximum flexibility in less noisy settings.
When selecting between TRVV and TRVVP cables, first consider the environment. TRVVP cables have a braided copper shield that blocks electromagnetic interference (EMI). This makes them ideal for environments near motors, transformers, or radio equipment where EMI could disrupt signals. If your installation site has minimal EMI, TRVV cables suffice, offering flexibility without the extra shielding.
Both cables suit continuous movement and bending, but their mechanical properties differ slightly. TRVV cables, lacking shielding, are more flexible and better for tight bends or long travel distances in drag chains. TRVVP cables remain flexible but are slightly stiffer due to the shield. If your application involves frequent twisting or very tight bending radii, TRVV might last longer. For moderate movement with EMI concerns, TRVVP balances flexibility and protection.
Cost plays a significant role. TRVV cables usually cost less since they lack the shielding layer. TRVVP cables, with their additional copper braid and sometimes foil shield, are pricier. If your project has a tight budget and EMI is not an issue, TRVV offers a cost-effective solution. However, investing in TRVVP cables can prevent costly signal failures and downtime in interference-prone environments.
Installation of TRVV cables is straightforward due to their lighter weight and higher flexibility. TRVVP cables, being thicker and heavier, may require more careful handling, especially in tight spaces. Maintenance-wise, TRVVP cables protect signals better, potentially reducing troubleshooting time caused by EMI-related issues. Consider the skill level of your installation team and the accessibility of cable runs when choosing.
Tip: Assess your environment’s EMI levels and mechanical demands before choosing; opt for TRVVP cables in high-interference areas and TRVV for maximum flexibility and budget savings in low-EMI settings.
TRVV cables offer superior flexibility without shielding, ideal for low-EMI environments needing frequent bending. TRVVP cables add braided shielding to protect against electromagnetic interference, ensuring signal integrity in noisy industrial settings. Choose TRVV for maximum flexibility and cost savings, or TRVVP when EMI protection is crucial. Future drag chain cables will likely combine enhanced flexibility with better EMI resistance. Shanghai RONA Cable Co., Ltd. provides high-quality TRVV and TRVVP cables that deliver durability, performance, and reliability for diverse industrial needs.
RONA is a premier high-tech company specializing in the research, design, and production of special flexible cables. We provide reliable connectivity solutions through professional engineering technology and rigorous manufacturing standards.
Mob： +86-21-57715338
E-mail：info@ronacable.com
A: The key difference in TRVV vs TRVVP cables is shielding; TRVVP includes a braided copper shield for EMI protection, while TRVV does not.
A: TRVVP cables are designed to block EMI with their shield, making them ideal for noisy environments, unlike TRVV cables which lack EMI protection.
A: TRVV offers greater flexibility and cost savings for low-EMI settings, while TRVVP balances flexibility with EMI shielding for sensitive signals.
A: Yes, TRVV cables are generally less expensive due to no shielding, whereas TRVVP cables cost more because of their braided copper shield.
A: Yes, both are suitable for robotic systems; choose TRVVP for EMI protection and TRVV for maximum flexibility in low-interference areas.
