Cable insulation forms the primary barrier dictating the safety, efficiency, and longevity of any electrical system. Specifying the wrong insulation material leads to severe consequences, ranging from accelerated thermal degradation and short-circuit failures to catastrophic compliance violations. Engineers and procurement teams constantly navigate the tension between upfront procurement budgets and long-term operational reliability. Balancing the budget-friendly nature of legacy materials against the demanding thermal and electrical requirements of modern infrastructure requires precise technical evaluation.
The decision between Polyvinyl Chloride (PVC) and Cross-Linked Polyethylene (XLPE) hinges on verifiable field metrics. System voltage requirements, environmental exposure levels, and lifecycle performance expectations must drive the selection process. Understanding the structural and operational differences between these two dominant insulation types ensures that power distribution networks remain stable under peak loads and adverse conditions.
Thermal Thresholds: XLPE cables support continuous operating temperatures of 90°C and short-circuit peaks of 250°C, significantly outperforming PVC’s 70°C and 160°C limits.
Dielectric Performance: XLPE is fundamentally required for medium-to-high voltage applications (up to 2000V+ and utility-scale transmission), whereas PVC is strictly limited to low-voltage (typically up to 600V) scenarios.
Environmental Resilience: XLPE offers superior resistance to moisture, chemicals, and mechanical stress, making it the standard for underground and harsh industrial environments.
Cost vs. Capacity: While PVC has a lower initial cost per foot, XLPE’s higher ampacity often allows for smaller cable sizing, potentially offsetting the upfront price difference.
Table of Contents

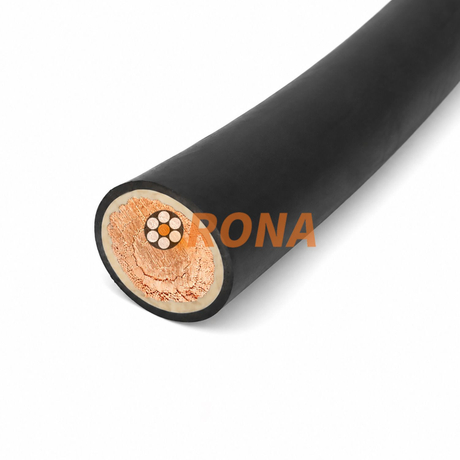

Molecular structure directly dictates field performance. Specifiers must understand the underlying chemistry of cable insulation to predict how a system will behave under thermal and electrical stress over decades of continuous operation. The physical properties of the polymer chains determine how the cable reacts to heat, cold, moisture, and mechanical tension during installation.
PVC is a standard thermoplastic material characterized by straight, chain-like polymers. Because it is a thermoplastic, PVC softens and eventually melts when exposed to high temperatures. This structural behavior severely limits its application in environments subject to extreme heat or heavy current overloads. When the temperature exceeds the material's rating, the polymer chains slide past one another, causing the insulation to deform permanently.
The material does possess inherent flame-retardant properties due to its high chlorine content. However, this chemical composition also makes standard PVC vulnerable to chemical breakdown. Over extended periods, the plasticizers used to make PVC flexible can migrate out of the material. This migration causes the insulation to become brittle, crack, and ultimately fail, especially when exposed to UV light or harsh weather conditions.
Unlike PVC, XLPE is a thermoset material. The manufacturing process involves vulcanization or cross-linking, typically achieved through silane, peroxide, or irradiation methods. This process chemically bonds the polymer chains together, creating a robust three-dimensional molecular network. The cross-linking process fundamentally alters the polyethylene, transforming it from a thermoplastic into a thermoset.
This structural change prevents the material from melting or deforming under extreme thermal stress. The cross-linked network ensures exceptional dimensional stability and high resistance to environmental stress cracking. When specifying xlpe cables, engineers rely on this thermoset property to maintain insulation integrity during severe short-circuit events and continuous high-load operations. The material retains its shape and electrical properties even when pushed to its thermal limits.
Material Property | PVC (Thermoplastic) | XLPE (Thermoset) |
|---|---|---|
Molecular Structure | Linear polymer chains | 3D cross-linked network |
Thermal Behavior | Softens and melts under high heat | Retains shape, does not melt |
Plasticizer Content | High (prone to migration) | None |
Deformation Resistance | Low at elevated temperatures | High across all temperature ranges |
Selecting the correct cable requires comparing both materials across distinct operational dimensions. Each parameter directly impacts system safety, installation feasibility, and long-term reliability. Field conditions dictate which material properties take precedence during the specification phase.
Thermal limits define a cable's current-carrying capacity. Standard PVC insulation is rated for a continuous operating temperature of 70°C, whereas XLPE safely operates continuously at 90°C. During fault conditions, the disparity widens further. PVC can withstand short-circuit temperatures up to 160°C before suffering irreversible damage. XLPE handles short-circuit spikes up to 250°C without melting or losing its dielectric properties.
Because of this superior thermal stability, XLPE allows for a higher current carrying capacity (ampacity) for the exact same conductor cross-section. This thermal headroom provides critical safety margins for industrial facilities and utility grids. Engineers can often downsize the conductor when switching from PVC to XLPE, saving space and reducing the overall weight of the cable run.
Electrical insulation properties determine where a cable can be safely deployed. PVC exhibits relatively high dielectric losses. This characteristic restricts its use almost exclusively to low-voltage applications, typically capping out at 600V. Using PVC in higher voltage scenarios risks rapid insulation breakdown, electrical faults, and potential fires.
Conversely, XLPE features a low dielectric constant and exceptionally high insulation resistance. These properties make it the industry standard for medium and high-voltage transmission lines, ranging from 600V up to 35kV and beyond. In Tray Cable (TC-ER) applications, XLPE insulation is heavily preferred. Its superior dielectric strength, combined with high crush and impact resistance, ensures safe routing in densely packed cable trays where mechanical stress is common.
Physical toughness dictates how well a cable survives the installation process and long-term operational hazards. XLPE offers significantly higher tensile strength, cut-through resistance, and abrasion resistance compared to PVC. It withstands the rigorous pulling tensions required in long conduit runs, complex tray systems, and direct burial trenches.
However, this toughness comes with flexibility trade-offs. PVC is generally much more flexible due to its plasticizer content, making it easier to route through tight indoor conduits and complex electrical panels. XLPE is inherently more rigid. Installers must carefully calculate and adhere to minimum bend radii to avoid stressing the cross-linked insulation during installation. Forcing an XLPE cable past its bend radius can cause micro-tears in the insulation, leading to premature failure.
Environmental exposure rapidly degrades inferior insulation. In wet locations, XLPE proves highly resistant to water treeing and moisture ingress. Standard PVC can absorb moisture over time, leading to degraded electrical performance under prolonged submersion. Water treeing is a major cause of failure in medium-voltage underground cables, making XLPE the logical choice for these environments.
Chemical resistance also heavily favors the cross-linked structure. XLPE withstands exposure to industrial solvents, harsh oils, and corrosive agents far better than standard PVC. This chemical resilience makes it indispensable in petrochemical plants, wastewater treatment facilities, and heavy manufacturing environments where accidental spills or constant exposure to vapors are expected.
Specification Parameter | PVC Cable | XLPE Cable |
|---|---|---|
Continuous Operating Temp | 70°C | 90°C |
Short-Circuit Temp Limit | 160°C | 250°C |
Dielectric Strength | Low to Moderate (≤ 600V) | High (600V to 35kV+) |
Moisture Resistance | Moderate (Degrades over time) | Excellent (Resists water treeing) |
Chemical Resistance | Fair | Superior |
Flexibility | High | Moderate (Rigid structure) |
Mapping technical capabilities to real-world deployment scenarios ensures optimal performance and code compliance. Neither material is universally superior; their value depends entirely on the application environment. Specifiers must evaluate the physical routing, ambient temperatures, and electrical loads before making a final decision.
PVC remains highly relevant for specific, controlled environments. Its flexibility and lower material costs make it suitable for applications where mechanical and thermal stresses are minimal. Common deployments include:
Indoor residential and commercial branch wiring where ambient temperatures remain stable.
Low-voltage control circuits, basic instrumentation, and light-duty hook-up wires (such as UL1007 or UL1569 lead wire).
Projects operating under strict budget constraints that do not require heavy mechanical protection or high ampacity ratings.
Temporary power installations where long-term environmental degradation is not a primary concern.
The robust thermal and mechanical profile of xlpe cables makes them mandatory for demanding infrastructure projects. These cables excel in environments that would quickly destroy standard thermoplastic insulation. Key applications include:
Industrial power distribution, heavy machinery circuits, and critical motor lead wires (e.g., UL3173/UL3266) that experience high thermal stress during operation and termination soldering.
Underground direct burial and wet location installations, often eliminating the need for extensive protective conduit systems.
Renewable energy infrastructure, including solar farms and wind turbines, which require exceptional resistance to UV radiation, ozone, and extreme thermal cycling.
Utility-scale medium and high-voltage transmission networks.
Modern industrial specifications frequently utilize composite cable designs to leverage the strengths of both materials. In these configurations, XLPE serves as the core insulation directly surrounding the copper conductor to maximize electrical and thermal performance. PVC is then applied as the outer sheath to provide a cost-effective, flame-retardant mechanical barrier.
Understanding the armoring distinctions in these composite cables is vital for underground routing and heavy industrial applications:
CU/XLPE/SWA/PVC: This designation stands for Copper Conductor, XLPE Insulation, Steel Wire Armor, and PVC Sheath. Steel Wire Armor (SWA) utilizes round steel wires, providing exceptional tensile strength. This makes it the correct specification for vertical drops, suspended installations, and scenarios requiring high pulling tension.
CU/XLPE/STA/PVC: This utilizes Steel Tape Armor (STA). Flat steel tapes wrap around the inner core, offering superior radial crush protection. STA is explicitly specified for direct burial in underground trenches where heavy ground pressure and rodent attacks pose significant threats, though it lacks the high tensile strength of SWA.
Evaluating cable selection requires moving beyond the initial per-foot purchase price to understand system-wide financial impacts over the installation's lifespan. A narrow focus on upfront material costs often leads to expensive retrofits and premature system failures.
PVC is widely recognized as the low-cost commodity option. The manufacturing process is simpler, and the raw materials are abundant. For standard indoor wiring projects with low electrical demands, PVC provides an immediate reduction in upfront material expenditures. When budgets are tight and the operational environment is benign, PVC remains the logical financial choice.
Specifying cross-linked insulation often generates compounding system-level savings that offset the higher initial material cost. Because XLPE handles higher continuous operating temperatures, it provides greater ampacity. This thermal efficiency frequently allows engineers to specify a smaller wire gauge for the same electrical load. Reducing the copper conductor size directly lowers the overall cable weight, decreases the required conduit sizing, and minimizes the structural support overhead needed for cable trays. Smaller conduits and lighter cables also translate to faster installation times and reduced labor hours.
The thermoset nature of XLPE dramatically extends the operational lifespan of the electrical network in harsh environments. While PVC suffers from thermal degradation, plasticizer migration, and embrittlement over time, XLPE maintains its structural and dielectric integrity. This resilience drastically reduces failure rates, minimizes unplanned downtime, and lowers long-term replacement labor costs. In critical infrastructure, the cost of a single unplanned outage far exceeds the premium paid for high-quality cross-linked insulation.
Contractors and engineers face specific physical and regulatory challenges during installation. Overlooking these factors leads to project delays, failed inspections, and compromised system safety.
Temperature heavily influences cable handling during installation. Standard PVC becomes brittle at freezing temperatures. Bending or pulling PVC cables in cold weather risks micro-cracking the insulation, leading to latent electrical faults that may not appear until the system is energized and under load. Installers must strictly adhere to minimum installation temperature guidelines, often requiring heated storage before pulling. Conversely, XLPE maintains its structural integrity and flexibility in extreme cold, allowing construction schedules to proceed uninterrupted during winter months.
Fire performance is a critical safety metric. Standard PVC contains halogens. When burned, it releases thick, heavy black smoke and toxic, corrosive hydrochloric acid gas. This poses severe risks to personnel and sensitive electronic equipment in enclosed spaces. While flame-retardant PVC exists, many modern transit, marine, and high-occupancy commercial projects mandate Low Smoke Zero Halogen (LSZH) variants of XLPE cables to ensure maximum life safety during a fire event. LSZH cables emit minimal smoke and no toxic halogen gases, facilitating safer evacuations.
Compliance dictates material selection. Engineers must reference the National Electrical Code (NEC), International Electrotechnical Commission (IEC), and IEEE standards specific to their region and application. These codes explicitly outline scenarios where thermoset insulation like XLPE is legally required over thermoplastic PVC. Medium-voltage distribution, hazardous locations, and specific direct burial depths all carry strict insulation mandates. Failing to specify the correct material results in failed inspections and costly rework.
Select the correct cable insulation based on verifiable field requirements rather than default habits. Evaluate the thermal loads, environmental hazards, and voltage levels of your specific project before finalizing the bill of materials.
Review site-specific ampacity and voltage drop requirements to determine if a smaller gauge XLPE cable can replace a larger PVC cable.
Evaluate the installation environment for chemical exposure, moisture, and extreme temperatures to verify insulation suitability.
Consult with a specialized cable manufacturer's engineering team to confirm local code compliance and secure detailed technical specification sheets before procurement.
Calculate the required conduit fill ratios based on the outer diameter of the selected cable type.
A: XLPE cables are rated for a continuous operating temperature of 90°C and can withstand short-circuit spikes up to 250°C. Standard PVC cables are limited to a 70°C continuous operating temperature and a maximum short-circuit temperature of 160°C.
A: XLPE features exceptional dielectric strength, high insulation resistance, and a very low dielectric constant. These properties prevent electrical breakdown and minimize energy loss, making it highly resistant to the severe electrical stress found in medium and high-voltage networks.
A: Both use copper conductors, XLPE core insulation, and PVC outer sheaths. SWA uses round steel wires for high tensile strength, ideal for pulling and vertical drops. STA uses flat steel tapes, providing superior radial crush resistance and rodent protection for direct burial.
A: No. PVC is generally more flexible because it contains chemical plasticizers that soften the material. XLPE has a cross-linked, thermoset molecular structure that makes it inherently more rigid, requiring careful attention to minimum bend radii during installation.
A: Yes, but engineering calculations must be updated. Because XLPE has higher ampacity, you may be able to use a smaller wire gauge. You must also verify that the new cable dimensions comply with conduit fill ratios and that the termination lugs are rated for 90°C.
A: Standard PVC contains halogens and releases toxic hydrochloric acid gas and heavy black smoke when burned. While flame-retardant variants exist for both, Low Smoke Zero Halogen (LSZH) XLPE cables are preferred in enclosed spaces to prevent toxic gas emissions during a fire.
