In today’s fast-paced world of industrial automation, machinery and robotics are becoming more complex and efficient. Behind the scenes, an often-overlooked component plays a vital role in making all this possible—drag chain cables. These specially designed cables ensure reliable power and signal transmission in moving applications, protecting wires from damage while keeping systems running smoothly.
But what exactly is a drag chain cable? Why is it different from regular cables? And how do you choose the right one for your needs? Whether you’re a factory owner, engineer, or simply curious about industrial technology, this guide will help you understand everything you need to know about drag chain cables in clear and simple terms.

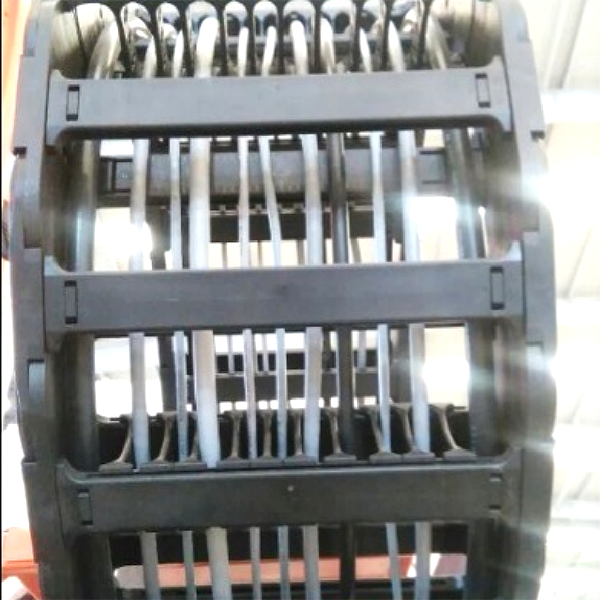

A drag chain cable is a type of cable specifically built to be used inside a drag chain—also known as a cable carrier or energy chain. Drag chains are mechanical systems that guide and protect cables as they move back and forth along with a machine or robotic arm. These cables are engineered to endure continuous motion, tight bending radii, and repetitive mechanical stress without failing.
Unlike regular stationary cables, drag chain cables are highly flexible and durable. They are used in systems where constant movement is required, such as CNC machines, 3D printers, robotics, automated assembly lines, and packaging equipment.
You might wonder: why not just use standard cables in a moving machine? The answer is simple—standard cables aren’t designed for constant motion. When a regular cable is repeatedly bent, twisted, or dragged, its insulation can crack, its conductors can break, or it may become tangled and damaged.
Using non-specialized cables in a moving environment can lead to:
Cable failure
Machine breakdowns
Production delays
Safety hazards
Costly repairs
In contrast, drag chain cables are constructed to withstand millions of flexing cycles, maintaining performance and safety over time.
To understand the function of a drag chain cable, it helps to know how drag chains themselves operate.

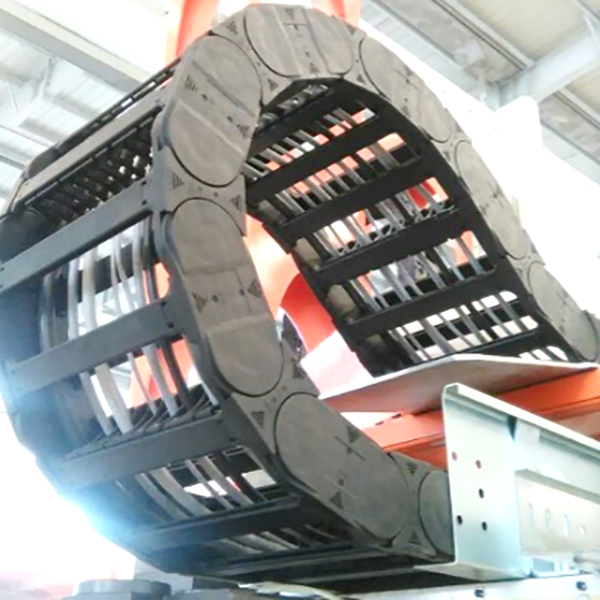

A drag chain is a flexible, often plastic or metal chain that holds and guides cables and hoses as they move. The cables sit inside the chain, which bends and moves with the machinery, keeping the cables in place and preventing them from tangling or snagging.
The drag chain protects the cables from:
Sharp edges or corners
Abrasions and friction
Bending beyond their limit
External contaminants like oil, water, or debris
Drag chain cables must be able to move freely inside the chain while enduring repeated bending and pulling. Their construction is therefore essential to reliable operation.
To perform well in motion-heavy environments, drag chain cables have several defining characteristics:
They are made with fine copper strands and flexible insulation materials that allow them to bend and twist without breaking.
Drag chain cables are built to withstand continuous flexing and dragging for millions of cycles, making them highly durable.
They can bend at very small radii without affecting internal components, which is essential for compact machinery.
The outer sheath is often made of tough materials like PUR (polyurethane) or specially formulated PVC to resist wear.
Many drag chain cables are used in industrial environments with exposure to oils, coolants, or cleaning chemicals, so their jackets must withstand these substances.
Some cables are designed to resist fire, which is a critical safety feature in certain industries.
If the cable is transmitting data or control signals, it may be shielded to prevent electromagnetic interference (EMI) from disrupting signals.
There are many types of drag chain cables, each designed for specific applications. Here are the main categories:
Used to transmit electrical power to motors, pumps, or other devices. They must handle high voltage and current.
Used for transmitting control signals in automation systems. They often carry low voltage and may be shielded to avoid signal loss.
These transmit digital data between devices. They include Ethernet, USB, or serial communication cables, which require high data integrity.
Designed specifically for connecting servo motors to drives or controllers. They often include both power and signal conductors in one cable.
Combine multiple functions—such as power, control, and data—into a single cable. This reduces the number of separate cables and simplifies installation.
Drag chain cables are found across a wide range of industries where machines move and automation is essential. Common examples include:
Computer-controlled cutting, milling, or drilling machines that require precise movement and reliable cable function.
Robotic arms and automated machines rely on drag chain cables to provide uninterrupted power and data as the robots move and perform tasks.
Assembly systems with moving parts that perform repetitive tasks need drag chain cables for consistent signal transmission and motion tolerance.
Machines that fill, seal, or sort products often involve motion that requires durable cables.
The moving print head and bed need lightweight and flexible cables for precise and smooth movement.
Conveyor belts, elevators, and sorting machines use drag chain cables to power motors and sensors.
Not all drag chain cables are created equal. Choosing the right one for your application depends on several factors:
Understand how the cable will move—will it bend, twist, or pull? Choose a cable rated for the specific type of motion and number of cycles.
Higher speeds and accelerations create more stress on cables. Make sure the cable is rated for dynamic applications if operating at fast speeds.
Determine the minimum bend radius of your drag chain system and choose a cable designed to handle that level of flexing.
Will the cable be exposed to oil, chemicals, heat, cold, or water? Choose a cable with a jacket that offers the right resistance.
If the cable carries signals or data, ensure proper shielding and low-capacitance design to prevent signal loss or interference.
If space is limited, look for compact, lightweight cables that still meet performance needs.
For safety and quality assurance, make sure the cable meets industry standards such as UL, CE, RoHS, or ISO.

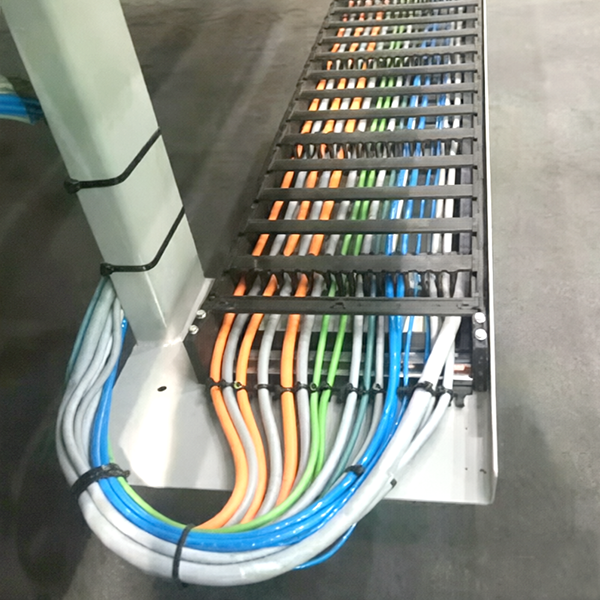

To get the most life out of your drag chain cables, proper installation is key:
Lay the cables loosely in the drag chain. Avoid twisting or forcing them into place.
Leave room for movement. The cable should be able to move freely within the chain.
Use cable separators to prevent cables from rubbing against each other.
Avoid tight bundling, which can cause heat buildup or uneven wear.
Allow for proper cable length, including slack for full extension and contraction.
Inspect regularly for signs of wear or damage and replace if necessary.
As automation continues to advance, the demand for high-performance drag chain cables is growing. Innovations include:
Lightweight composite materials for faster-moving machines
Smarter cables with built-in sensors for predictive maintenance
Eco-friendly cable sheaths made from recyclable materials
Improved data transmission speeds for Industry 4.0 systems
Manufacturers are developing drag chain cables that are not only more durable but also smarter, more compact, and more efficient than ever before.
A drag chain cable is much more than a simple wire—it’s a critical component that ensures the smooth and safe operation of moving machines. Designed to endure constant bending, abrasion, and environmental exposure, these cables are essential for automation systems, robotics, CNC machines, and many other industrial applications.
Understanding the unique features and choosing the right type of drag chain cable can protect your equipment, reduce downtime, and improve efficiency. Whether you need flexibility, speed, resistance to chemicals, or precision data transfer, there’s a drag chain cable tailored for your needs.
In the fast-evolving world of automation, investing in the right drag chain cable isn’t just a technical decision—it’s a smart business move that ensures long-term performance, safety, and reliability.
