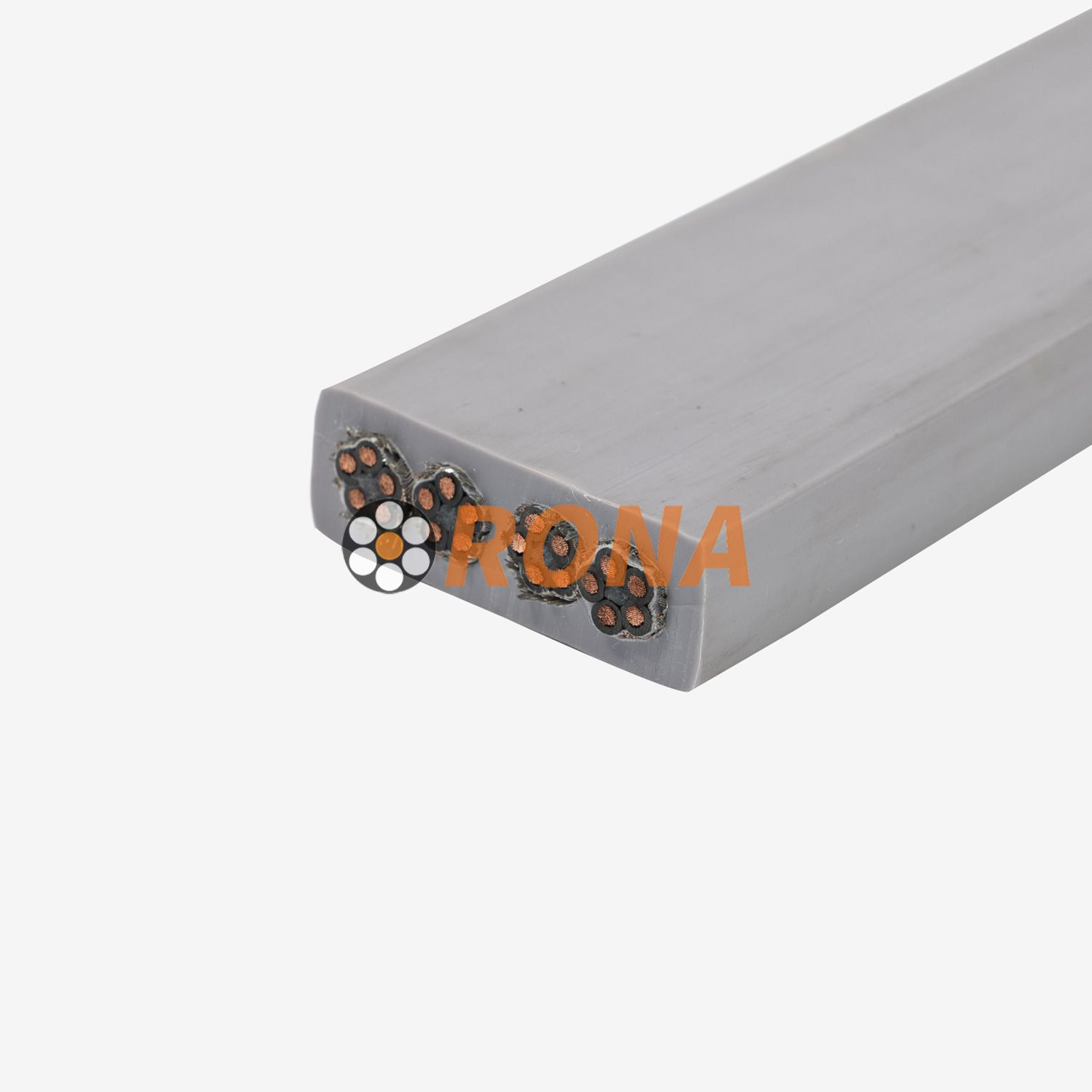

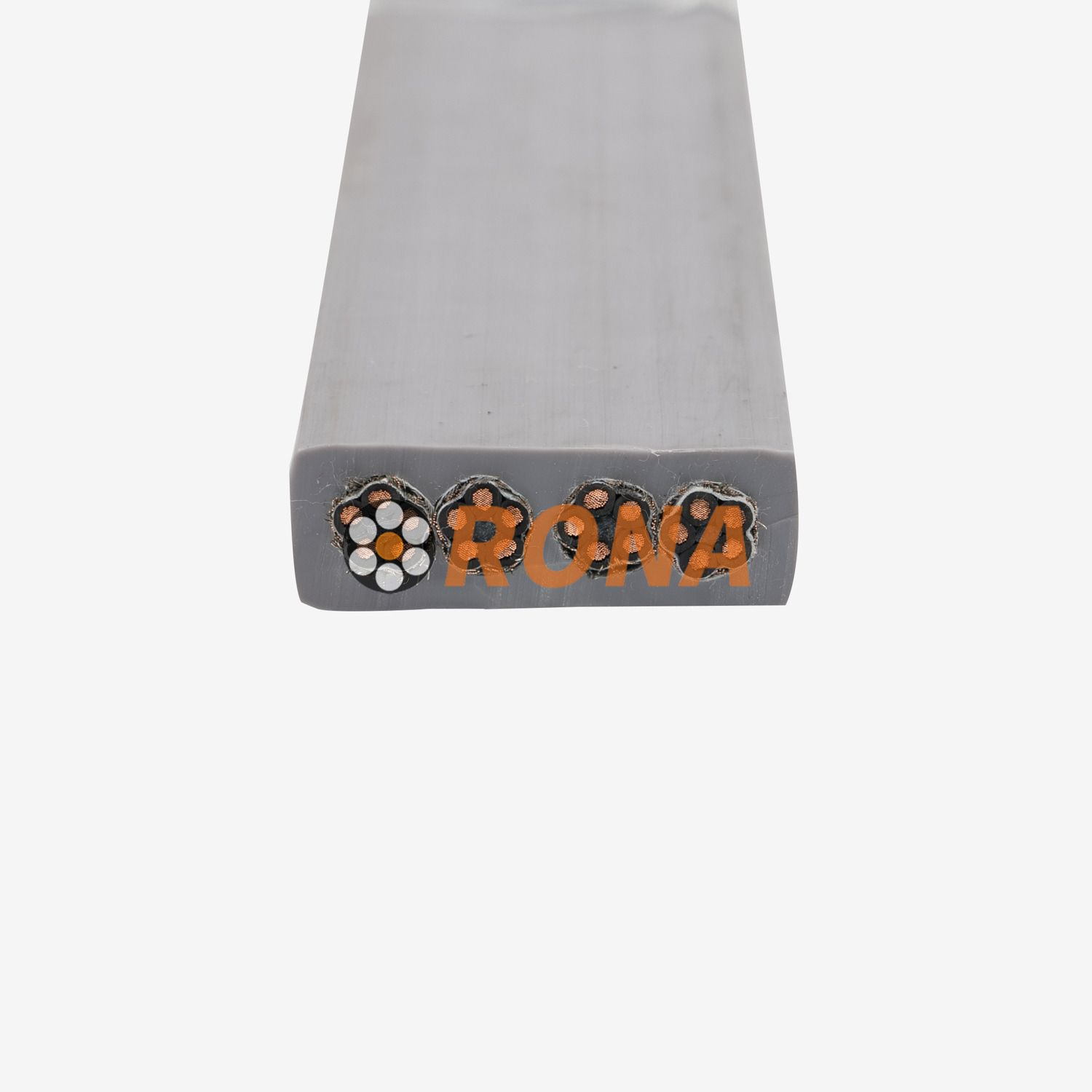

High Flexible 20X1.5 Flat Travelling Cable for Overhead Crane And Festoon Systems

Designed for continuous movement in crane and material handling systems, this compact flat cable offers excellent flexibility and space efficiency. Available with flexible copper conductors and PVC sheathing in black or customized colors, it can be tailored in conductor configuration, voltage, length and jacket properties to meet different industrial requirements.

Model:
HFV-F(CY) 20X1.5
Brand:
RONA
Code:
8544492900
MOQ:
500m


Availability:



Inquire Add to Basket

Product Description

What's travelling flat cable ？

RONA Travelling Flat Cable is specially designed for power supply, control and signal transmission in travelling cranes, overhead cranes, hoists, lifting equipment and other material handling systems. Its flat construction provides excellent flexibility and efficient space utilization, making it suitable for continuous horizontal and vertical travelling applications where cables are repeatedly moved, bent and exposed to mechanical stress.

The cable can be manufactured with flexible stranded copper conductors and customized insulation and jacket materials such as PVC, PUR, rubber or other specialized compounds according to the application requirements. It offers excellent resistance to abrasion, oil, mechanical stress and environmental conditions, ensuring reliable performance in demanding industrial environments.

With optimized cable construction and high-flexibility materials, RONA Travelling Flat Cable is suitable for festoon systems, cable trolleys and crane cable management systems. Different conductor configurations, voltage ratings, lengths and jacket materials can be customized to meet specific equipment and operating requirements.

▍Structural Material Specification

Parameter	Value
Voltage	300/500V 600/1000V
Temperature Range	Fixed installation: -35ºC~70ºC Moving installation: -15ºC~70ºC
Minimum bend radius	Fixed installation: 5xcable outside diameter Moving installation: 7.5x cable outside diameter
Maximum mobile speed	Unsupported speed: 3m/s Gliding speed: 2m/s Acceleration: 20m/s²
Weather resistance	UV resistant,Daylight-aging properties excellent, suitable indoor and outdoor application
Cable nominal* Cross section(mm²)	(3~36)1.5/2.5 (3~7)4/6/10

▍Key Advantages

Multi-strand flexible conductors

—Fine-stranded, extra-flexible conductor construction ensures the cable retains excellent flexibility over the entire length and service life.

PVC composite insulation and sheath

—High-grade PVC compounds provide a soft handling feel without sacrificing mechanical protection.

Color-coded cores

—Individual insulated conductors are color-differentiated for fast on-site identification, routing, and termination.

Optional reinforcement

—Steel wire ropes or other load-bearing reinforcing members can be integrated along both edges of the flat cable per customer specification to increase tensile strength for demanding suspension applications.

Superior flex life

—Engineered to endure repeated bending and long-term reciprocating travel without twisting or premature fatigue.

Broad environmental adaptability

—Suitable for dry and damp indoor environments as well as open-air installation; resists heat radiation, low temperatures, acids and alkalis, corrosive gases, oil and grease, salt spray, and water ingress.

Reliable electrical and mechanical performance

—Strict raw-material selection combined with a mature, stable manufacturing process ensures consistent electrical properties, durability, and a long service life.
