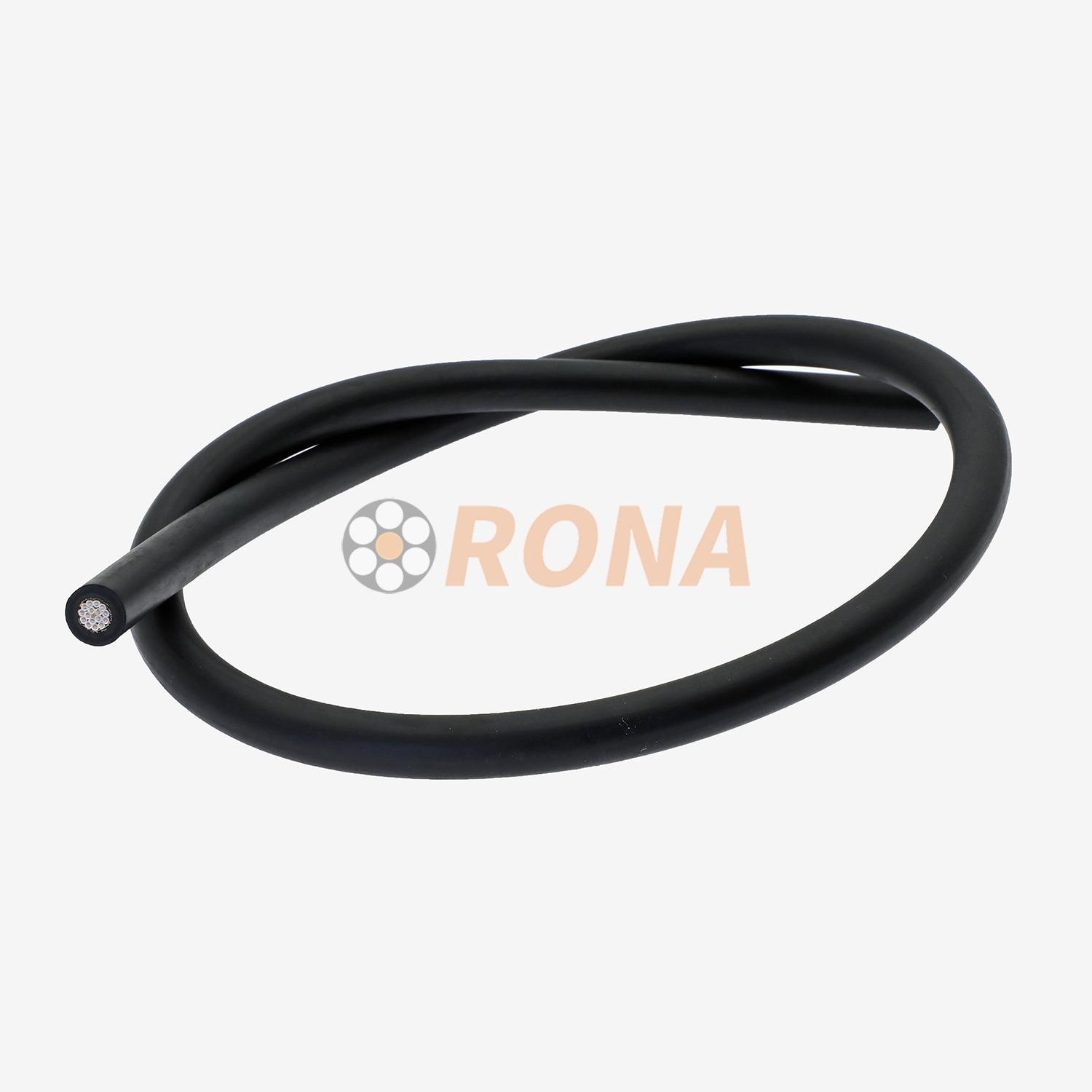

RECH 16*0.3
RONA
85444929
Product Overview
The RONA RECH 16*0.3mm² Transverse watertight cable is a specialized transmission solution engineered for underwater and water-exposed industrial applications. Built on the principle of “radial all-sealed protection + multi-environment adaptability,” it integrates finely stranded tinned copper conductors with a composite rubber insulation and sheath structure. Rated for voltages from 300/500V up to 0.6/1kV, this cable ensures stable power and signal transmission in deep-water zones, humid conditions, and dynamic operations—serving as a “secure lifeline” for subsea automated systems. Its unique lateral waterproof design effectively blocks radial moisture penetration, while the weather-resistant sheath material addresses common failures such as corrosion and insulation degradation in traditional underwater cables.

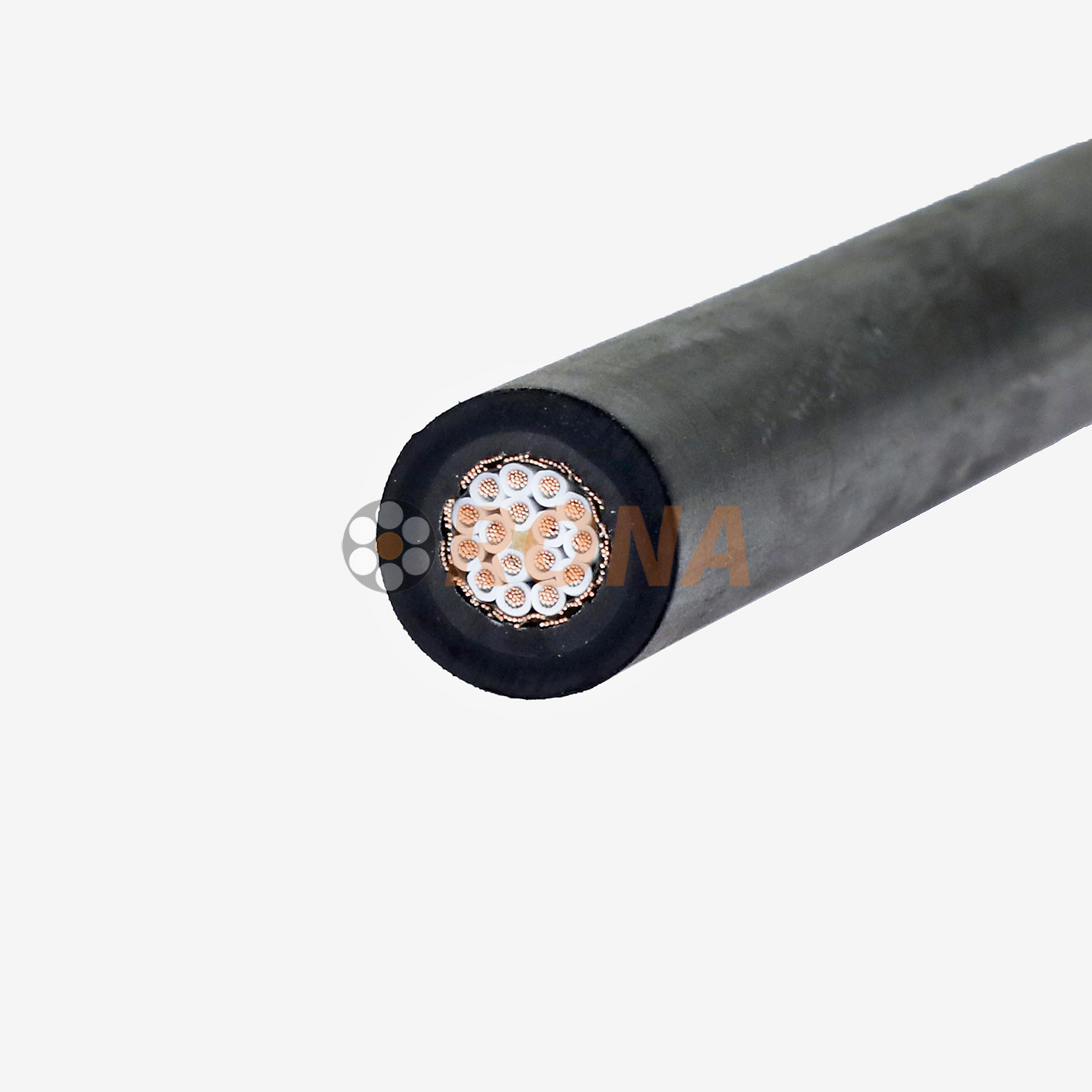

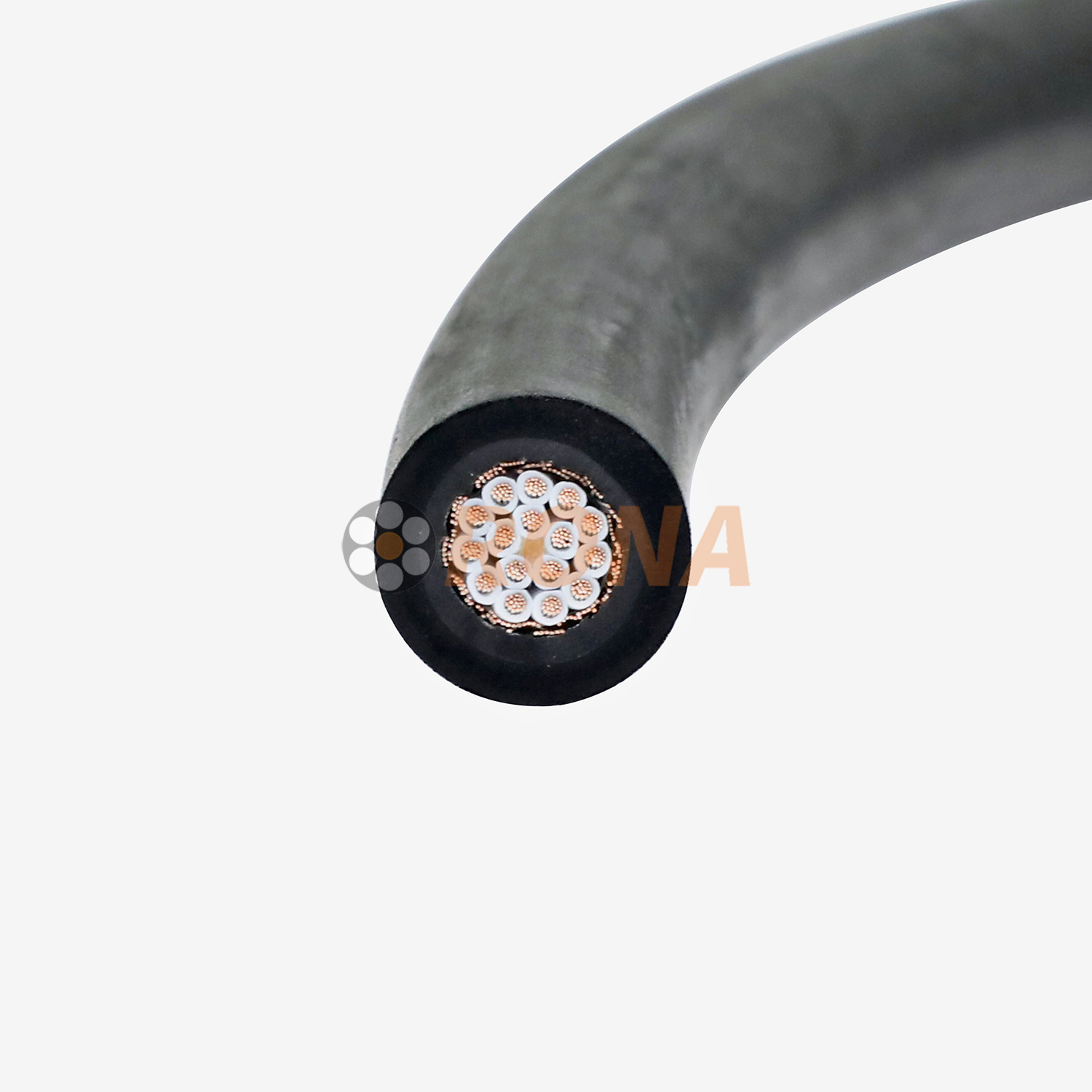

Structure
| Feature | Details |
|---|---|
| Conductor | Finely stranded tinned copper wire, compliant with VDE 0295 Class 5, offering high conductivity and corrosion resistance |
| Insulation | Ethylene propylene rubber (EPR) or fluorinated ethylene propylene (FEP) insulation, delivering high dielectric strength and stable corona resistance |
| Sheath | Chloroprene rubber compound sheath, available in red/black, with high tensile strength, tear and abrasion resistance, and UV aging protection |
| Identification | Black cores with white sequential numbering; FEP-insulated wires use white core with black markings for clear and easy wiring identification |
| Certification | Meets IEC 60332-1 flame-retardant standards; insulation resistance ≥500 MΩ·km for enhanced electrical safety |
Specification
Parameter | Specification |
Voltage: | 300/500V or 0.6/1kV |
Temperature Range | Fixed installation: -40℃~90℃ Moving installation: -35℃~90℃ |
Minimum bend radius | Fixed installation: approximately 5x D (cable outer diameter) Movable installation: approximately 10x D (cable outer diameter) |
Flame retardant properties | Compliant with IEC 60332-1 |
Weather resistance | Water resistance, UV resistance, temperature change resistance |
Applications:
Underwater Industrial Automation: Powers and signals remotely operated vehicles (ROVs), submersible motors, and underwater welding systems, withstanding torsion from robotic arms and ocean current drag.
Marine & Water Engineering: Used in offshore platform power supply, bridge monitoring systems, and aquaculture aeration setups, resistant to saltwater spray and tidal immersion.
Offshore Surveying: Connects subsea sensors and water quality monitors, enabling stable data transmission from shallow to mid-depth waters for both fixed and mobile deployment.
Humid Industrial Settings: Suitable for printing/dyeing workshops, wastewater treatment plants, port cranes, and other environments with high humidity, oil, and frequent movement.
