MREF 1×70
RONA
8544609090
500m
Our 6-10kV Medium Voltage Round Reeling Cable is engineered for extreme reliability in dynamic, high-stress environments. This cable delivers superior performance where constant movement, flexing, and mechanical stress are daily challenges. Its advanced integrated construction provides exceptional durability, oil resistance, and torsional stability, making it the ideal power transmission solution for mobile equipment and heavy industrial machinery.

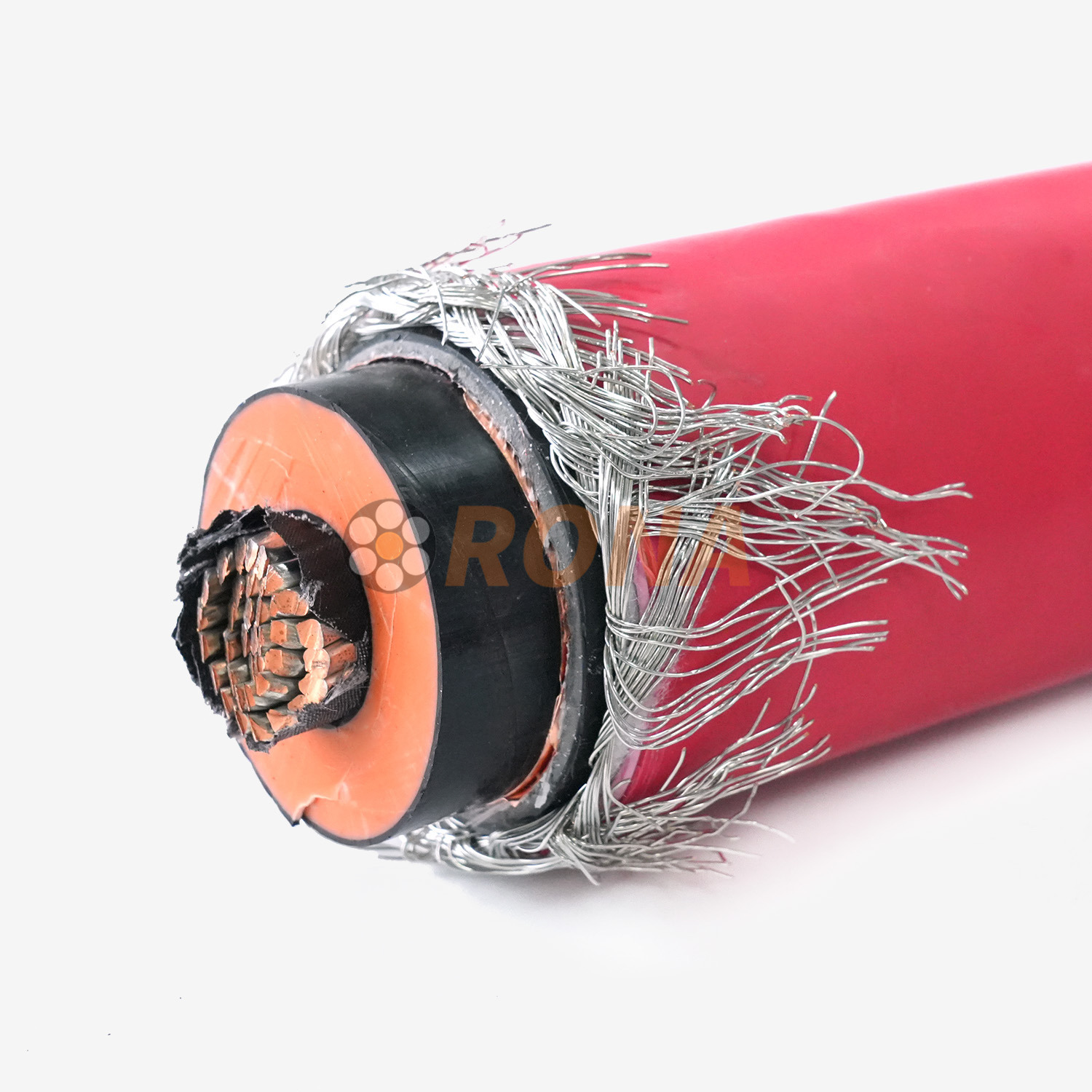

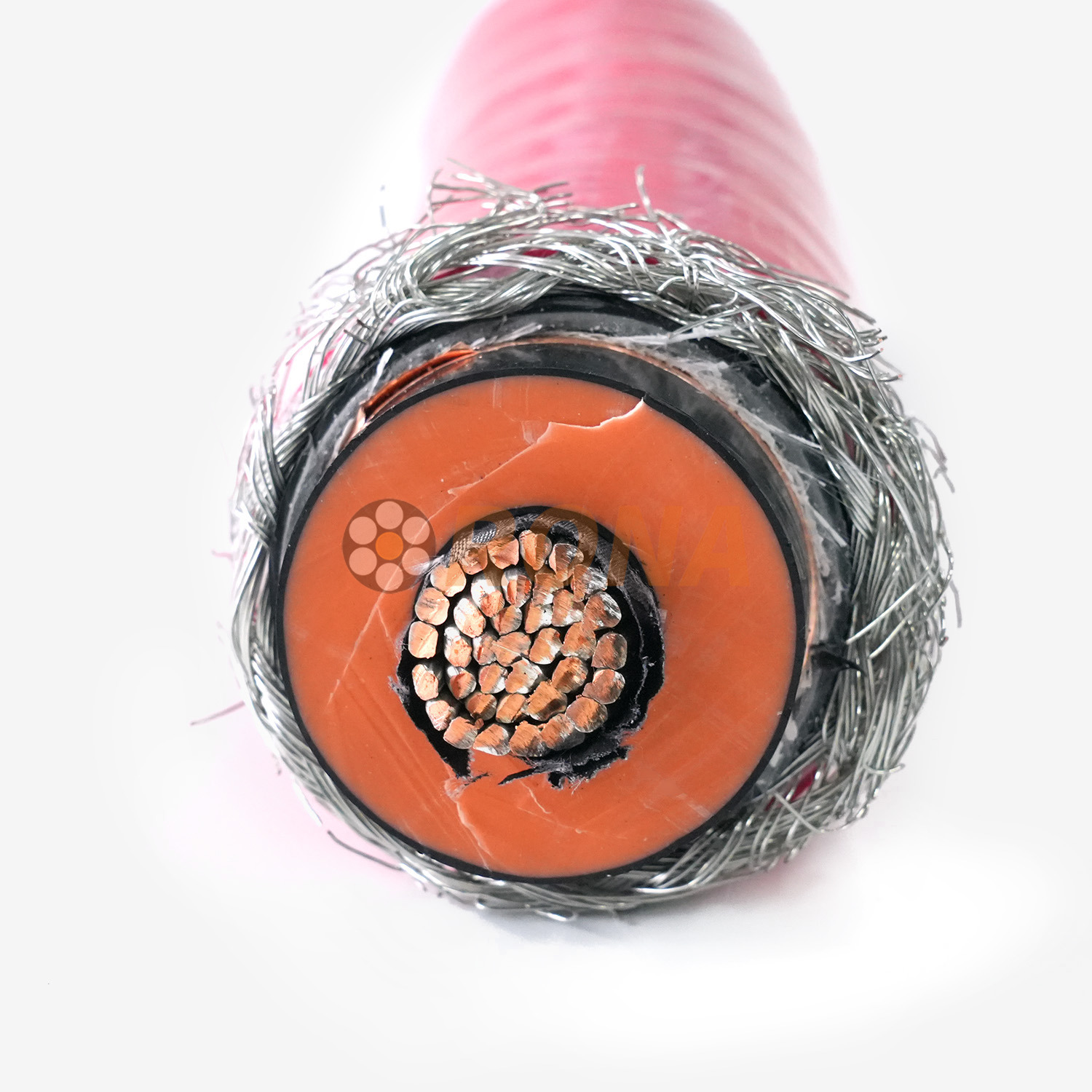

▍Structural Material
1.Flexible tinned copper wire or bare copper wire(IEC60228 Class5);
2.Insulation rubber Insulation material See DIN VDE0207part21;
3.Inner jacket rubber-Sheathing material(See DIN VDE 0207part21);
4.Weave Strengthening layer;
5.Out jacket rubber-Sheathing material(See DIN VDE 0207part 21) Low wear and tear Resistance to torsional Inside and outside sheath with braided reinforcement layer closely integrated,formation an overall strengthening system.
▍Specification
| Cable Voltage level(KV) | Cable nominal cross section (mm²) | Cable structural composition (mm) | Cable approximate outside diameter(mm) | Cable approximate weight (kg/km) | Cable Maximum force of cable(N) |
| 3.6/6KV | 3×25+3×8 | 3×196/0.40+3×112/0.30 | 44.9 | 3007 | 1500 |
| 3×35+3×8 | 3×276/0.40+3×112/0.30 | 48.9 | 3621 | 2100 | |
| 3×50+3×8 | 3×396/0.40+3×112/0.30 | 53.6 | 4502 | 3000 | |
| 3×70+3×12 | 3×380/0.49+3×168/0.30 | 57.4 | 5563 | 4200 | |
| 3×95+3×16 | 3×513/0.49+3×126/0.40 | 63.3 | 6988 | 5700 | |
| 3×120+3×25 | 3×630/0.49+3×196/0.40 | 66.8 | 8160 | 7200 | |
| 6/10kV | 3×25+3×8 | 3×196/0.40+3×112/0.30 | 50.4 | 3609 | 1500 |
| 3×35+3×8 | 3×276/0.40+3×112/0.30 | 54.4 | 4273 | 2100 | |
| 3×50+3×8 | 3×396/0.40+3×112/0.30 | 59.2 | 5215 | 3000 | |
| 3×70+3×12 | 3×380/0.49+3×168/0.30 | 62.9 | 6323 | 4200 | |
| 3×95+3×16 | 3×513/0.49+3×126/0.40 | 68.9 | 7824 | 5700 | |
| 3×120+3×25 | 3×630/0.49+3×196/0.40 | 72.3 | 9038 | 7200 |
Key Features
Superior Conductivity & Flexibility: Constructed with high-purity, flexible tinned copper conductors (IEC 60228 Class 5), ensuring excellent conductivity, corrosion resistance, and long-term reliability under continuous flexing.
Robust, Integrated Construction: Features a unique, seamless integration of the inner/outer sheaths and a woven braided reinforcement layer. This forms a unified, high-strength system that resists deformation, absorbs mechanical stress, and prevents sheath separation during reeling and torsion.
Exceptional Torsional & Abrasion Resistance: Specifically designed to withstand twisting (torsion) and physical wear. The specially formulated outer jacket offers low wear and tear, significantly extending cable service life in abrasive port and industrial environments.
High-Quality Insulation & Sheathing: Utilizes premium rubber compounds for both insulation and sheathing, compliant with DIN VDE 0207 Part 21 standards. This ensures excellent electrical integrity, resistance to environmental factors like ozone and weather, and optimal flexibility across a wide temperature range.
Optimized for Reeling Applications: The round shape and balanced design ensure smooth operation on cable reels, winches, and festooning systems, providing stable power supply to moving machinery.
Applications
Port & Harbor Machinery: Container cranes (STS, RTG), ship-to-shore cranes, reach stackers, and bulk handling equipment.
Material Handling & Cranes: Overhead traveling cranes, gantry cranes, and industrial hoists.
Specialized Engineering Vehicles: Mining vehicles, automated guided vehicles (AGVs), and heavy-duty transport systems.
Industrial & Process Machinery: Widely used in metallurgical plants, power generation facilities, waste-to-energy plants (incineration), and shield tunneling machines (TBMs).
Board Handling Equipment: Bridge boarding machines and other cargo access systems.
We combine premium materials with intelligent design to create a cable that exceeds the rigorous demands of modern industry. Our focus on a tightly integrated strengthening system directly addresses the common failure points in dynamic cable applications, resulting in reduced downtime, lower maintenance costs, and enhanced operational safety. This cable is built not just to meet specifications, but to endure in the world's toughest working conditions.
