MREFF 3×25+3×25-3
RONA
8544609090
500m

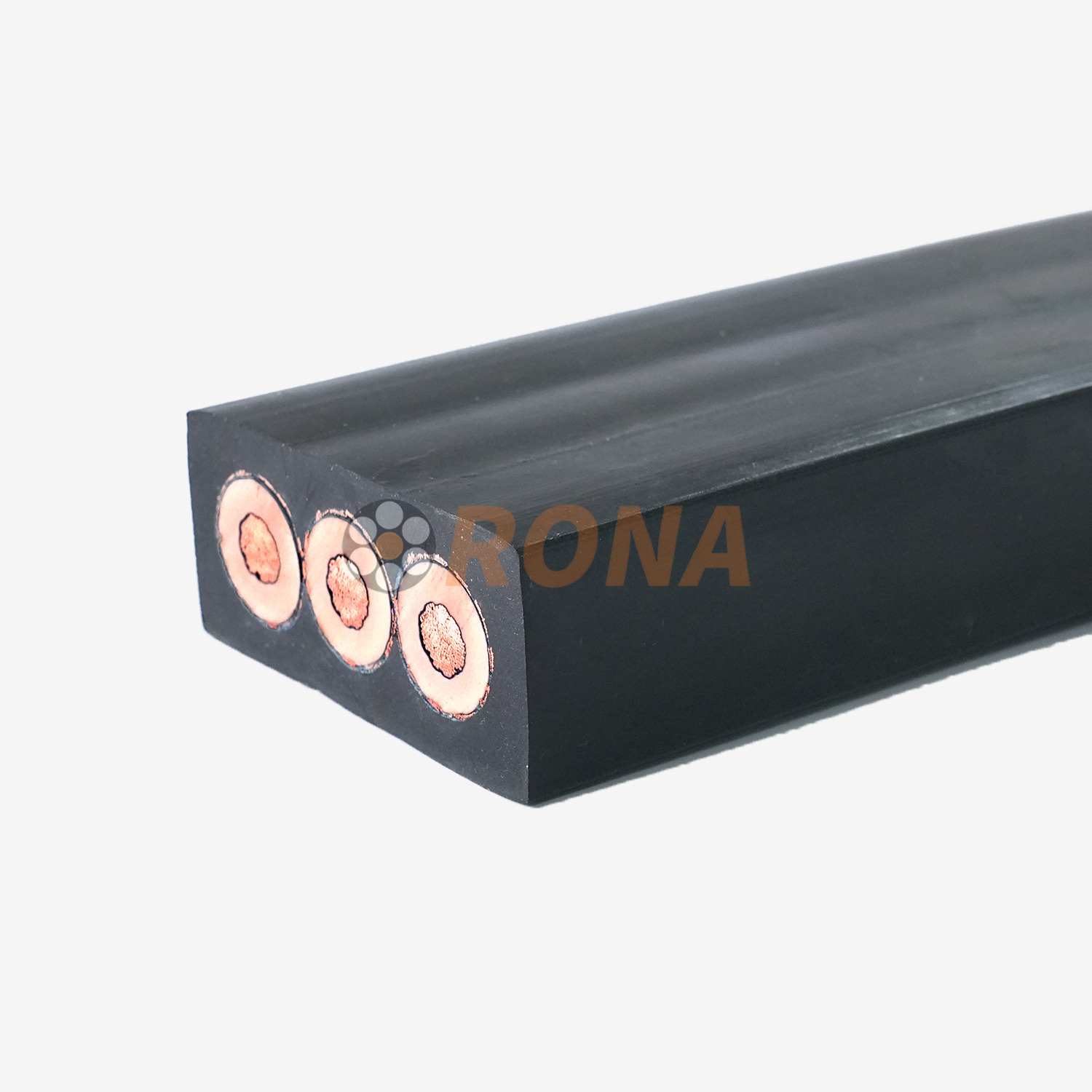

The RONA 6/10KV Medium Voltage Flat Reel Cable is a heavy-duty, high-performance power transmission solution engineered for massive mobile machinery and port equipment. Unlike standard round cables, this flat reeling cable is specially designed to offer superior heat dissipation, space-saving installation, and extreme resistance to continuous bending in a single plane. Reinforced with high-tensile strength elements and equipped with advanced electrical stress control layers, this cable guarantees uninterrupted medium-voltage power supply during the demanding, continuous winding and unwinding operations of heavy cranes.
Exceptional Tensile Strength: Embedded with high-tensile aramid fibers (Kevlar) or flexible steel wire ropes, effectively absorbing massive mechanical stress and preventing core breakage during rapid reeling operations.
Advanced Electrical Stress Control: At 6-10KV, standard insulation is not enough. Our cable features precise semi-conductive screens that prevent partial discharges and eliminate electrical stress concentrations, ensuring maximum safety and extending cable life.

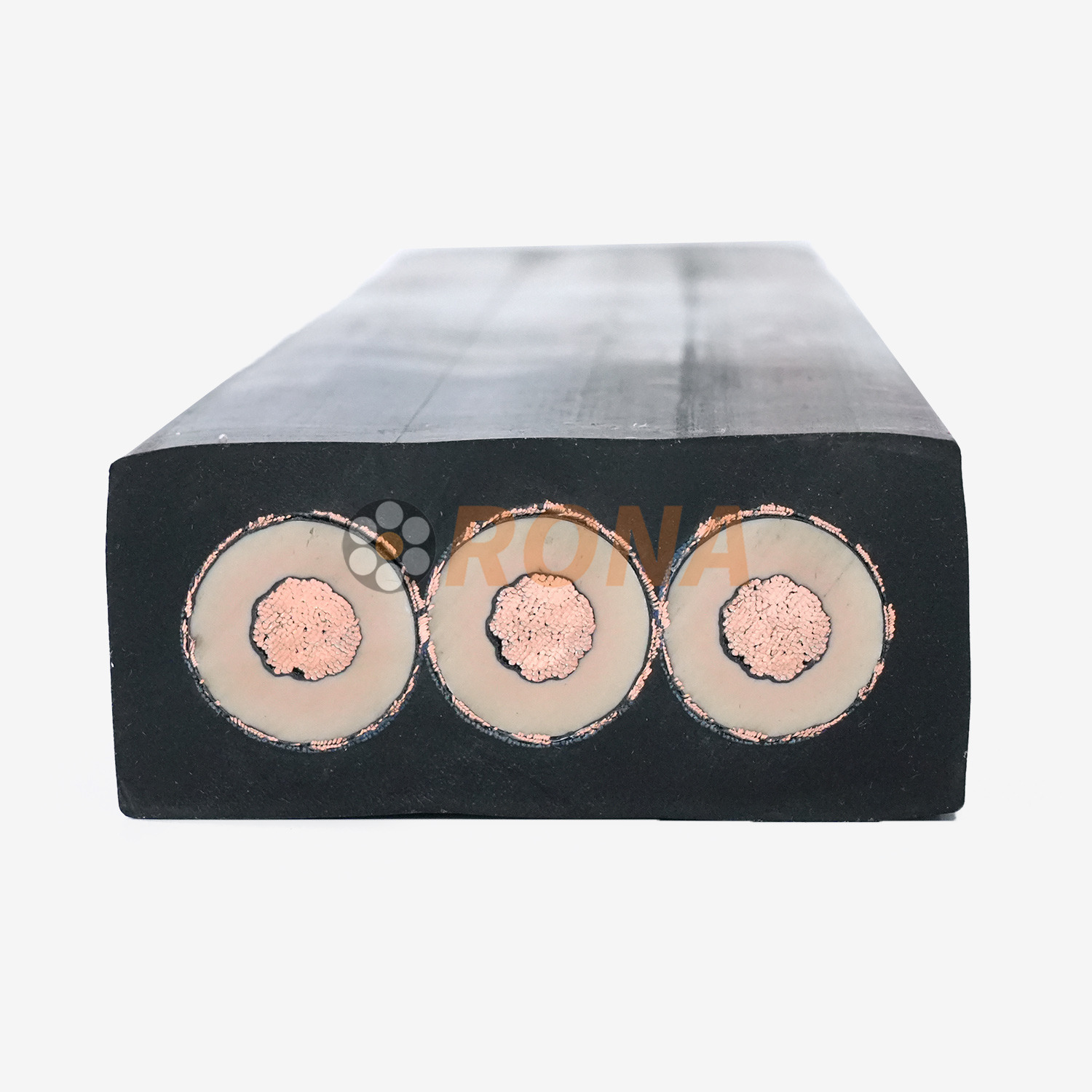

Anti-Corkscrew Flat Design: The parallel alignment of cores in a flat configuration ensures the cable only bends on one axis. This completely eliminates the "corkscrew" effect and internal twisting common in heavily used round cables.
Harsh Environment Ready: The rugged outer jacket is highly resistant to UV radiation, saltwater, oil, industrial chemicals, and severe
| Model | MREFF 3×25+3×25-3 |
| Rated Voltage (U0/U) | 6/10 KV (Suitable for heavy load power transmission) |
| Conductor Material | Extra-flexible bare or tinned copper, finely stranded (IEC 60228 Class 5) |
| Insulation | Specialized EPR (Ethylene Propylene Rubber) offering superior dielectric strength |
| Outer Sheath / Jacket | Heavy-duty, abrasion-resistant, and weatherproof Elastomer / Rubber compound |
| Operating Temperature | -40°C to +90°C (Highly reliable in extreme weather conditions) |
| Minimum bend radius | Fixed installation: 5xcable outside diameter Moving installation: 10x cable outside diameter |
| Chemical properties | Resistance Acids,alkalis,solvents and a variety of hydraulic oil performance excellent |
| Weather resistance | UV resistant,Daylight-aging properties excellent,suitable outdoor use |
Port & Container Terminal Cranes:
Ship-to-Shore (STS) Cranes, Rubber Tyred Gantry (RTG) Cranes, and Rail Mounted Gantry (RMG) Cranes.
Heavy Duty Material Handling:
Large overhead bridge cranes, grabbing cranes, and heavy-duty festoon systems.
Mining & Excavation:
Electrically driven mining excavators, stackers, and reclaimers requiring reliable medium voltage power on reeling drums.
Steel Mills & Heavy Industry:
Molten metal handling cranes and automated industrial transport systems.
Manufacturing medium voltage dynamic cables requires uncompromising quality control. At RONA, every meter of our 6/10KV flat reel cable undergoes rigorous partial discharge testing, high-voltage withstand tests, and dynamic flexing evaluations before dispatch.
*Power your heavy machinery with safety and reliability.
[Contact RONA Today] for technical datasheets, custom engineering support, or competitive wholesale pricing on our Medium Voltage Flat Reel Cables!
