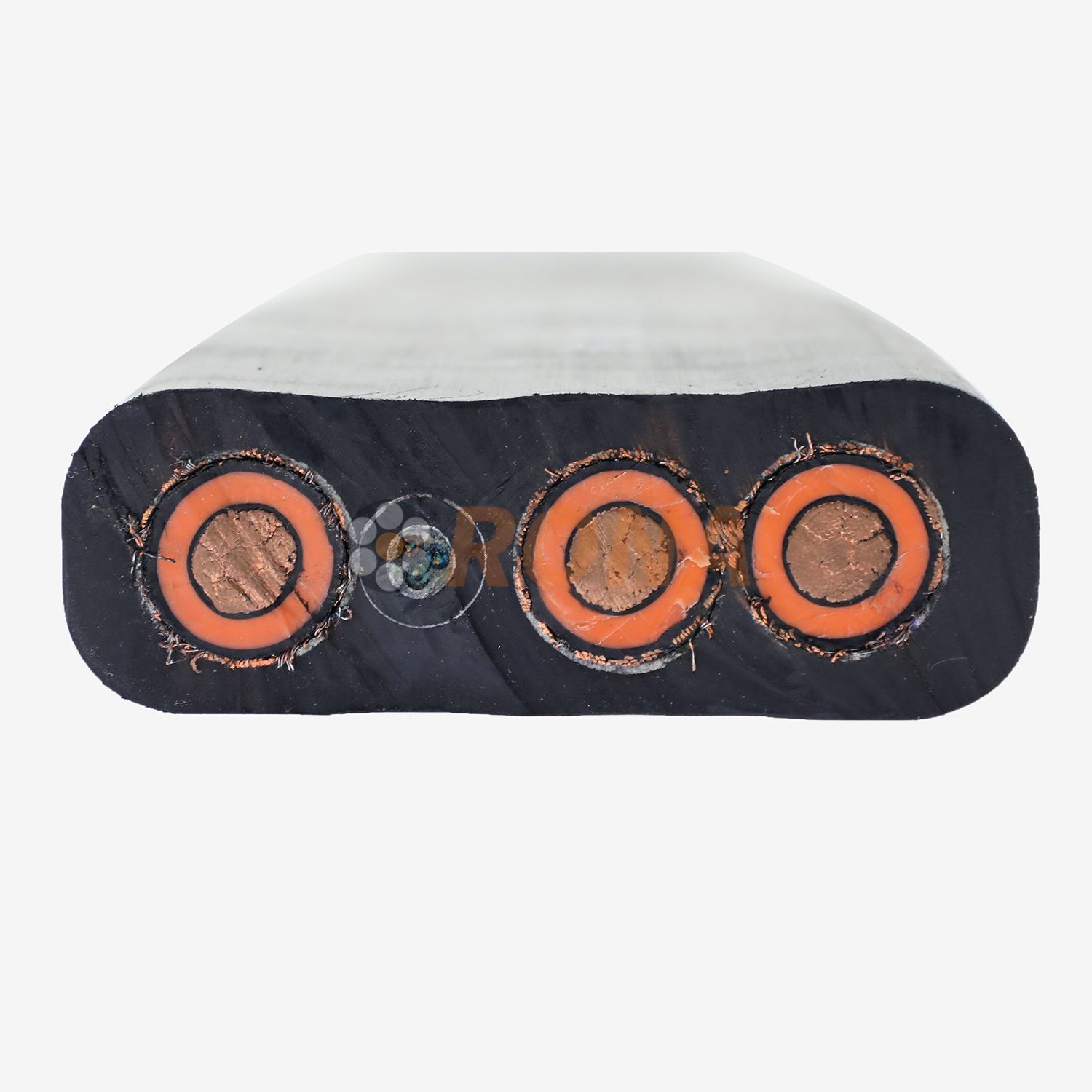

MREFFO 3×35+3×25/3+12LWL
RONA
8544609090
The 6-10KV Flat Reel Flexible Cable for Crane Machinery is a cutting-edge solution designed to meet the rigorous demands of heavy-duty industrial applications. Engineered with precision, this medium voltage reel cable (6/10KV) combines advanced materials and innovative design to deliver unmatched performance in cranes, port equipment, and other mobile machinery. Its flat structure ensures optimal flexibility, while the triple-extruded EPR/XLPE insulation and copper tape shielding provide superior electrical stability and protection against harsh environments. Ideal for both fixed and moving installations, this cable is built to withstand extreme temperatures, abrasion, and chemical exposure, making it a reliable choice for critical operations worldwide.
▍Structural Material
Name | Medium Voltage Reel Cable (6/10kV) |
Conductor | Compact round copper |
Insulation | Triple-extruded EPR/XLPE |
Shielding | Copper tape + semiconductor laye |
Sheath | Abrasion-resistant rubber |
Outer jacket color | Black/Grey |
▍Specification
Item | Specification |
Voltage | 6/10kV |
Temperature Range | Fixed installation: -40℃~90℃ Moving installation: -35℃~90℃ |
Minimum bend radius | Fixed installation: 5xcable outside diameter Moving installation: 10x cable outside diameter |
Resistance Chemistry Substance | Resistance Acids,alkalis,solvents and a variety of hydraulic oil performance excellent |
Weather resistance | UV resistant,Daylight-aging properties excellent,suitable outdoor use |
Conductor
Compact round copper conductor (IEC 60228 Class 5) ensures high conductivity and durability, supporting heavy current loads while minimizing energy loss .
Insulation
Triple-extruded EPR/XLPE insulation combines the flexibility of ethylene propylene rubber (EPR) with the high-temperature resistance of cross-linked polyethylene (XLPE). This hybrid design offers excellent dielectric properties, reduced thermal expansion, and enhanced resistance to water treeing—a common cause of insulation degradation in high-voltage cables .
Shielding
Copper tape with a semiconductor layer provides effective electromagnetic interference (EMI) shielding, ensuring stable power transmission even in electrically noisy environments .
Sheath
Abrasion-resistant rubber outer jacket (black/grey) offers exceptional protection against mechanical stress, oils, solvents, and UV radiation, extending the cable's lifespan in outdoor and corrosive settings.
Temperature Range: Operates reliably in fixed installations from -40°C to 90°C and in moving applications from -35°C to 90°C, adapting seamlessly to both arctic and tropical conditions .
Weather Resistance: UV-resistant and daylight-aging properties make it suitable for long-term outdoor use, with minimal degradation over time .
Chemical Resistance: Exceptional resistance to acids, alkalis, hydraulic oils, and solvents ensures compatibility with diverse industrial environments, including mining, petrochemical, and marine applications.
Minimum Bend Radius: Designed for tight spaces, the cable allows a 5x diameter bend radius for fixed installations and 10x diameter for moving applications, ensuring easy integration into complex crane systems .
Tensile Strength: Galvanized steel wire reinforcement (optional) enhances tensile capacity, supporting heavy lifting and high-speed reeling operations without deformation .
Low Weight: The flat design reduces overall weight while maintaining structural integrity, improving maneuverability and reducing strain on reeling mechanisms .
Overhead cranes, gantry cranes, and container handling equipment require reliable power transmission during
frequent lifting and horizontal movements. The cable’s flexibility and abrasion resistance make it ideal for
these dynamic applications .
Foundation and Trenching Equipment
Rotary Drilling Rigs/Dual-Wheel Milling Machines/Hydraulic Grabbers for Diaphragm Walls
Suitable for excavators, draglines, and material handling systems in harsh environments, offering protection
against rocks, dust, and chemical spills .
Material Handling Equipment
Frontal Handling Machines (Reach Stackers)/Container Stackers
Q1: What certifications does this cable comply with?
A1: The cable meets international standards such as IEC 60502-1 (medium voltage cables) and EN 50265-2-1 (flexible cables for cranes). While specific certifications may vary by manufacturer, it undergoes rigorous testing for safety and performance.
Q2: How does the triple-extruded EPR/XLPE insulation benefit performance?
A2: The triple-extrusion process ensures a seamless bond between EPR and XLPE layers, combining EPR's flexibility with XLPE’s high-temperature stability. This design reduces thermal expansion, enhances dielectric strength, and minimizes water treeing, extending the cable's service life.
Q3: Can the cable be used in areas with high oil or chemical exposure?
A3: Yes. The abrasion-resistant rubber sheath and triple-extruded insulation provide excellent resistance to hydraulic oils, solvents, and corrosive chemicals, making it suitable for oil rigs, chemical plants, and marine environments.
