The H05RR-F cable is an essential component in many electrical systems, but what makes it stand out? Is it its flexibility, durability, or the ability to withstand challenging environments? This versatile cable is widely used in residential, commercial, and light industrial settings, powering everything from household appliances to portable tools.
In this article, we’ll explore what the H05RR-F cable is, its key features, and why it's a reliable choice for light-duty applications. You’ll learn about its advantages, common uses, and how it compares to other cables like the H05VV-F.

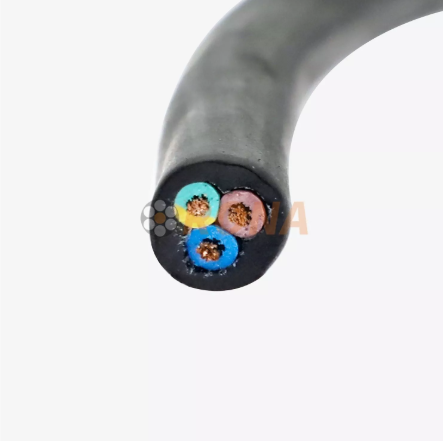

An H05RR-F cable is a type of flexible rubber-sheathed cable that is typically used in various electrical installations. Its construction features the following:
Flexible copper conductors: These conductors are designed to ensure excellent electrical conductivity and flexibility, allowing the cable to bend without breaking or compromising its integrity. Copper is the preferred material for electrical conductors due to its high conductivity and durability.
Rubber insulation: The insulation of the cable is made from ethylene propylene rubber (EPR), which provides outstanding dielectric properties, protecting against heat, chemicals, and moisture. This insulation ensures safe operation and protection from potential electrical hazards.
Rubber outer sheath: The outer sheath of the cable is made from rubber, providing an additional layer of protection against external damage, such as abrasions and weathering. This sheath also helps maintain the cable’s flexibility and longevity, even in challenging environments.
The H05RR-F cable adheres to international standards such as DIN EN 50525-2-82 and VDE 0285, ensuring that it meets quality and safety requirements. These standards help make the cable a safe and reliable option for both fixed and temporary electrical installations, particularly in environments where flexibility is critical.
The H05RR-F cable is designed with several key features that make it suitable for low-voltage applications:
Voltage rating: The cable is rated for 300/500V, which is more than sufficient for powering small appliances and equipment that don’t require high-voltage power. This makes it ideal for home use and light commercial setups.
Temperature range: It operates effectively in temperatures ranging from 40°C to +90°C, making it suitable for use in a variety of environmental conditions. Whether it’s extremely cold or hot, the H05RR-F cable remains reliable.
Bend radius: The cable’s rubber sheath allows it to bend up to four to six times its diameter, providing flexibility in installation and ease of use in tight spaces. This makes it a great option for applications requiring frequent adjustments or movement.
Tensile strength: The cable has a high tensile strength of 15 N/mm², ensuring that it can withstand light mechanical stresses, such as those encountered in portable appliances and handheld power tools.
Here’s a quick summary of the key features of the H05RR-F cable:
| Feature | Description |
|---|---|
| Voltage Rating | 300/500V, ideal for low-power applications |
| Temperature Range | -40°C to +90°C, suitable for a variety of environments |
| Bend Radius | 4-6 times the cable diameter, ensuring flexibility |
| Tensile Strength | 15 N/mm², resistant to light mechanical stress |
| Insulation Material | Ethylene Propylene Rubber (EPR), excellent for heat and chemical resistance |
The H05RR-F cable is a common choice for powering household appliances such as:
Coffee makers
Blenders
Hairdryers
Vacuum cleaners
In residential settings, it can also be used for powering temporary lighting, small electrical gadgets, and even kitchen equipment. Commercially, it’s widely employed for temporary electrical setups in offices, retail spaces, or event venues, where flexibility and ease of setup are important.
One of the main benefits of using H05RR-F cables in these environments is the ease with which they can be handled, installed, and relocated. As portable devices and temporary installations are common in these settings, the cable's flexibility and ease of coiling make it an ideal choice.
The H05RR-F cable is frequently used in workshops to power light-duty tools such as:
Electric drills
Saws
Handheld power tools
These tools often require cables that are flexible and capable of withstanding regular movement, frequent bending, and occasional mechanical stress. The H05RR-F cable provides the necessary performance to ensure these tools remain operational and safe to use in the workplace.
While the H05RR-F cable is resistant to moisture and can be used outdoors temporarily, it is not designed for permanent outdoor installations. It is effective in damp environments or during short-term outdoor activities, but it is not built to endure prolonged exposure to harsh weather, direct sunlight, or extreme temperatures. For long-term outdoor use, a more robust cable like H07RN-F would be better suited, as it offers enhanced durability and resistance to the elements.
Here’s a quick overview of the common applications of the H05RR-F cable in various environments:
| Environment/Use Case | Common Applications |
|---|---|
| Residential Use | Coffee makers, blenders, vacuum cleaners, lighting setups |
| Commercial Use | Temporary office setups, retail spaces, event venues |
| Light Workshop Tools | Electric drills, small saws, hand tools |
| Outdoor Use (Temporary) | Powering portable devices in damp environments |
One of the main reasons for choosing the H05RR-F cable is its flexibility. The rubber construction of the cable allows it to be easily bent, coiled, and maneuvered in tight spaces. This is particularly beneficial for portable appliances and tools that require frequent relocation. Additionally, the cable's abrasion resistance makes it suitable for environments where there may be light physical wear and tear, ensuring a longer lifespan.
While H05RR-F cables are not completely fireproof, they do possess fire retardant qualities. This means they are resistant to flames, preventing fire from easily spreading across the cable if it were to be exposed to a heat source or electrical fault. This adds an important layer of safety in residential and commercial environments. However, H05RR-F cables are not intended for use in high-temperature environments, and their fire resistance has limits.
The H05RR-F cable meets essential safety standards and is compliant with CE and RoHS regulations. These certifications guarantee that the cable is made from non-hazardous materials and is safe for use in both residential and commercial applications. This ensures that the cable contributes to a safer environment for both users and the planet.
The main difference between the H05RR-F and H05VV-F cables lies in the material of the outer sheath:
H05RR-F cables use rubber for both insulation and the outer sheath, offering superior flexibility, abrasion resistance, and resilience to environmental factors. This makes them ideal for applications requiring frequent movement or bending.
H05VV-F cables, on the other hand, use PVC for insulation and the outer sheath. PVC is more rigid and less flexible than rubber, but it provides better resistance to high temperatures. PVC is typically used for fixed installations where flexibility is not as important.
Both types of cables are rated for 300/500V and can be used for similar applications. However, the H05RR-F cable is better suited for portable and temporary installations, where flexibility and durability are critical. In contrast, H05VV-F cables are often used in fixed installations, such as wiring for electrical outlets, where flexibility and movement are not as important.
Here’s a quick comparison of the key features between H05RR-F and H05VV-F cables:
| Feature | H05RR-F Cable | H05VV-F Cable |
|---|---|---|
| Sheath Material | Rubber | PVC |
| Flexibility | Highly flexible | Less flexible |
| Temperature Resistance | Moderate (up to +90°C) | High (better for high temperatures) |
| Abrasion Resistance | High | Moderate |
| Typical Applications | Temporary setups, light tools, portable appliances | Fixed installations, office equipment |
When selecting an H05RR-F cable, it’s crucial to ensure that the voltage rating of the cable aligns with the power needs of your devices. The 300/500V rating of the H05RR-F cable is suitable for powering small, low-power devices such as household appliances, light tools, and temporary setups. However, if you are dealing with heavy-duty power tools or larger electrical systems, you might require a cable with a higher voltage rating, such as H07RN-F, which is designed for more demanding applications. Choosing a cable with the right voltage rating is essential to prevent overheating, power loss, or even electrical failures.
It is important to consider the environmental conditions in which the H05RR-F cable will be used. While the H05RR-F cable is well-suited for indoor use and moderate outdoor conditions, it is not designed for exposure to extreme weather conditions over long periods. The rubber sheath offers resistance to moisture, making it suitable for damp environments like kitchens or garages. However, for environments with heavy rain, direct sunlight, or extreme temperatures, you should consider a more robust cable like the H07RN-F cable, which provides better resistance to UV radiation and can withstand more demanding outdoor conditions. If your cable will be used outdoors, always verify whether it’s built to endure prolonged exposure to the elements to ensure long-term durability and performance.
Another important factor to consider when choosing an H05RR-F cable is the level of mechanical stress the cable will be subjected to. The H05RR-F cable is highly flexible, which makes it an excellent choice for applications where the cable needs to be frequently moved, coiled, or bent, such as in portable appliances or temporary electrical setups. Its flexibility ensures that it can withstand bending and twisting without damaging the conductors inside. However, if the cable is intended for a stationary installation where no frequent movement occurs, and where durability is the primary concern, you may want to opt for a cable like H05VV-F, which is more rigid and resistant to physical wear. The H05VV-F cable is typically used in fixed installations like wiring for outlets and appliances that do not require regular adjustments or movement, ensuring reliable long-term performance in stable environments.
The H05RR-F cable is a flexible, affordable, and reliable solution for low-power applications. Its exceptional flexibility, abrasion resistance, and fire retardant properties make it ideal for residential, commercial, and light industrial use. Certified with CE and RoHS, it ensures safety for both users and the environment.
For portable tools and household appliances, H05RR-F is a great choice. However, for more demanding environments, the H07RN-F cable may be better suited.
When selecting a H05RR-F cable, ensure that it meets the voltage and environmental needs of your application. RONA offers reliable cables designed to meet these needs and deliver consistent performance.
A: The H05RR-F cable is a flexible rubber-sheathed electrical cable designed for low-voltage applications. It is commonly used to power small appliances and light-duty tools in residential, commercial, and light industrial environments.
A: The H05RR-F cable uses rubber for both insulation and sheath, providing superior flexibility and abrasion resistance. In contrast, the H05VV-F cable uses PVC, which offers better high-temperature resistance but less flexibility.
A: The H05RR-F cable offers excellent flexibility, high abrasion resistance, and fire retardant properties, making it ideal for portable devices and temporary setups that require frequent movement and flexibility.
A: While the H05RR-F cable can be used temporarily outdoors in damp environments, it is not suitable for prolonged exposure to harsh weather conditions. For long-term outdoor use, consider a more robust cable like H07RN-F.
A: When choosing a H05RR-F cable, ensure the voltage rating and temperature range match the power requirements of your devices. Consider environmental factors and whether the cable will experience frequent bending or movement.
