Industrial machines move constantly. Their cables must move too. But how can an Industrial Cable carry fast data and survive motion? In this article, you will learn how optical fiber improves Industrial Cable design in drag chain and reeling systems.

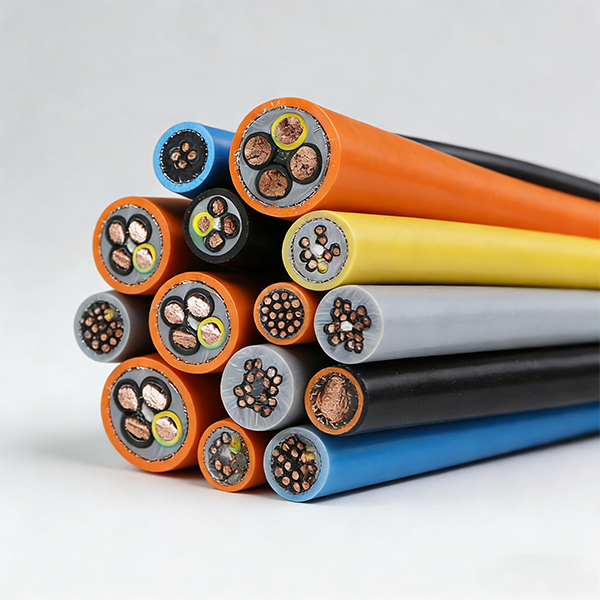

An Industrial Cable is a cable engineered for demanding industrial environments. It connects machines, sensors, and control systems. Unlike household cables, it must survive movement, vibration, heat, and mechanical stress. In automated factories, machines run continuously. Because of this, cables must deliver stable power and data while equipment moves.
In automation systems, cables are not passive components. They directly affect machine reliability and operational efficiency. A poorly designed cable may break after repeated bending cycles. When this happens, equipment stops. Production delays follow. For industries that depend on automation, this risk cannot be ignored.
Industrial Cable systems typically support several functions at the same time:
● Power delivery
○ Motors, actuators, and heavy equipment require stable electrical supply.
○ Industrial cables must maintain conductivity under constant motion.
○ Flexible copper conductors help prevent fatigue and breakage.
● Signal and control transmission
○ Control signals move between PLCs, sensors, and machinery.
○ These signals must remain stable even during vibration.
○ Shielded cable structures reduce signal interference.
● High-speed communication
○ Modern factories rely on fast data exchange.
○ Optical fiber integrated into Industrial Cable allows rapid communication.
○ It also improves resistance to electromagnetic interference.
In many automated facilities, thousands of cable movements occur every day. Equipment such as robots, conveyor systems, and machine tools depend on reliable cable connections.
Typical automation equipment using Industrial Cable includes:
● robotic arms in assembly lines
● automated conveyor systems
● CNC machining centers
● port cranes and lifting equipment
● industrial inspection systems
Flexible cable manufacturers such as RONA focus on these demanding environments. Their motion cables are designed to support automation equipment operating under continuous movement.
Industrial machines rarely remain stationary. Motion systems introduce mechanical stress. Bending, twisting, stretching, and vibration happen repeatedly. Therefore, the mechanical structure of an Industrial Cable must be carefully engineered.
Several structural design elements improve durability in dynamic systems.
Important mechanical features include:
● High-strand copper conductors
○ Fine strands improve flexibility.
○ They reduce metal fatigue during repeated bending.
○ This structure is common in drag chain and robotic cables.
● Flexible insulation materials
○ Materials such as PVC, PUR, or TPE allow repeated movement.
○ They protect conductors while maintaining elasticity.
○ Oil-resistant insulation helps in industrial environments.
● Abrasion-resistant outer jackets
○ Industrial equipment creates friction and mechanical contact.
○ A durable outer sheath prevents surface wear.
○ This layer protects both electrical and optical components.
● Strain relief and reinforcement
○ Reinforcement layers distribute mechanical stress.
○ Strength members reduce tension damage in long cables.
○ These designs extend cable service life.
Another important factor is motion behavior. Engineers evaluate how a cable moves within equipment systems.
Key movement stresses include:
● repeated bending in drag chain carriers
● torsion caused by rotating robotic arms
● tension generated in reeling systems
● vibration from heavy industrial machinery
Below is a simplified comparison of motion conditions that influence Industrial Cable design.
Motion Environment | Mechanical Stress | Cable Design Focus |
Drag chain systems | Continuous bending cycles | High flexibility and small bending radius |
Robotic equipment | Torsion and twisting motion | Torsion-resistant cable construction |
Reeling systems | Tensile stress and winding | Reinforced structure and tensile strength |
Modern automation systems increasingly combine optical fiber and Industrial Cable technology. Machines exchange large amounts of data in real time. Robotics, sensors, and control systems all depend on fast communication. Traditional copper signal cables sometimes struggle in high-interference environments. Optical fiber offers a reliable alternative.
Optical fiber transmits information using light instead of electrical signals. When integrated into Industrial Cable used in moving machinery, it improves both communication speed and stability.
Key advantages include:
● High-speed data transmission
Fiber supports fast industrial networks and real-time automation control.
● It allows machines to exchange large data volumes efficiently.Immunity to electromagnetic interference
Heavy motors and equipment generate strong electrical noise.
Optical fiber remains unaffected by electromagnetic fields.
● Communication stays stable in harsh industrial environments.Long-distance communication
Fiber maintains signal quality over long distances.
It is ideal for large factories and automated production lines.Hybrid cable systems now combine power conductors and optical fiber inside one Industrial Cable. These cables are widely used in automation equipment, robotics, and monitoring systems. Companies such as RONA develop flexible industrial cables designed to support both movement and high-speed communication.
Communication Type | Signal Medium | Key Advantage | Typical Industrial Use |
Copper cable | Electrical signal | Simple installation | Basic machine control |
Optical fiber cable | Light signal | High speed, low interference | Industrial communication networks |
Hybrid industrial cable | Power + fiber | Energy and data integration | Robotics and automation systems |
Optical fibers used in Industrial Cable systems follow international standards. Each fiber type supports different transmission speeds and distances. Selecting the correct type helps ensure stable performance in automated equipment.
Industrial networks usually use two fiber categories:
● Single-mode fiber
Designed for long-distance communication.
● It is common in large industrial facilities or plant networks.Multimode fiber
Used for shorter distances inside factories.
It supports high-speed communication between machines.Common fiber types integrated into Industrial Cable include:
Fiber Type | Core Size | Category | Typical Application |
OS1 | 9/125 µm | Single-mode | Indoor industrial networks |
OS2 | 9/125 µm | Single-mode | Long-distance plant communication |
OM1 | 62.5/125 µm | Multimode | Older industrial systems |
OM2 | 50/125 µm | Multimode | Gigabit machine networks |
OM3 | 50/125 µm | Multimode | High-speed automation systems |
OM4 | 50/125 µm | Multimode | Data-intensive production lines |
OM5 | 50/125 µm | Multimode | Advanced high-bandwidth environments |
In dynamic environments such as drag chains or reeling systems, engineers often select OM3, OM4, or OS2 fibers. These types provide a balance between bandwidth performance and mechanical reliability.
An optical Industrial Cable contains several protective layers. Each layer helps maintain signal performance while the cable moves inside machinery.
Main structural components include:
● Fiber core
This is the center of the optical fiber.
● Light signals travel through the core to transmit data.Cladding layer
Cladding surrounds the core.
● It reflects light back into the core to maintain signal stability.Protective coating
A thin coating protects the fragile glass fiber surface.
● It prevents micro-damage during cable bending or handling.Strength members
Reinforcement materials such as aramid yarn increase tensile strength.
● They protect optical fibers during movement and installation.Outer jacket
The external sheath protects the cable from abrasion, oil, and chemicals.
Drag chain systems guide moving cables in automated machinery. Robots, CNC machines, and conveyors all rely on them. In these environments, an Industrial Cable bends repeatedly while equipment moves. It must survive thousands of motion cycles without losing power or signal stability.
Several motion conditions make drag chain environments challenging:
● Continuous bending
The cable moves back and forth during machine operation.
● Flexible copper conductors reduce fatigue and extend service life.Limited installation space
Drag chains operate in tight machine structures.
● The cable must maintain performance even in small bend radii.Mechanical wear
Movement can cause friction between cables and chain carriers.
Durable jackets help resist abrasion and industrial chemicals.Flexible cable manufacturers such as RONA design Industrial Cable solutions for these dynamic applications. Their cables support automation equipment where movement never stops.
Optical fiber improves communication in modern Industrial Cable systems. It supports high-speed data transfer between machines and control systems. However, fiber must be protected because it is sensitive to mechanical stress.
When engineers integrate fiber into motion cables, they focus on several design principles:
● Central fiber placement
Optical fibers are positioned near the cable center.
● This area experiences less bending stress during movement.Protective loose tube structure
Fibers are placed inside protective tubes.
● These tubes absorb movement and reduce direct strain.Reinforcement layers
Strength materials such as aramid yarn protect fiber elements.
They help distribute mechanical stress across the cable.Hybrid cables combining copper conductors and optical fiber are widely used in automation networks, robotics, and monitoring systems.
Fiber-integrated Industrial Cable must handle multiple motion stresses inside drag chains. The most common stresses include bending, twisting, and vibration. Engineers design cable structures to reduce the impact of these forces.
Motion Stress | Cause | Cable Design Response |
Bending | Continuous drag chain movement | Flexible conductor and small bend radius |
Torsion | Rotating robotic joints | Balanced cable structure |
Vibration | Heavy industrial equipment | Reinforced outer jacket |
To improve durability, engineers often follow these installation practices:
● keep cables aligned along the drag chain path
● avoid twisting during installation
● select cables designed for dynamic motion
● ensure proper spacing between cables
These strategies help maintain reliable communication and power transmission in moving automation systems.
Reeling systems manage cables in machines that move over long distances. You see them in cranes, port equipment, mining machines, and automated transport systems. In these environments, the Industrial Cable winds and unwinds around a reel while the equipment travels. This design keeps cables organized and prevents tangling during operation.
A typical reeling cable system contains several basic components. Each part works together to maintain power and communication stability.
● Cable reel drum
It stores the cable when equipment moves closer to the power source.
● As the machine moves away, the cable is released smoothly.Flexible Industrial Cable
The cable must tolerate repeated winding cycles.
● It also carries electrical power and communication signals simultaneously.Tension control mechanism
It ensures the cable winds evenly around the drum.
Proper tension prevents excessive stretching or twisting.These systems are common in industries where equipment travels across large work areas.
Typical applications include:
● container cranes in ports
● mining and material handling equipment
● automated gantry systems
● mobile industrial machines
Many cable manufacturers, including RONA, design motion-capable Industrial Cable products for these environments. Their cables focus on flexibility, tensile strength, and stable signal performance during continuous movement.
Reeling systems place different mechanical stress on cables compared to drag chain systems. Instead of repeated bending in one direction, the cable experiences tension and winding forces. Engineers must therefore design Industrial Cable structures to withstand these stresses.
Key structural requirements include:
● High tensile strength
The cable experiences pulling force as equipment moves.
● Reinforced conductors and strength members help resist stretching.Flexible insulation materials
The cable must bend smoothly while winding on the reel drum.
● Materials like rubber or PUR improve flexibility and durability.Abrasion-resistant outer sheath
Continuous winding can create friction between cable layers.
Durable jackets protect the cable surface during operation.Below is a simplified overview of mechanical requirements in reeling cable applications.
Mechanical Factor | Impact on Industrial Cable | Design Solution |
Tensile force | Cable stretching during machine movement | Reinforced conductors and strength members |
Reeling motion | Continuous winding and unwinding cycles | Flexible insulation materials |
Surface friction | Contact between cable layers on reel | Abrasion-resistant outer jacket |
These structural improvements help maintain reliable performance in mobile industrial equipment.
Modern reeling cables sometimes integrate optical fiber to support high-speed communication. This creates a hybrid Industrial Cable capable of transmitting both power and data. However, optical fiber is sensitive to excessive tension and bending. Engineers must design protective structures to keep the fiber stable during reel operation.
Several design strategies help protect fiber elements.
● Centralized fiber placement
Optical fibers are positioned near the cable core.
● This location reduces bending stress during winding cycles.
● Protective buffering layers
Special coatings or tubes protect the glass fiber.
● These layers absorb mechanical movement during reeling.
● Reinforcement structures
Strength members distribute tension across the cable.
This prevents direct stress on delicate fiber components.Engineers also consider installation practices to reduce fiber stress.
● avoid excessive pulling force during operation
● maintain proper cable alignment on the reel drum
● ensure smooth winding without sharp bending points
● select Industrial Cable specifically designed for reeling systems
Industrial Cable design blends power and data for modern automation. Optical fiber improves speed and signal stability in moving systems. RONA provides flexible industrial cable solutions for drag chains and reeling equipment. Their products offer durability, reliable communication, and long service life in demanding industrial environments.
A: Industrial Cable delivers power and data between machines, sensors, and controllers in automated equipment.
A: Optical fiber improves Industrial Cable communication by providing high speed and resistance to electromagnetic interference.
A: Drag chains require Industrial Cable that handles repeated bending and continuous movement without signal loss.
A: Drag chain Industrial Cable focuses on bending flexibility, while reeling cables handle tension and winding cycles.
A: Choose flexible Industrial Cable, ensure correct installation, and protect it from excessive bending or twisting.
