The NSSHOEU-J cable is a heavy-duty, flexible rubber-sheathed cable fully compliant with DIN VDE 0250 Part 812. It is engineered for industrial equipment operating under high mechanical stress, particularly in dragging, trailing, and light reeling applications.
Technical Code Breakdown:
N: Standardized according to VDE regulations.
SS: Heavy-duty flexible cable (Schwere flexible Leitung).
H: Rubber insulation (EPR type 3GI3).
O: Without a separate protective conductor.
EU: Heavy-duty rubber sheath (PCP type 5GM5).
-J: Includes Green-Yellow earth conductor.
Construction & Features:
NSSHOEU-J utilizes finely stranded Class 5 copper conductors (DIN VDE 0295) to ensure high flexibility. Its PCP sheath is oil-resistant, flame-retardant, weatherproof, ozone-resistant, and abrasion-resistant. Rated for 0.6/1 kV, with a conductor temperature up to 60°C (special versions up to 85°C), it is the industry benchmark for trailing cables in mining, tunneling, and industrial machinery.
The NSHTOEU-J cable is a torsion-resistant, high-flex reeling cable under DIN VDE 0250 Part 812, developed for applications involving continuous winding, unwinding, and twisting.
Technical Code Breakdown:
N: VDE standard.
S: Flexible cable.
H: Rubber insulation.
T: Specifically designed for Torsion and Reeling applications.
O: Without separate PE conductor.
EU: Heavy-duty rubber sheath.
-J: Includes Green-Yellow earth conductor.
Construction & Features:
NSHTOEU-J features extra-fine copper stranding and an anti-torsion reinforcement (polyester or aramid braid) between the inner and outer sheath to prevent corkscrewing. It withstands millions of bend cycles and high-speed reeling, rated for 0.6/1 kV, and performs reliably in high-flex environments like crane hoists and spreader systems.
Item | NSSHOEU-J | NSHTOEU-J |
|---|---|---|
Primary Function | Trailing / Towing / Light Reeling | High-Flex Reeling / Torsion Resistance |
Code Identifier | SS (Heavy-duty Flexible) | T (Torsion/Reeling) |
Anti-Torsion Design | Basic construction | Reinforced anti-torsion braid |
Flexibility Level | High | Very High |
Typical Movement | Dragging, occasional bending | Continuous winding, twisting |
Best Application | Ground trailing cables, mining machinery | Spreader cables, hoist reels |
Kink Resistance | Moderate | Excellent |
Summary:
NSSHOEU-J: Best for trailing, towing, and standard-duty reeling.
NSHTOEU-J: Best for high-speed reeling, frequent torsion, and anti-twist requirements.
NSSHOEU-J Applications:
Trailing cables for mining drills, mobile crushers, and conveyor systems.
Temporary power supply on construction sites.

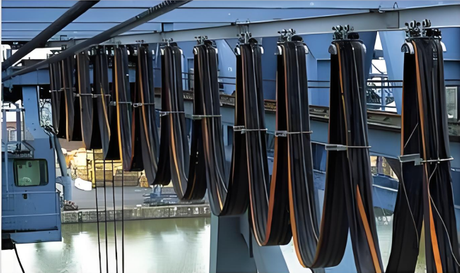

Festoon systems with moderate movement in factories and workshops.
Auxiliary power for industrial machinery in damp or oily environments.
NSHTOEU-J Applications:
Spreader twistlock systems on Ship-to-Shore (STS) cranes.
Hoist drum cables for high-cycle lifting operations.
Mobile harbor crane reeling systems.
Automated stacking crane (ASC) power and control cables.
In modern port logistics, selecting the correct cable directly impacts equipment uptime and safety.
STS Cranes: NSHTOEU-J is the standard for spreader twistlock and hoist reels, enduring constant bending, twisting, and high-cycle operations.
RTG / RMG Cranes: NSSHOEU-J is commonly used for ground-level trailing power feeds or festoon systems with limited torsional stress.
Mobile Harbor Cranes: NSHTOEU-J is applied to main hoist drums to prevent twisting and kinking during high-speed lifts.
Spreader Systems: NSHTOEU-J supports integrated control and power transmission to the spreader, maintaining performance under continuous flexing and rotation.
Correct cable selection avoids premature failures that cause downtime in 24/7 port operations.
When specifying cables for reeling or anti-torsion applications, consider the following:
Movement Type: Determine if the cable will be dragged, reeled, twisted, or suspended.
Travel Speed: Higher speeds require enhanced anti-torsion reinforcement and finer stranding.
Torsion Requirements: Spreader and hoist systems need dedicated anti-torsion designs (NSHTOEU-J).
Environmental Conditions: Consider oil, ozone, UV, salt spray, and temperature extremes.
Mechanical Stress: Evaluate tensile load, bending radius, and frequency of movement.
Compliance: Ensure the cable meets DIN VDE 0250 Part 812 and relevant IEC standards.
Q1: Can I replace NSHTOEU-J with NSSHOEU-J on a crane hoist?
A1: Not recommended. NSHTOEU-J is specifically engineered for continuous reeling and torsion. NSSHOEU-J lacks the anti-torsion reinforcement and will likely fail prematurely due to twisting or kinking.
Q2: Are both cables oil-resistant?
A2: Yes. Both NSSHOEU-J and NSHTOEU-J typically use PCP (Polychloroprene) sheathing, which is oil-resistant, flame-retardant, and weather-resistant.
Q3: What does “-J” indicate?
A3: “-J” means the cable includes a Green-Yellow protective earth conductor. “-O” indicates no separate earth conductor.
Q4: What is the typical temperature range?
A4: Standard versions operate from -25°C to +60°C. Special versions can be rated for -40°C or up to +85°C.
Q5: Do these cables meet international standards?
A5: Yes. They conform to DIN VDE 0250 Part 812, with many also certified to IEC 60245 and marked CE for international markets.
