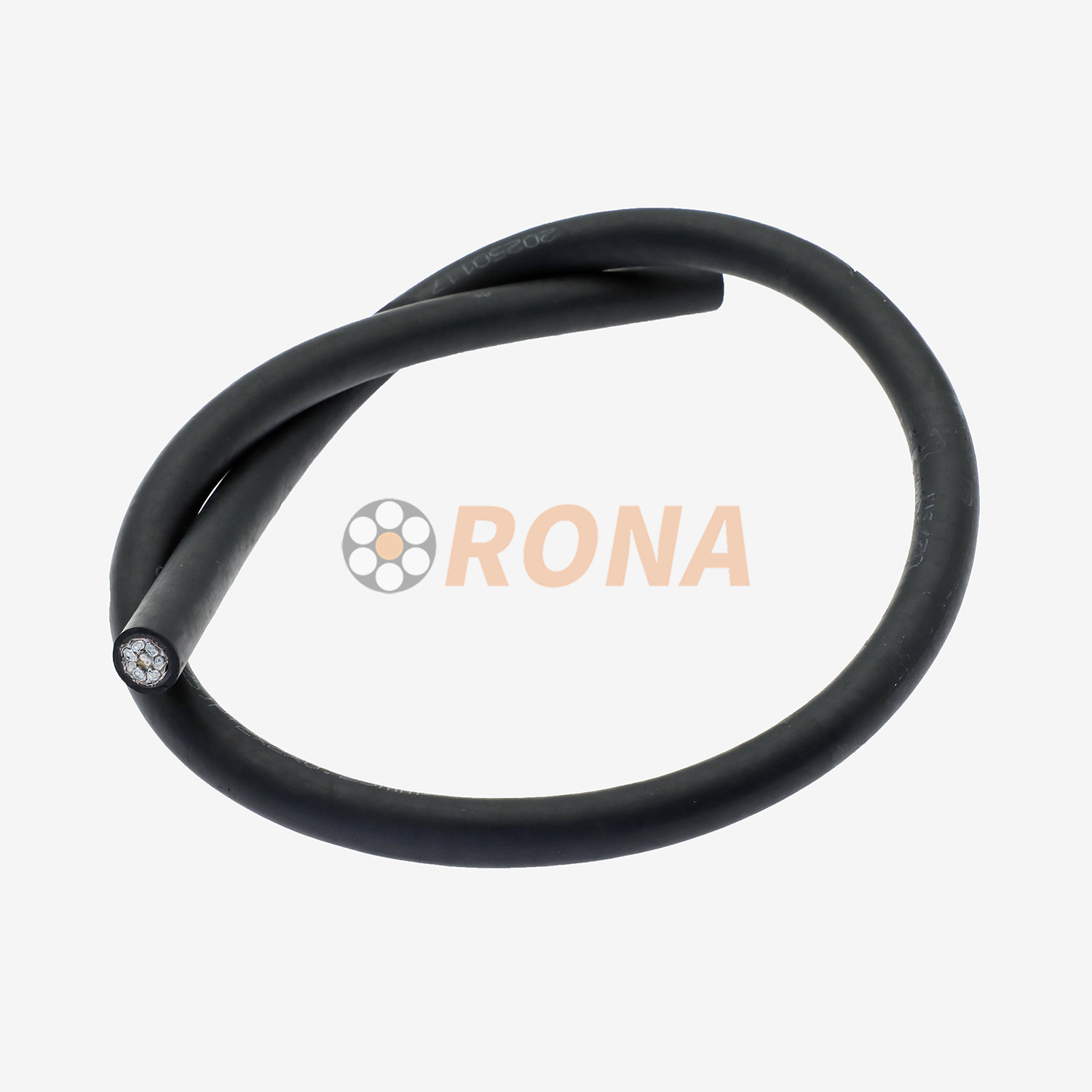

RECH 6×(2 ×0.25)P+2×2x 0.25
RONA
85444929
300m
The RECH series is a robust waterproof cable engineered for reliable operation in demanding underwater and harsh environmental conditions. It combines durable construction with high-performance materials to ensure long-term stability.
Key Features:
Superior Water Resistance: Specifically designed to withstand transverse water pressure.
Enhanced Durability: The rubber sheath provides top-tier protection against mechanical stress, weather, oil, and aging.
Flexible Deployment: Suitable for both dynamic (mobile) and static (fixed) installations.
Reliable Signal Integrity: Braided shielding offers effective protection against electromagnetic interference.
| Component | Composition |
|---|---|
| Conductor | Multiple strands of finely twisted tinned copper wire (VDE 0295, Class 5 compliant) |
| Insulation | Ethylene propylene rubber (EPR) mixture or Fluorinated ethylene propylene (FEP) copolymer |
| Core Identification | Black core with continuous white numbering; FEP cores are white with black numbering |
| Shielding | Tin-plated copper braid, approximately 85% coverage |
| Outer Sheath | Chloroprene rubber (CR) mixture |
| Sheath Color | Standard black (other colors available) |
| Parameter | Specification |
|---|---|
| Rated Voltage | Control Cable: 300/500V Power Cable: 0.6/1kV |
| Test Voltage (AC, 5 min) | Control Cable: 2000V Power Cable: 3500V |
| Min. Bending Radius | Mobile Installation: ~10 x Cable Diameter Fixed Installation: ~5 x Cable Diameter |
| Temperature Range | Mobile Installation: –35°C to +90°C Fixed Installation: –40°C to +90°C |
| Key Properties | Excellent resistance to water pressure, wear, oil, and aging. |
| Flame Retardancy | Compliant with IEC 60332-1 |
▍Applications
This cable is ideally suited for:
Marine engineering projects
Underwater construction and bridge applications
Aquaculture operations
Submersible industrial automation systems
Offshore detection and monitoring equipment

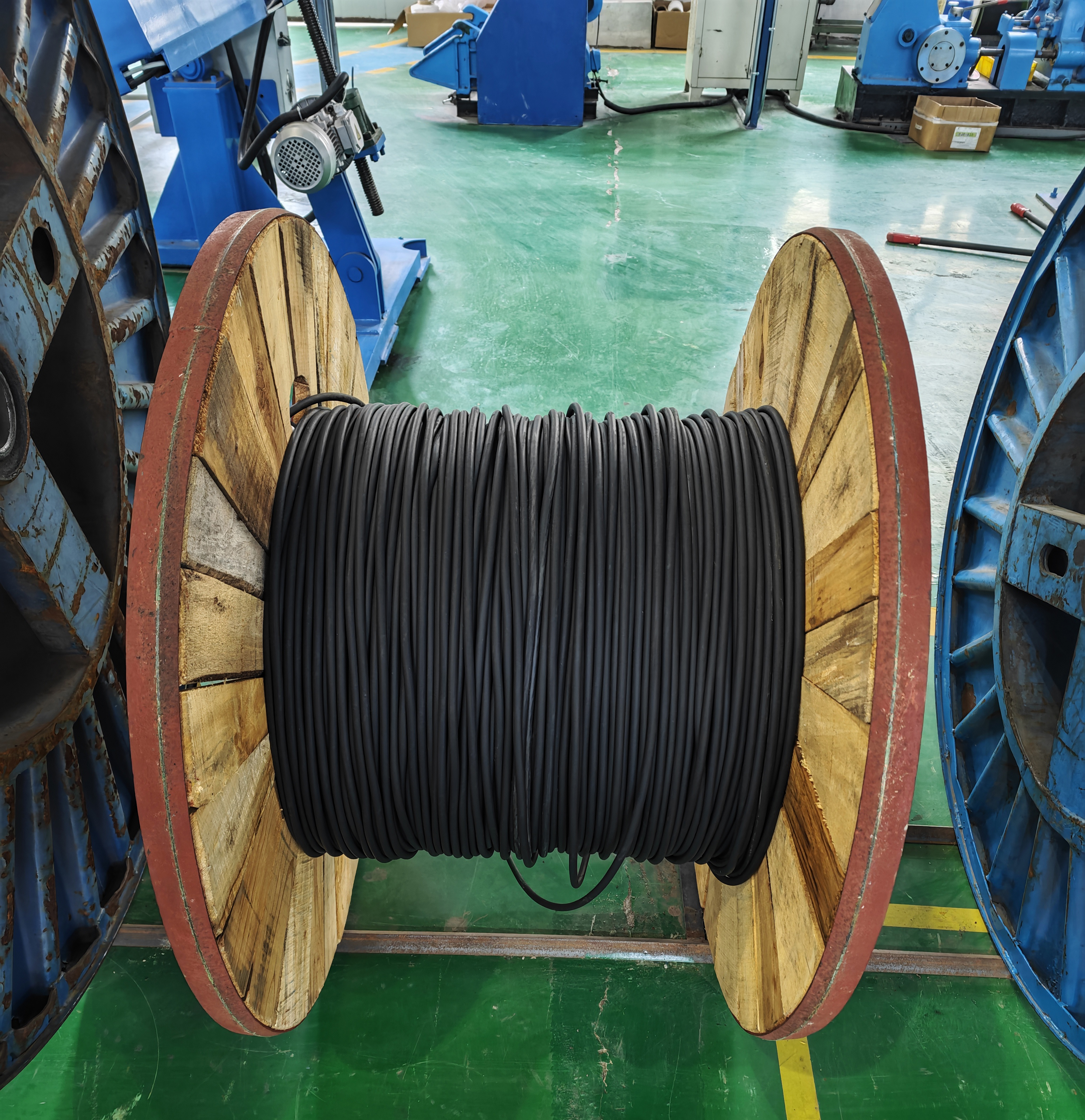

Rech cable
