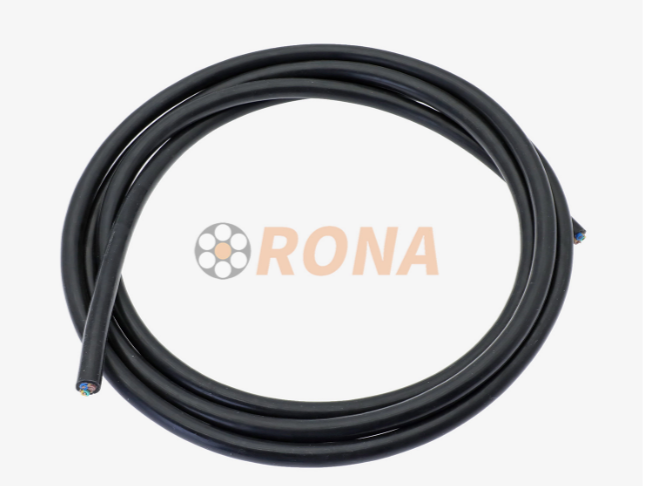

H07RN-F 3G1.5 European Standard Rubber Sheathed Cable

Product Overview

The H07RN-F 3G1.5 European standard rubber sheathed cable is a heavy-duty flexible power cable designed to withstand the harshest industrial and outdoor operating conditions. Manufactured by RONA to EN 50525-2-21 standards and certified with CE, VDE, and RoHS approvals, this H07RN-F rubber cable delivers exceptional durability and reliability in demanding mobile and outdoor applications. Featuring a robust neoprene rubber sheath and high-quality EPR insulation, the 3G1.5 cable provides superior resistance to oil, chemicals, weather, UV radiation, and mechanical stress. Rated at 450/750V, it is engineered for continuous flexing and movement, making it the ideal power solution for heavy industrial equipment, construction machinery, and outdoor power systems. Its Class 5 stranded copper conductor ensures maximum flexibility and long service life in dynamic operating environments.

Core Advantages

Unmatched Environmental Resistance

The H07RN-F heavy-duty rubber cable features a specially formulated neoprene rubber sheath that provides excellent resistance to oils, greases, acids, alkalis, and other industrial chemicals. It also offers superior UV protection and weatherproofing, ensuring reliable performance in extreme outdoor conditions from -40°C to 90°C.

Exceptional Mechanical Durability

Designed for continuous flexing and movement, this flexible rubber sheathed cable can withstand repeated bending, twisting, and mechanical stress without damage. Its reinforced construction resists abrasion and impact, making it suitable for use in rugged industrial and construction environments.

Superior Electrical Insulation

Equipped with high-quality Ethylene Propylene Rubber (EPR) insulation, the H07RN-F European standard cable provides excellent electrical insulation properties and heat resistance. It maintains stable performance even at elevated temperatures, ensuring safe and reliable power transmission.

Comprehensive Safety Certifications

All RONA H07RN-F industrial cables are rigorously tested and certified to CE, VDE, and RoHS standards. They comply with IEC60332-1 flame retardant requirements, providing enhanced safety in industrial facilities and construction sites.

Technical Specifications

Applications

The H07RN-F 3G1.5 rubber cable is specifically designed for heavy-duty applications including:

Steel plants, chemical plants, and other heavy industrial environments

Outdoor generators, mobile power vehicles, and portable power equipment

Heavy construction machinery and mining equipment

Shipbuilding and marine applications

Automated production lines and mechanical equipment

Wind power generation systems

Temporary power installations on construction sites

FAQs

What does "H07RN-F" stand for?

H07 indicates 450/750V voltage rating, R stands for rubber insulation, N stands for neoprene sheath, and F stands for flexible. This designation identifies the cable as a heavy-duty flexible rubber-sheathed cable for industrial use.

Can H07RN-F cables be submerged in water?

While H07RN-F rubber sheathed cables are water-resistant and suitable for use in damp conditions, they are not designed for continuous submersion. For underwater applications, we recommend specialized submersible cables.

What is the difference between H07RN-F and H05RR-F cables?

H07RN-F cables have a higher voltage rating (450/750V vs. 300/500V) and a more durable neoprene sheath, making them suitable for heavier-duty and outdoor applications. H05RR-F cables use a general-purpose rubber sheath and are intended for lighter indoor use.
