H07V-K 1G25
RONA
85444929
1000m

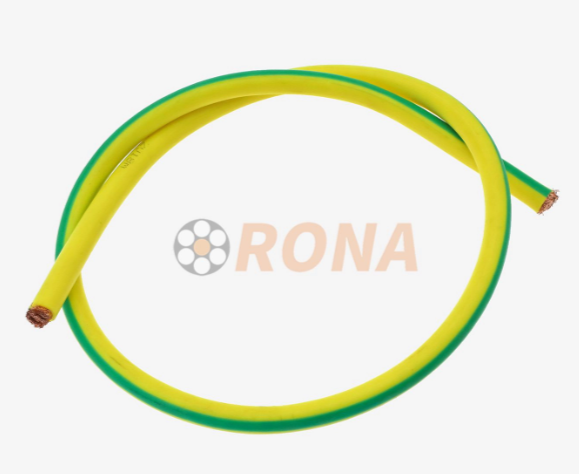

The H07V-K VDE single core flexible industrial cable is a premium European standard PVC-sheathed wiring solution engineered for reliable internal electrical connections in fixed and semi-fixed installations. Manufactured by RONA, this single core flexible cable adheres to strict international safety standards, delivering consistent performance across a wide range of industrial and commercial applications. Available in nominal cross sections from 0.5mm² to 240mm², the H07V-K single-core wire offers versatile sizing options to meet diverse power distribution and control circuit requirements. Rated at 450/750V, this PVC sheath cable provides excellent electrical insulation and flame retardant properties compliant with IEC60332-1, ensuring maximum safety in enclosed environments. Its flexible stranded copper conductor design simplifies installation and reduces fatigue in semi-stationary applications, making it the preferred choice for electrical contractors and industrial facility managers worldwide.
The H07V-K European standard cable features high-purity stranded copper conductors that minimize electrical resistance and power loss, ensuring efficient energy transmission. Its 450/750V voltage rating supports most industrial control and power distribution systems, providing reliable operation under normal operating conditions.
Constructed with fine-stranded copper wires, this round flexible cable offers excellent bending properties, making it easy to route through tight spaces in electrical enclosures and control panels. The flexible design reduces installation time and labor costs while minimizing the risk of conductor breakage during handling.
Engineered with a specially formulated PVC sheath, the H07V-K PVC cable complies with IEC60332-1 flame retardant standards. This critical safety feature limits the spread of fire in enclosed spaces, protecting valuable equipment and personnel in industrial facilities.
As a durable and long-lasting industrial cable, the H07V-K requires minimal maintenance over its service life. Its competitive pricing and wide availability make it a cost-effective choice for large-scale electrical installations in manufacturing plants, commercial buildings, and office complexes.
Item | Value |
Voltage | 450/750V |
Retardant properties | Complied with IEC60332-1 |
Cable nominal cross section | Cable structural | Cable nomical | Cable maximum | Cable |
0.5 | 16/0.20 | 2.1 | 2.3 | 6.5 |
0.75 | 24/0.20 | 2.4 | 2.7 | 11 |
1 | 32/0.20 | 2.5 | 2.9 | 14.9 |
1.5 | 48/0.20 | 2.8 | 3.1 | 19.7 |
2.5 | 77/0.20 | 3.3 | 3.6 | 29.5 |
4 | 126/0.20 | 3.9 | 4.3 | 46.4 |
6 | 189/0.20 | 5.2 | 5.7 | 71.8 |
10 | 322/0.20 | 6.5 | 7 | 120.4 |
16 | 513/0.20 | 8.1 | 8.6 | 181.5 |
25 | 798/0.20 | 9.5 | 10.2 | 271.5 |
35 | 1121/0.20 | 11.7 | 12.4 | 385 |
50 | 396/0.40 | 14 | 14.8 | 549.5 |
70 | 380/0.49 | 15.7 | 16.6 | 767.6 |
95 | 513/0.49 | 18.3 | 19.5 | 1027.5 |
120 | 630/0.49 | 20.1 | 21.3 | 1255.8 |
150 | 777/0.49 | 22 | 23.3 | 1547.2 |
185 | 976/0.49 | 24.5 | 26 | 1921.9 |
240 | 1281/0.49 | 27.6 | 29.3 | 2251.5 |
The H07V-K single core flexible industrial cable is ideal for internal wiring applications in:
Electrical boxes and switchgear enclosures
Control units and operator consoles in manufacturing facilities
Production lines, assembly lines, and conveyor systems
Fixed industrial machinery and plant equipment
Office equipment and commercial building wiring
Air conditioning and ventilation systems
Transport machinery and stationary equipment
The primary difference is the voltage rating. H07V-K cables are rated at 450/750V, suitable for industrial applications, while H05V-K cables are rated at 300/500V, intended for domestic and light commercial use.
No, the H07V-K PVC sheath cable is designed for indoor use only. It does not provide adequate protection against UV radiation, extreme temperatures, or moisture. For outdoor applications, we recommend our H07RN-F rubber-sheathed cables.
The H07V-K European standard cable has a maximum continuous operating temperature of 70°C for normal operation and 160°C for short-circuit conditions (up to 5 seconds).
Yes, RONA offers H07V-K single-core wires in a full range of standard colors to facilitate circuit identification and compliance with electrical wiring regulations.
