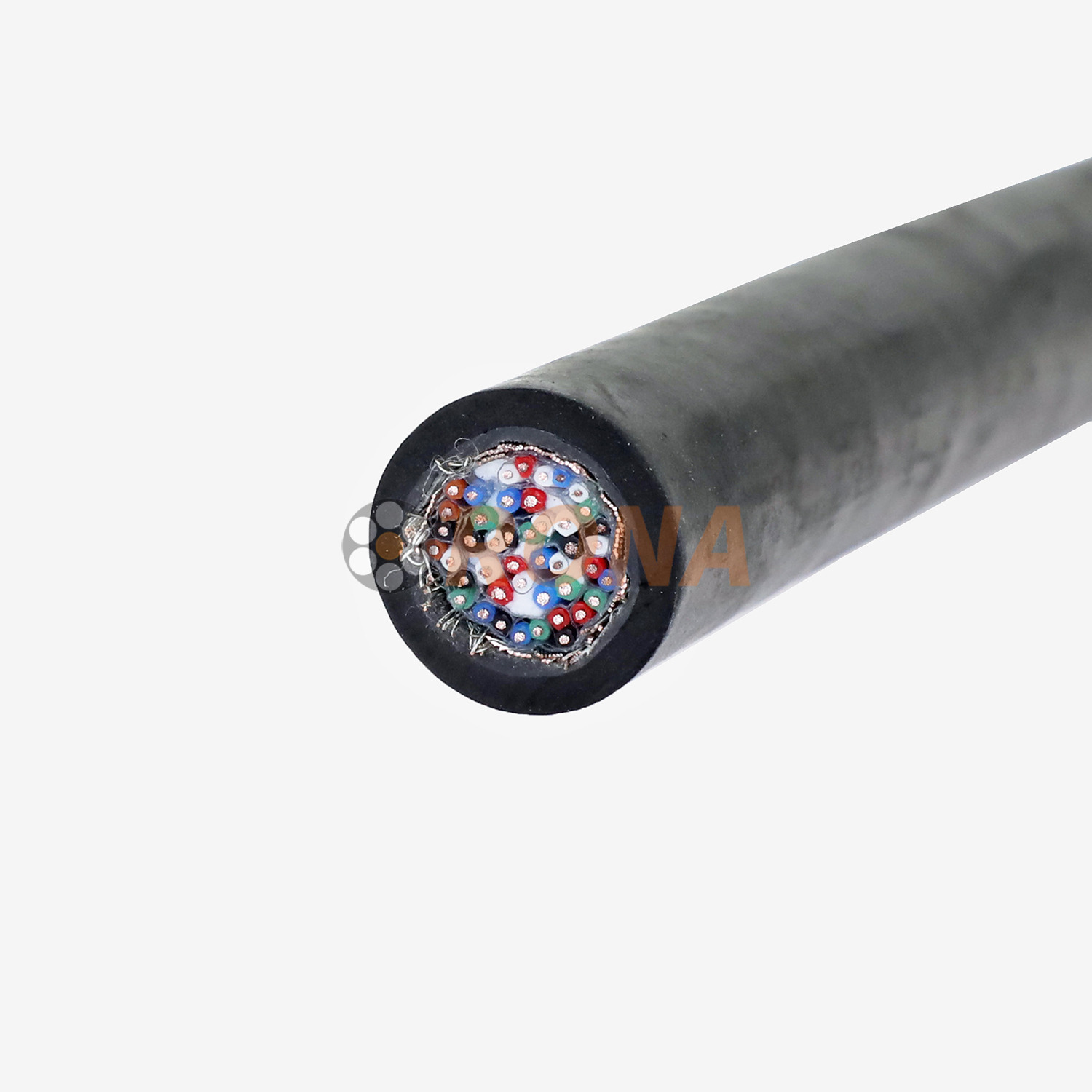

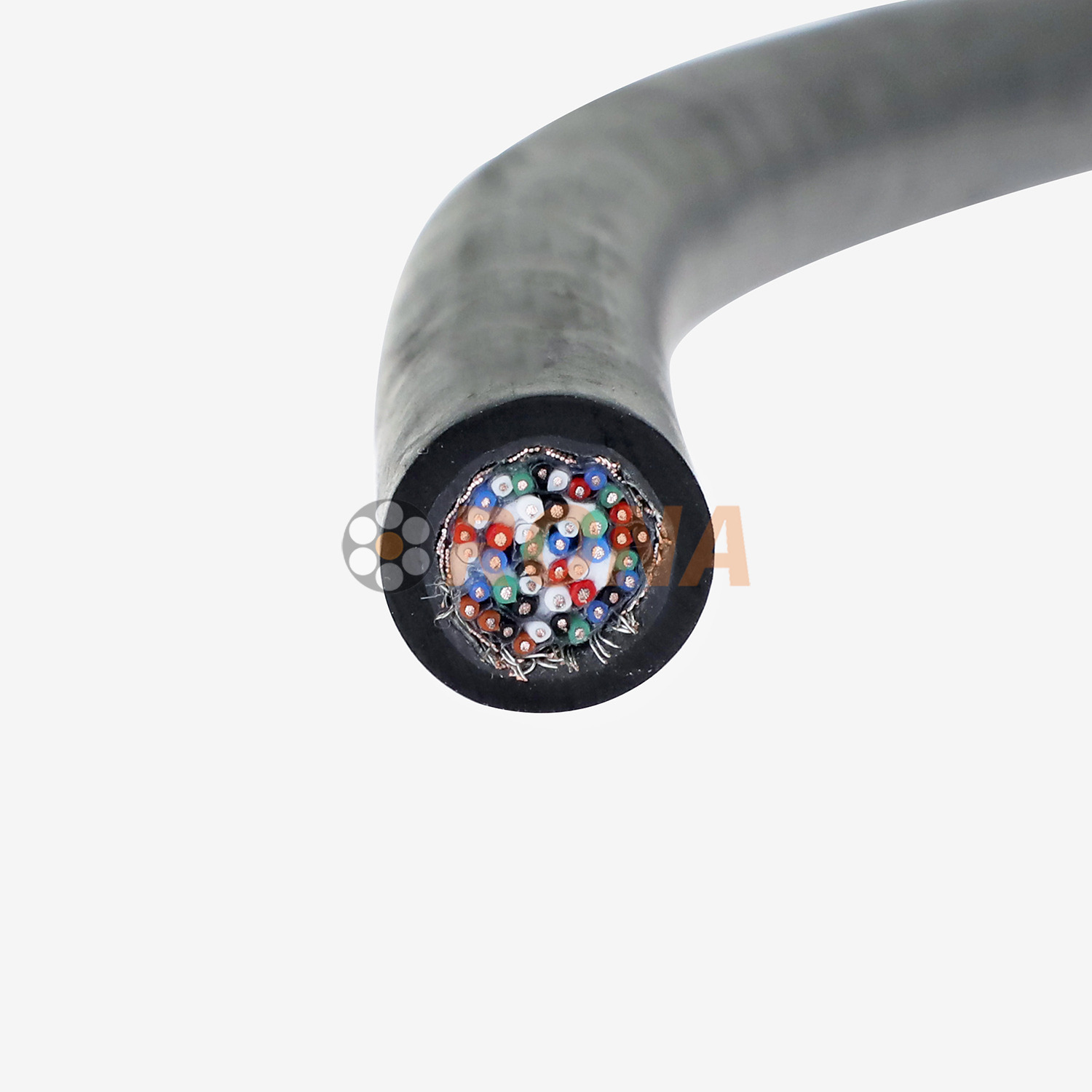

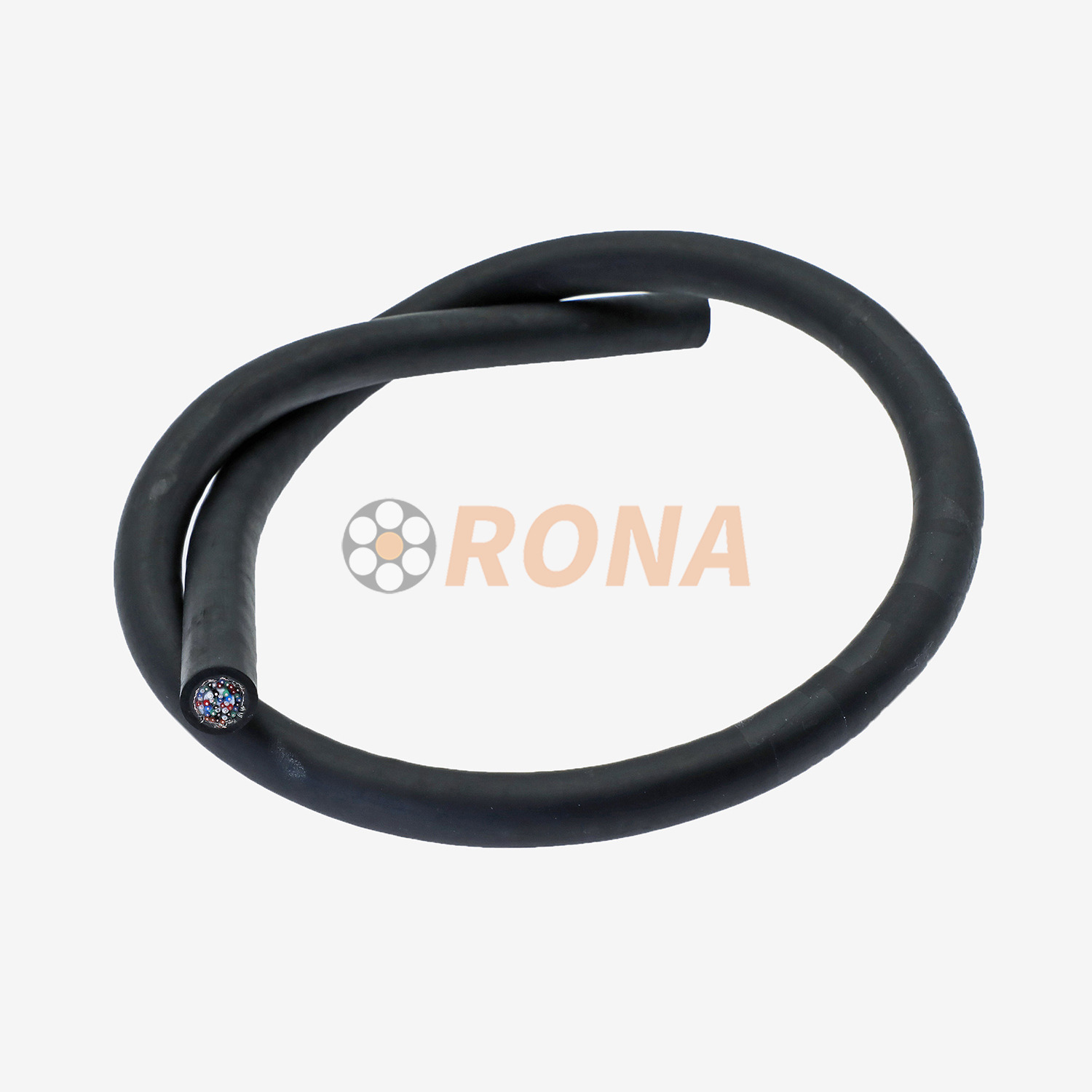

RECH 17×2×0.1+10×0.15
RONA
85444929
500m
What is a Watertight Cable?
A watertight cable is a specialized electrical or optical cable engineered to prevent water and moisture ingress, which can cause short circuits, signal degradation, corrosion, and ultimate system failure. Unlike standard cables, watertight cables employ robust, multi-layered protection systems designed to withstand harsh environments, including direct burial, prolonged immersion, and exposure to high humidity and pressure.
KEY Cable feature
Superior Waterproof Protection: Multi-sealing technology (longitudinal + radial water resistance), suitable for long-term immersion, high-pressure water washdown, and humid environments.
Extreme Durability: Resists tension, abrasion, and UV damage; operates reliably in temperatures from -40°C to +90°C; service life exceeds 20 years in outdoor settings.
Safety & Reliability: Flame-retardant, corrosion-resistant, and chemical-resistant; complies with international standards (e.g., UL/CE certifications), ensuring safety in industrial and energy projects.
Efficient Transmission: Low-loss design supports simultaneous power and signal transmission, ideal for automation control, underwater monitoring, and new energy infrastructure.
Performance parameter
Parameter | Specification |
Voltage: | 300/500V 0.6/1kV |
Temperature Range | Fixed installation: -40℃~90℃ Moving installation: -35℃~90℃ |
Minimum bend radius | Fixed installation: approximately 5x D (cable outer diameter) Movable installation: approximately 10x D (cable outer diameter) |
Flame retardant properties | Compliant with IEC 60332-1 |
Weather resistance | Water resistance, UV resistance, temperature change resistance |
Watertight Cable construction
Conductor: Multiple strands of finely twisted tinned copper wire, compliant with VDE 0295, Class 5/6 conductor
Insulation: Ethylene propylene rubber mixture, or fluorinated ethylene propylene copolymer
Wire core identification: Black wire core, continuous white numerical number, fluorinated ethylene propylene copolymer is white, continuous black numerical number.
Outer sheath: chloroprene rubber mixture
Outer sheath color: Red/black/Grey
Applications:
Offshore wind farms, oil production platforms
Subsea communications and power supply for underwater robots
Port machinery, mining equipment
Underground utility tunnels, rail transit systems
New energy charging stations, solar power installations
Chemical plants and other corrosive industrial environments
