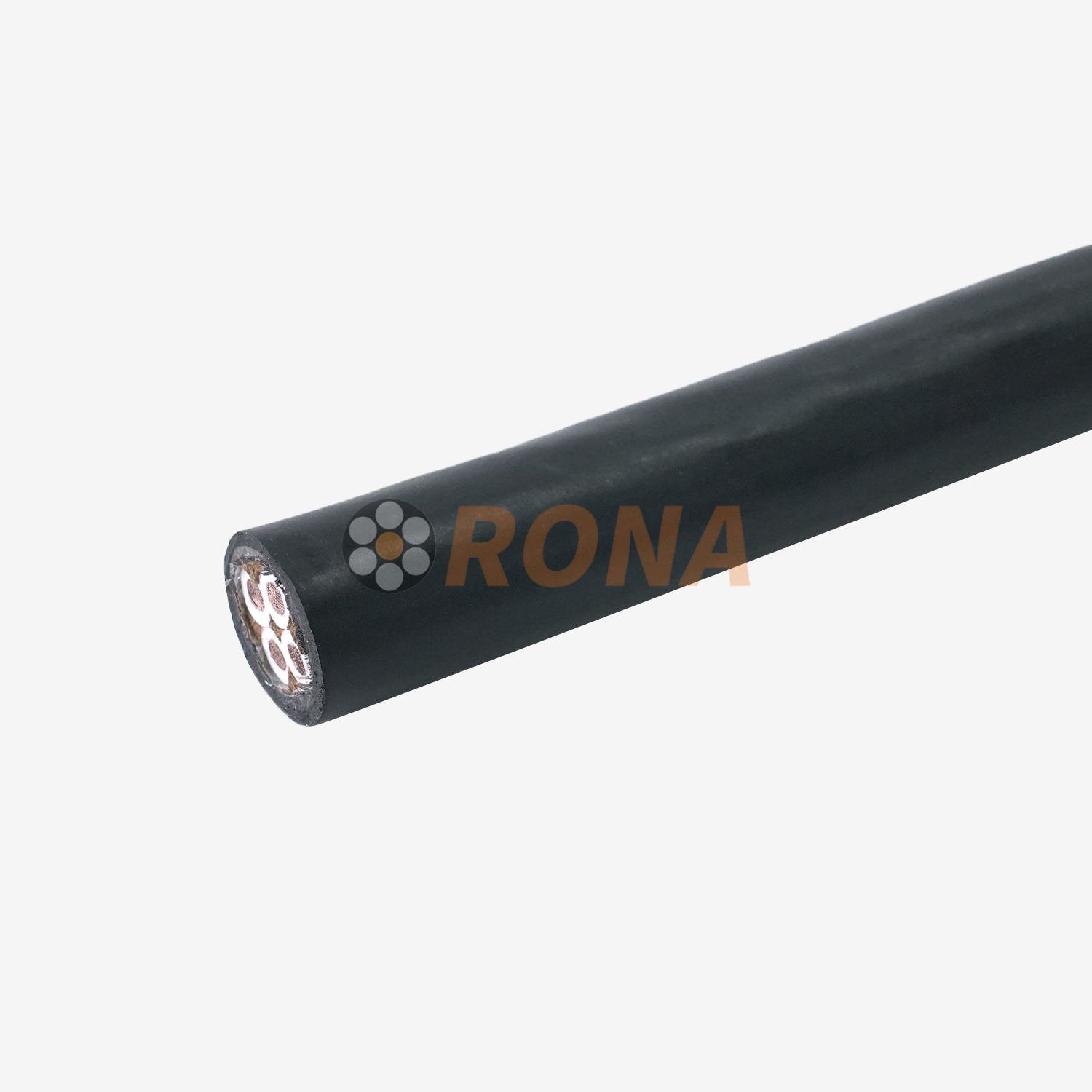

RECH 4×6
RONA
85444929
What type of cable is waterproof?
Watertight cable is primarily designed for electrical connections and signal transmission between equipment and is engineered to operate in underwater environments. As a cable with waterproof properties, it is suitable for use in both damp and submerged conditions. This type of cable typically incorporates specialized materials and construction techniques to prevent moisture ingress, thereby ensuring the cable's performance and safety remain intact.Key construction features include water-blocking tapes or gels, and durable outer jackets made from materials like PUR or Rubber, providing protection against water, corrosion, and environmental factors.
• Waterproof cable Performance
Parameter | Specification |
Voltage: | 300/500V 0.6/1kV |
Temperature Range | Fixed installation: -40℃~90℃ Moving installation: -35℃~90℃ |
Minimum bend radius | Fixed installation: approximately 5x D (cable outer diameter) Movable installation: approximately 10x D (cable outer diameter) |
Flame retardant properties | Compliant with IEC 60332-1 |
Weather resistance | Water resistance, UV resistance, temperature change resistance |

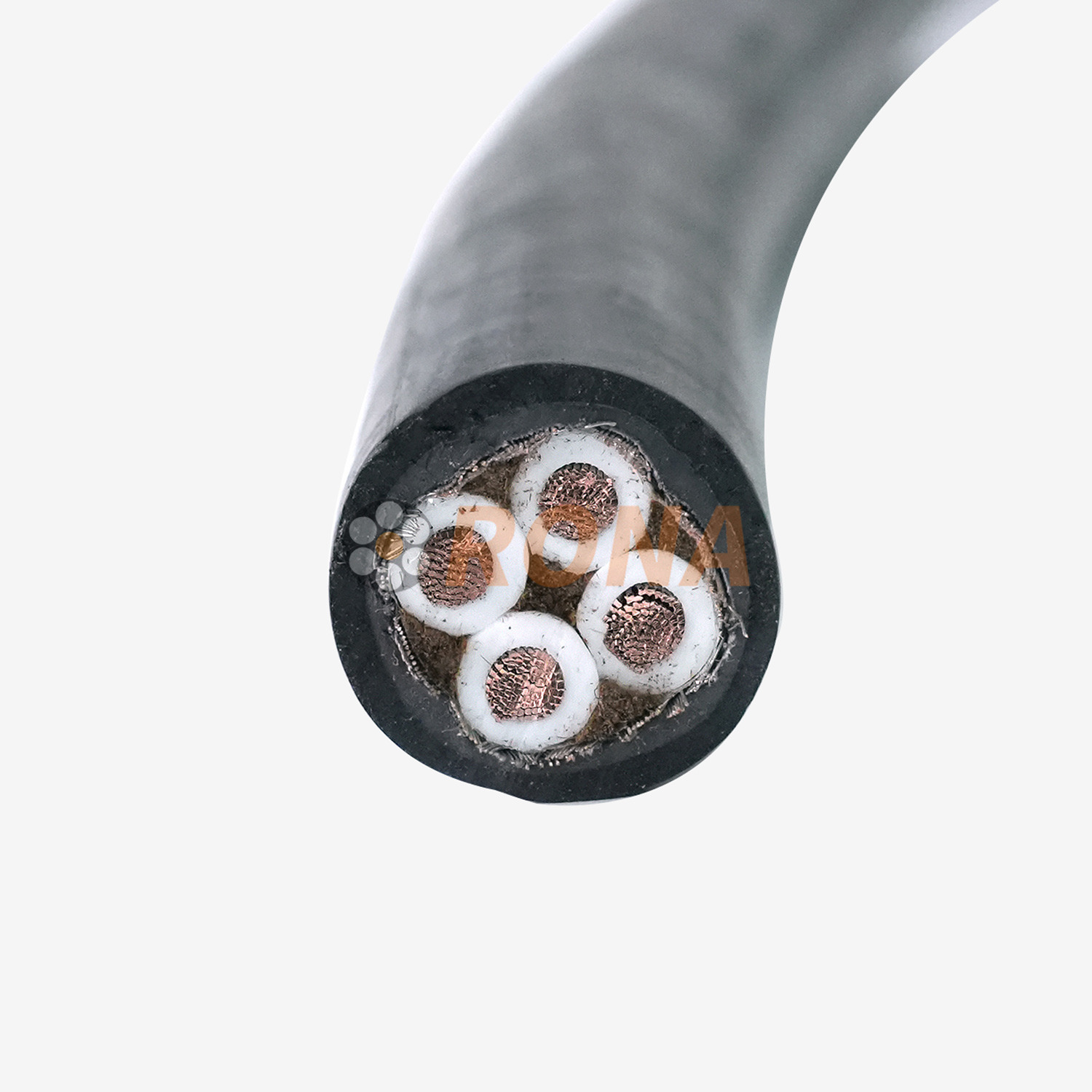

• Watertight Cable structure
Product composition:
Conductor: Multiple strands of finely twisted tinned copper wire, compliant with VDE 0295, Class 5 conductor
Insulation: Ethylene propylene rubber mixture, or fluorinated ethylene propylene copolymer
Wire core identification: Black wire core, continuous white numerical number, fluorinated ethylene propylene copolymer is white, continuous black numerical number.
Outer sheath: chloroprene rubber mixture
Outer sheath color: red/black
• Applications
Marine engineering,
Waterborne construction and bridges,
Aquaculture,
Underwater industrial automation,
Offshore detection and monitoring equipment,
Other water operations.
