MREFO
RONA
85444929
500m
This heavy-duty industrial cable is engineered for high-voltage power transmission and integrated data communication in demanding mobile environments. Designed for extreme mechanical loads, it is the ideal solution for large-scale machinery requiring frequent reeling and unreeling operations.The composite cable features a robust multi-core design paired with a 12-core fiber optic unit. This integration allows for high-capacity power delivery and real-time data transmission within a single, highly durable jacket.
▍Key Technical Specifications
Voltage Rating: Nominal voltage of 0.6/1KV with a maximum operating voltage of $1.2KV.

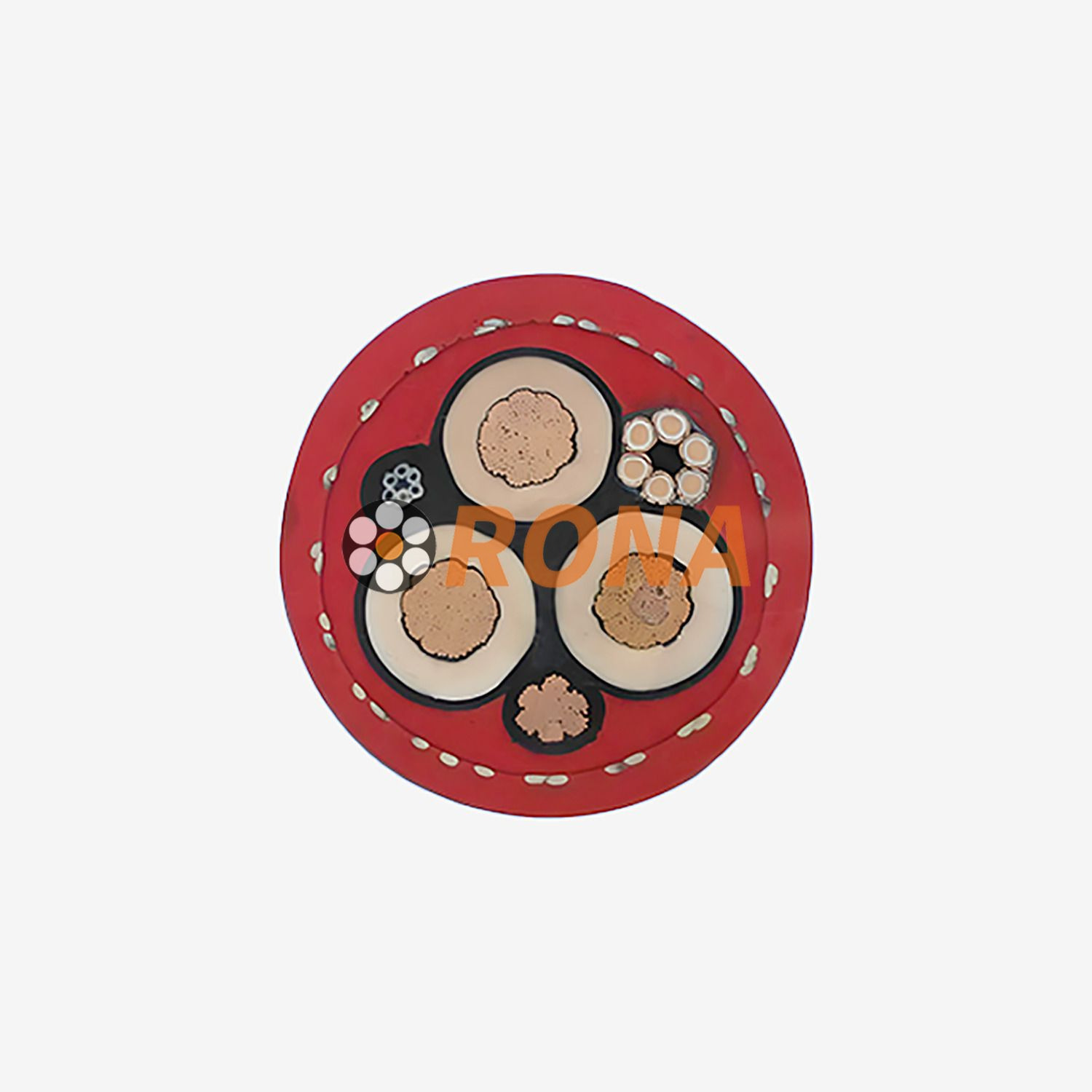

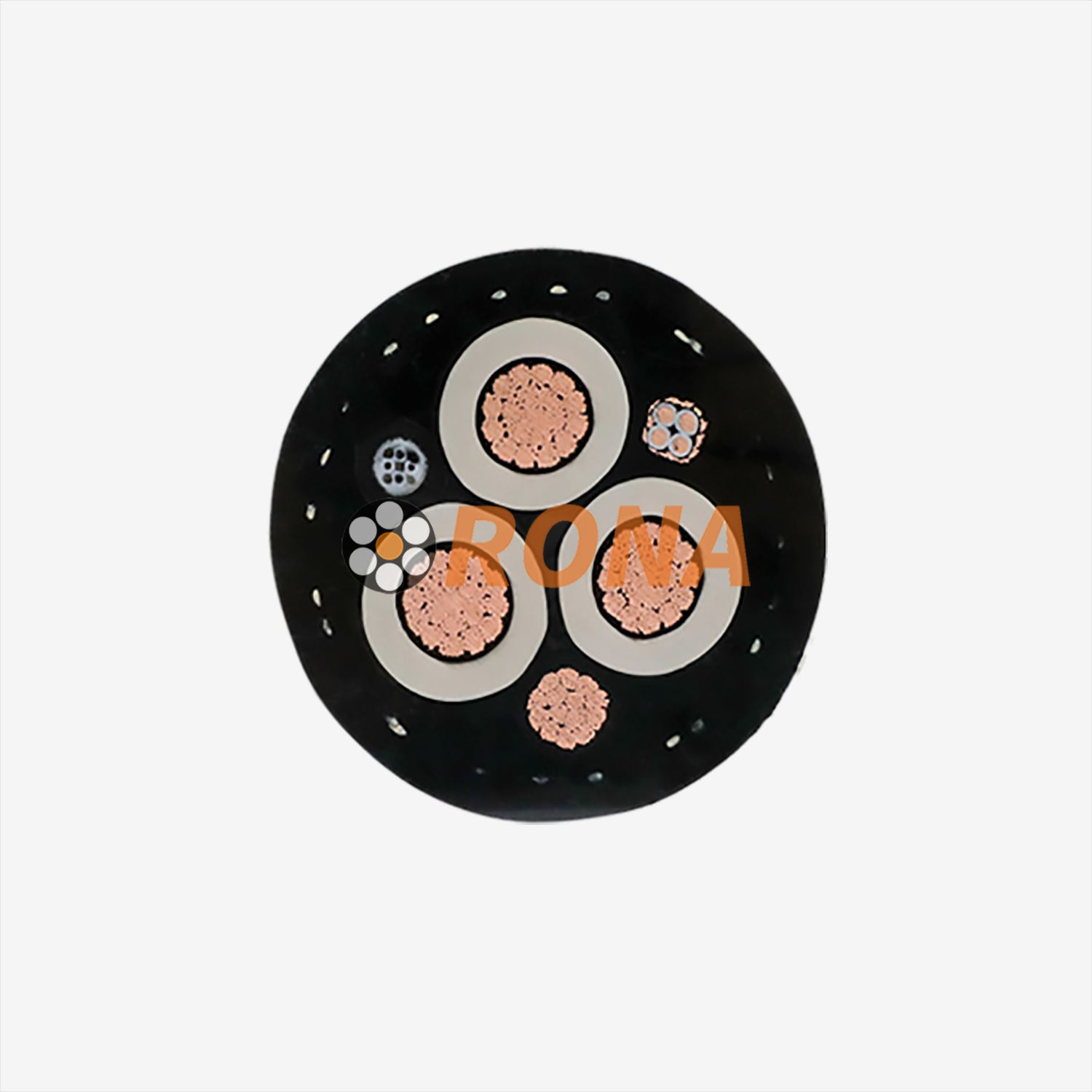

Core Configuration: 3 main cores and 2 earth cores.
Fiber Optics: Integrated 6-core fiber optic unit (compatible with E9/125, 50/125, and 62.5/125 fiber types).
Current Capacity: Rated at 461A(at 30℃ ambient temperature, straight laid).
Short Circuit Rating: Permissible short-circuit current of 22.57KA (1 sec).
▍Advanced Construction Structure
Flexible Conductors: Tinned copper, fine-wire Class 5 construction for superior flexibility and corrosion resistance.
Torsion Protection: Features a specialized polyester anti-torsion braid to prevent internal damage during multi-plane movement.
Industrial Sheathing: The outer layer is an abrasion and tear-proof special rubber compound resistant to UV, ozone, and oil.
Thermal Endurance: Engineered for reliable performance in surface temperatures ranging from -40℃ to +90℃.
▍Technical specification
Type | Description | |||
Rona-MREFO | 6/10kV Medium voltage circular coiled fiber optic composite cable | |||
Cross section (mm2) | Conductor construction(mm) | Max. overall diameter(mm) | Approx weight (kg/km) | Max.permissible tensile force(N) |
3×25+3×25∕3+ 2×(6×2.5)C+6LWL | 3×196/0.40+ 2×(6×77/0.20)C | 56.0 | 4100 | 2100 |
Item | Technical parameters |
| Voltage | 0.6/1kV |
Temperature Range | Fixed installation: -40℃~90℃ Moving installation: -35℃~90℃ |
Minimum bend radius | Fixed installation: 5xcable outside diameter Moving installation: 10x cable outside diameter |
Retardant properties | Complied with IEC60332-1 |
Weather resistance | UV resistant,aging properties excellent,suitable for outdoor application |
▍Applications
Designed for the connection of large mobile equipment under high mechanical stress:
Port and Terminal Equipment: Gantry cranes and loading bridges.
Mining & Excavation: Large-scale excavators and spreaders.
Construction & Infrastructure: Mobile machinery and heavy-duty building equipment.
Hazardous Areas: Suitable for environments with a high risk of explosion.
Q1: Can the cable be submerged in saltwater?
A: Yes, the combination of PUR sheath (water absorption ≤0.5% after 24 hours) and interlocked steel armor provides watertight protection, allowing temporary submersion (up to 72 hours) during high tides or storm surges.
Q2: What is the cable’s temperature range?
A: It operates reliably between -40°C (polar ports) and +100°C (engine rooms of port machinery), maintaining flexibility and insulation performance across extreme conditions.
Q3: Is the cable resistant to oils and fuels?
A: Yes, the PUR sheath is highly resistant to mineral oils, hydraulic fluids, diesel, and gasoline, with no measurable swelling after 1,000 hours of immersion in ASTM D471 tests.
Q4: Does the cable require special termination?
A: Standard crimp or solder terminations with heat-shrink boots (IP68-rated) are recommended. We also offer factory-installed connectors (e.g., LAPP SKINTOP®) for plug-and-play installation.
Q5: What certifications does the cable hold?
A: It is CE-certified for safety, RoHS-compliant for environmental protection, and meets the requirements of the International Maritime Organization (IMO) for shipboard cables.
