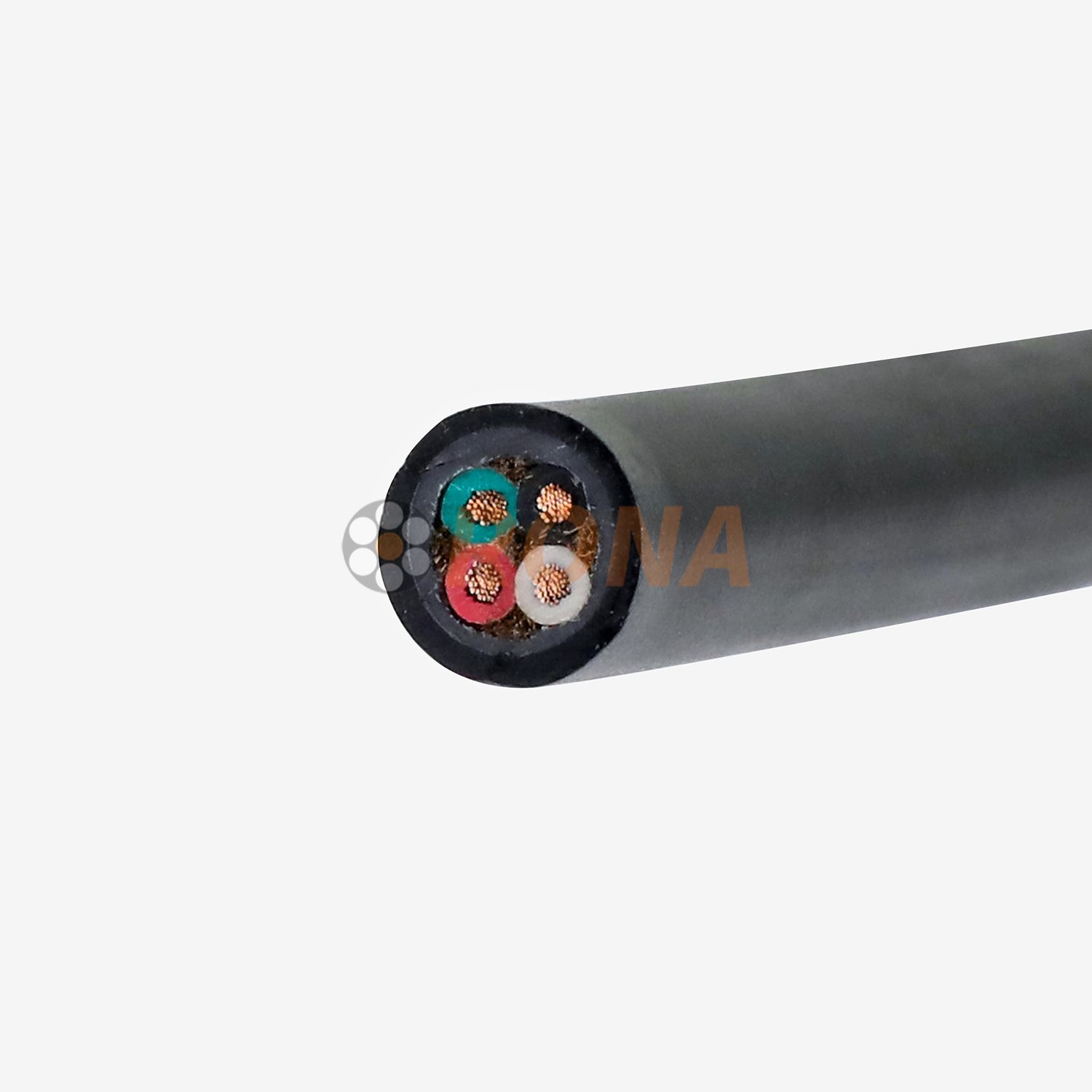

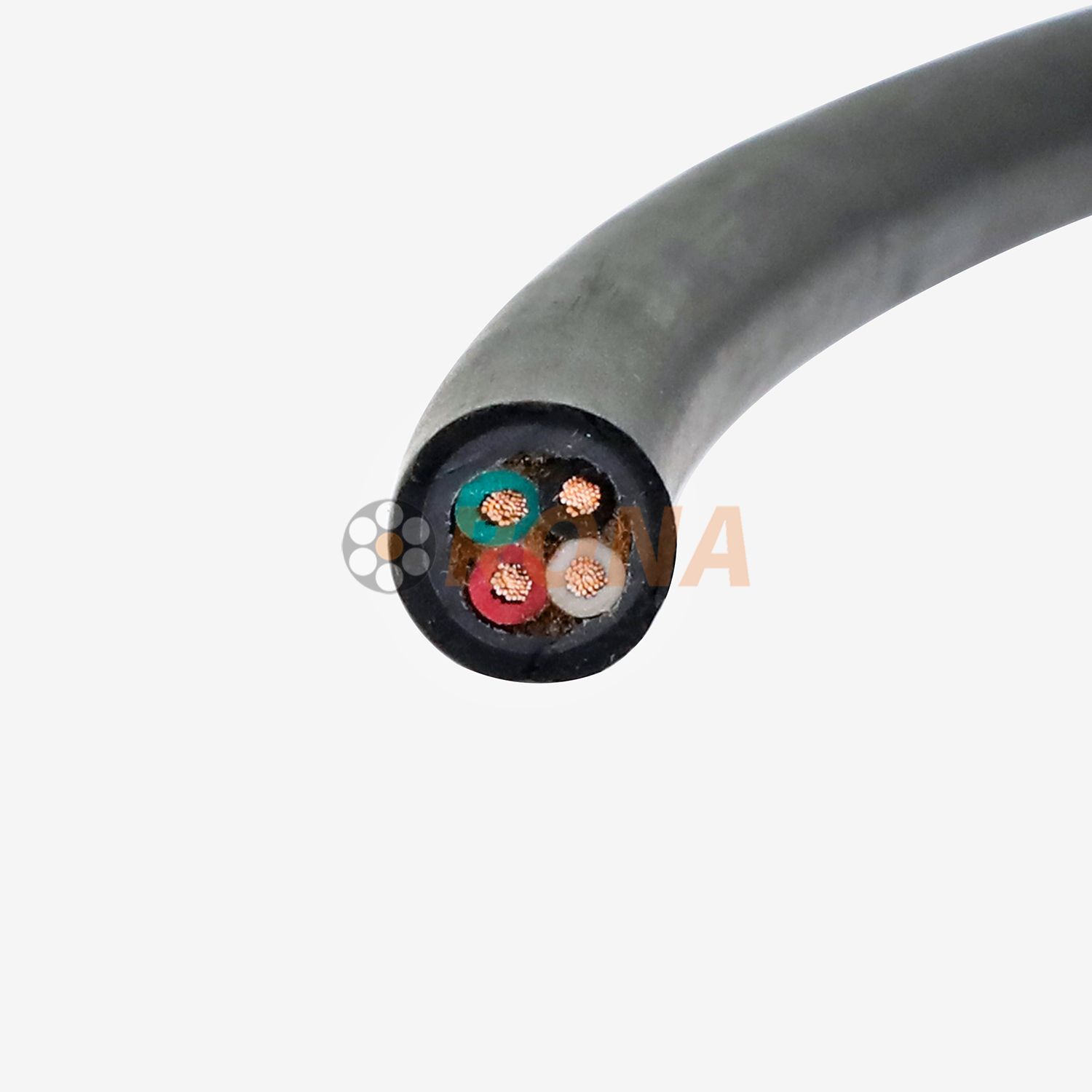

FESTOON-MR 4X1
RONA
85444929
500m
What is festoon cable?
A festoon cable is a heavy-duty, flexible electrical cable designed for continuous movement in systems like cranes, hoists, and conveyors, suspending power and control signals in a series of loops (festoons) for mobile machinery, offering durability, organized management, and protection against harsh industrial conditions. These flat or round cables feature stranded copper conductors, robust insulation (PVC/Neoprene), and durable outer jackets (TPU/PVC) to resist oil, chemicals, and extreme temperatures, ensuring reliable, tangle-free operation.
Specialized solutions for overhead traveling crane systems: Crane machinery, port machinery, special engineering vehicles, construction machinery, bridge loading machines, ship loading machines, metallurgical industry, power plants, waste incineration plants, shield machines and other special industries.
▍Key Characteristics
Designed for Motion: Built for constant flexing, pulling, and bending in dynamic applications.
Durable Construction: Uses finely stranded copper conductors, tough insulation, and abrasion-resistant jackets.
Organized System: Suspended in organized loops via trolleys and tracks, preventing tangles and clutter.
Versatile: Available in flat or round profiles for different space constraints and applications.
Resistant: Often oil, chemical, UV, and flame-resistant for demanding environments
▍Structural Material
Conductor-Accord VDE0295 Class6
Insulation-Special EPR rubber mixture,The black line core surface printing white digital
Inner jacket-Special CR rubber mixture
Weave Strengthening layer
Outer Protective cover
▍Technical parameters
Parameter | Value |
Voltage | 0.6/1kV |
Temperature Range | Fixed installation: -40℃~90℃ Moving installation: -35℃~90℃ |
Minimum bend radius | Fixed installation: 4xcable outside diameter Moving installation: 10x cable outside diameter |
Resistance Chemistry Substance | Resistance Acids,alkalis,solvents and a variety of hydraulic oil performance excellent |
Weather resistance | UV resistant,Daylight-aging properties excellent,suitable outdoor application |
▍Applications
Overhead Cranes & Gantry Cranes
Jib Cranes & Monorails
Conveyor Systems
Robotics & Automated Machinery
Port Cranes & Telescoping Jetways
Cables: The power/control conductors.
Trolleys/Carriers: Support and guide the cables along the track.
C-Tracks: The rails or channels the trolleys move on.
Hangers: Secure the cables and carriers.
