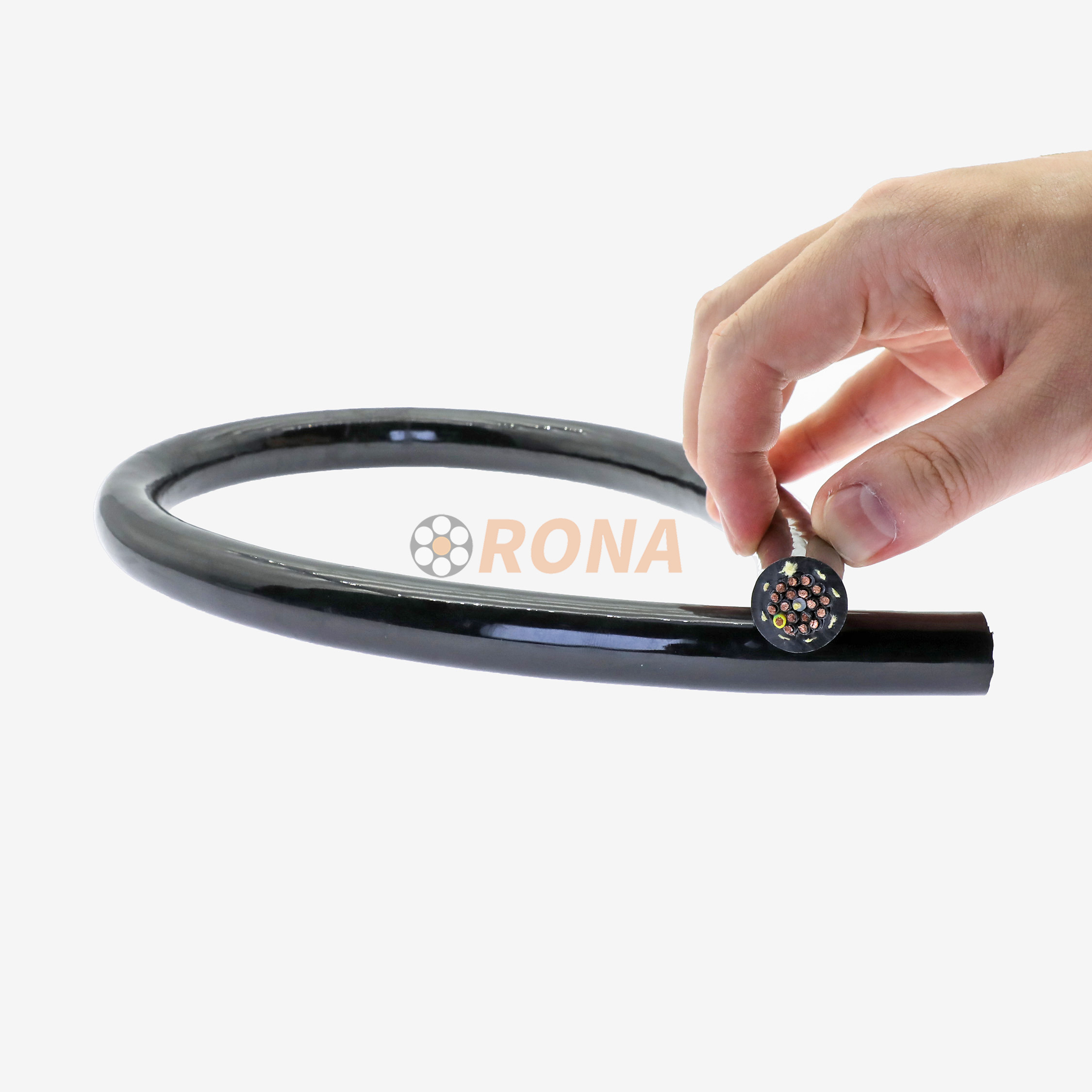

The High Flexible Spreader Reeling Cable is a high-performance solution tailored for dynamic lifting and material handling systems, where repeated motion, heavy loads, and mechanical stress are constant challenges. Engineered to deliver exceptional flexibility and durability, this cable ensures smooth, uninterrupted operation in cranes, hoists, automated warehouses, and other equipment requiring frequent reeling and unreeling. Its design minimizes downtime caused by cable failure, making it a cost-effective choice for high-throughput industrial environments.
▍Technical parameters
Item | Value |
Voltage | 0.6/1kV |
Temperature Range | Fixed installation: -40℃~90℃ Moving installation: -35℃~90℃ |
Minimum bend radius | Fixed installation: 5xcable outside diameter Moving installation: 10x cable outside diameter |
Retardant properties | Complied with IEC60332-1 |
Weather resistance | UV resistant, Daylight-aging properties excellent,suitable outdoor application |
Featuring stranded tinned copper conductors (Class 6 stranding for maximum flexibility) and a thermoplastic polyurethane (PUR) sheath with a Shore hardness of 85A, this cable achieves a minimum bending radius of 7.5x its outer diameter. This allows it to navigate tight spaces in lifting machinery without compromising structural integrity during repeated motion.
A central steel wire core (7x7 stranding) combined with aramid fiber reinforcement (known for its use in bulletproof materials) provides a tensile strength of up to 2,000 N. This prevents elongation and conductor breakage even when subjected to sudden load spikes, such as those encountered during rapid lifting or emergency stops.
The PUR sheath is formulated to resist mineral oils, hydraulic fluids, and chemical solvents commonly found in industrial settings. Its abrasion resistance exceeds 100,000 cycles in Taber abrasion tests (CS-10 wheel, 1 kg load), outperforming PVC-sheathed cables by 300% in shipyards and construction sites.
Tested to withstand over 800,000 bending cycles at 60 cycles per minute (per IEC 60811-504 standards), this cable maintains electrical continuity and flexibility, outlasting standard lifting cables by 2–3 times in dynamic applications like container spreaders and overhead cranes.
An aluminum-mylar shield (85% coverage) with a tinned copper drain wire minimizes electromagnetic interference (EMI) from nearby motors and power lines. This ensures stable signal transmission for sensors and control systems in complex industrial networks.
Material Handling: Mobile cranes (e.g., Liebherr LTM series), container spreaders (ISO 1161-compliant), and overhead lifting systems in manufacturing plants.
Automated Warehouses: AGVs (Automated Guided Vehicles) with lifting capabilities, robotic palletizers, and conveyor systems with vertical transfer units.
Mining: Underground haulage systems, ore processing cranes, and shuttle cars in coal and mineral mines.
Ports & Logistics: Ship-to-shore cranes, rubber-tyred gantry (RTG) cranes, and container stacking equipment in busy seaports.
Q: What is the cable's temperature range?
A: It operates reliably between -40°C (arctic storage facilities) and +100°C (foundry environments), maintaining flexibility and insulation integrity across extreme climate conditions.
Q: Can the cable withstand outdoor exposure?
A: Yes, its UV-stabilized PUR sheath resists degradation from sunlight, ozone, and weathering, ensuring a service life of 8+ years in outdoor applications like container yards.
Q: What is the maximum load capacity?
A: The cable supports tensile loads up to 2,000 N, with specific ratings varying by conductor gauge: 16 AWG (1,200 N), 14 AWG (1,600 N), and 12 AWG (2,000 N).
Q: Does the cable require periodic maintenance?
A: Routine inspections (every 6 months) for sheath cracks, shield continuity, and conductor resistance are recommended. Unlike rubber cables, it does not require lubrication, reducing maintenance costs.
Q: Is the cable available with custom lengths?
A: Yes, we offer custom lengths from 10 meters to 500 meters, with optional factory-installed connectors (e.g., Harting Han®) to reduce on-site termination time.
