REUBT 12×2.5
RONA
85444929

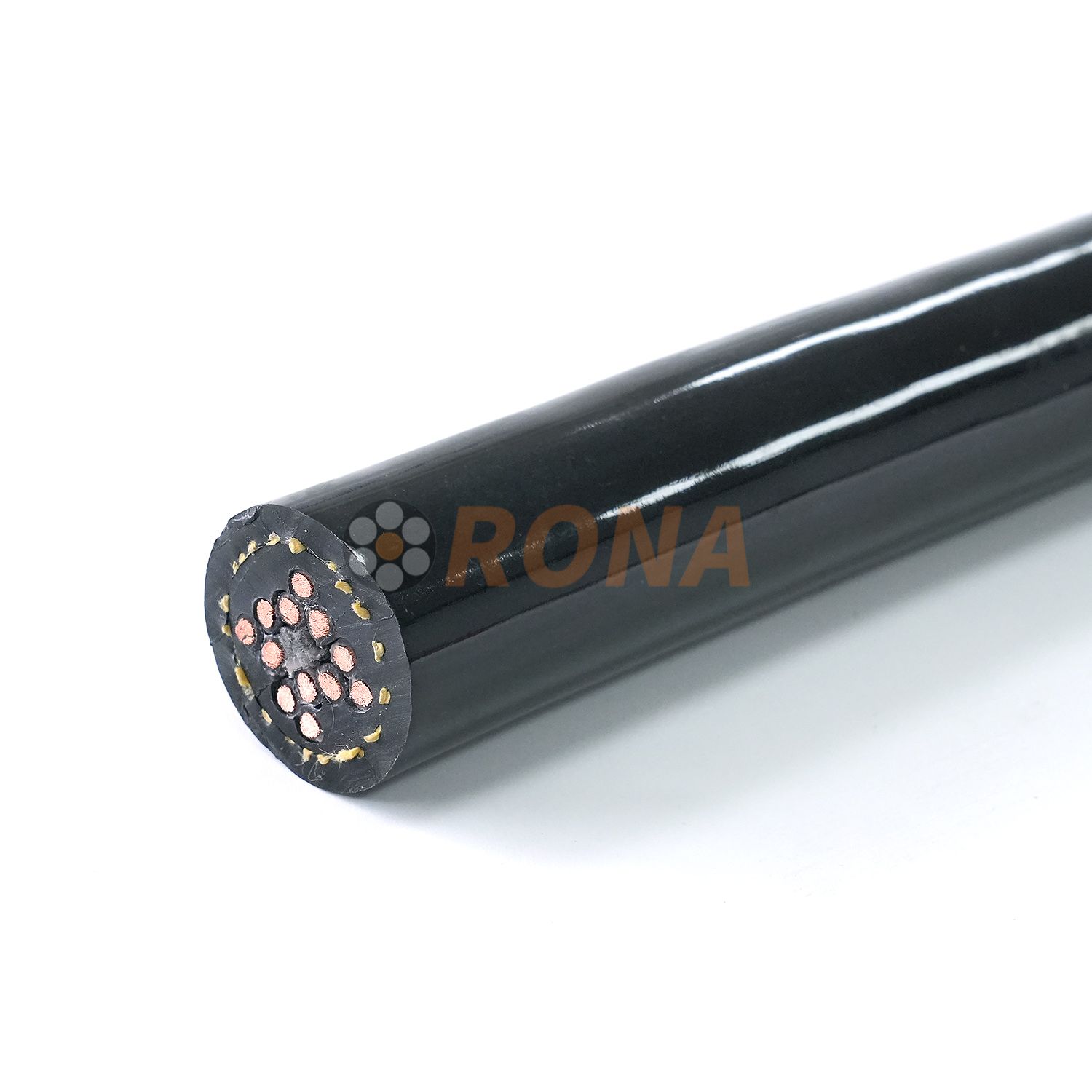

The High Flexible REUBT 12×2.5 Spreader Storage Cable is a heavy-duty solution for automated storage and retrieval systems (AS/RS), providing simultaneous power and signal transmission in dynamic warehouse environments. With 12 cores of 2.5 mm² conductors, this cable supports high-current applications while maintaining flexibility for frequent motion.
▍Technical parameters
Item | Specification |
Voltage | 0.6/1kV |
Temperature Range | Fixed installation: -40℃~90℃ Moving installation: -35℃~90℃ |
Minimum bend radius | Fixed installation: 5xcable outside diameter Moving installation: 10x cable outside diameter |
Retardant properties | Complied with IEC60332-1 |
Weather resistance | UV resistant,Daylight-aging properties excellent,suitable outdoor application |

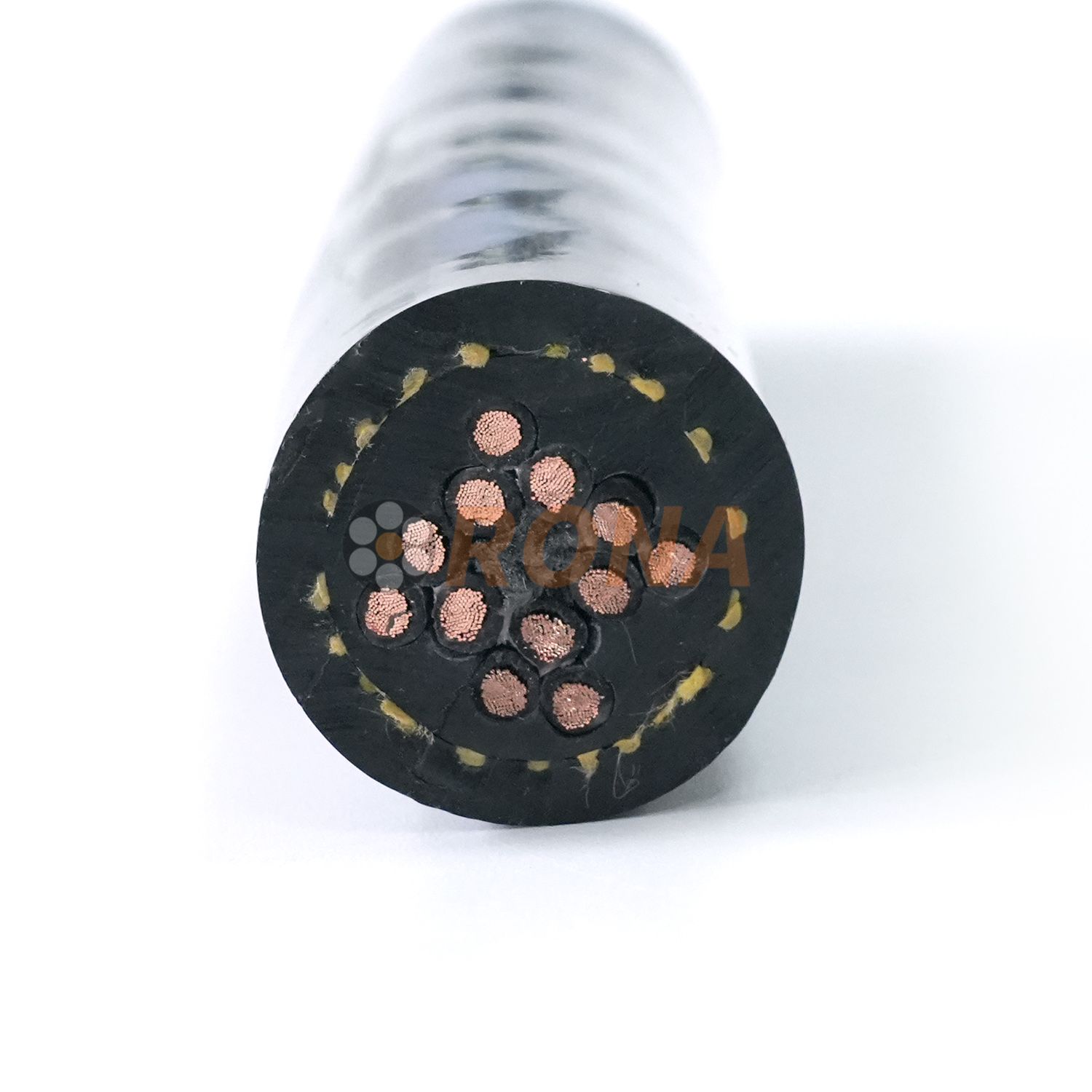

Twelve individually insulated conductors for efficient power distribution and signal control.
Color-coded insulation for easy identification during installation.
Central steel wire core and aramid fiber reinforcement provide tensile strength up to 1,500 N.
Resists elongation under heavy loads in crane and hoist systems.
PUR sheath resists mineral oils, greases, and solvents, ensuring stability in industrial settings.
Meets IEC 60332-1-2 standards for flame resistance.
Stranded copper conductors (Class 6) enable a minimum bending radius of 10x diameter.
Tested for 1 million bending cycles in drum reeling applications.
Certified to CE and RoHS standards for safety and environmental protection.
Automated Warehouses: AGVs, stacker cranes, and conveyor systems.
Logistics: Port terminals and distribution centers with high-throughput operations.
Manufacturing: Assembly lines and robotic cells requiring multi-core connectivity.
Mining: Underground storage systems and ore processing equipment.
Q: What is the cable's current rating?
A: Each 2.5 mm² conductor supports up to 25A at 60°C.
Q: Can it be used in extreme temperatures?
A: Yes, it operates between -40°C and +100°C.
Q: What is the minimum bending radius?
A: 10x the cable diameter, ensuring flexibility in tight drum configurations.
Q: Does it require grounding?
A: Yes, grounding the shield and armor is recommended for EMI protection.
Q: Is the cable available with custom configurations?
A: Yes, we offer custom core counts and shielding options to meet specific needs.
