HFMUP 4G4
RONA
85444929
Product Overview

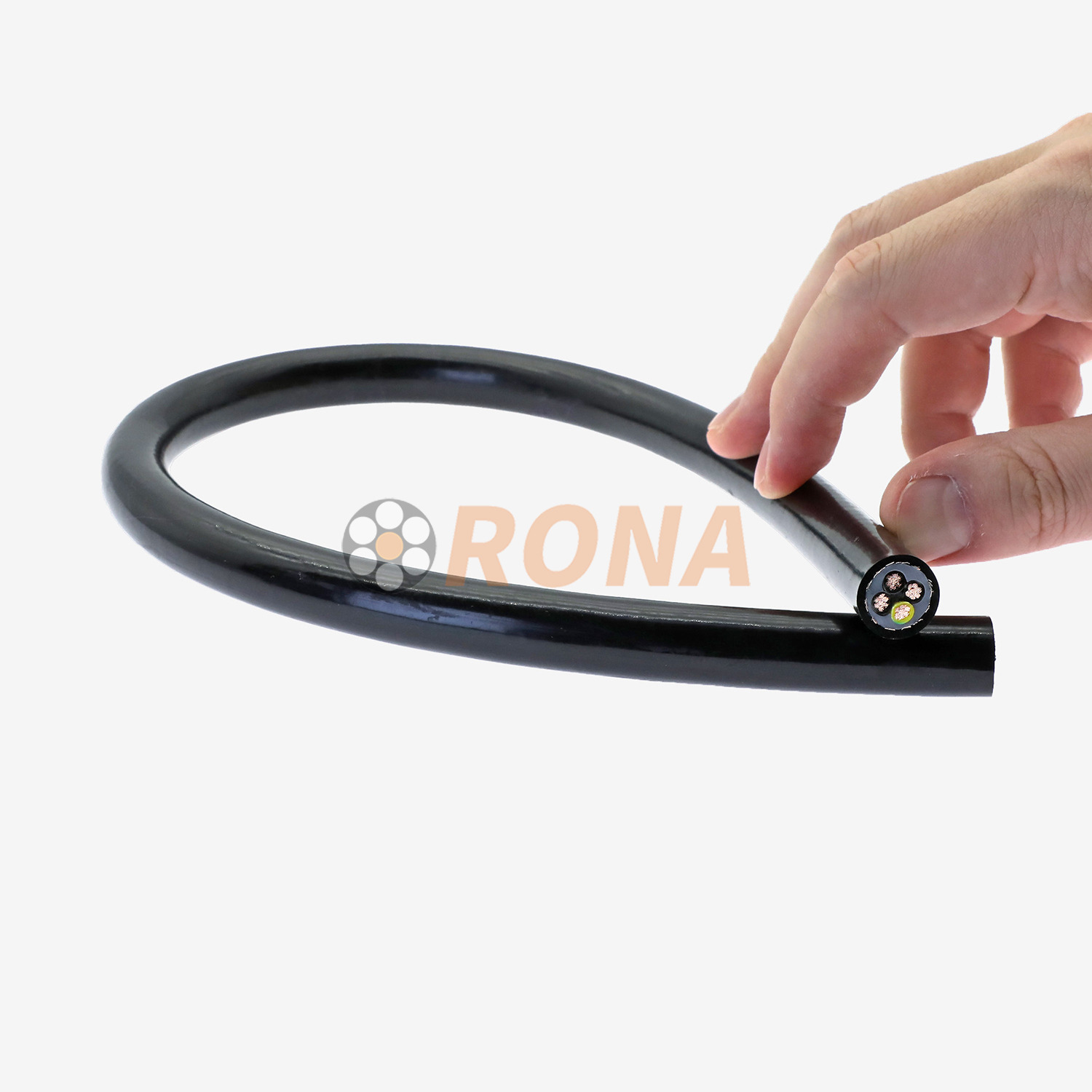

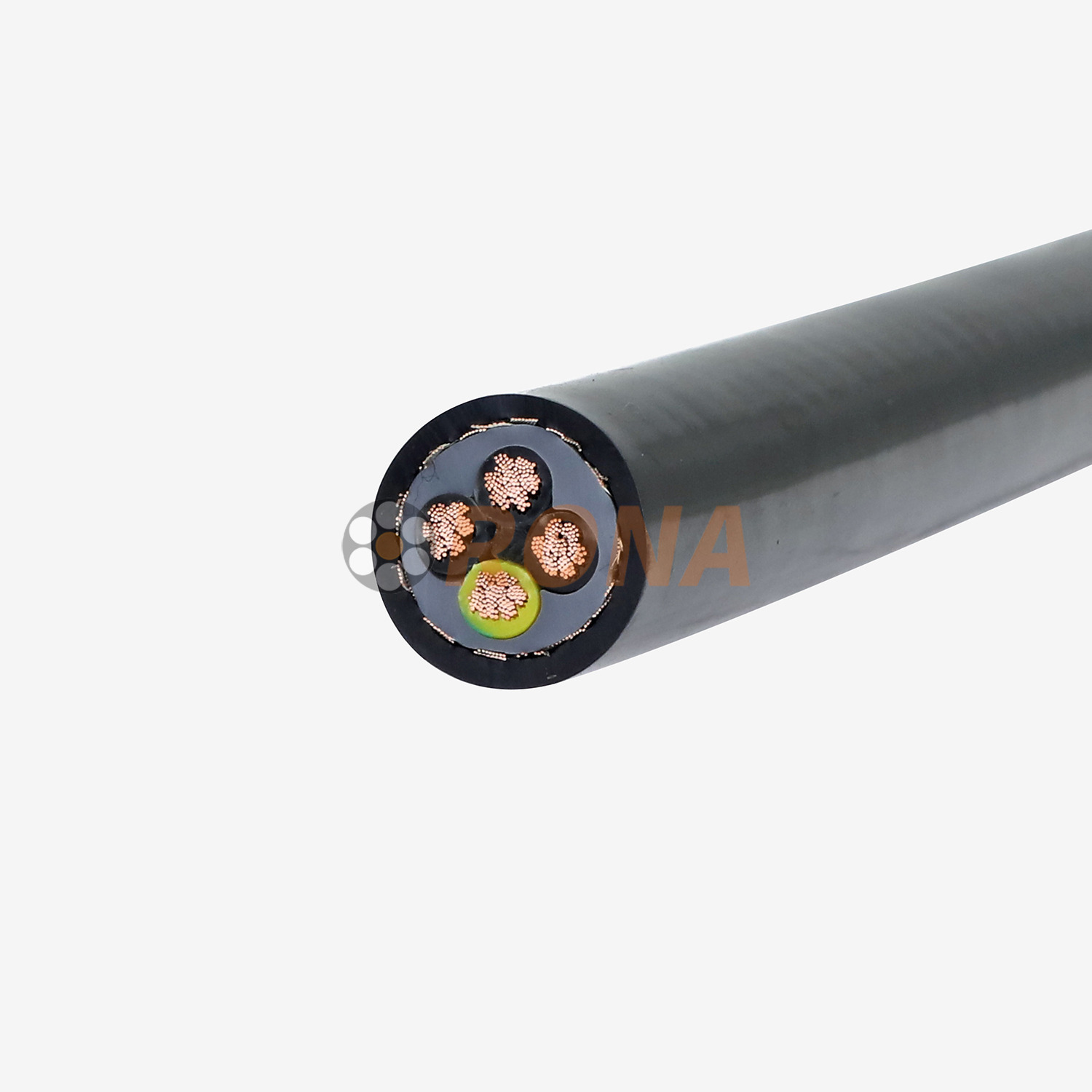

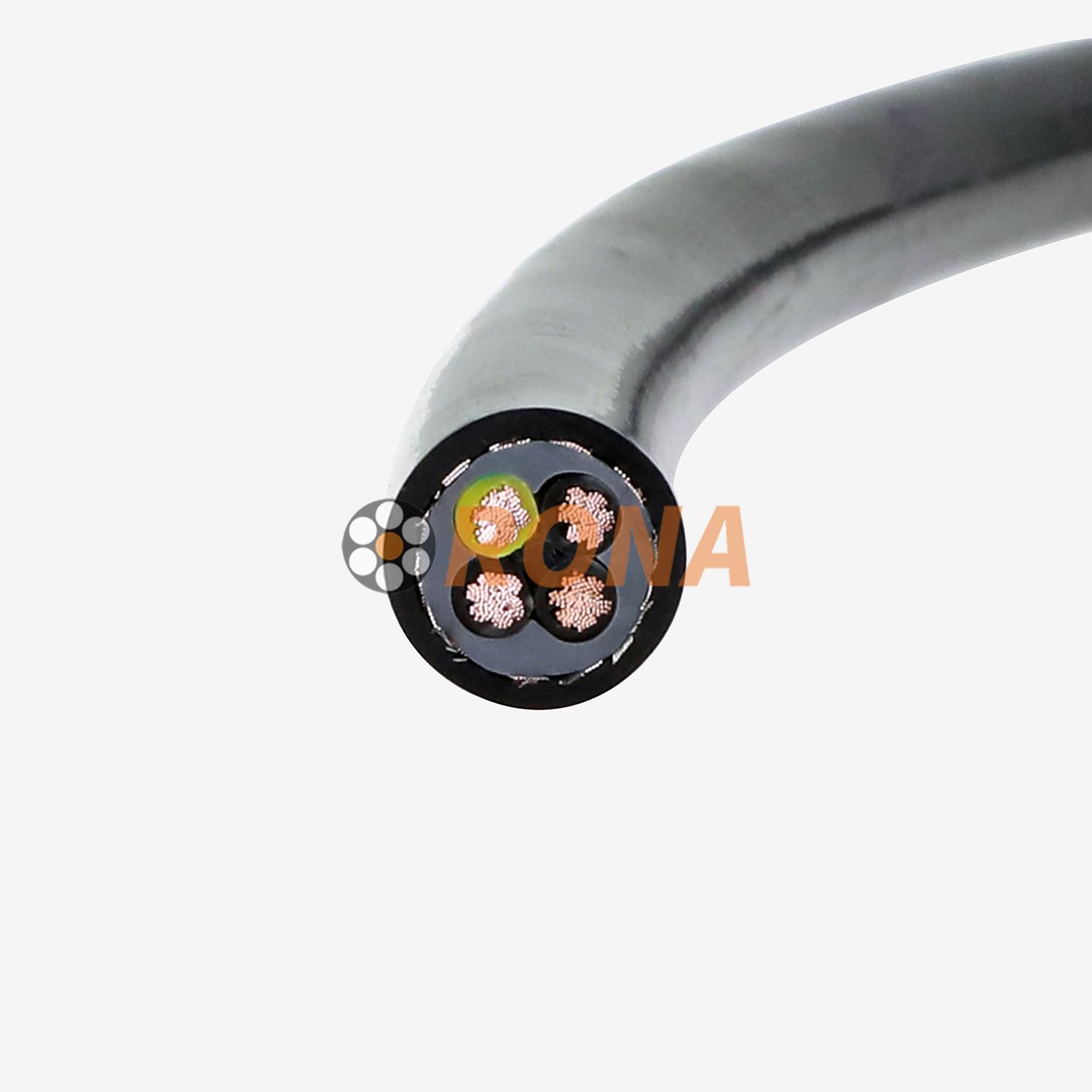

High-Performance PUR Sheathed Shielded Power Drag Chain Special Cable
Our high-performance PUR sheathed shielded power drag chain special cable is a technological marvel engineered to meet the most exacting demands of modern industrial applications.
Exceptional Performance：
Outstanding Flexibility: Engineered for high-flex scenarios, this cable can endure a staggering number of bending cycles. Under typical working conditions, it generally boasts a service life exceeding 5 million cycles, making it the go-to choice for high - speed motion drag chains. For example, in automated production lines where cables are subject to frequent and rapid bending, this cable remains intact and fully functional over an extended period.
Superior Oil Resistance: Exhibits remarkable resistance to oils, lubricants, and coolants. In tests involving corrosive coolants and lubricating oils, it shows no signs of degradation, ensuring seamless operation in industrial settings rife with such substances. This makes it an ideal fit for applications in machine tools, manufacturing equipment, and other industrial machinery frequently exposed to oil - based materials.
Exceptional Chemical and Microbial Resistance: The PUR sheath provides robust resistance to microorganisms, hydrolysis, and chemical corrosion. It can withstand harsh chemical environments, safeguarding the inner conductors and guaranteeing long - term performance. This is especially crucial in industries like food and beverage, where hygiene and resistance to cleaning agents are of utmost importance, as well as in chemical processing plants.
Specification
| Item | Value |
| Voltage | 300/500V |
| Temperature Range | Fixed installation: -50℃~90℃ |
| Moving installation: -40℃~90℃ | |
| Minimum bend radius | Fixed installation: 4xcable outside diameter |
| Moving installation: 7.5x cable outside diameter | |
| Maximum mobile speed | Unsupported speed: 8m/s |
| Gliding speed: 5m/s | |
| Acceleration: 75m/s | |
| Weather resistance | UV resistant,suitable Indoor or outdoor use |
Industrial Automation: Ideal for use in harsh industrial automation environments, including automated production lines, electromechanical equipment, and machine tools. It can withstand the continuous movement, vibration, and stress associated with these applications, providing reliable power and signal transmission.
Logistics Equipment: Employed in logistics equipment such as conveyors, stackers, and automated guided vehicles (AGVs). The cable's ability to handle frequent bending and its resistance to various environmental factors make it well - suited for use in these mobile and dynamic applications.
Control Systems: Applicable in control systems where accurate and interference - free signal transmission is crucial. The shielding and high - performance characteristics of the cable ensure that control signals are transmitted accurately, enabling smooth operation of industrial processes.
Robotics: In robotic applications, where cables need to move with the robot's joints, our cable's flexibility and durability are highly valued. It can adapt to the complex movements of robots, providing stable power and signal connections.
Automated Warehouses: Used in automated warehouse systems, including overhead cranes and shuttle vehicles. The cable's resistance to environmental factors and its long - lasting performance are essential for the reliable operation of these systems.
Q1: What does "4G4mm²" mean?
A: "4G" indicates 4 conductors plus a separate ground wire. "4mm²" refers to the nominal cross-sectional area of each main power conductor.
Q2: Why is shielding important for tool cables?
A: Power tools (especially motors and drives) generate electrical noise that can interfere with control signals (sensors, communication). Shielding contains this noise, preventing malfunctions.
Q3: Is the shielding connected at both ends?
A: Proper EMC practice usually requires connecting the braided shield to ground atoneend (typically the control cabinet end) using suitable cable glands or connectors to avoid ground loops. Consult EMC guidelines.
