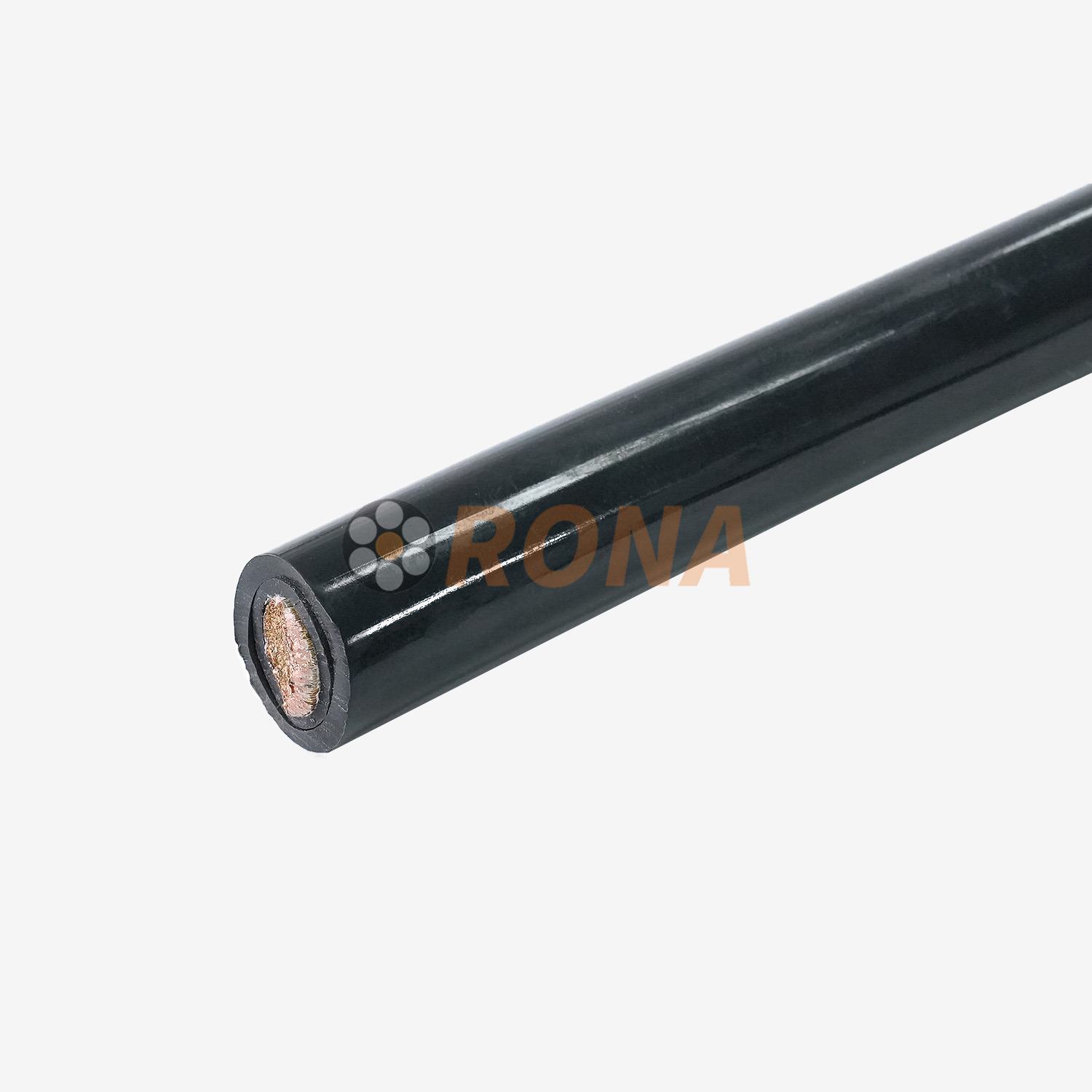

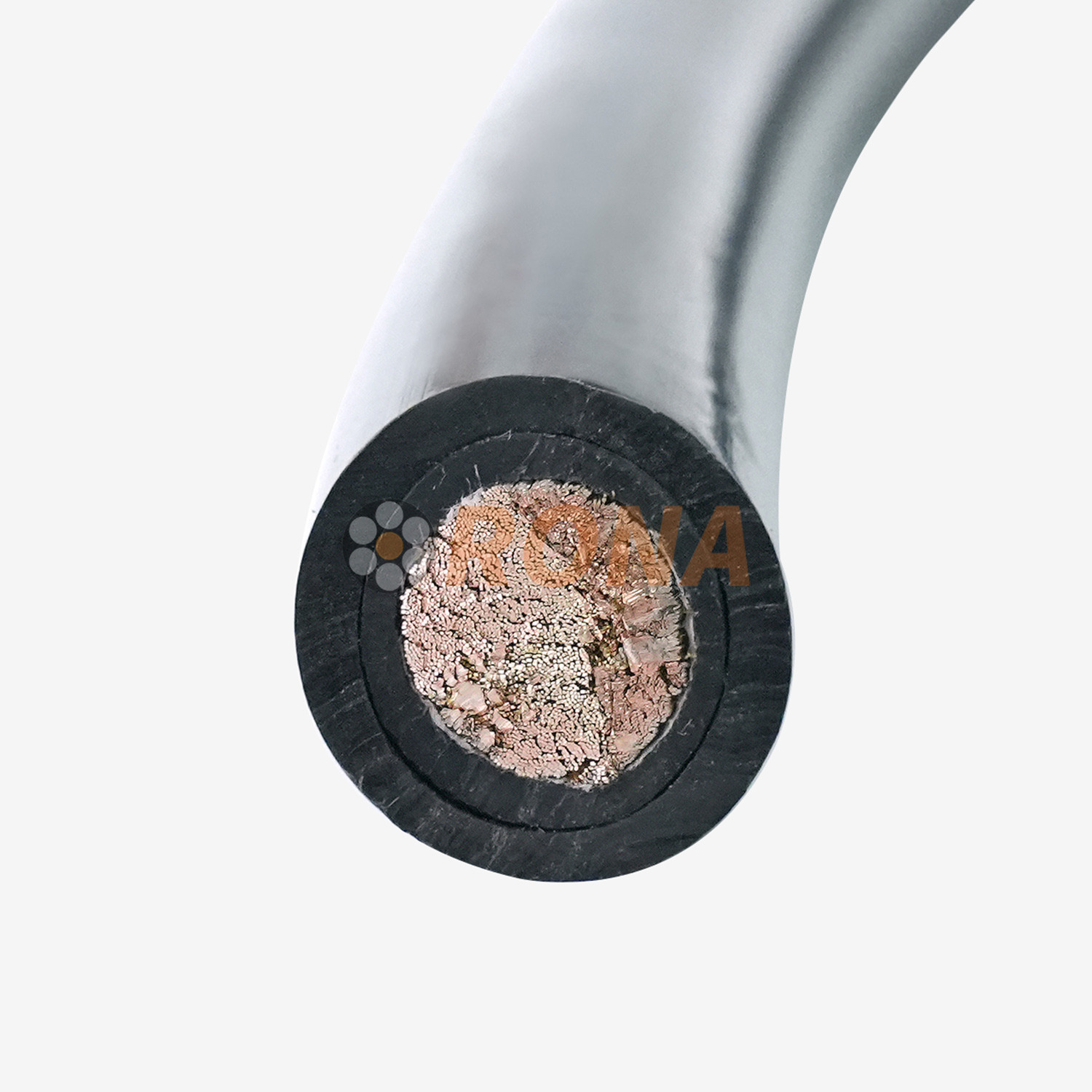

HFMU-ROBOT 1*25
RONA
85444929
Product Overview
Robot body cables are specialized cable systems designed for industrial robot main bodies/manipulators, used to transmit power, signals, and data between robot joints, rotating parts, and fixed structures.
Core Functions:
Provide power transmission for servo motors, encoders, sensors, etc.
Transmit control signals and real-time feedback data (such as EtherCAT, PROFINET, etc.).
Ensure stable connectivity during high-speed motion and frequent bending.
▍Technical parameters
Item | Value |
Voltage | 300/500V |
Temperature Range | Fixed installation: -20℃~70℃ Moving installation: -15℃~70℃ |
Minimum bend radius | Fixed installation: 5x cable outside diameter Moving installation: 7.5x cable outside diameter |
Weather resistance | Suitable Indoor use |
Certificate | CE/CCC/ISO9001/ISO14001 /OHSAS18001 |
Retardant properties | Complied with IEC60332-1 |
High Flexibility: Utilizes ultra-fine oxygen-free copper wires with special stranding technology, capable of withstanding millions of bending cycles (e.g., ≥5 million cycles @ 5d bending radius).
Torsion Resistance: Helical or chain-link design accommodates 3D rotation in robot joints (e.g., ±180°/m torsion angle).
Abrasion Resistance: Outer jacket commonly made of PUR/PVC materials, resistant to oil, chemicals, and corrosion (compliant with ISO 13772 standard).
Low Interference: Dual shielding (foil + braided mesh) reduces EMI/RFI interference, ensuring signal integrity.
High Voltage Resistance: Certain models support 600V/1000V voltage ratings (CE certified etc).
Joint Cables (J1-J6 Axes): Internal wiring for robotic arms such as FANUC and KUKA manipulators.
Trunk Cables (Base to End-Effector): Main power and signal connections between the robot base and end-of-arm tooling (EOAT).
Collaborative Robots (Cobots): Lightweight, modular cable designs for applications like Universal Robots (UR).
AGV/AMR Systems: Dynamic power supply for mobile robot chassis and lifting mechanisms.
Q: What is the cable's temperature range?
A: It operates from -40°C to +100°C, suitable for extreme industrial conditions.
Q: Can it be used in cleanroom environments?
A: Yes, the PUR sheath is non-toxic and resistant to cleaning agents, making it suitable for sterile settings.
Q: What connectors are compatible?
A: Standard M12 and M8 connectors are supported, with custom terminations available.
Q: Does it require grounding?
A: Yes, proper grounding is essential to ensure EMI protection and safety.
Q: What certifications does it hold?
A: It complies with CE, UL, and RoHS standards for global use.
