H07RN-F 2×0.75
RONA
85444929
500m
▍European Standard Cables
The H07RN-F rubber power cable is engineered for demanding power distribution tasks where strength, flexibility, and environmental resistance are critical. Designed for continuous operation in harsh industrial and outdoor conditions, this cable combines high-quality copper conductors with advanced rubber insulation and a rugged elastomer outer sheath. It delivers dependable performance in applications exposed to moisture, mechanical stress, oils, and extreme temperatures, including long-term submerged use.

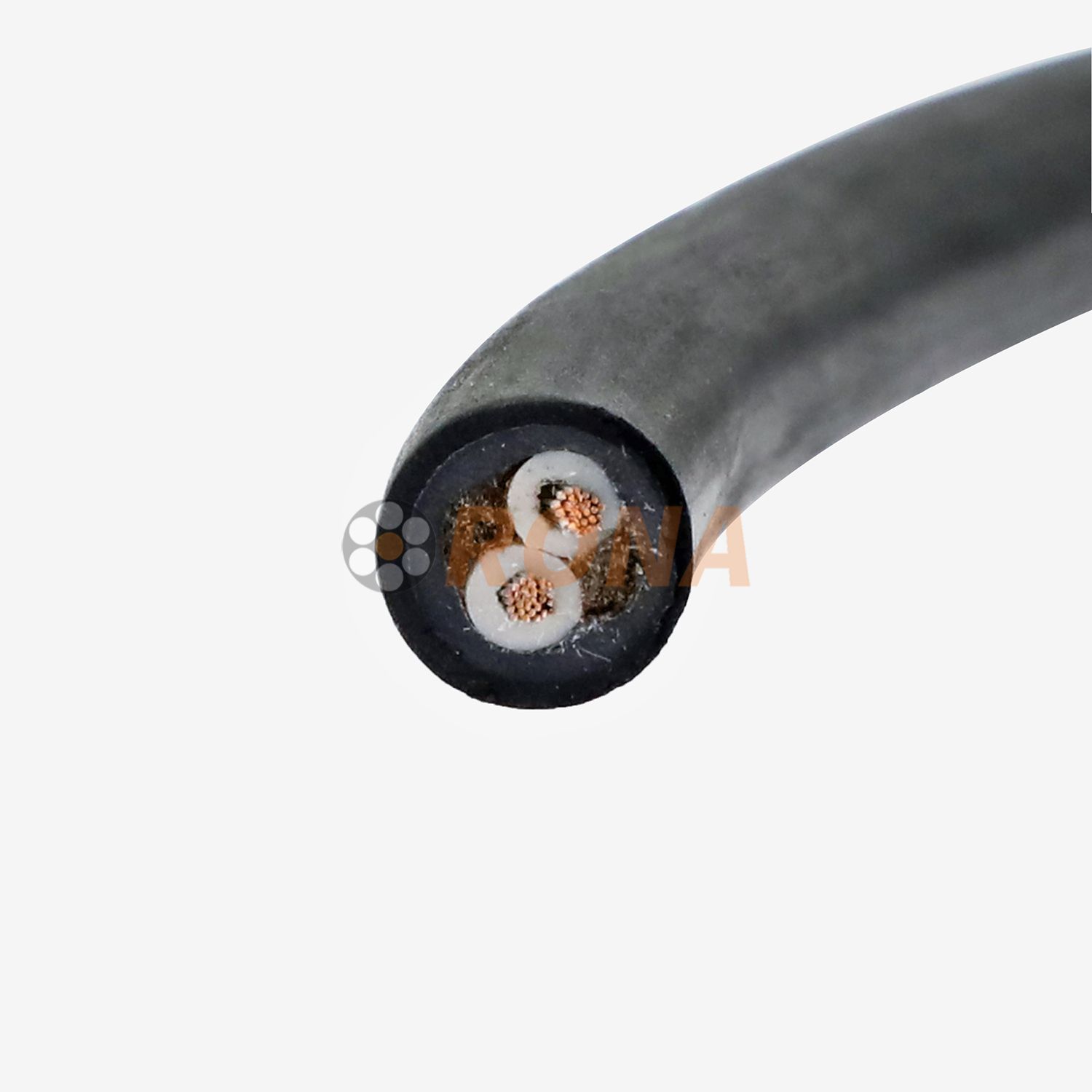

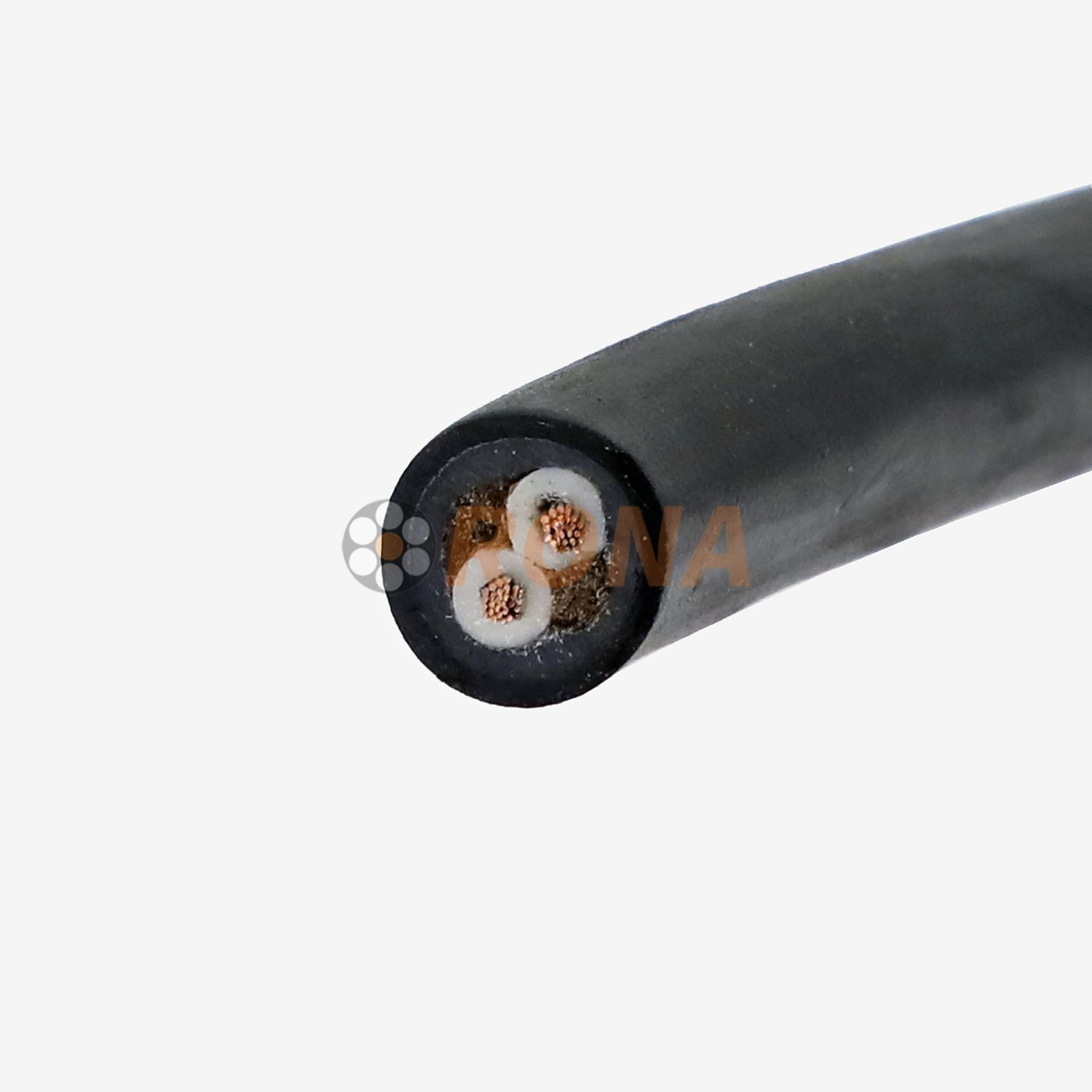

▍Structure
Conductor: Flexible fine-stranded bare copper, Class 5, ensuring excellent current transmission and ease of handling
Core Insulation: Ethylene Propylene Rubber (EPR) for superior thermal and electrical stability
Outer Sheath: Heavy-duty CPE or PCP (Neoprene) compound, providing outstanding mechanical and chemical resistance
▍Electrical Performance
High Flexibility: Maintains flexibility during repeated movement and coiling, with a minimum bending radius of 6×–8× cable diameter
Wide Temperature Tolerance: Reliable operation from approximately −25 °C up to +90 °C, with short-circuit endurance up to +250 °C
Waterproof Design: Suitable for continuous immersion, including underwater installations up to 100 m depth
Chemical & Oil Resistance: Withstands contact with oils, grease, fuels, and common industrial chemicals
Environmental Protection: Resistant to UV radiation, ozone, abrasion, and harsh weather conditions
Fire Safety: Flame-retardant construction in accordance with IEC 60332-1-2
▍Technical parameters
Item | Value |
Voltage | 450/750V |
Test voltage | 2500V/5min(AC) |
Minimum bend radius | |
Fixed installation | 4xcable outside diameter |
Moving installation | 5xcable outside diameter |
Temperature range | |
Fixed installation | -40℃~90℃ |
Moving installation | -30℃~90℃ |
Retardant properties | Complied with IEC60332-1 |
▍Application
Portable Electrical Equipment:
Power tools, welding machines, hand-held lamps, and mobile machinery
Industrial Facilities:
Manufacturing plants, mining operations, oil & gas sites, and drainage systems
Outdoor & Temporary Power:
Construction sites, generators, and event power supply
Marine & Submersible Use:
Pumps, offshore equipment, and underwater power connections
Semi-Fixed Installations:
Temporary structures or locations with moderate mechanical stress
