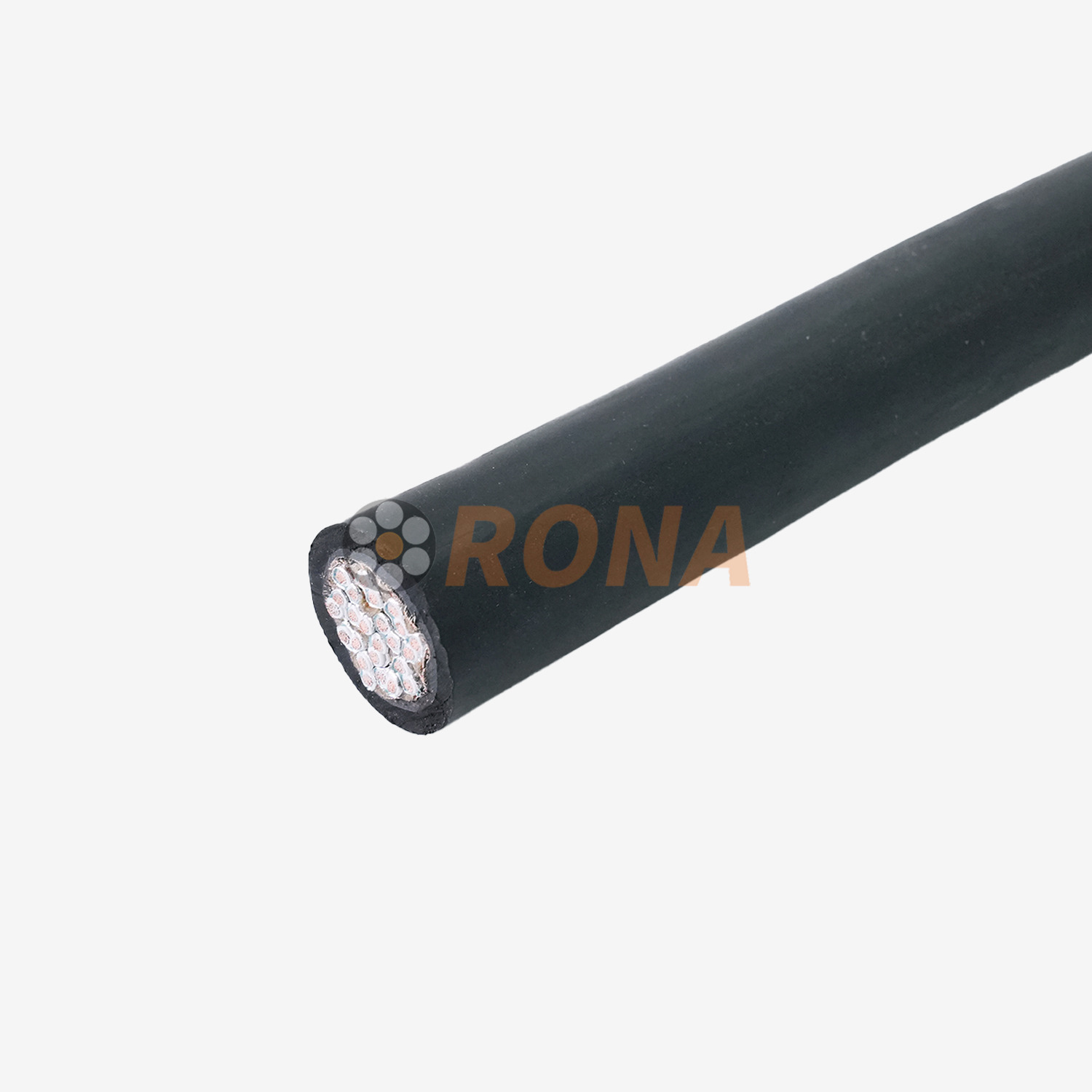

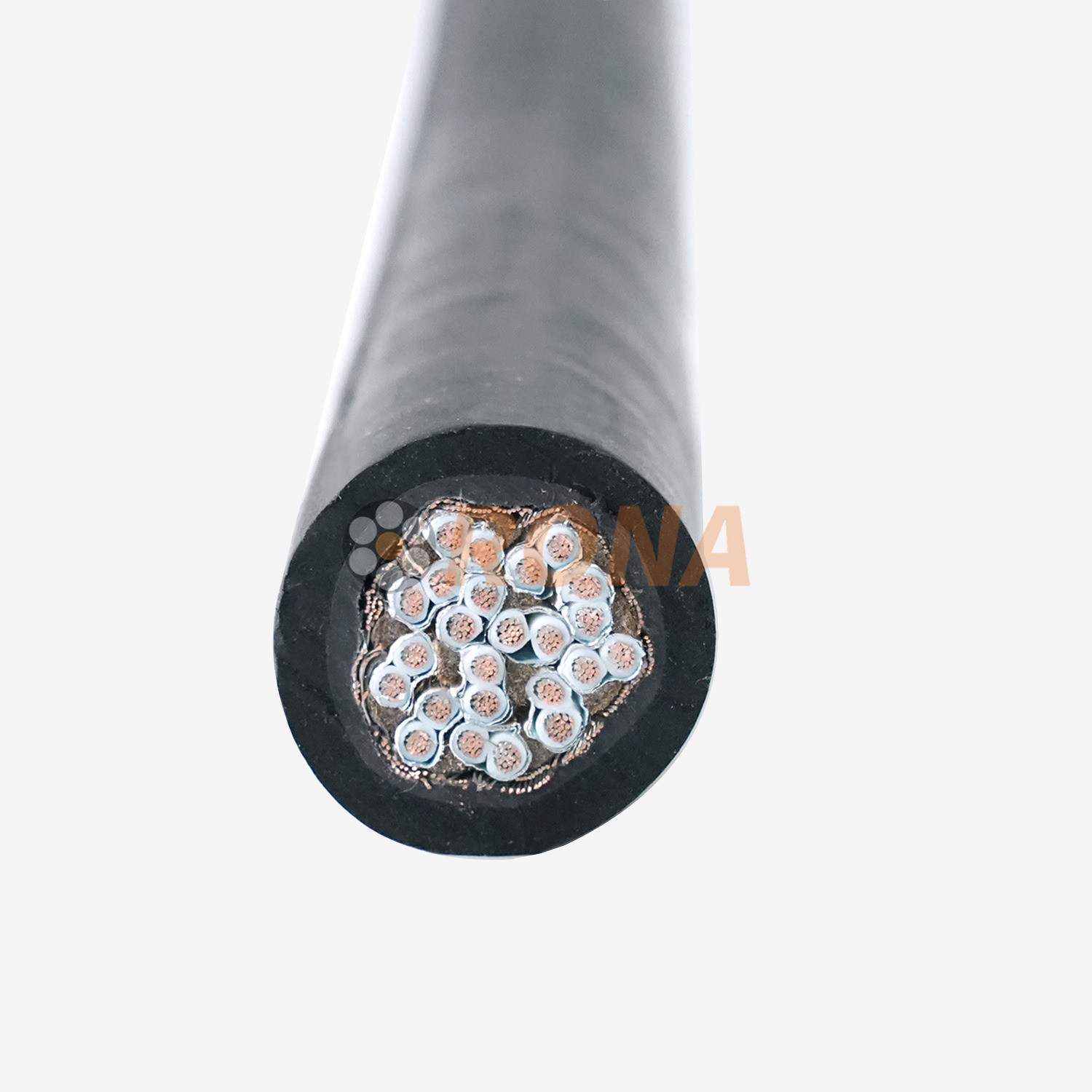

Festoon-DR 12×2×0.75
RONA
85444929
The DR Encoder Festoon Cable with Rubber Sheath is engineered for high-performance motion control in metallurgical environments, where extreme temperatures, dust, and mechanical stress are common. Designed to transmit power and signals to overhead cranes, gantry systems, and automated machinery, this cable ensures reliable operation in steel mills, foundries, and other heavy industries.
▍Technical parameters
Parameter | Value |
Voltage: | 0.6/1kV |
Temperature Range | Fixed installation: -50℃~90℃ Moving installation: -40℃~90℃ |
Minimum bend radius | Fixed installation: 5xcable outside diameter Moving installation: 10x cable outside diameter |
Resistance Chemistry Substance | Resistance Acids,alkalis,solvents and a variety of hydraulic oil performance excellent |
Weather resistance | UV resistant,Daylight-aging properties excellent,suitable outdoor application |
Operates up to +125°C, withstanding radiant heat from furnaces and molten metal.
Silicone rubber insulation and sheath maintain flexibility at elevated temperatures.
Reinforced rubber sheath resists abrasion from metal debris and chemicals like acids and alkalis.
Tested to IEC 60811-2-1 for oil resistance.
Stranded copper conductors (Class 6) and a flexible core design enable tight bending radii (8x diameter) for frequent motion.
Rated for 10 million bending cycles in festoon systems.
Aluminum foil shielding with 90% coverage minimizes electromagnetic interference from welding equipment and motors.
Certified to DIN VDE 0250 for crane and festoon applications.
Metallurgical Plants: Cranes, ladle handling systems, and conveyor belts in steel production.
Foundries: Powering robotic arms and casting machines in high-temperature environments.
Automotive Manufacturing: Overhead conveyor systems in paint shops and assembly lines.
Ports: Ship-to-shore cranes and container handling equipment in coastal terminals.
Q: What is the cable's temperature range?
A: It operates from -40°C to +125°C, with short-term peaks up to +150°C.
Q: Is it suitable for dusty environments?
A: Yes, the rubber sheath prevents dust ingress, ensuring long-term performance in metallurgical settings.
Q: Can it withstand mechanical impacts?
A: Yes, its robust construction resists damage from falling debris and vibrations.
Q: Does it require special installation?
A: Professional installation with tension control is recommended to avoid stress on the cable.
Q: What certifications does it hold?
A: It complies with DIN VDE 0250 and CE standards for industrial applications.
