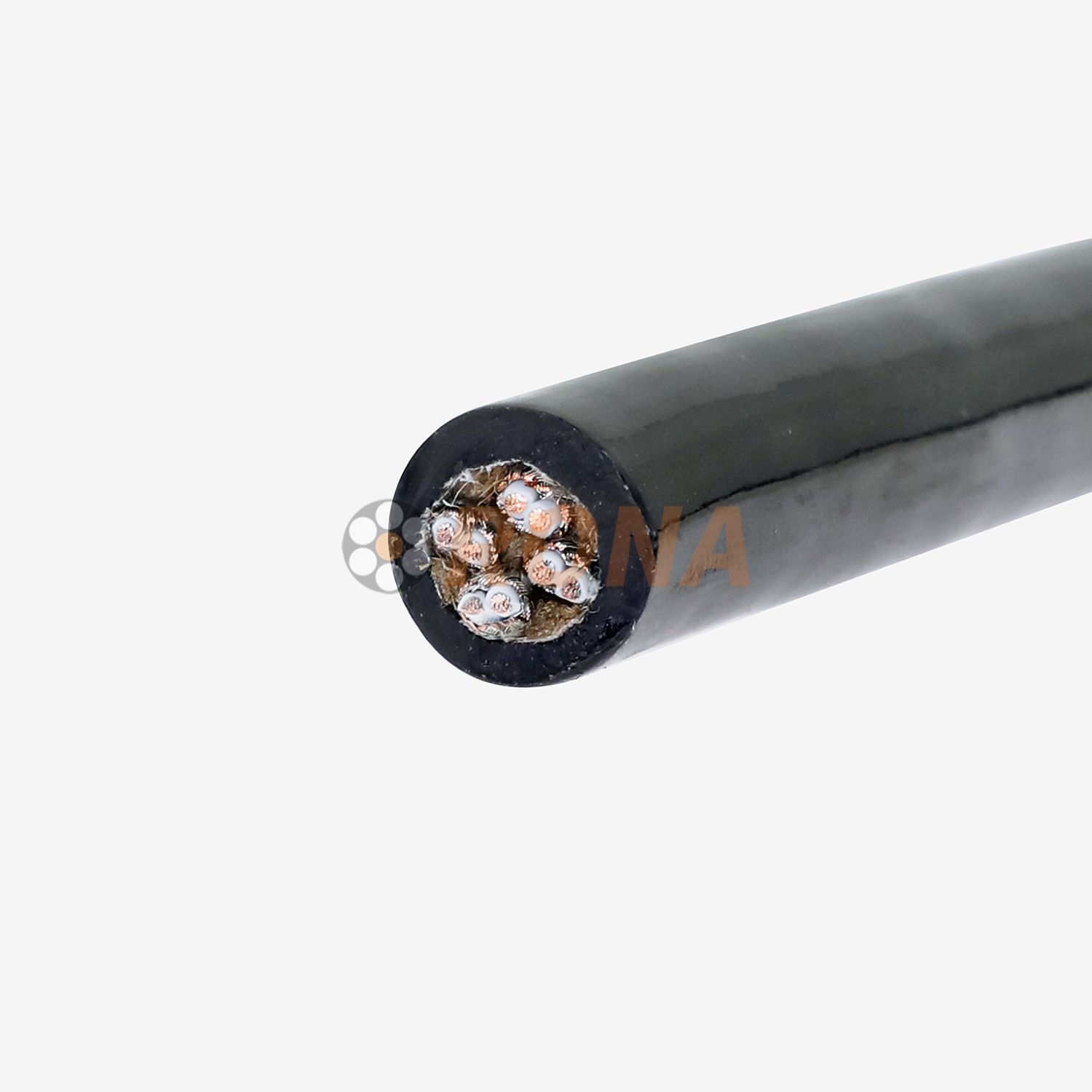

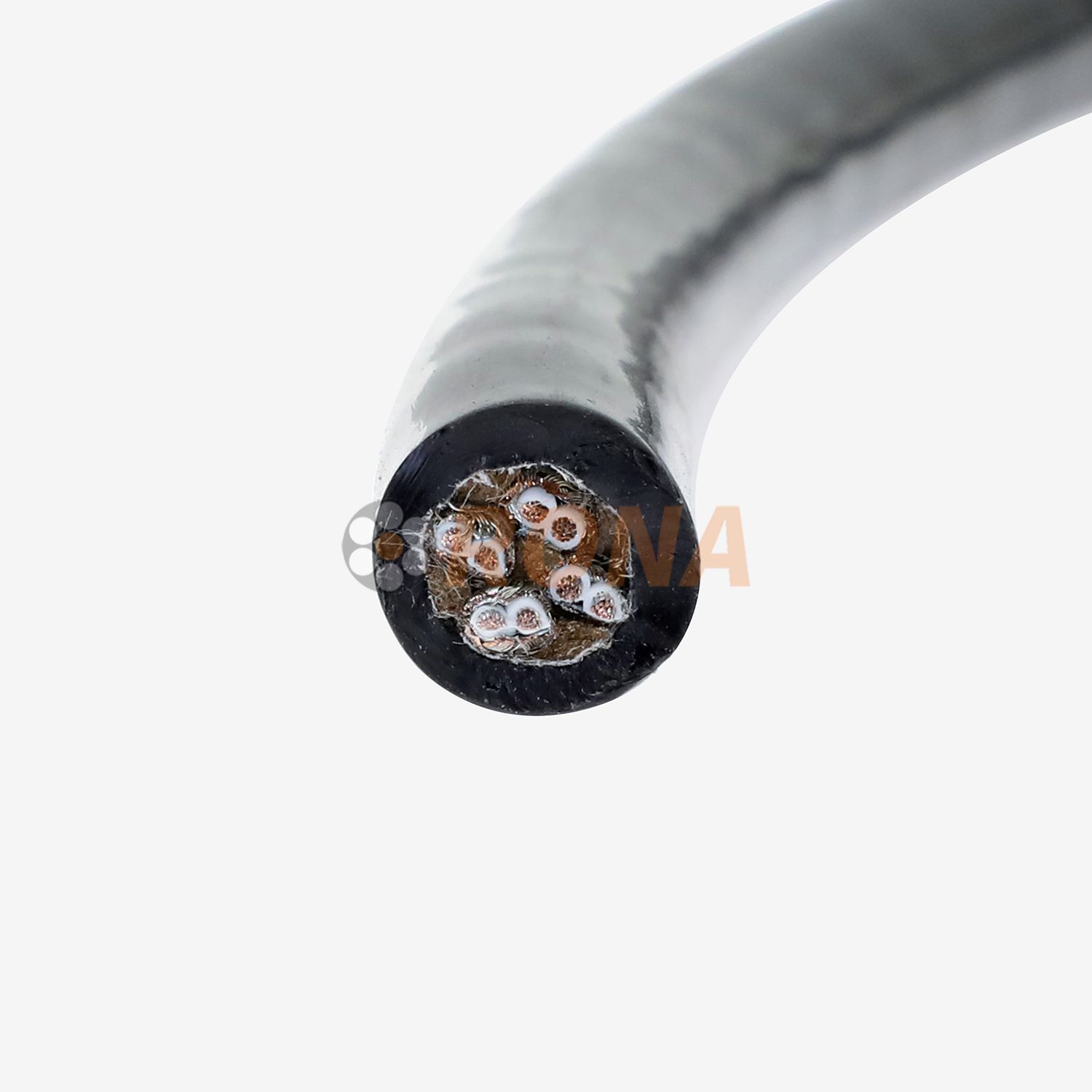

Festoon-DU 4X(2X0.5)P
RONA
85444929
The BR Motor Festoon Flex Cable is designed for power plants and industrial facilities, providing reliable power transmission to moving machinery in high-temperature, high-humidity environments. With a focus on durability and safety, this cable supports continuous operation in boilers, turbines, and conveyor systems.
▍Technical parameters
Parameter | Value |
Voltage | 0.6/1kV |
Temperature Range | Fixed installation: -50℃~90℃ Moving installation: -40℃~90℃ |
Minimum bend radius | Fixed installation: 5xcable outside diameter Moving installation: 10x cable outside diameter |
Resistance Chemistry Substance | Resistance Acids,alkalis,solvents and a variety of hydraulic oil performance excellent |
Weather resistance | UV resistant,Daylight-aging properties excellent,suitable outdoor application |
Operates up to +105°C, suitable for proximity to steam pipes and hot surfaces.
Silicone rubber insulation and sheath resist thermal degradation.
Meets IEC 60332-1-2 standards for flame retardancy, self-extinguishing within 30 seconds of ignition.
Stranded copper conductors (Class 5) and a Kevlar-reinforced core offer high flexibility and tensile strength up to 2,000 N.
Minimum bending radius of 10x diameter for dynamic applications.
Galvanized steel armor and a chloroprene sheath protect against saltwater and chemical exposure.
Certified to DIN VDE 0250 and CE, ensuring compatibility with European power plant standards.
Power Generation: Turbines, generators, and coal-handling systems.
Chemical Plants: Pumps, agitators, and reactors in corrosive environments.
Mining: Underground haulage systems and ore processing equipment.
Wastewater Treatment: Submersible pumps and aerators in sewage treatment plants.
Q: What is the cable's maximum voltage rating?
A: It is rated for 0.6/1kV, suitable for medium-voltage applications.
Q: Can it be submerged in water?
A: Yes, the steel armor and waterproof sheath allow temporary submersion up to 100 meters.
Q: Does it require grounding?
A: Yes, proper grounding is essential to prevent electrical hazards.
Q: What certifications does it hold?
A: It complies with DIN VDE 0250, CE, and RoHS standards.
Q: Can it be used in explosive environments?
A: Yes, optional flame-retardant and anti-static versions are available for hazardous areas.
