Optical fiber connector
RONA
7307220000
100PCS

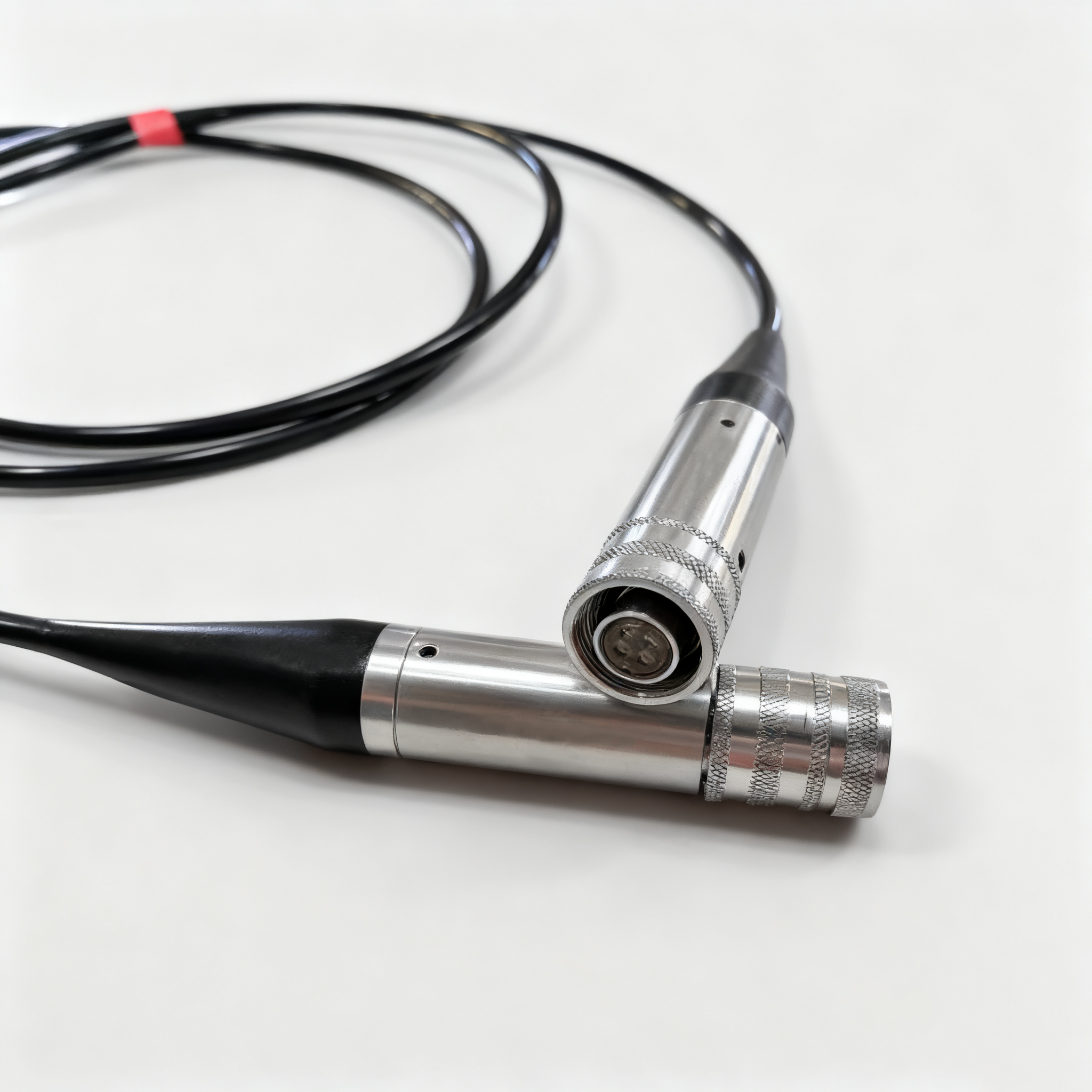

All Sea Deep Optical Fiber Connector and Assembly
Product Profile
The All Sea Deep Optical Fiber Connector and Assembly is a high-performance, pressure-balanced system engineered for reliable high-speed optical signal transmission in the most challenging deep-sea environments. It serves as a critical communication link for full ocean depth submersibles, underwater observation platforms, and various seabed instruments.
Material Selection & Application
| Aspect | Description |
| Primary Application | High-speed optical communication for full ocean depth submersibles, instruments, and seafloor systems. |
| Housing Material | Stainless Steel 316L: Offers excellent corrosion resistance in seawater. |
| Titanium Alloy TC4: Provides an optimal strength-to-weight ratio for maximum pressure resistance. | |
| Key Application Feature | The open end-face is specifically designed to maintain optical performance and structural integrity under immense hydrostatic pressure (127 MPa). |
| Verified Deployment | • "Fendouzhe" (Striver) Full Ocean Depth Manned Submersible |
| • "Canghai" Full Ocean Depth Video Lander |
Performance Parameters
| Parameter | Specification |
| Transmission Core Count | 1 core; 4 core |
| Insertion Loss | ≤ 0.5 dB |
| Return Loss | > 40 dB |
| Operating Temperature | -40 ~ +90 °C |
| High-Frequency Vibration | 10~2000 Hz, 0.75mm / 100m/s² |
| Shock | 100 g |
| Hydrostatic Pressure | 127 MPa (Longitudinal & Transverse) |
Key Features & Advantages
Full Ocean Depth Capability: Certified to operate reliably at depths exceeding 10,000 meters.
Low Insertion & High Return Loss: Ensures signal integrity and minimal power degradation over long distances.
Robust Environmental Resistance: Designed to withstand extreme pressure, temperature variations, shock, and vibration.
Proven Field Deployment: Successfully integrated into prestigious Chinese deep-sea exploration systems.
Broad Compatibility: Interfaces seamlessly with standard global fiber optic connector types.
This connector represents a critical enabling technology for deep-sea exploration, providing a reliable and high-performance optical interface that meets the stringent demands of full ocean depth operations. Its robust construction, verified performance, and standard compatibility make it a competitive alternative to leading international products.（e.g., Seacon, Impulse, GISMA）
