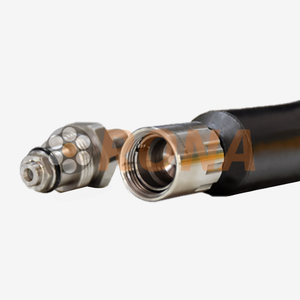

All Sea Deep Optical Fiber Connector and Assembly
Product Description

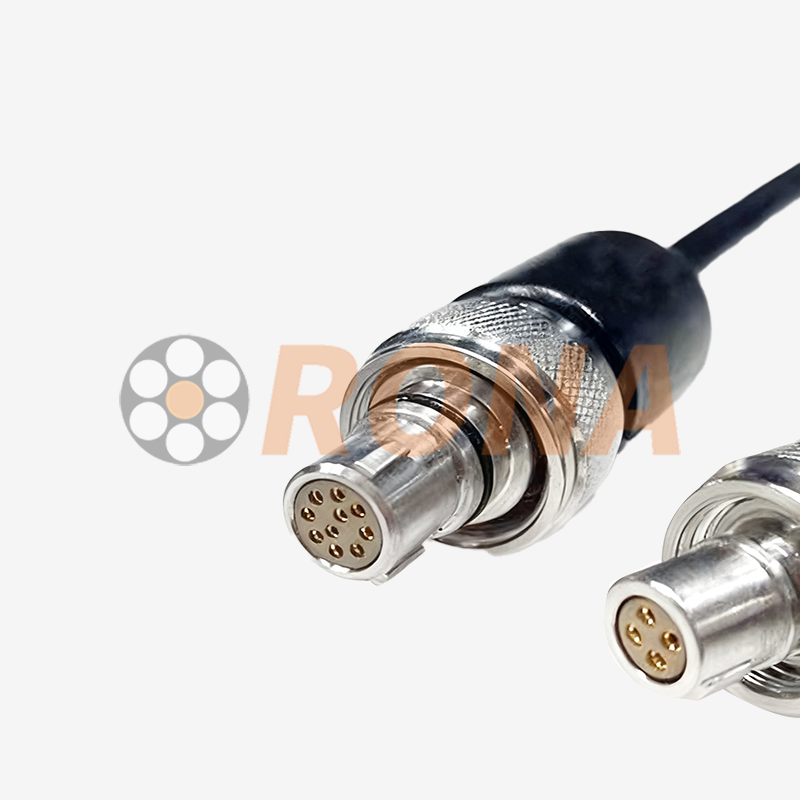

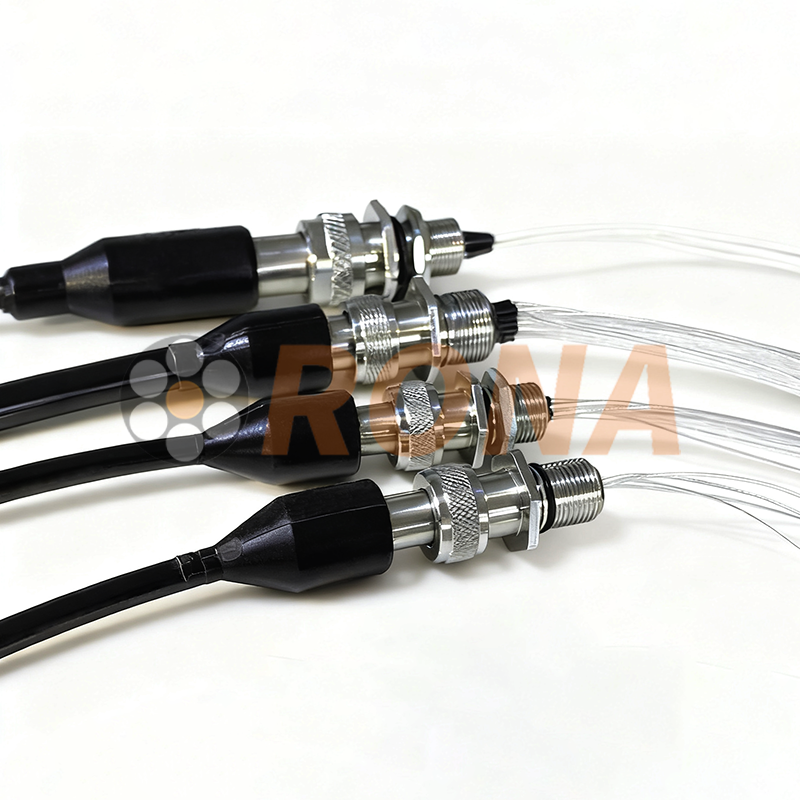

This Miniature Shallowwater General Series offers a cost-effective, consumer-grade solution for electrical signal and low-power transmission in shallow water instruments and equipment. The connectors are paired with cables to form customized assemblies, with various configurations and cable tail lengths available upon request. The receptacle connector features a bulkhead-mounted design. Constructed from either Stainless Steel 316L or engineering plastic ABS, this series provides a reliable, standardized, and versatile connectivity option for a wide range of shallow water applications.
Performance Parameters
| Parameter | Specification |
| Contact Configuration | 2-32 contacts; Single Coaxial |
| Number of Series | 3 Series |
| Contact Resistance | < 10 mΩ |
| Insulation Resistance | > 500 MΩ (at room condition) |
| Dielectric Withstanding Voltage | 500 - 1000 V/DC, 1 min |
| Current Rating per Contact | 0.5 A ~ 10 A |
| Mechanical Life | 10,000 cycles |
| High-Frequency Vibration | 10~2000 Hz, 0.75mm / 100m/s² |
| Shock | 100 g |
| Hydrostatic Pressure | 4.5 MPa (Transverse) |
| Operating Temperature | -35 ℃ ~ +85 ℃ |
Cost-Effective Solution
As a consumer-grade product, it is engineered for excellent performance at an accessible price point, significantly reducing the total cost of ownership for shallow water projects without compromising on essential reliability.
Standardized & Modular Series
The product line is structured into 3 distinct series, offering a rationalized and modular approach to selection. This systematic design simplifies inventory management and ensures compatibility across a wide range of standard applications.
Broad Configuration Coverage
With options ranging from 2 to 32 contacts, including a single coaxial option, the series provides extensive flexibility. It can accommodate diverse needs from simple power and signal lines to more complex hybrid connections, ensuring wide applicability across various equipment.
Proven Safety & Reliability
Built with robust materials (Stainless Steel 316L or engineering plastic ABS) and validated through rigorous testing—including 10,000 mating cycles, high insulation resistance, and resistance to vibration, shock, and pressure—this connector guarantees long-term, safe, and dependable operation in demanding shallow water environments.
A wide range of applications
1. Underwater Robotics and Observation Platforms
Usage Scenarios: Lightweight inspection-class ROVs, AUVs, underwater gliders, and shallow-sea observation stations.
Needs Addressed: Provides reliable power and signal transmission for thrusters, sensors, cameras, and manipulator arms. Its multiple contact options (up to 32 contacts) enable the integration of control, video, and data lines. The 4.5 MPa pressure rating (approx. 450 meters depth), combined with excellent resistance to vibration and shock, ensures connection stability during complex underwater maneuvers.
2. Marine Mapping and Geological Survey
Usage Scenarios: Towfish or vessel-mounted equipment such as side-scan sonars, sub-bottom profilers, multibeam echosounders, and magnetometers.
Needs Addressed: The connectors are responsible for transmitting both data acquired by sensors and operating power. The low contact resistance (<10mΩ) guarantees power transmission efficiency, while the high dielectric withstanding voltage (up to 1000V) provides safe electrical isolation for equipment, preventing signal crosstalk.
3. Aquaculture and Fishery Monitoring
Usage Scenarios: Underwater monitoring cameras, water quality sensors (e.g., dissolved oxygen, pH, temperature), automatic feeders, and net cage status monitoring equipment.
Needs Addressed: As a low-cost, consumer-grade solution, it is ideally suited for scenarios requiring the deployment of numerous devices where cost sensitivity is high. The engineering plastic ABS version offers sufficient protection while further optimizing cost and corrosion resistance, meeting the needs for long-term deployment.
4. Underwater Engineering and Operations
Usage Scenarios: Underwater lighting, small hydraulic valve packs, underwater welding and cutting equipment, and diver-assisted tools.
Needs Addressed: The connectors can carry up to 10A current per contact, supplying power to small power equipment. The Stainless Steel 316L bulkhead-mounted receptacle provides a robust mounting solution and can withstand mechanical impact and corrosion in operational environments.
