H01N2-D
RONA
85444929
500m
Product Overview

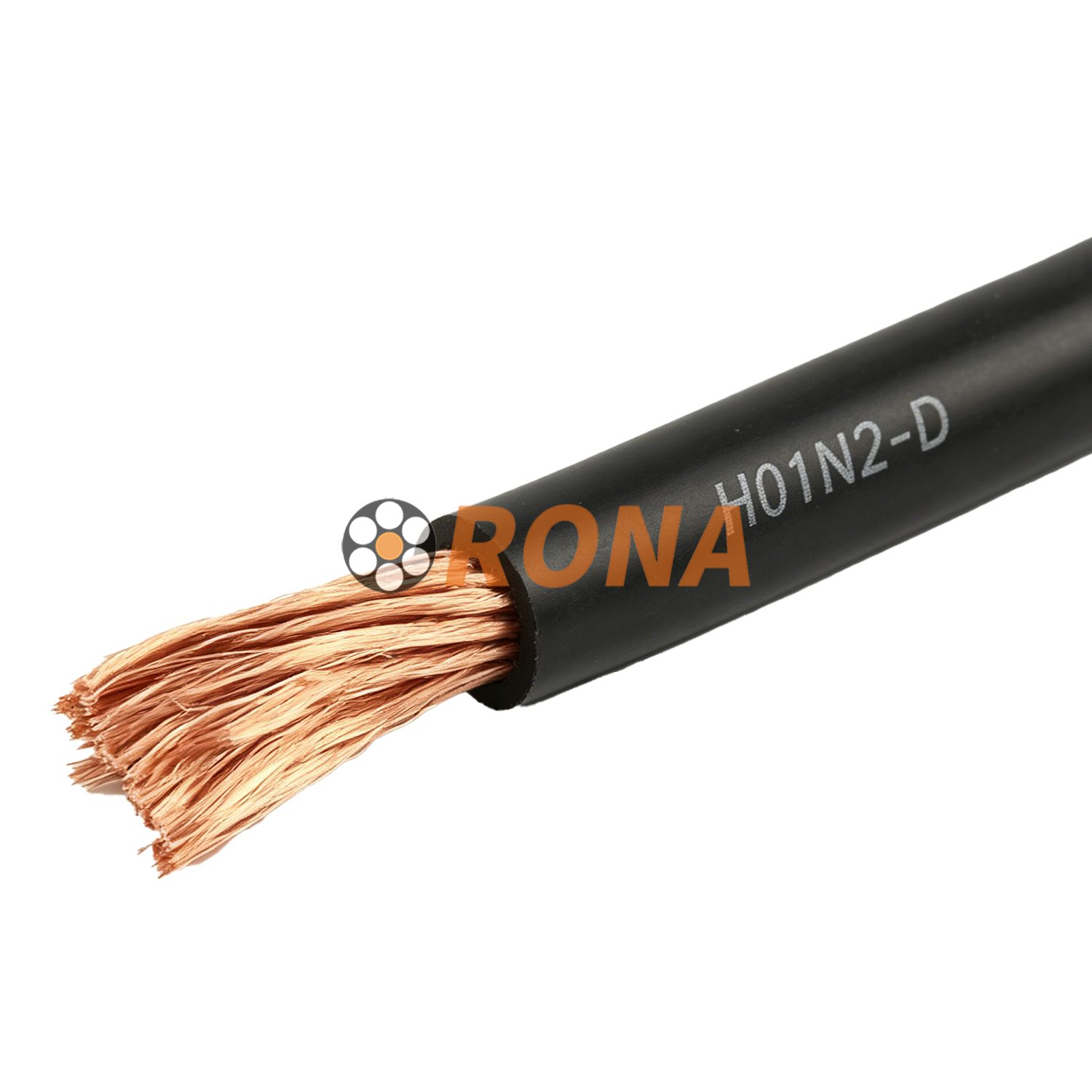

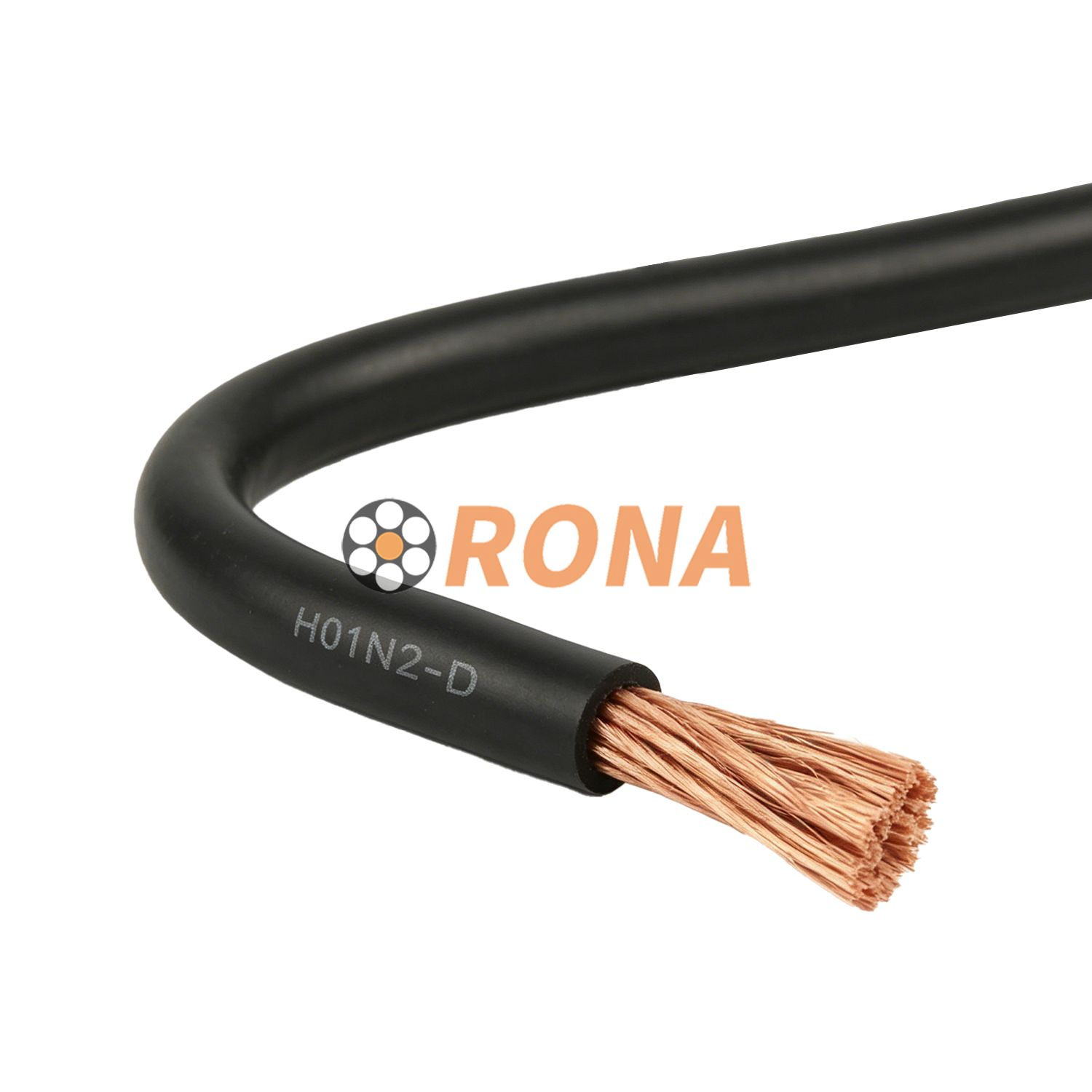

This premium-grade H01N2-D 35mm² rubber welding cable is expertly engineered for professional welding applications. It is specifically designed to provide a highly reliable and flexible connection between the electrode holder (welding torch) and the welding power source. Manufactured with top-quality materials and advanced stranding technology, this cable combines exceptional electrical conductivity, extreme flexibility, and robust durability to meet the rigorous demands of industrial welding environments. Whether you are performing manual arc welding (MMA), TIG, or MIG/MAG welding, this cable ensures stable current transmission with minimal voltage drop, while its super-flexible construction significantly reduces welder fatigue during prolonged use.
Cable Specification
| Parameter | Specification |
|---|---|
| Model | H01N2-D |
| Conductor Material | Tinned Copper |
| Conductor Structure | 1085 × 0.2 mm |
| Conductor Section | 35 mm² |
| Insulation Material | EPDM Rubber |
| Insulation Thickness (Avg) | 1.4 mm |
| Insulation OD | 11.8 ± 0.4 mm |
| Jacket Material | EM3 Rubber |
| Jacket Color | Black |
| Jacket Thickness (Avg) | 1.5 mm |
| Overall Diameter | 14.8 ± 0.5 mm |
| Rated Voltage | 450/750 V |
| Max DC Resistance (20°C) | 0.554 Ω/km |
| Min. Bending Radius | 4 × D |
| Flame Retardancy | IEC 60332-1 |
| Operating Temperature | -30°C to +90°C |
Ultra-flexible design with fine-stranded tinned copper for easy handling and reduced operator fatigue.
High conductivity with low resistance ensures stable welding current and minimal voltage drop.
Robust EPDM insulation and EM3 black rubber jacket provide excellent resistance to oil, abrasion, heat, sparks, and mechanical stress.
Flame retardant and weather resistant, suitable for both indoor and outdoor welding operations.
Primary use: Connecting electrode holders (welding torches) to welding machines (MMA, TIG, MIG/MAG).
Ideal for other high-flexibility power transmission applications such as portable generators, heavy-duty mobile equipment, marine and shipboard use, stage lighting and entertainment equipment, electric tools, and any environment requiring frequent movement and tight bending radius.
Q1: What is this H01N2-D welding cable mainly used for?
A: This H01N2-D cable is primarily designed to connect the electrode holder (welding torch) to the welding machine. It is ideal for MMA, TIG, and MIG/MAG welding applications. It can also be used in other high-flexibility power transmission scenarios such as portable generators, heavy equipment, stage lighting, marine use, and mobile electric tools.
Q2: What materials are used in this cable?
A:
Conductor: High-quality Tinned Copper
Insulation: EPDM rubber (heat and electrical resistant)
Outer Jacket: Durable EM3 black rubber (oil, abrasion, and weather resistant)
Q3: When can I get the price?
A: We usually quote within 8 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail,so that we will regard your inquiry priority.
Q4: What about the lead time for mass production?
A: Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within 10days.
