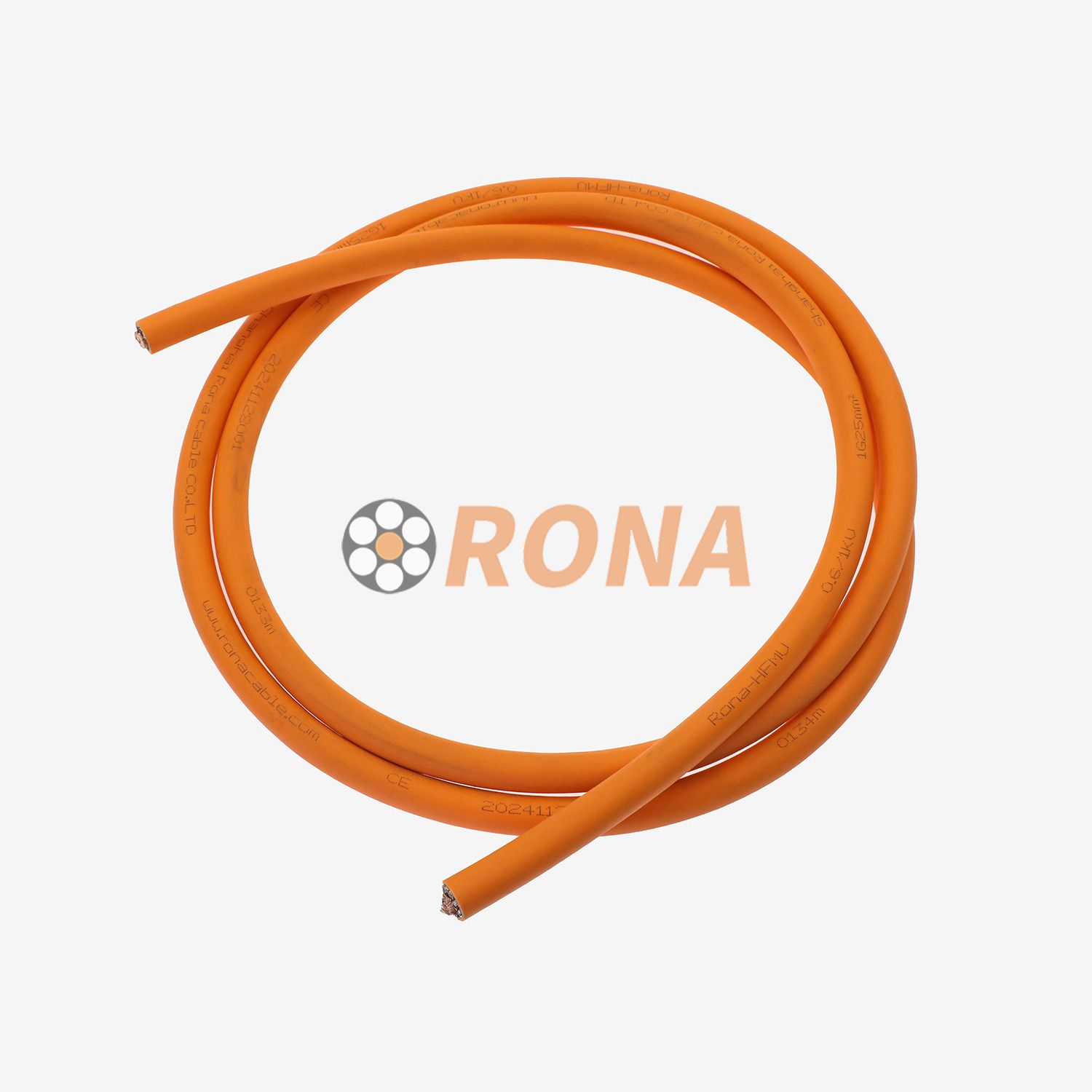

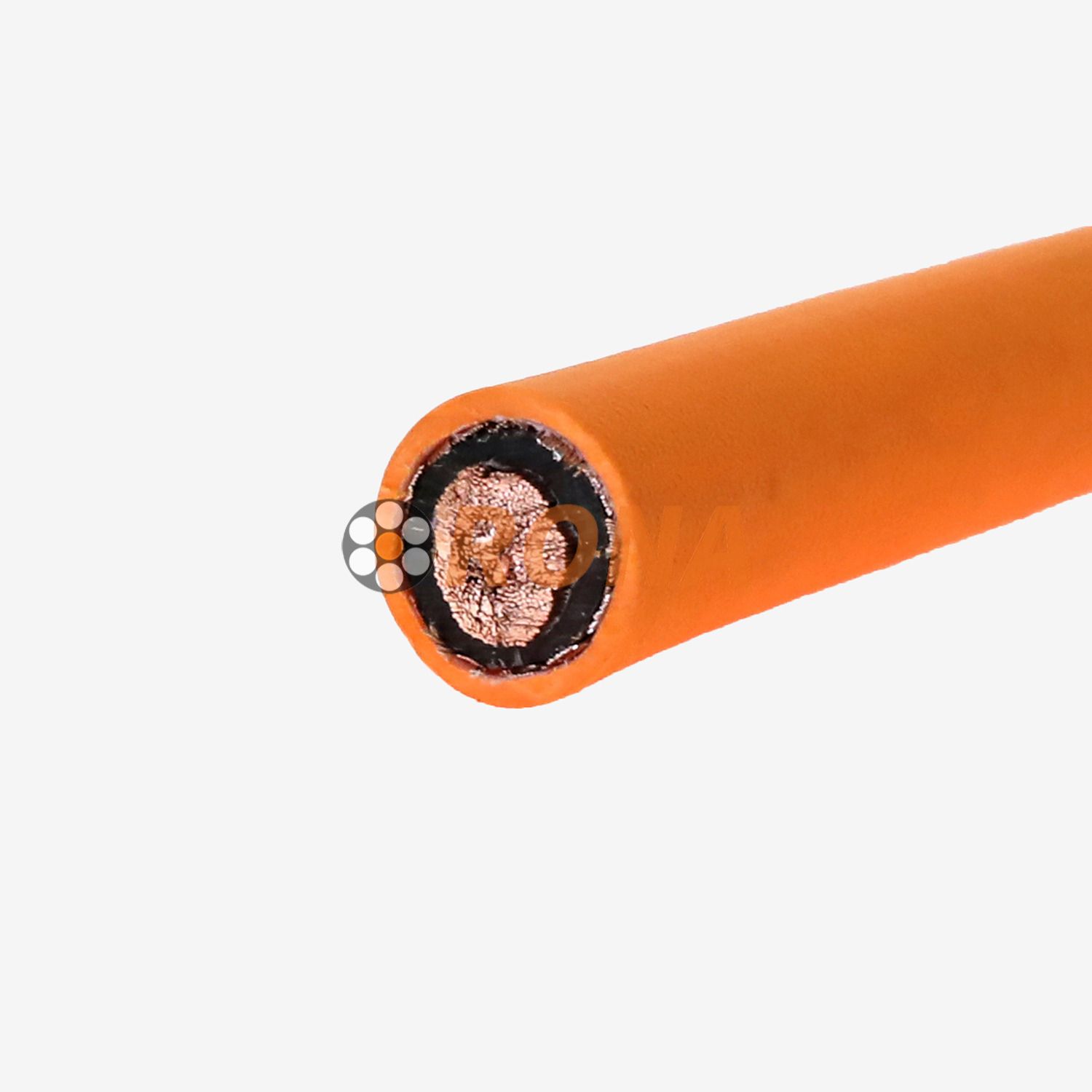

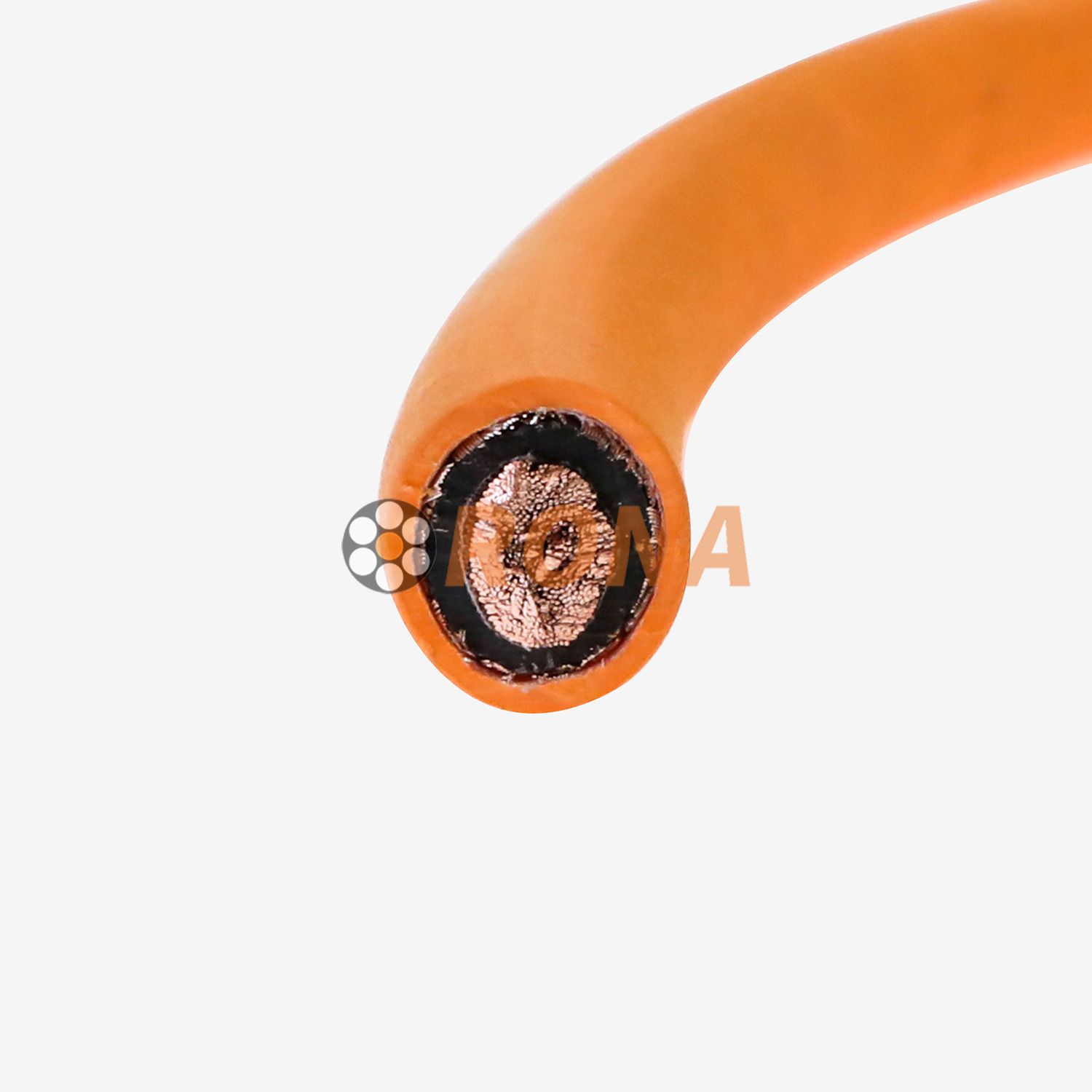

HFMU 1G25
RONA
85444929
500m
• PUR Drag Chain Cables:
In high-speed automated environments where constant motion, mechanical stress, and harsh contaminants are the norm, cable failure is not an option. Standard solutions falter under the relentless demands of CNC machining, robotic assembly, material handling, and process automation, leading to disruptive downtime and increased maintenance costs.
Our high-performance PUR Drag Chain Cables are specifically engineered to thrive where others fail. Constructed with a rugged Polyurethane (PUR) outer sheath, these cables deliver exceptional resistance to abrasion, oils, coolants, and industrial chemicals. Paired with finely stranded, flexible conductors and a torsion-optimized design, they ensure reliable, long-lasting operation within cable carriers and guides, even under the most demanding cyclic conditions.
• Specification
| Specification | Value / Rating |
|---|---|
| Model Series | HFMU |
| Rated Voltage | 0.6/1 kV |
| Temperature Range (Fixed Install) | -50°C to +90°C |
| Temperature Range (Moving Install) | -40°C to +90°C |
| Min. Bending Radius (Fixed) | 4 x Cable Diameter |
| Min. Bending Radius (Moving) | 7.5 x Cable Diameter |
| Max. Speed (Unsupported) | 8 m/s |
| Max. Speed (Gliding) | 5 m/s |
| Max. Acceleration | 75 m/s² |
| Weather / UV Resistance | Excellent, suitable for outdoor use |
Key Advantages:
Extended Service Life in Motion: Built for high-frequency, long-travel applications within drag chains, offering superior flexibility and resilience to millions of bending cycles, torsion, and tensile loads.
Robust Environmental Defense: The premium PUR jacket provides outstanding protection against mechanical wear, mineral oils, synthetic coolants, hydrolysis, and a broad spectrum of aggressive chemicals.
Consistent Flexibility: Advanced conductor stranding and specialized compounding ensure exceptional free movement and flexibility across the entire temperature range, enabling smooth, unrestricted travel in cable carriers.
Signal and Power Integrity: High-purity conductors combined with optional high-coverage shielding (tinned copper braid or foil) guarantee stable power transmission and precise, interference-free signal and data communication.
Wide-Range Operational Reliability: Engineered to perform consistently across an extensive temperature spectrum, accommodating diverse industrial environments.
Certified Safety: Designed and manufactured in compliance with applicable international standards for safety and performance.
Applications:
CNC Machining Centers and Multi-Axis Machine Tools
Industrial Robotic Systems (Articulated Arms, Gantry Robots, Delta Robots)
Automated Assembly, Packaging, and Palletizing Lines
Material Handling Equipment (Stacker Cranes, AS/RS Shuttles, Conveyor Systems)
Automated Process Machinery (Welding, Painting, Laser, Inspection Systems)
Any application involving continuous, high-speed cable movement within guided carriers or tracks.
