Rubber Wet-Mate Connectors
RONA
7307220000
100PCS

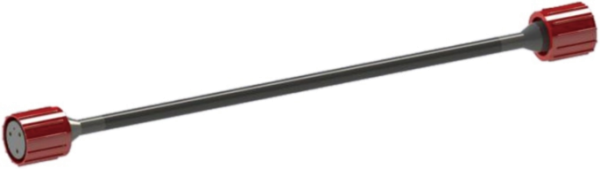

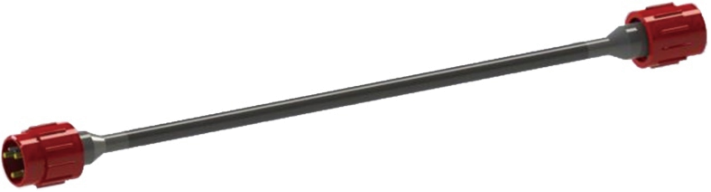

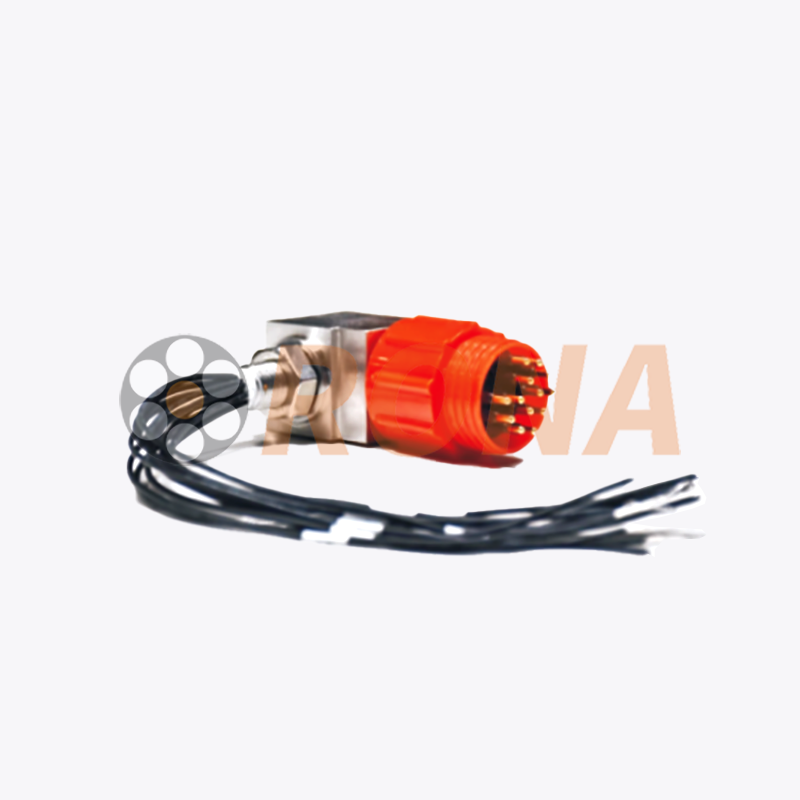

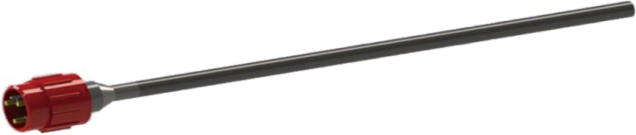

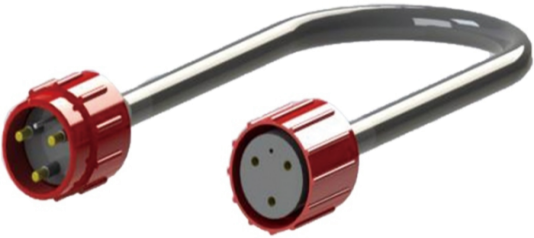

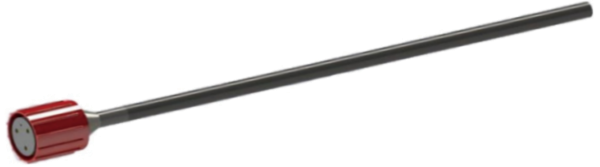

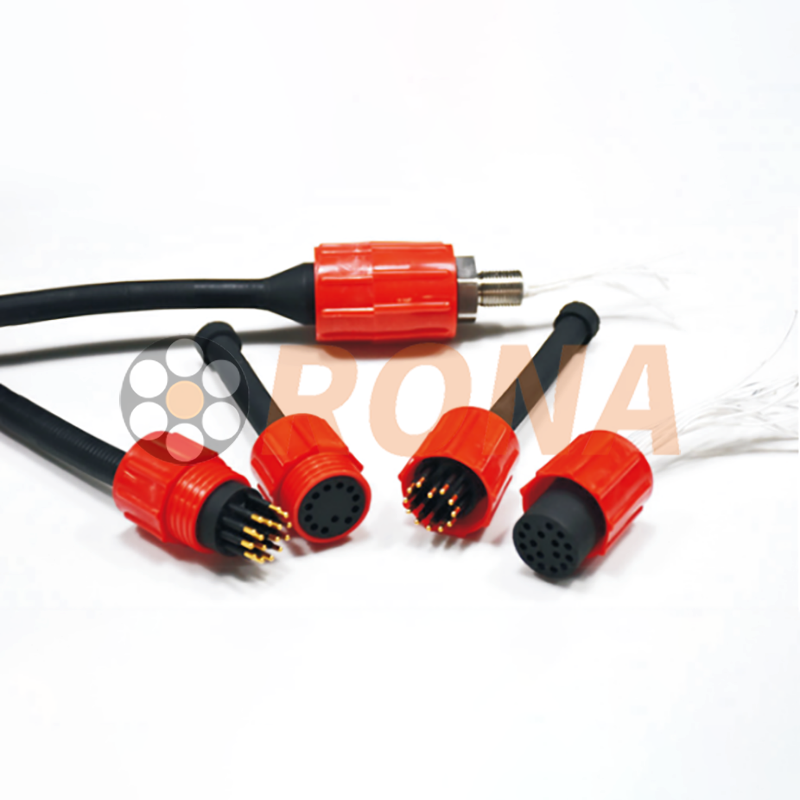

Rona Rubber-Plastic Wet-Mate Connectors
Designed for electrical signal and power transmission in deep-sea applications, supporting:
Shallow-water plugging
Full-ocean-depth (up to 11,000m) operations
Customizable core counts, dimensions, wire lengths, and configurations
Material options for socket metal parts:
316L Stainless Steel
TC4 Titanium Alloy
Marine-Grade Bronze
Compatible with imported rubber connectors
Key Features
✔ Modular Series Design – Wide application coverage
✔ Full-Ocean-Depth Rated – 0~11,000m
✔ Wet-Mate Capable – Safe underwater plugging/unplugging
✔ High Reliability – Robust sealing & corrosion resistance
✔ Custom Configurations – Tailored to project needs
Technical specification
Performance | Parameter | Value |
Electrical | Contact Cores | 1~42 cores |
Contact Resistance | ≤10 mΩ | |
Insulation Resistance | ≥1000 MΩ | |
Dielectric Strength | 1000~5000V DC (1min) | |
Current Capacity | 2A~250A (Standard: 5A/10A/15A; >15A customizable) | |
Signal Transmission | RF VSWR | ≤1.2 |
Mechanical | Mechanical Life | 1000 cycles |
Vibration Resistance | 10~500Hz, 0.75mm/100m/s² | |
Impact Resistance | 100g | |
Environmental | Water Pressure Resistance | 75~127MPa (transverse/longitudinal) |
Operating Temperature | -40℃~95℃ |
Assembly method
|
|
Single/Double-head Pin Assembly | Single/Double-head Socket Assembly |
| |
Double-head Special-shaped Assembly | |
Applications
Marine and offshore, renewable energy and subsea systems
Naval systems and equipment
Oceanographic systems, equipment and instrumentation solutions
ROV and ROTV systems
Underwater camera, video and lighting systems
Ocean bottom seismic systems
Diving systems and equipment
