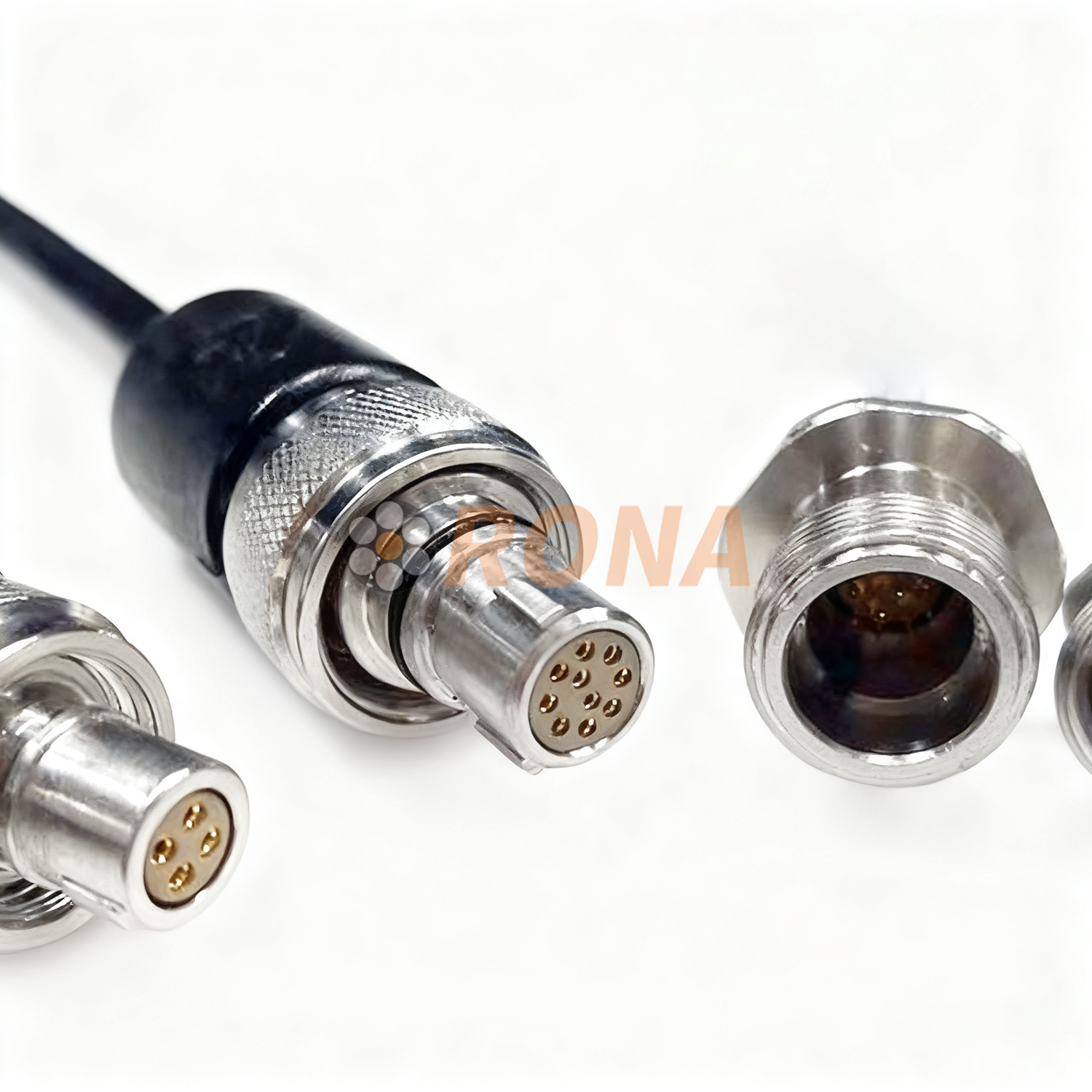

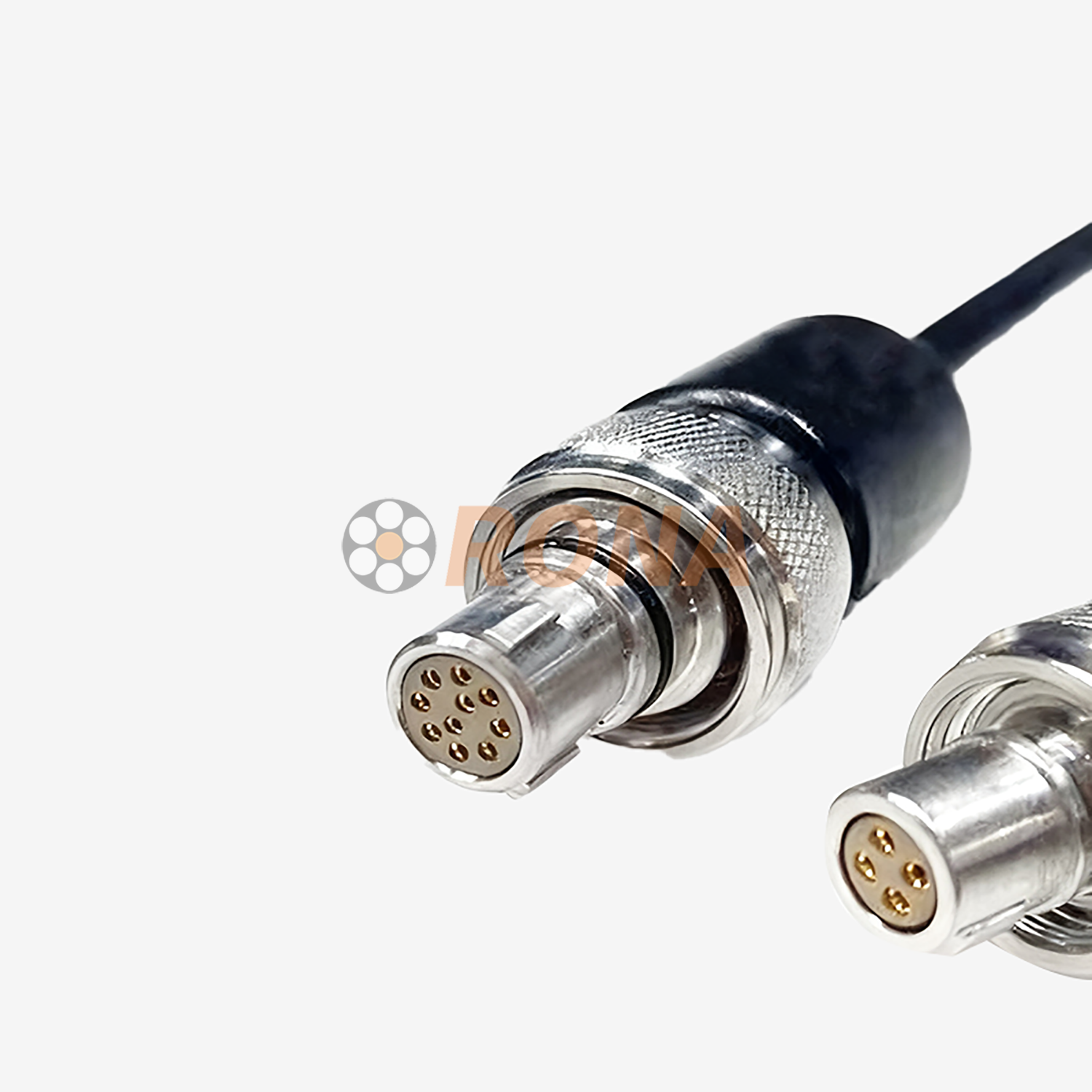

The Miniature Shallow-Water General-Purpose Electrical Connector Series and Assemblies are consumer-grade connectivity solutions engineered for instruments and equipment operating in shallow marine environments. Their core function is to provide stable connections and transmission for electrical signals and low-power electrical energy. Within this product system, connectors are paired with cables to form complete assemblies. The specific configuration of the assembly and the cable tail length can be fully customized based on actual client requirements, precisely meeting the installation and usage scenarios of various shallow-water devices. The receptacle connector features a bulkhead-mount design, tailored for integration into equipment housings, ensuring a sealed and stable connection point. Two high-quality material options are offered: corrosion-resistant Stainless Steel 316L and cost-effective Engineering Plastic ABS with good mechanical strength, allowing flexible selection based on the operating environment and budget.
Key Features
Customizable Design: Both the assembly form and cable tail length are customizable, breaking the limitations of standardized products. This allows for precise matching with the installation space and connection methods of different shallow-water devices, enhancing compatibility and reducing installation complexity.
Structure-Adaptive Design: The receptacle connector utilizes a bulkhead-mount form, specifically designed for the housing structures of shallow-water equipment. Once installed, it effectively seals the interface between the interior and exterior environments, preventing seawater ingress that could disrupt normal operation, thus ensuring device integrity and safety.
Premium Material Options: Utilizes two high-quality materials: Stainless Steel 316L and Engineering Plastic ABS. Stainless Steel 316L offers excellent resistance to seawater corrosion, resisting rust for long-term durability in marine environments. Engineering Plastic ABS provides good impact resistance, heat tolerance, and insulation properties, balancing performance and economy. Both materials offer distinct advantages for different application scenarios.
Wide Temperature Tolerance: An operating temperature range of -35°C to +85°C allows it to handle temperature fluctuations across different seasons and depths in shallow waters. The product maintains stable performance in both cold winter and warm summer conditions, ensuring device operation across various temperatures.
Technical specification
| Parameter | Specification |
|---|---|
| Contact Configuration | 2 to 32 cores; Single Coaxial |
| Number of Series | 3 Series |
| Contact Resistance | ≤10mΩ |
| Insulation Resistance | ≥500 MΩ (normal conditions) |
| Dielectric Withstand Voltage | 500 – 1000 V DC, 1 minute |
| Current Rating (per contact) | 0.5 A – 10 A |
| Mechanical Life | 10,000 mating cycles |
| High-Frequency Vibration | 10 – 2000 Hz, 0.75 mm / 100 m/s² |
| Shock | 100 g |
| Hydrostatic Pressure | 4.5 MPa, Lateral |
| Operating Temperature | -35°C to +85°C |
| Receptacle Connector Type | Bulkhead-Mount |
| Material Options | Stainless Steel 316L, Engineering Plastic ABS |
| Customizable Assembly Aspects | Assembly Form, Cable Tail Length |
Assembly method

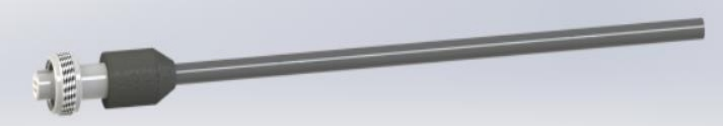

Single-head component type
Double-head component type
Applications
This Miniature Shallow-Water General-Purpose Electrical Connector Series and Assemblies are primarily used in various instruments and equipment within the shallow-water domain. Applications include, but are not limited to:
Shallow-water quality monitoring instruments (connecting sensors to data acquisition modules for stable data transmission).
Shallow-water ecological observation equipment (ensuring signal and power transmission between functional modules for continuous operation).
Shallow-water exploration devices (withstanding vibrations, shocks, and other complex conditions during exploration to provide reliable connections).
Shallow-water aquaculture automation equipment (meeting the demands of long-term use in shallow-sea environments to ensure stable system operation).
