V90 Servo Component
RONA
8547901000
100PCS

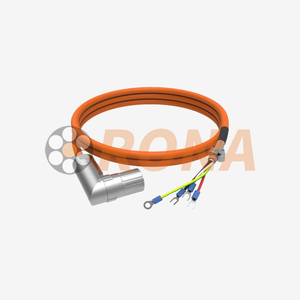

Servo Component / Motor Power Cable Assembly
Motor Connector Features
Compact & Flexible Design: Features a small bending radius and compact diameter for easy installation in tight spaces.
Extended Service Life: Capable of over 1 million cycles in cable carriers, making it ideal for high-speed, repetitive motion.
Environmental Safety: Complies with RoHS 2.0 requirements, ensuring environmental friendliness.
Superior EMI Protection: Provides excellent electromagnetic interference shielding for stable signal transmission.
Oil & Abrasion Resistant: Designed to withstand harsh industrial environments, offering excellent resistance to oil and wear.
Safety & Compliance: UL-certified and meets international safety standards.
Flame Retardant: Complies with IEC 60332-1-2 for safe and reliable operation.
Motor Connector Application
Widely used in industrial automation sectors that demand extremely high motion control precision and dynamic response, including but not limited to:
CNC machine tools
Articulated robotic arms / Industrial robots
Laser cutting, welding, and marking equipment
Fully automated production and assembly lines
Semiconductor and electronics manufacturing equipment
Packaging machinery,
Printing machinery, etc.
Cable connector specifications
| Item | Specifications and Description |
| Usage occasions | Fixed (For general movement applications) |
| Conductor Specific | 4 × 0.75 mm² (24/0.20mm Bare Copper Strand) |
| 4 × 1.5 mm² (30/0.25mm Bare Copper Strand) | |
| 4 × 2.5 mm² (49/0.25mm Bare Copper Strand) | |
| Insulation Material | PVC |
| Core Wire Color | 4 × 1.5 mm² / 4 × 2.5 mm²: Red, White, Black, Yellow/Green |
| 4 × 0.75 mm²: Black, Blue, Red, Yellow/Green | |
| Sheath Material | PVC |
| Shielding Structure | Tinned Copper Braid, |
| Braid Density | Coverage ≥ 80% |
| Sheath Color | Orange (RAL2003) |
| Cable Outer Diameter | 4 × 1.5 mm²: 9.0 ± 0.4 mm |
| 4 × 2.5 mm²: 10.1 ± 0.4 mm | |
| 4 × 0.75 mm²: 7.3 ± 0.4 mm | |
| Connector Type | Power 4-core Circular Connector 4 Pin (Thread Lock) |
| HOUSING-5557-04R/4 Pin (Push-pull) | |
| M23F/4 Pin (Thread Lock) | |
| Operating Temperature | -40°C to +80°C |
| Protection Rating | V90 Power / M23 (properly installed): IP67 |
| HOUSING (properly installed): IP20 | |
| Minimum Bending Radius | Fixed installation: 6 × OD (OD is Cable Diameter) |
| Occasional movement: 15 × OD (OD is Cable Diameter) | |
| Cycling Life (at 20°C) | ≥ 1 million cycles (Bending radius ≥ 7.5 × OD, Travel distance: 1 m, Speed: 1 m/s) |
