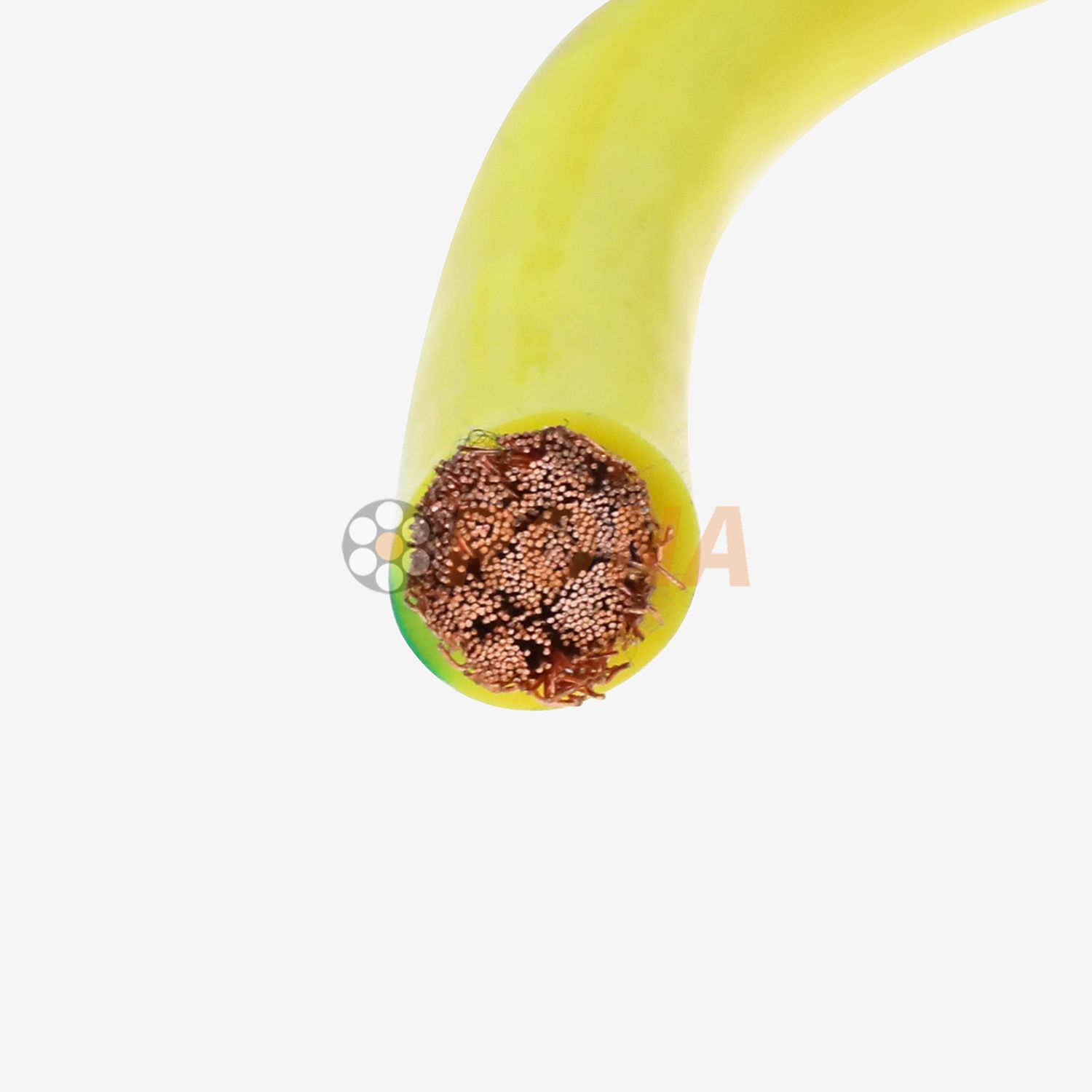

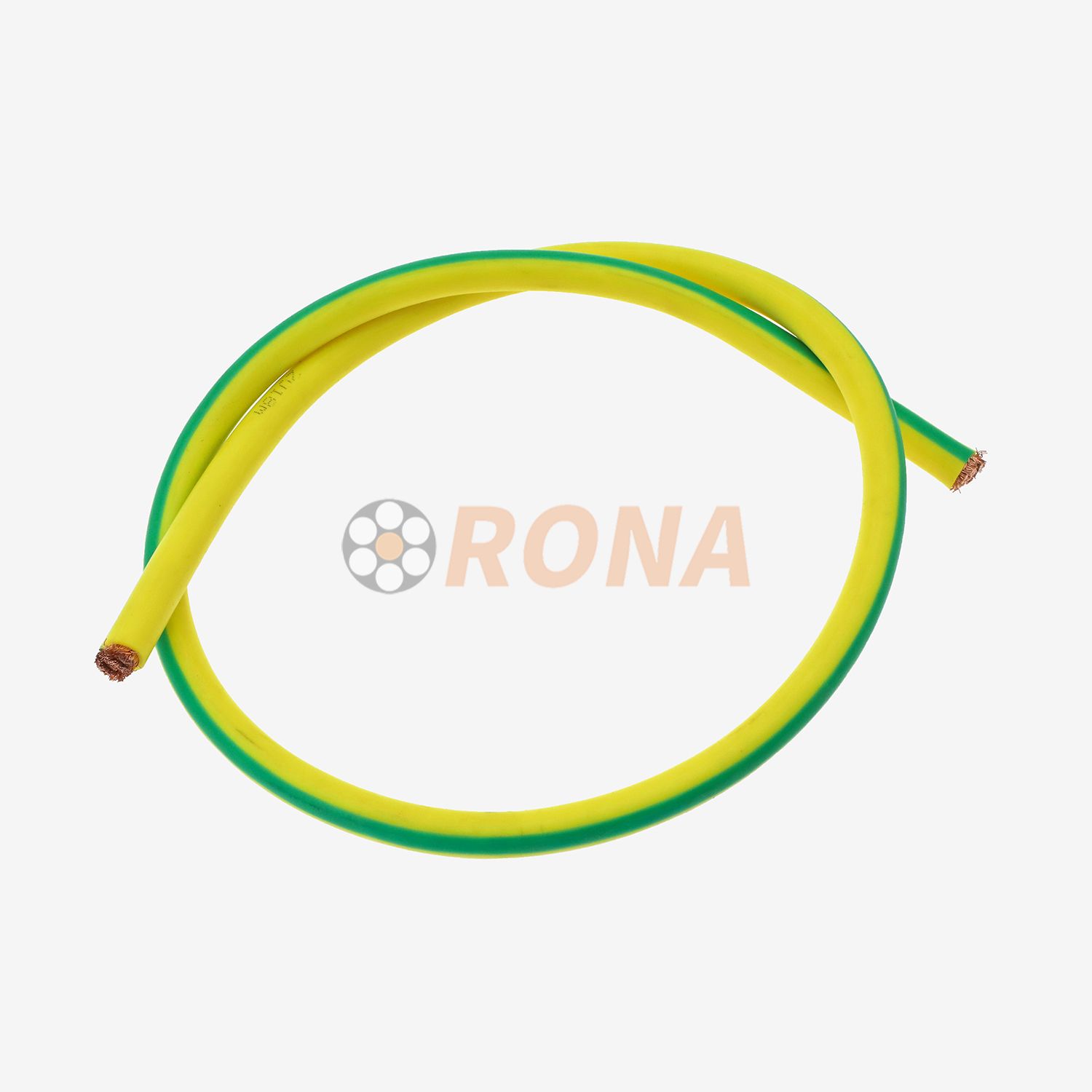

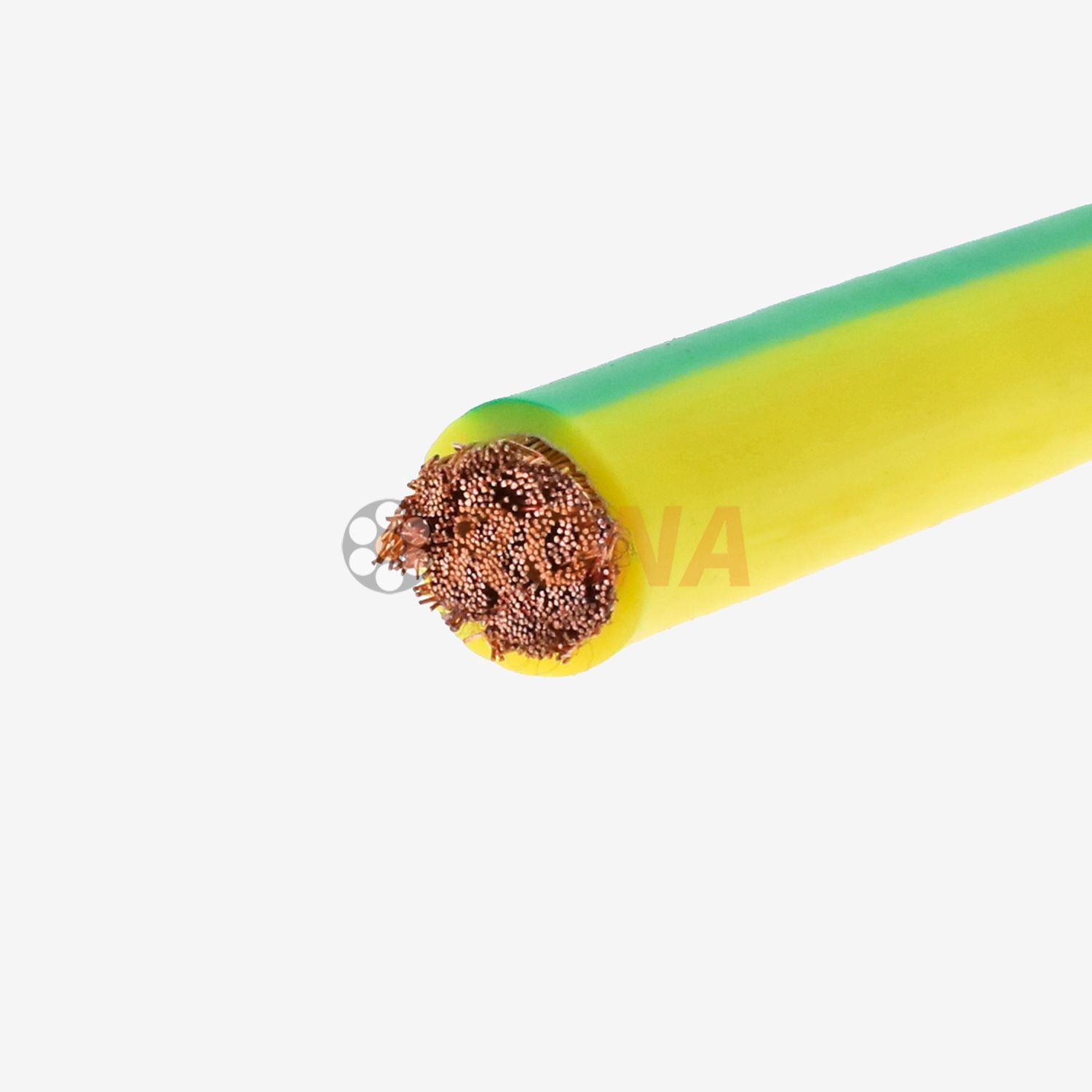

H07V-K 1G25
RONA
85444929
▍European Standard Single core flexible cables
appliacation for electrical boxes,electrical switch boxes internal connection.
Widely used in machinery,production lines,the control unit,transport machinery,conveyor line,assembly line,console,and fixed equipments in the plant,office equipment,air conditioning seldom moving occasions.
▍Technical parameters
Item | Value |
Voltage | 450/750V |
Retardant properties | Complied with IEC60332-1 |
▍Specification
| Cable nominal cross section (mm²) | Cable structural composition (mm) | Cable nomical outside diameter (mm) | Cable maximum outside diameter (mm) | Cable approximate weight (kg/km) |
| 0.5 | 16/0.20 | 2.1 | 2.3 | 6.5 |
| 0.75 | 24/0.20 | 2.4 | 2.7 | 11 |
| 1 | 32/0.20 | 2.5 | 2.9 | 14.9 |
| 1.5 | 48/0.20 | 2.8 | 3.1 | 19.7 |
| 2.5 | 77/0.20 | 3.3 | 3.6 | 29.5 |
| 4 | 126/0.20 | 3.9 | 4.3 | 46.4 |
| 6 | 189/0.20 | 5.2 | 5.7 | 71.8 |
| 10 | 322/0.20 | 6.5 | 7 | 120.4 |
| 16 | 513/0.20 | 8.1 | 8.6 | 181.5 |
| 25 | 798/0.20 | 9.5 | 10.2 | 271.5 |
| 35 | 1121/0.20 | 11.7 | 12.4 | 385 |
| 50 | 396/0.40 | 14 | 14.8 | 549.5 |
| 70 | 380/0.49 | 15.7 | 16.6 | 767.6 |
| 95 | 513/0.49 | 18.3 | 19.5 | 1027.5 |
| 120 | 630/0.49 | 20.1 | 21.3 | 1255.8 |
| 150 | 777/0.49 | 22 | 23.3 | 1547.2 |
| 185 | 976/0.49 | 24.5 | 26 | 1921.9 |
| 240 | 1281/0.49 | 27.6 | 29.3 | 2251.5 |
