H07BQ-F 3G1.5
RONA
85444929
500m
▍H07BQ-F Overview
The H07BQ-F is a medium to heavy-duty flexible industrial cable compliant with European harmonized standards. It features Class 2 stranded bare or tinned copper conductors, EPR (Ethylene Propylene Rubber) high-temperature insulation, and an orange PUR (Polyurethane) abrasion-resistant sheath.
Available in 2 to 5 cores with conductor cross-sections from 1.5 to 16 mm², it is HAR dynamic flex tested and meets CPR requirements. The high-visibility orange sheath aids quick identification and reduces damage risks during installation and maintenance.
Rated at 450/750V, it delivers stable power for medium to heavy-duty equipment in harsh industrial settings.

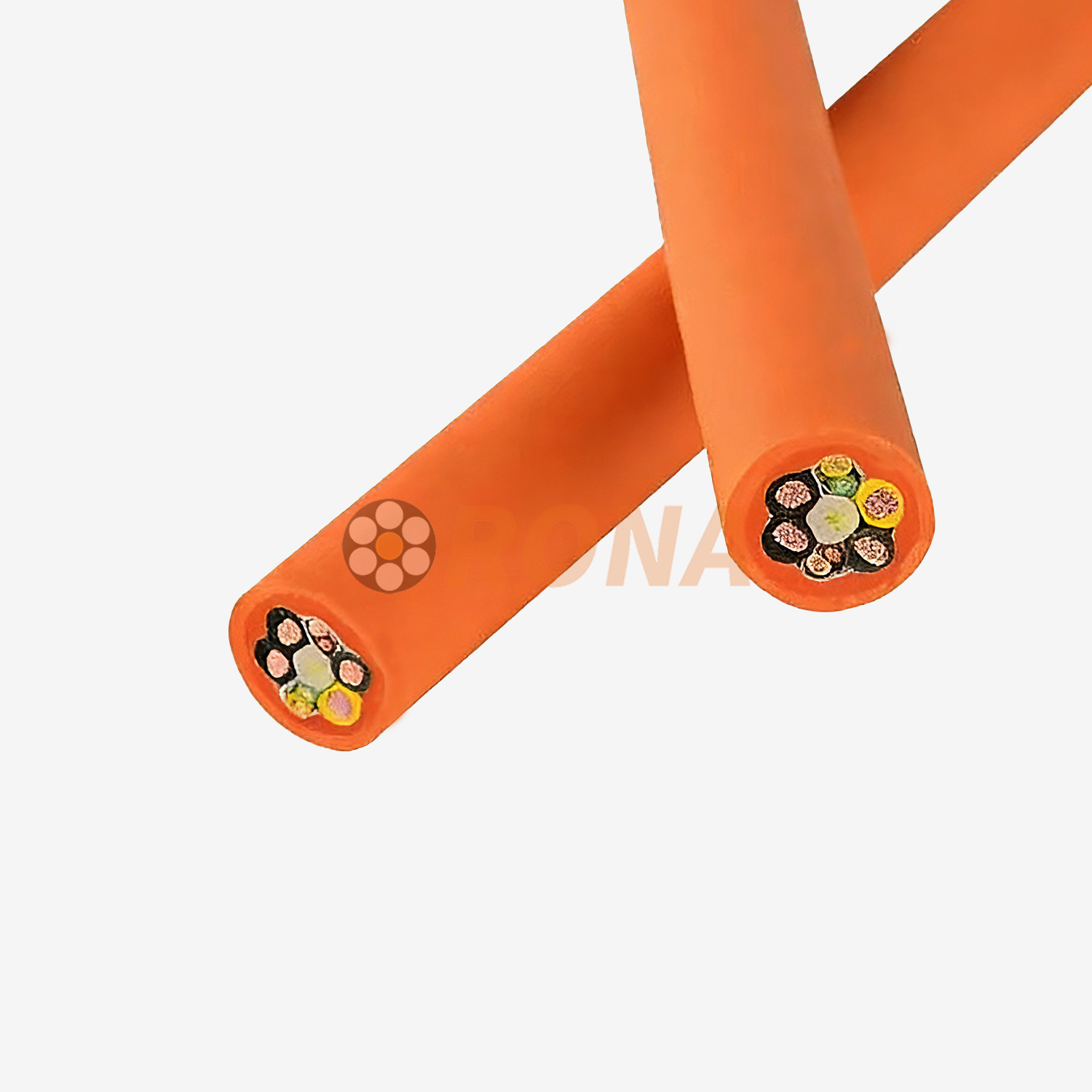

▍Construction
Conductor: Class 5 stranded bare or tinned copper
Insulation: EPR rubber, high temperature and voltage resistant
Sheath: Orange PUR, flame retardant, crush and abrasion resistant
Cores: 1 to 36 cores, with green/yellow earth wire (3+ cores)
Resistance: Oil, hydrolysis, ozone, chemicals, microbes
Certifications: CE, HAR, VDE, CPR marked
▍Technical parameters
Item | Value |
Voltage | 450/750V |
Test voltage | 2500V/5min(AC) |
Minimum bend radius | |
Fixed installation | 4xcable outside diameter |
Moving installation | 5xcable outside diameter |
Temperature range | |
Fixed installation | -50℃~90℃ |
Moving installation | -30℃~90℃ |
Retardant properties | Complied with IEC60332-1 |
▍Core Advantages
High-Voltage Performance & Extreme Environment Resilience
Stable 450/750V output with high insulation resistance and dielectric strength.
Operating temperature range: -50°C to +90°C, maintaining flexibility in cold or hot environments.
AD7 waterproof rating, UV resistant, weather and ozone resistant
—suitable for outdoor sites, ports, mines, and exposed areas.
Exceptional Durability & Chemical Resistance
PUR sheath offers outstanding abrasion, tear, impact, and crushing resistance.
Resistant to oils, lubricants, gasoline, agrochemicals, cleaning agents, and microbial growth.
Ideal for chemical plants, food processing washdown areas, agriculture, and heavy machinery.
Safety Compliance & Installation Flexibility
Conforms to EN standards, VDE certified, CPR compliant, and passes IEC 60332-1 flame test.
Low smoke, zero halogen (LSZH) properties enhance safety in case of fire.
Minimum bending radius of 5× cable diameter for tight spaces;
Suitable for both fixed and moving applications.
▍Application
Heavy Industry: Power supply for large motors, pumps, compressors in manufacturing, metallurgy, and machinery plants.
Construction & Agriculture: Mixers, cranes, hoists, irrigation systems, feed processing equipment.
Harsh Environments: Food processing washdown areas, mining equipment, cold storage units, chemical plants.
