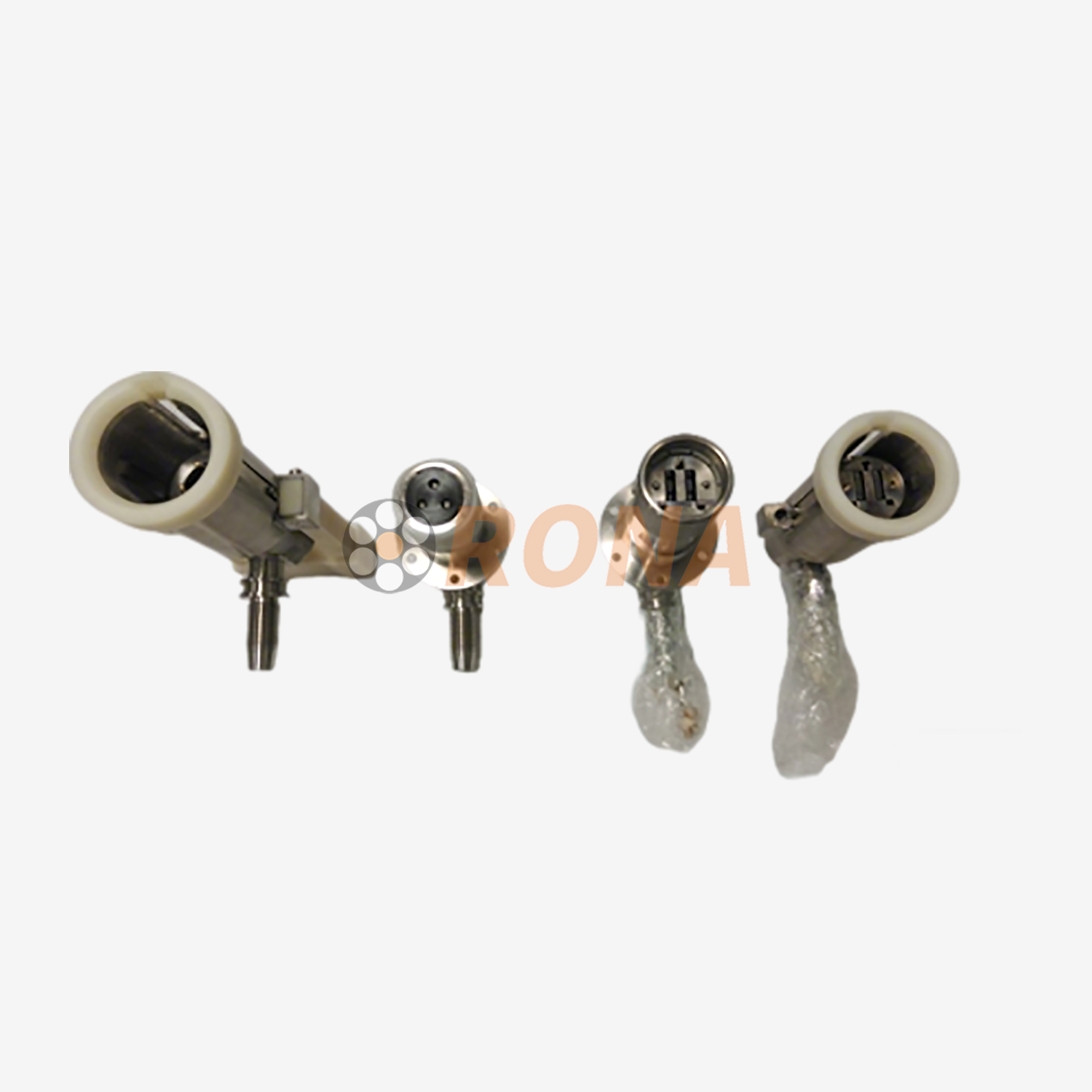

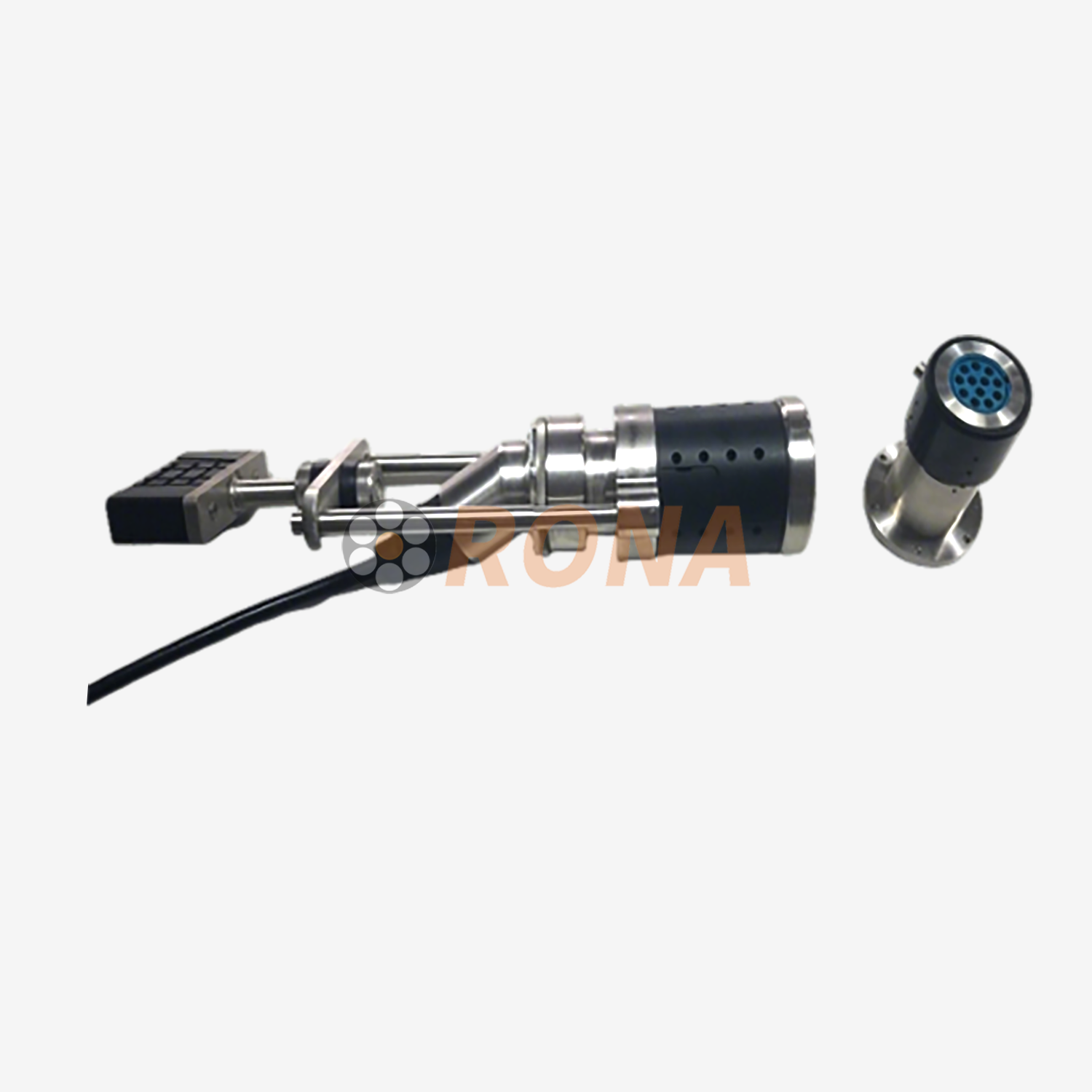

Optical & Electrical Connector Assembly
Product Description
The Full-Ocean-Depth Underwater-Mateable Optical & Electrical Connector Assembly is a core connectivity solution engineered for extreme marine environments. It delivers a stable and high-performance interface for the transmission of optical signals, electrical signals, and power, specifically designed for permanently deployed oceanographic instruments and dynamically reconfigurable underwater networks. Comprising connectors and cable assemblies, its form factor and tail length can be customized to meet diverse installation and operational requirements, providing robust hardware support for seamless data and power interconnectivity between subsea assets.
Product Features
Multi-Function Transmission: Integrates optical signal, electrical signal, and power transmission in a single interface. With 4 optical channels and selectable electrical cores, it simultaneously enables multi-channel data communication and power delivery, achieving "all-in-one" functionality.
Broad Operational Temperature Range: An operating temperature range of -45°C to +85°C allows it to function reliably across varying ocean temperatures, from polar regions to tropical waters, unaffected by extreme conditions.
Customizable Configuration: The assembly form and cable tail length can be tailored to specific customer requirements, ensuring optimal integration with the available installation space and connection distances of different marine engineering projects.
Performance Parameters
| Parameter Category | Specification |
|---|---|
| Mating Capability | Underwater-mateable |
| Electrical Contacts | 3, 7, or 12 cores |
| Optical Channels | 4 fibers |
| Cable Exit Angle | 45° or 90° |
| Contact Resistance | ≤10 mΩ |
| Insertion Loss | ≤1.5 dB (@1310nm); ≤1.2 dB (@1550nm) |
| Insulation Resistance | ≥1000 MΩ (normal conditions) |
| Dielectric Withstand Voltage | 1000 – 10000 V DC, 1 minute |
| Current Rating | 5 A – 20 A |
| Mechanical Life | 300 mating cycles |
| High-Frequency Vibration | 10 – 500 Hz, 0.75 mm / 100 m/s² |
| Shock | 100 g |
| Hydrostatic Pressure | 20 – 127 MPa (Lateral); 20 – 127 MPa (Longitudinal) |
| Operating Temperature | -45°C to +85°C |
Full-Ocean-Depth Capability with Superior Environmental Resilience: Capable of withstanding hydrostatic pressures from 20 to 127 MPa in both lateral and longitudinal directions. This ensures reliable performance across all marine depths, from shallow waters to the deepest ocean trenches, overcoming traditional limitations of deep-sea connectivity.
Underwater-Mateable for Operational Efficiency: Supports direct plugging and unplugging operations underwater, eliminating the need to retrieve equipment to the surface. This significantly streamlines the installation, maintenance, and repair processes for subsea systems, reducing operational time, costs, and enhancing overall underwater work efficiency.
Safety, Reliability, and Stable Performance: Features excellent electrical and mechanical characteristics. With a contact resistance of ≤10 mΩ, it ensures stable current transmission and minimizes power loss. An insulation resistance of ≥1000 MΩ (under normal conditions) and a dielectric withstand voltage of 1000-10000 V DC for 1 minute effectively prevent leakage and breakdown hazards, ensuring the safety of both equipment and personnel. A mechanical life of 300 mating cycles, coupled with resilience to high-frequency vibration (10–500 Hz, 0.75mm/100m/s²) and 100g shock, guarantees stable, long-term performance in complex marine conditions.
Modular, Series Design for Wide Compatibility: Employs a series design for key parameters. Electrical contact configurations are available in 3, 7, and 12 cores, with tail exit angles of 45° or 90°. This meets diverse requirements for signal channel count and installation angles from various subsea equipment, reducing application costs by eliminating the need for custom development.
A wide range of applications
Seafloor Observatories: Serves as a critical connection node between junction boxes at different levels within a cabled observatory network. It facilitates the transmission of optical/electrical signals and power between junction boxes, sensors, and the backbone network, ensuring real-time, stable data return for marine environmental monitoring and geological hazard warning.
Mariculture Facilities: Connects various equipment within intelligent ocean ranches, such as water quality monitors, feeders, and underwater cameras, to control centers for signal interconnection and power supply, enhancing the efficiency and precision of aquaculture management.
Underwater Habitat & Mobile Platform Interconnection: Enables instant connection between underwater habitats and mobile platforms like Remotely Operated Vehicles (ROVs) or Autonomous Underwater Vehicles (AUVs). It provides power replenishment and high-bandwidth data exchange, supporting extended missions for inspection, maintenance, and operation around the habitat.
Other Long-Term Deployed Oceanographic Equipment: Suitable for a wide range of permanently deployed instruments, including ecological monitoring systems and seabed resource exploration equipment, providing them with stable, long-term power and data links to ensure continuous operation and accurate data acquisition.
